  Tutorial - 2D Simplification Static analysis in SolidWorks

  1. Step 1

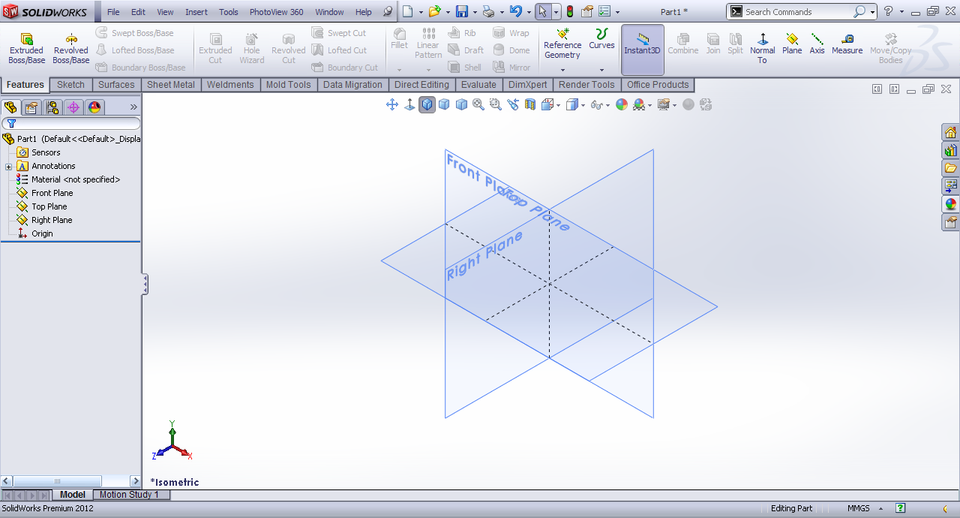

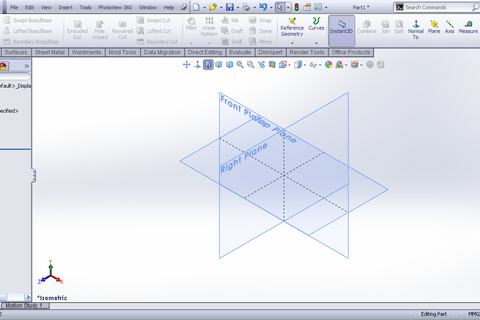

     Start SolidWorks in Part mode.



  2. Step 2

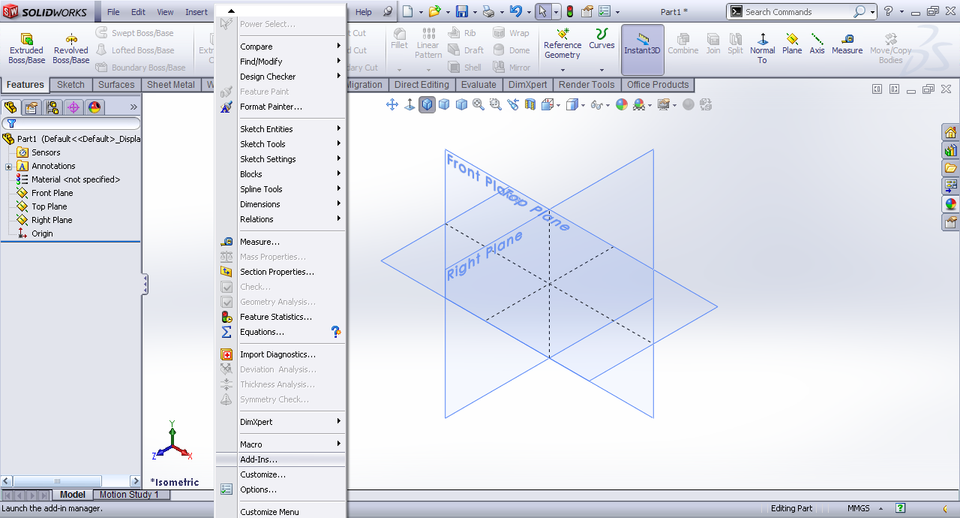

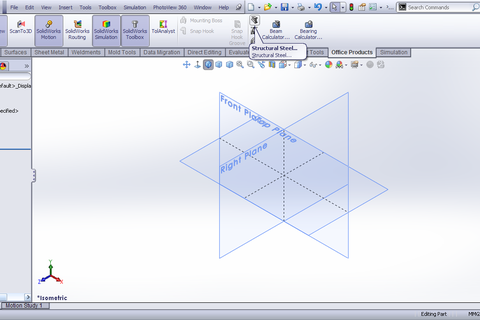

     Tools >> Addins.



  3. Step 3

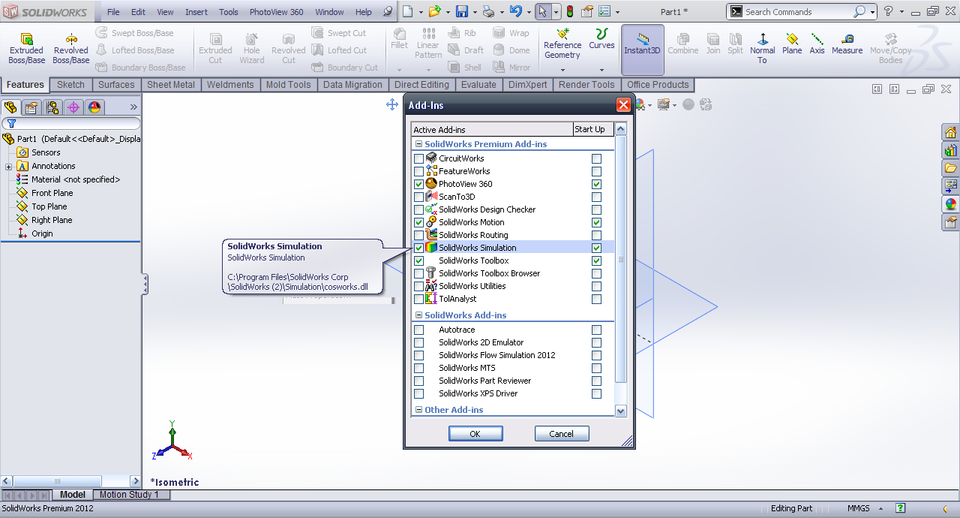

     Check the SolidWorks Simulation and SolidWorks Toolbox.



  4. Step 4

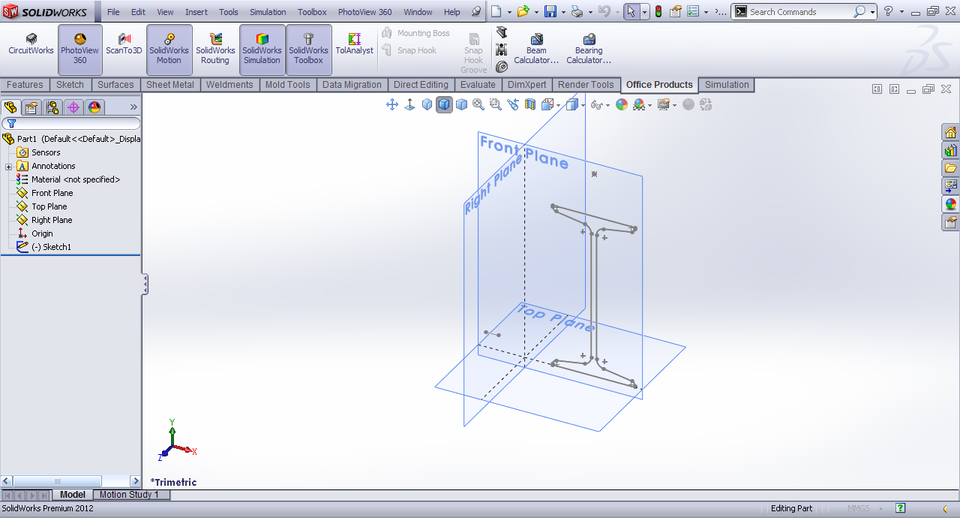

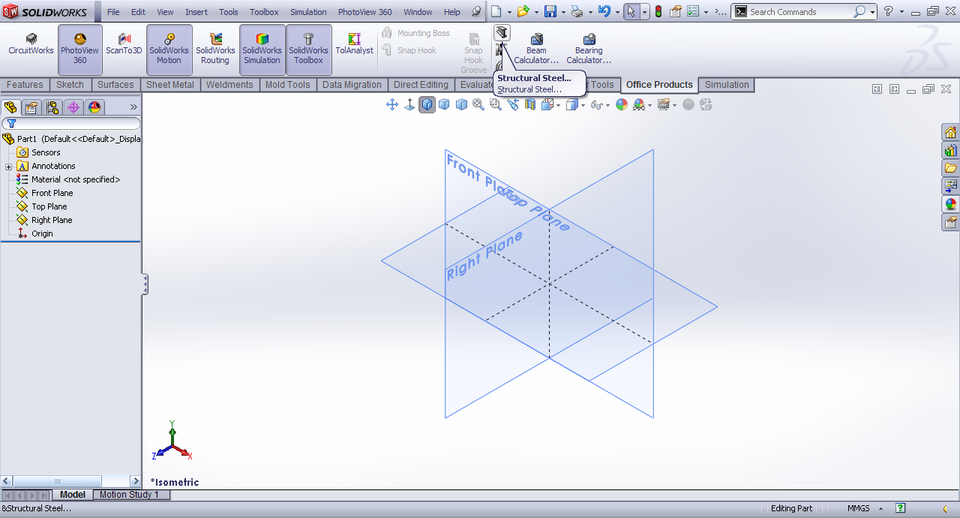

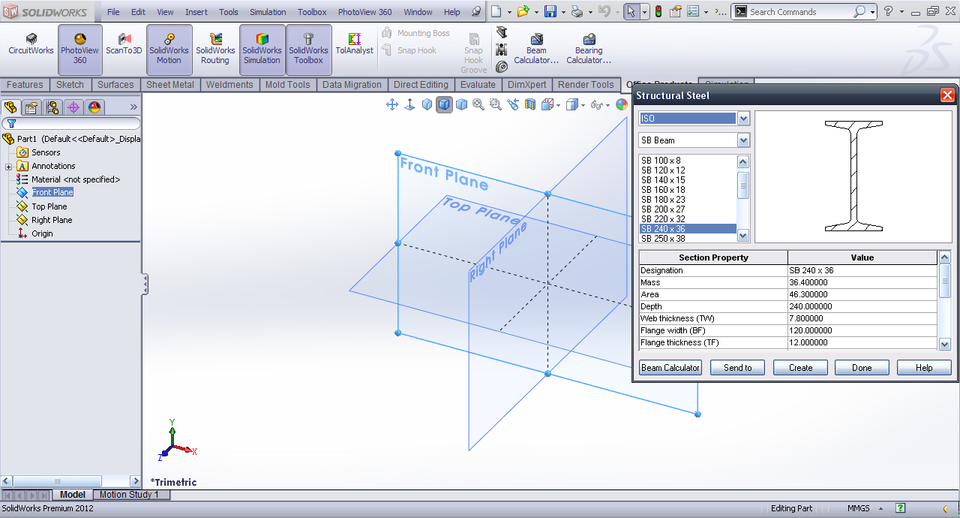

     Under Office products click Structural steel.



  5. Step 5

     Select Front plane and the beam and click create.



  6. Step 6

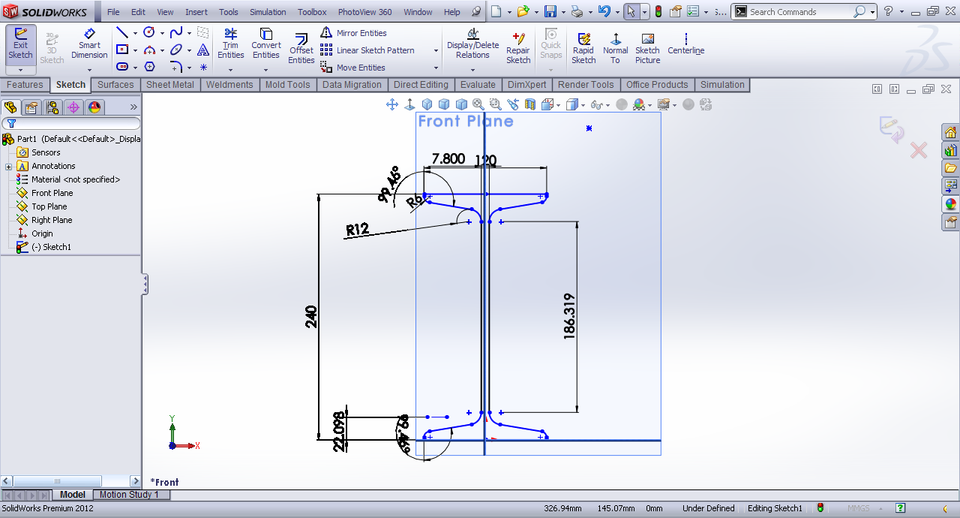

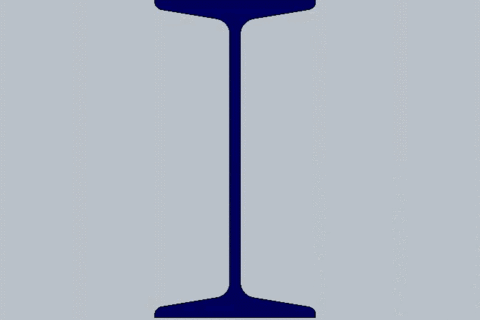

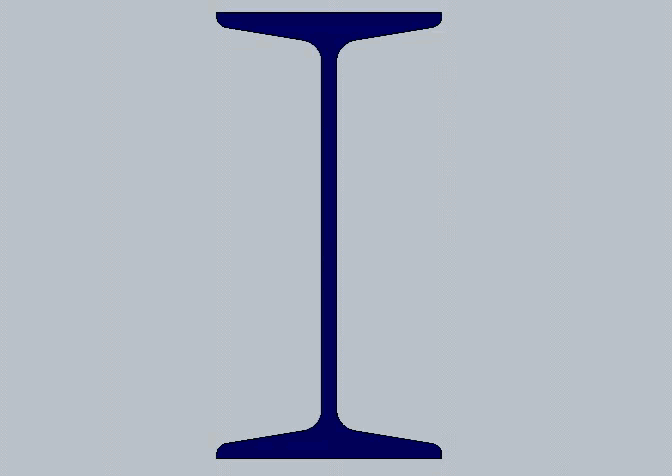

     Now we have the sketch for that particular beam.



  7. Step 7

     Edit the sketch and move it to the center.



  8. Step 8

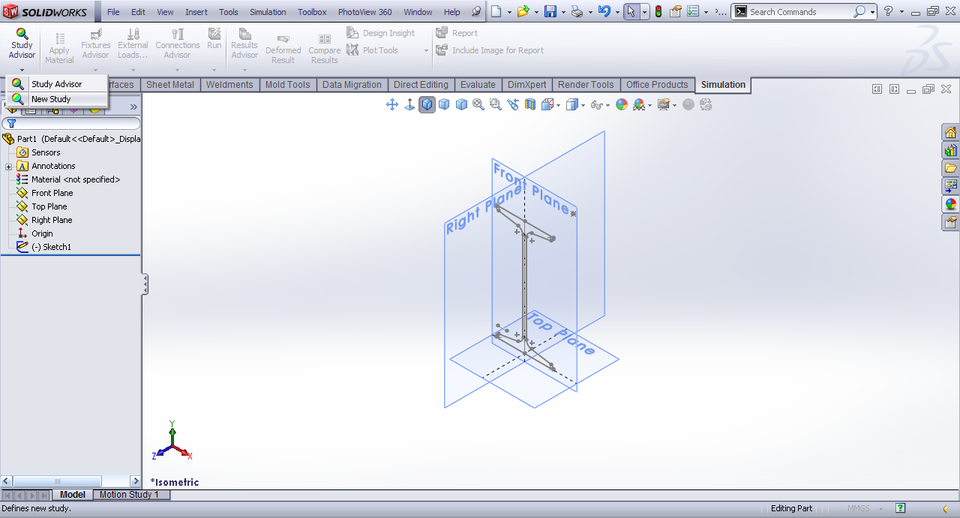

     Under Simulation select New Study in Study Advisor.

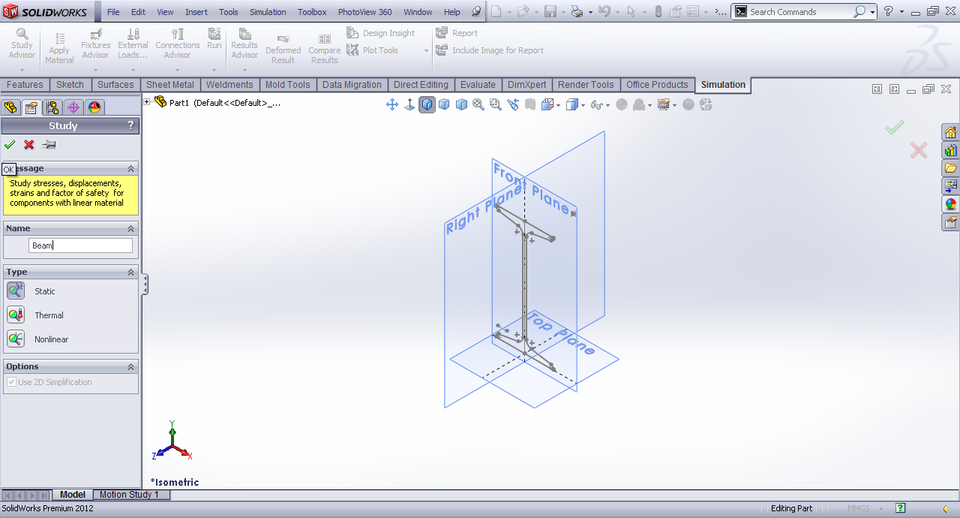

  9. Step 9

     In name type Bam and keep the default settings. Click OK.



  10. Step 10

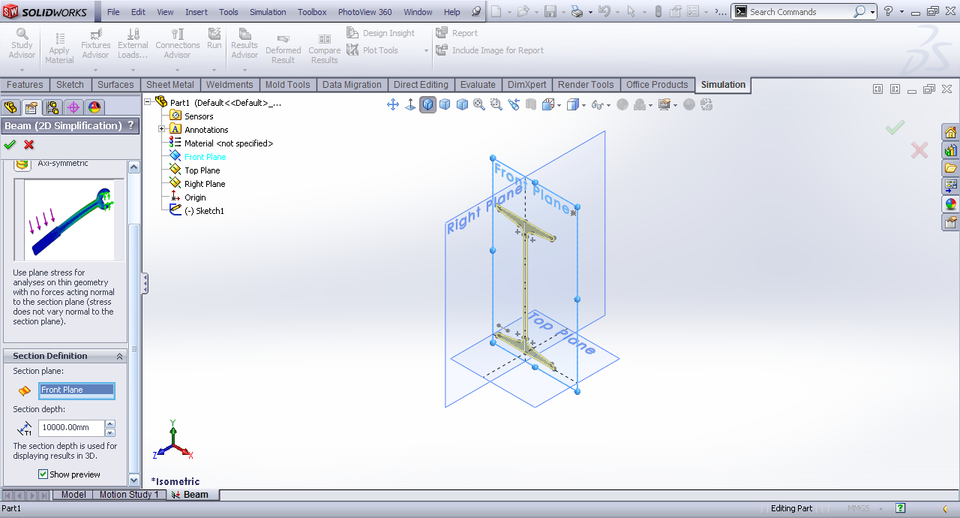

      Select front plane and input depth = 10000mm. Click OK.



  11. Step 11

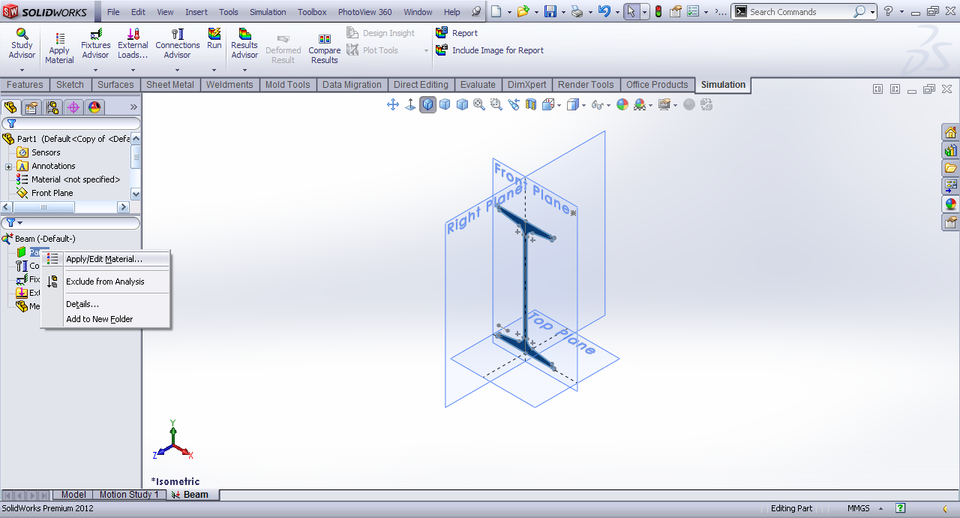

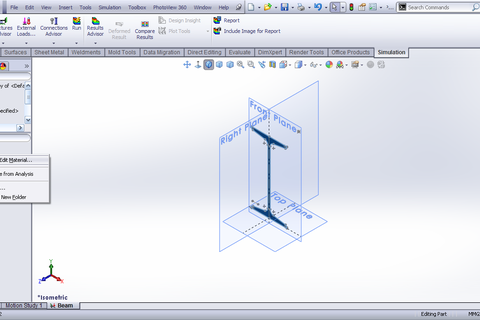

      Right click the part1 and apply edit material.

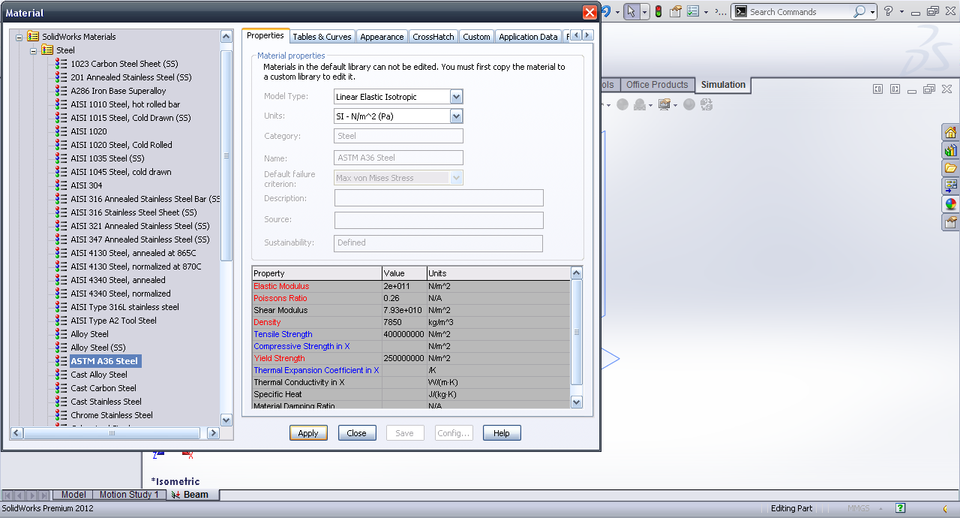

  12. Step 12

      Select ASTM A36 Steel which is mostly used structural material.

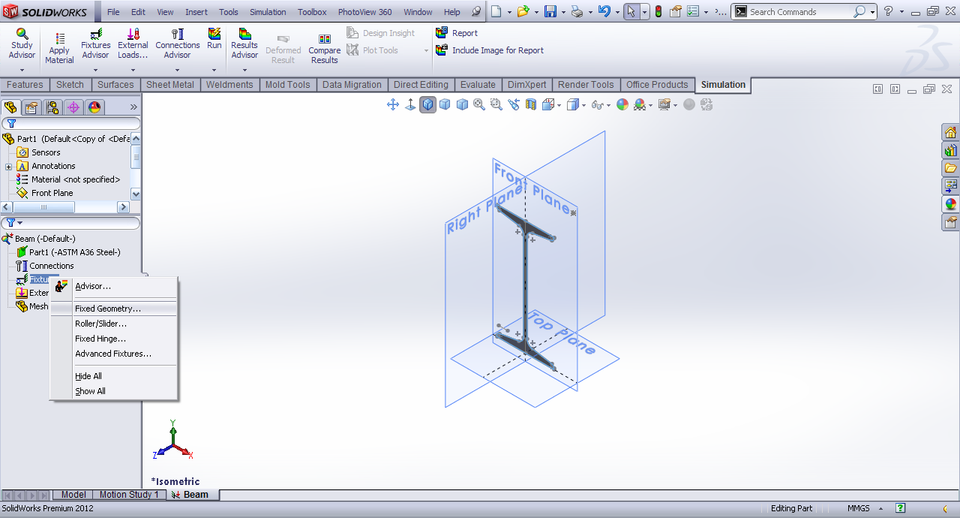

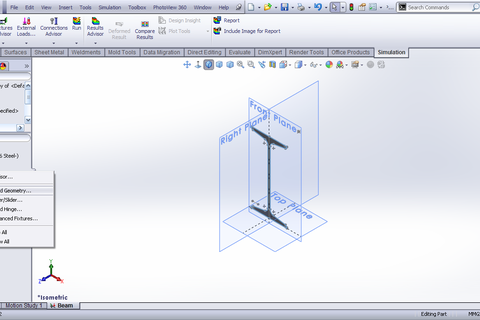

  13. Step 13

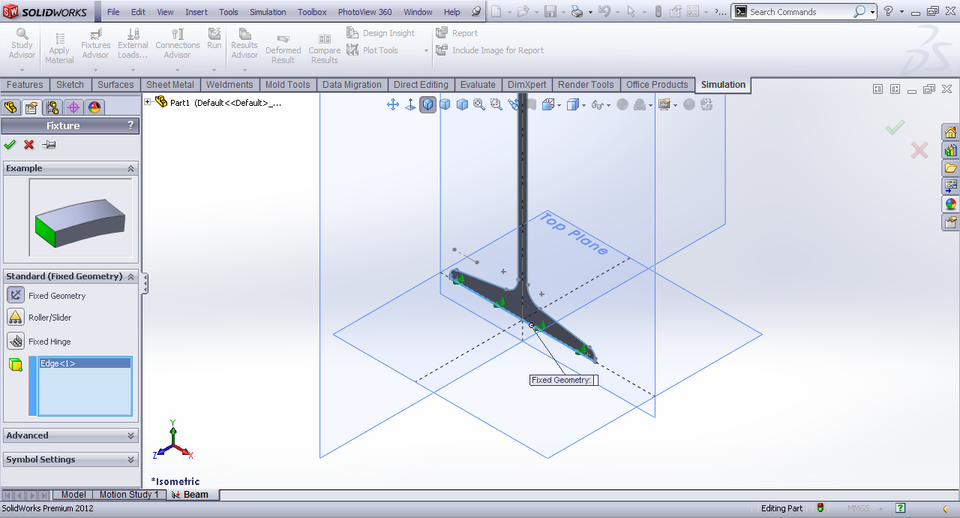

      Right click fixtures and select fixed geometry.



  14. Step 14

      Select lower edge and click OK.



  15. Step 15

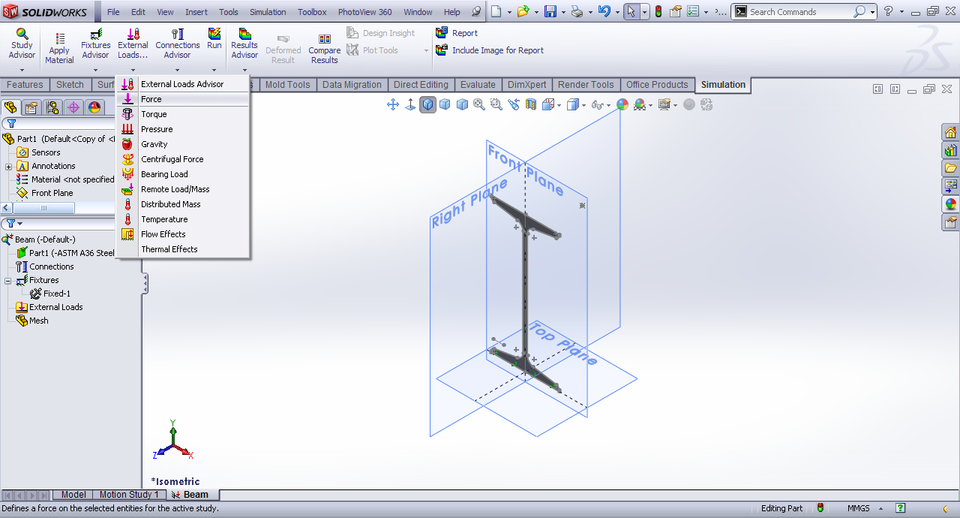

      Select force under external loads.

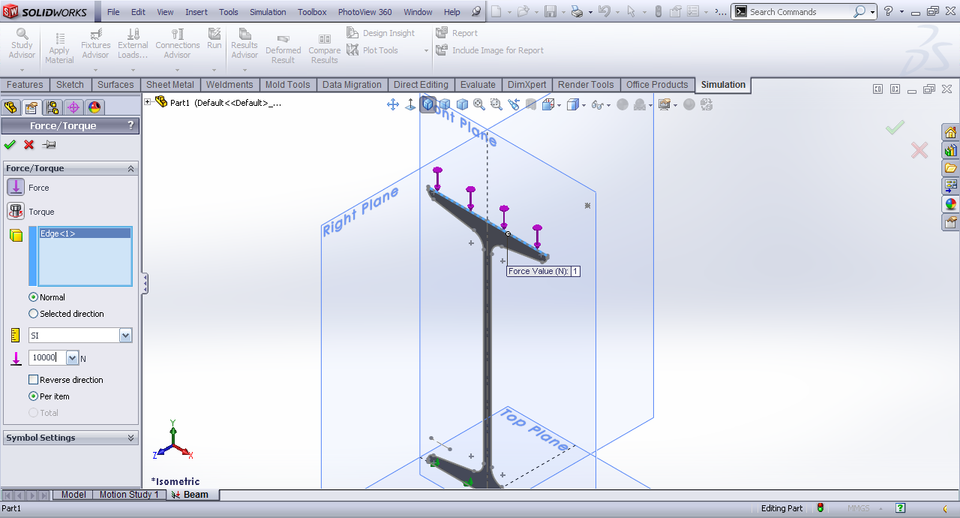

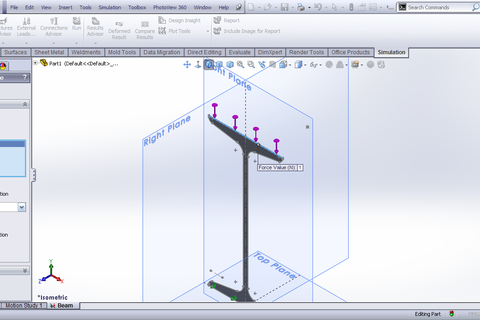

  16. Step 16

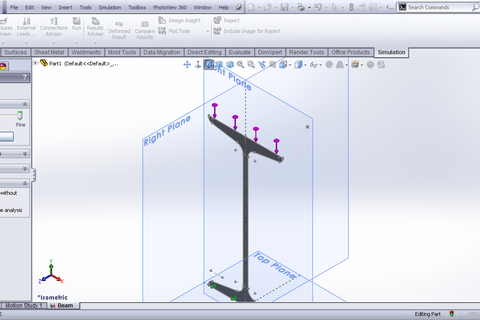

      Select upper edge and input force value 10000N.



  17. Step 17

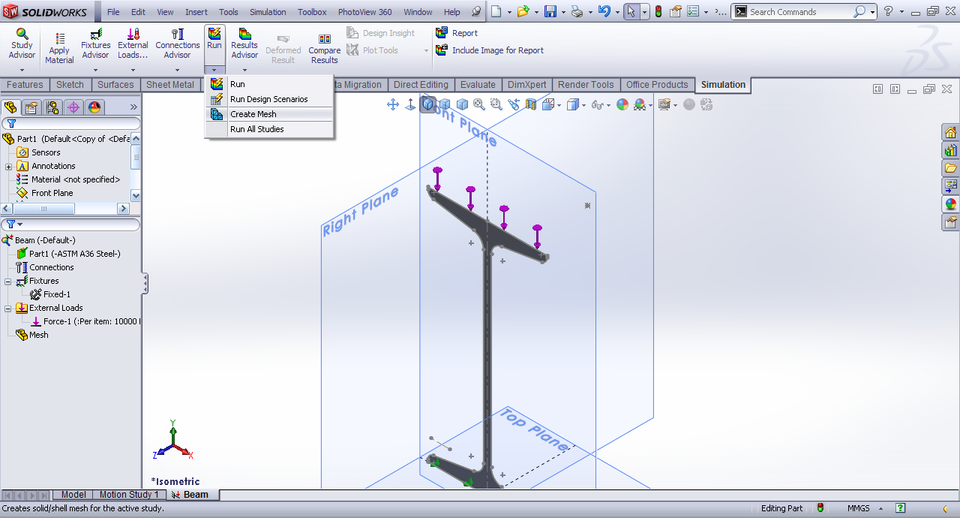

      Under run click create mesh.



  18. Step 18

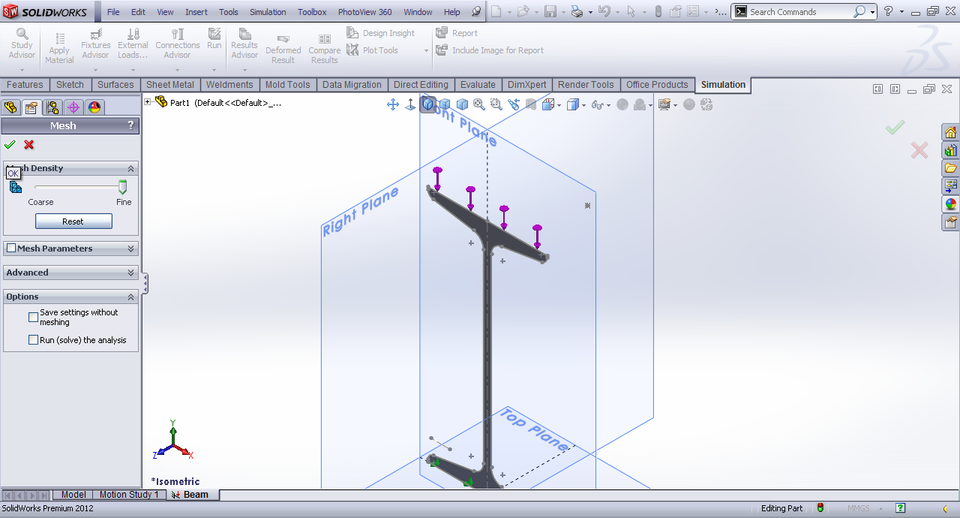

      Change mesh density to fine for better results.

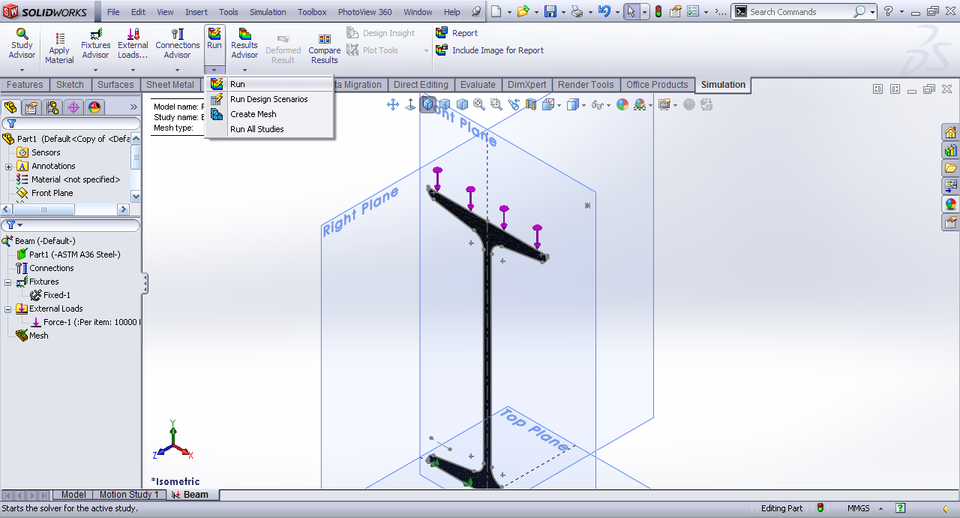

  19. Step 19

      Click run under run.



  20. Step 20

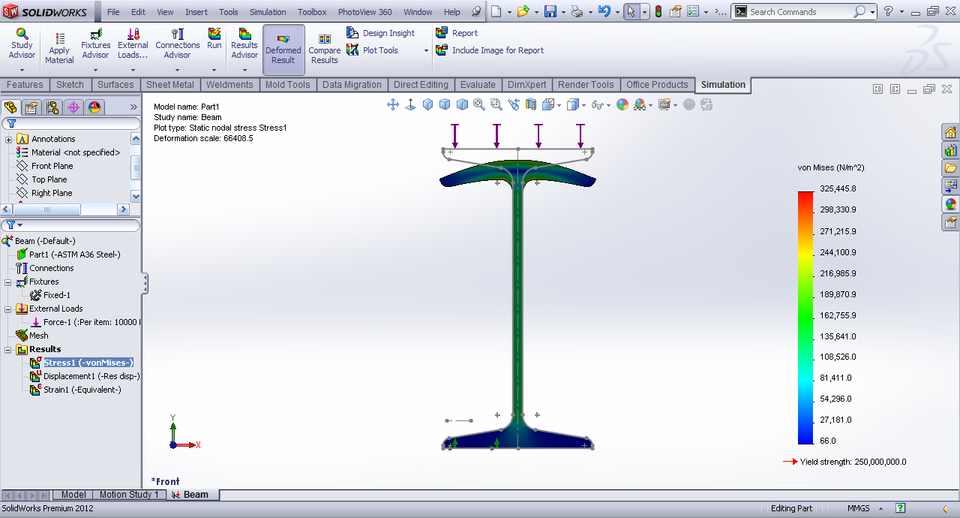

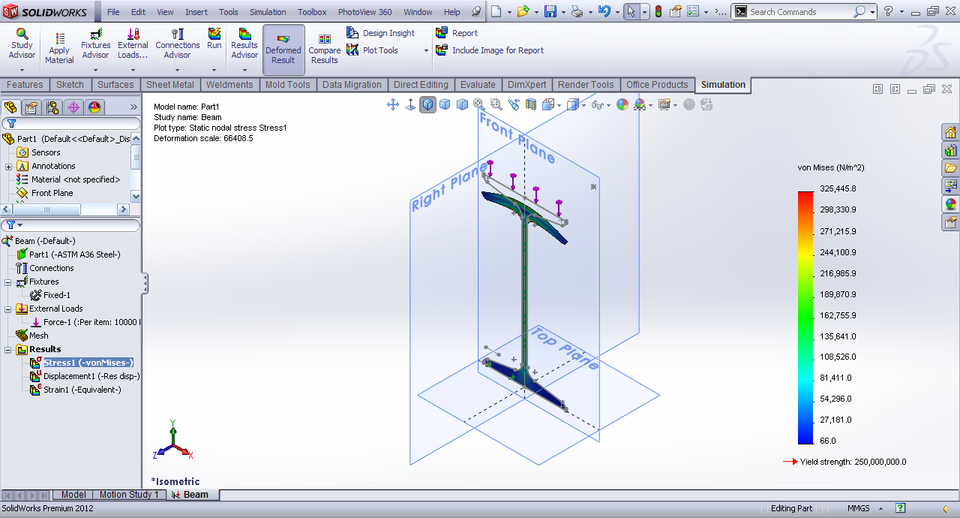

      After solver is done we will have results.

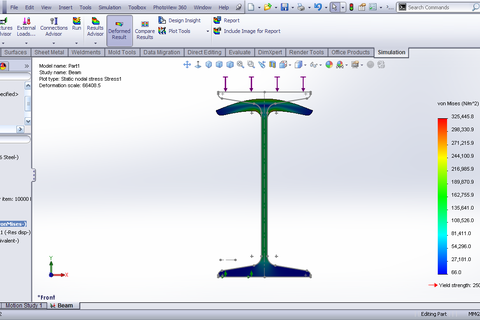

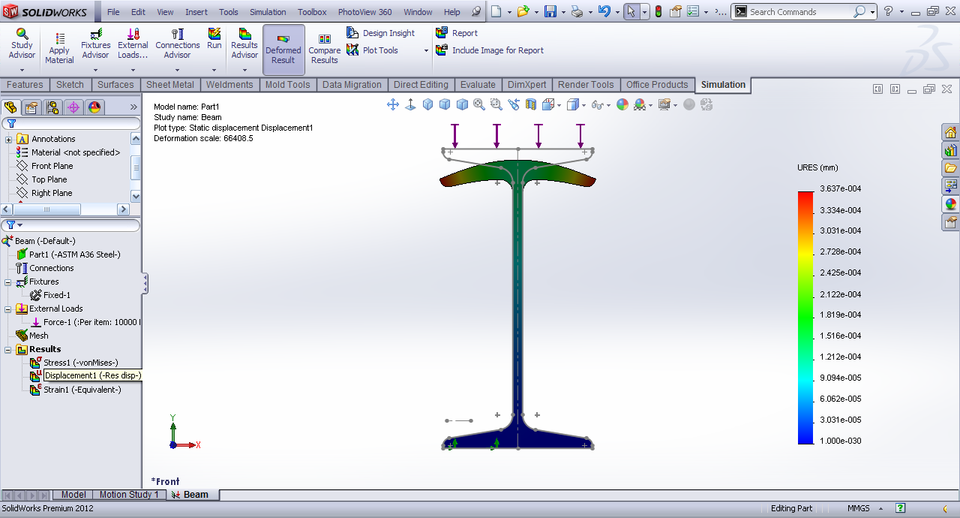

  21. Step 21

      Front view.



  22. Step 22

      We can change the plots under results.

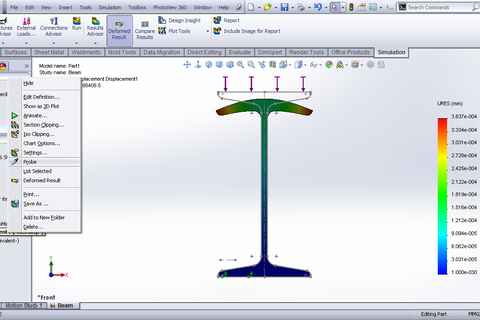

  23. Step 23

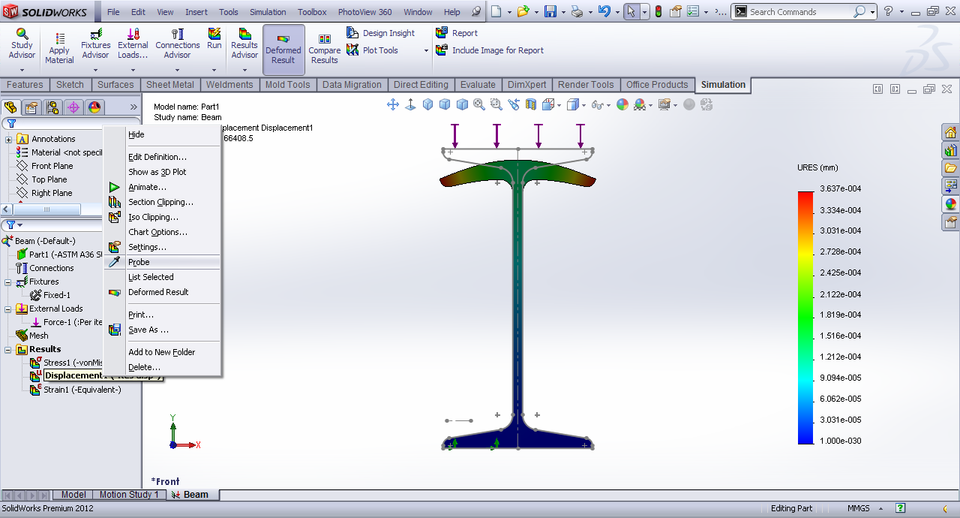

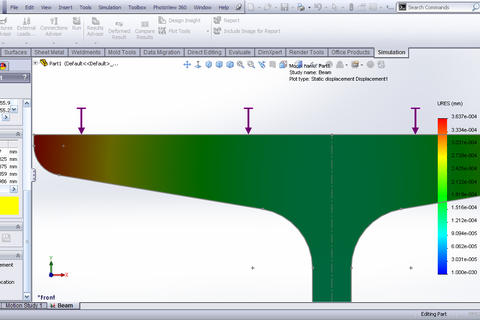

      Right click Displacement and select probe.

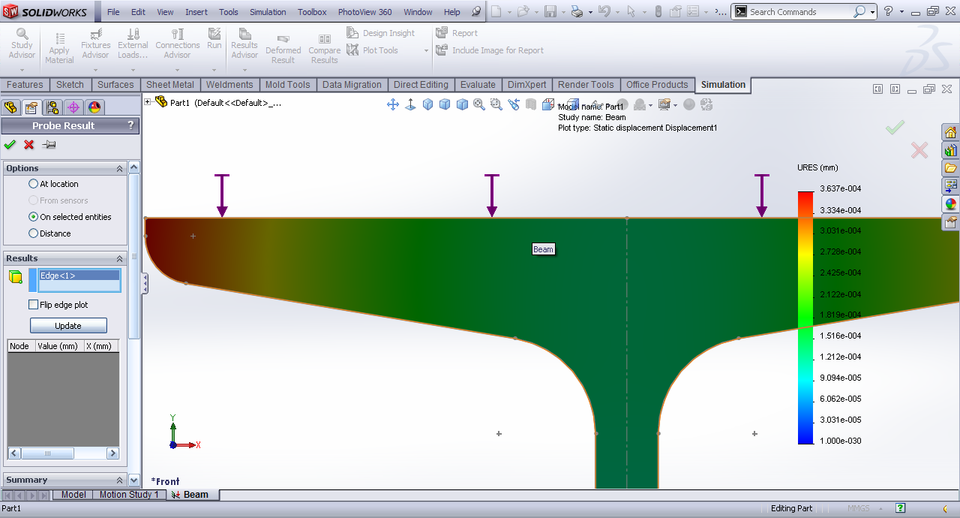

  24. Step 24

      Select on selected entities and then upper edge.



  25. Step 25

      Click Update.

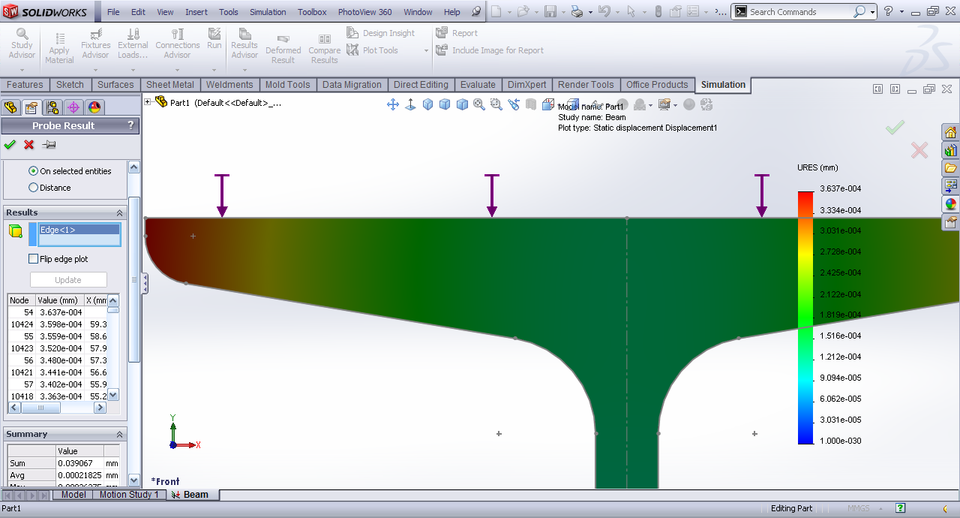

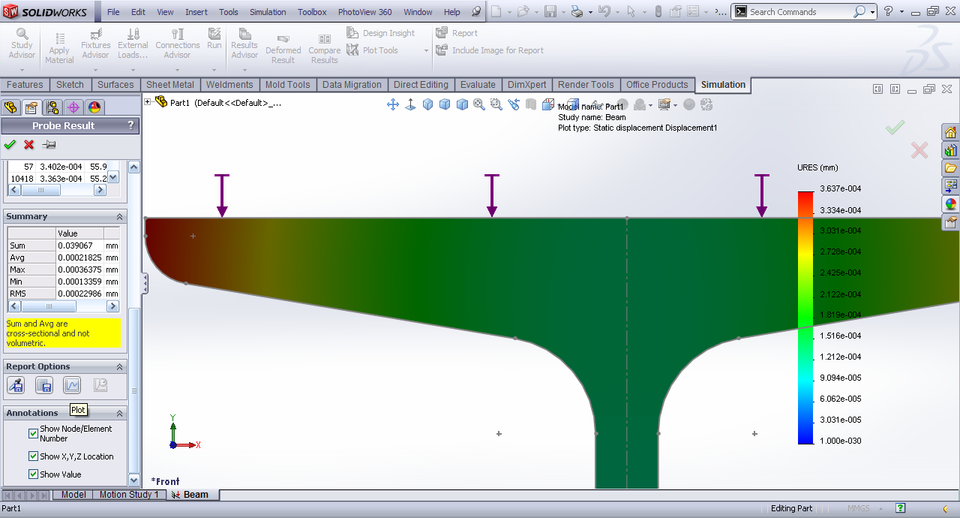

  26. Step 26

      Click Plot.

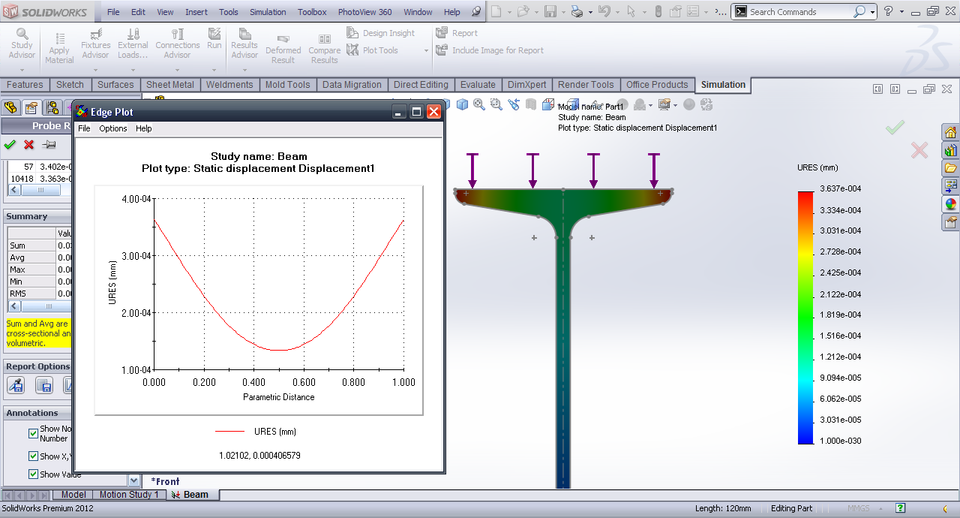

  27. Step 27

      Now we have the plot of displacement vs distance.



  1.
     Branko Stokuca about 1 year ago

     Great tutorial :)

  2.
     Sudhir Gill about 1 year ago

     right click the part in motion manager and click create plot.

  3.
     Ali Mahvan about 1 year ago

     how i can have plots such as Edge plot in your tutorial in solidworks motion study?

•
  Sudhir Gill about 1 year ago

  I had used Simulation for Assembly (Double Girder Overhead traveling crane). For contact we just defined the global component set of contacts. At start there were unwanted results. But after changing the geometry the result were as we wanted. :)
  In case of dynamic we defined initial condition of velocity (.5m/sec) for crab and the load curve (Sine) for 15sec. :P It took 3 hours and the CWR file was about 5.5GB. :P We have the result for displacement, but when we clicked stress, the solidworks got out of memory and crashed. :P

  1. Step 1

     1



•
  Sudhir Gill about 1 year ago

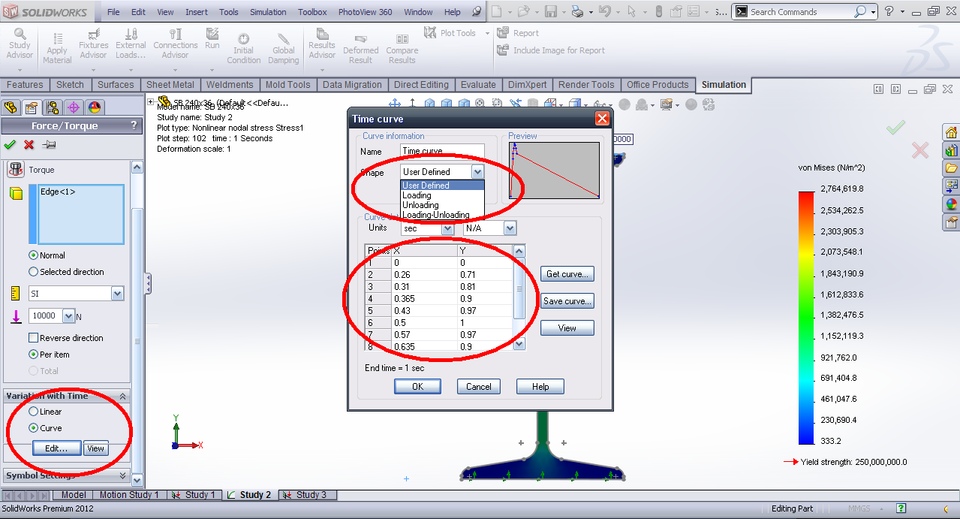

  In dynamic we can define the loading conditions. i.e. Time load curve.
