  Eghaust Camshaft

  1. Step 1

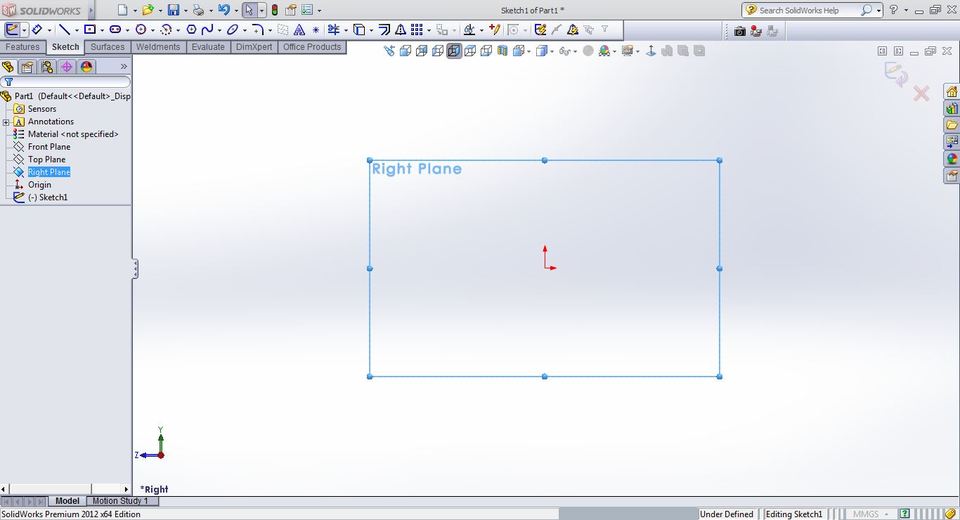

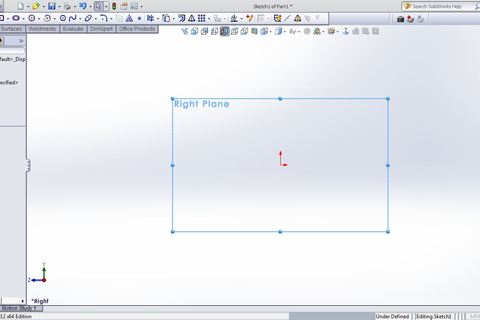

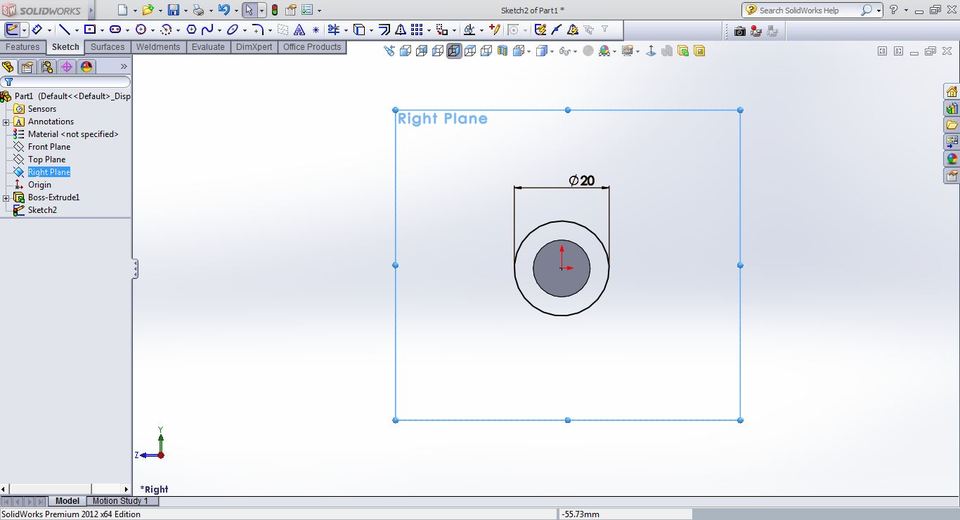

     open a sketch on the right plane



  2. Step 2

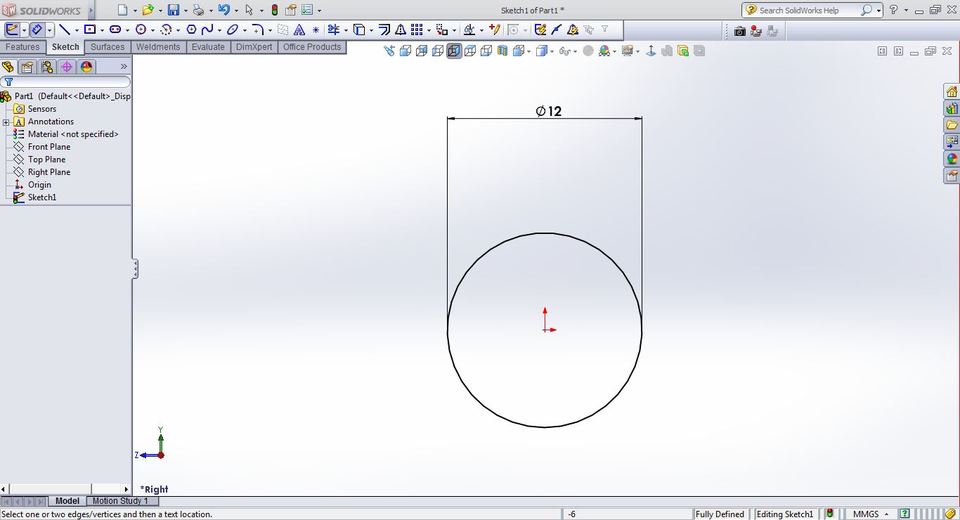

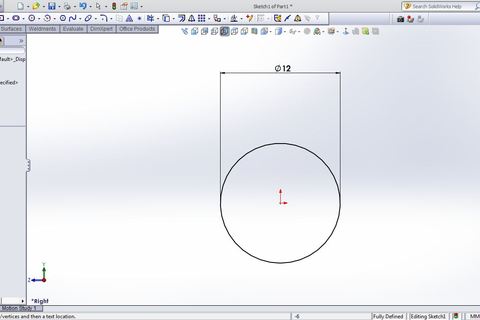

     draw a circle



  3. Step 3

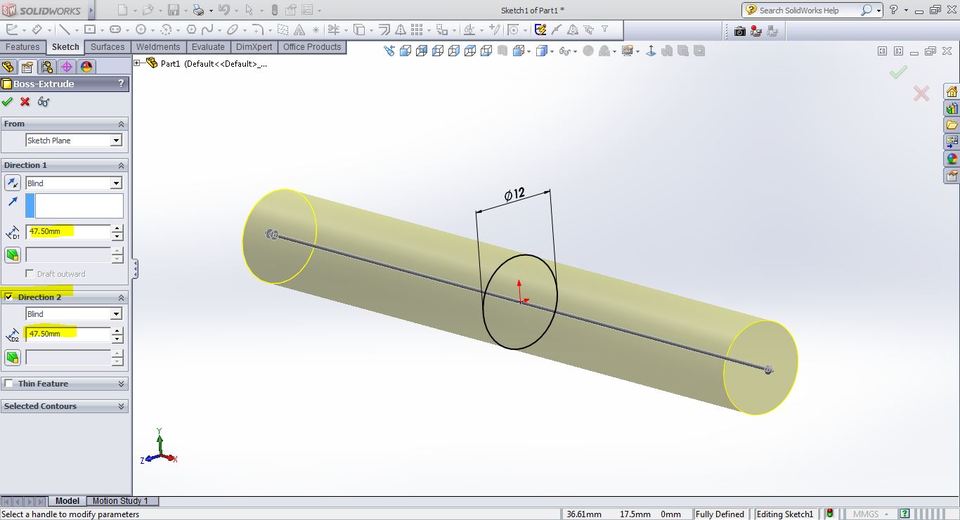

     extrude it



  4. Step 4

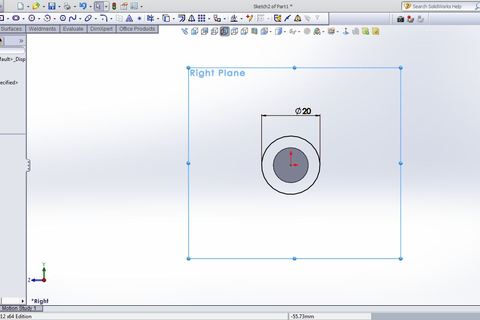

     open a sketch on the right plane again and draw a 10mm radiused circle



  5. Step 5

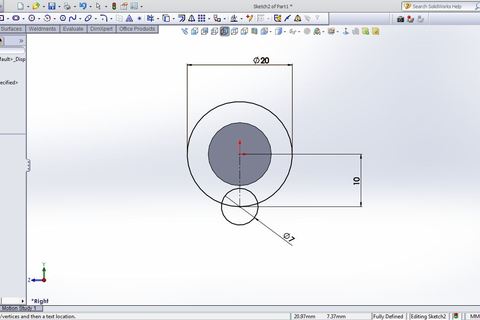

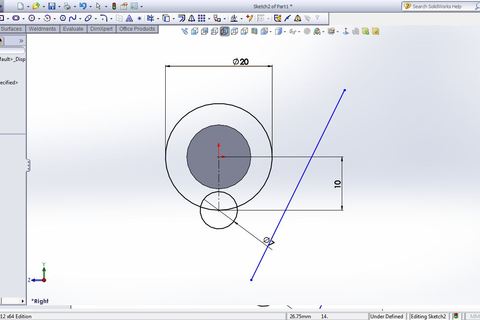

     draw an axis and one more circle like shown



  6. Step 6

     draw a line



  7. Step 7

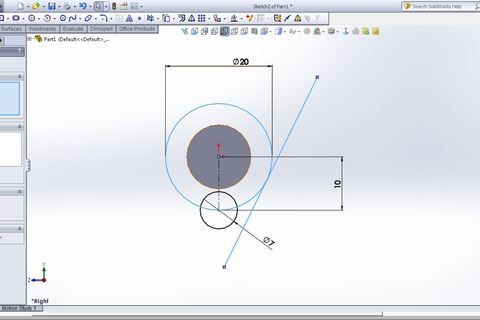

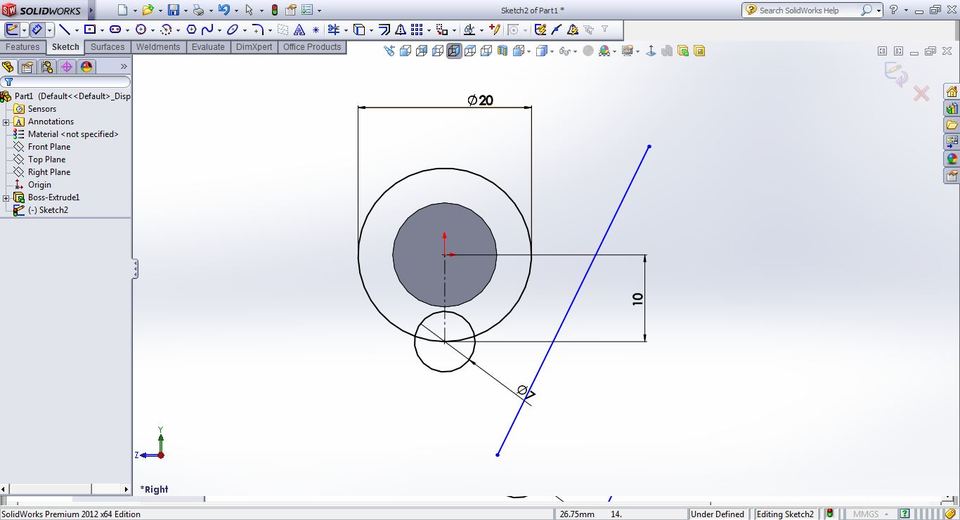

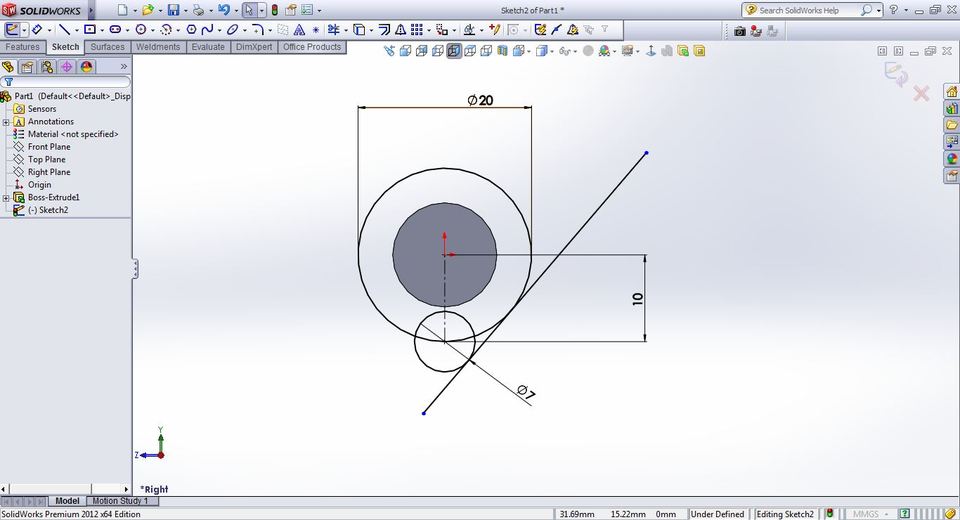

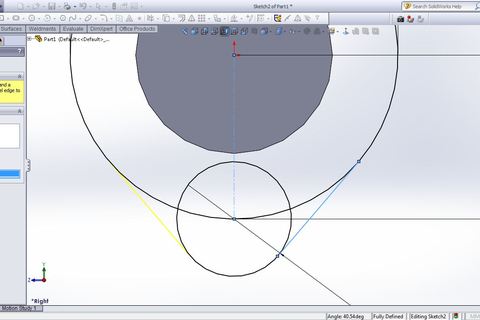

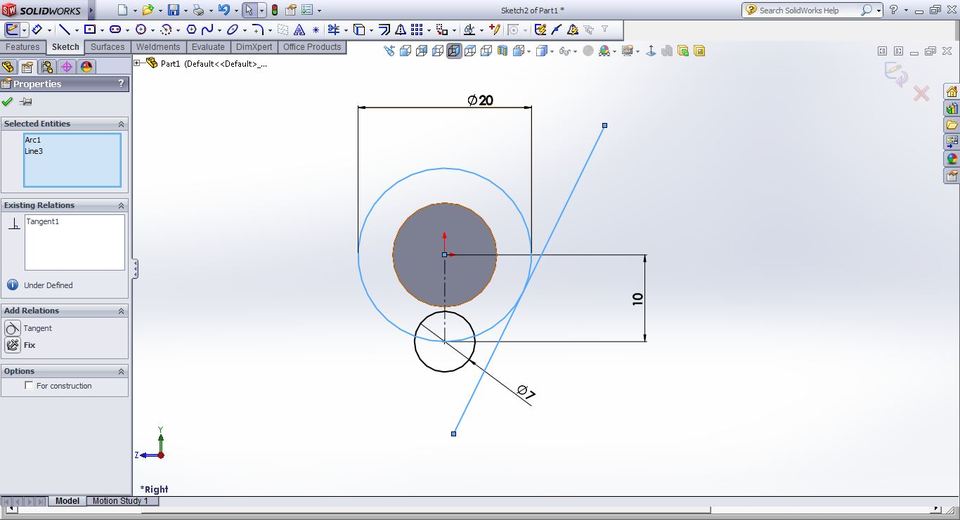

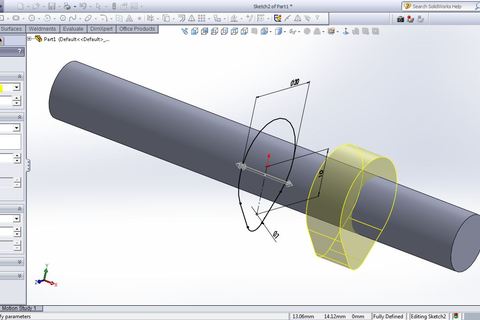

     make the line tangent with the circles



  8. Step 8

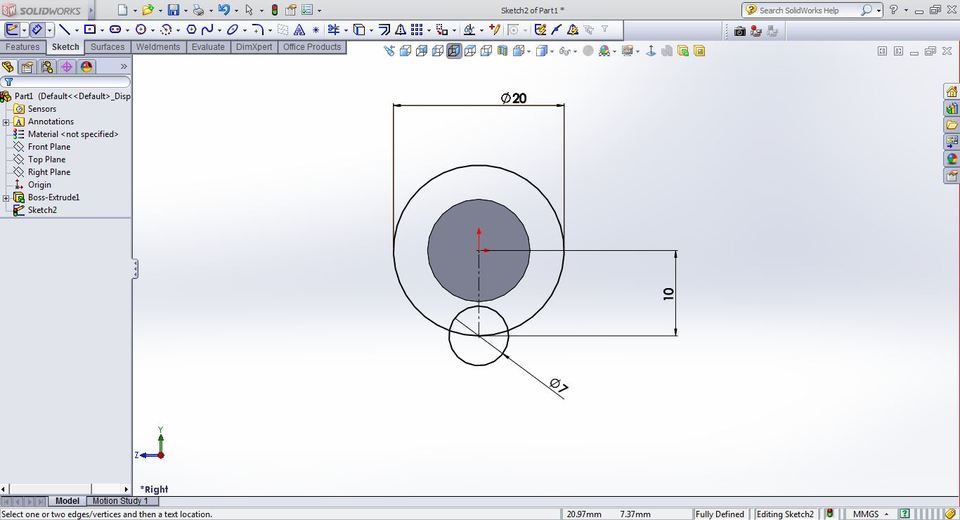

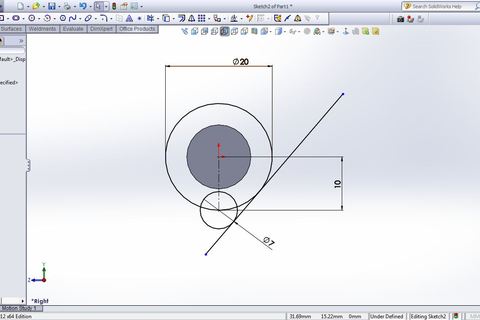

     make your sketch like this



  9. Step 9

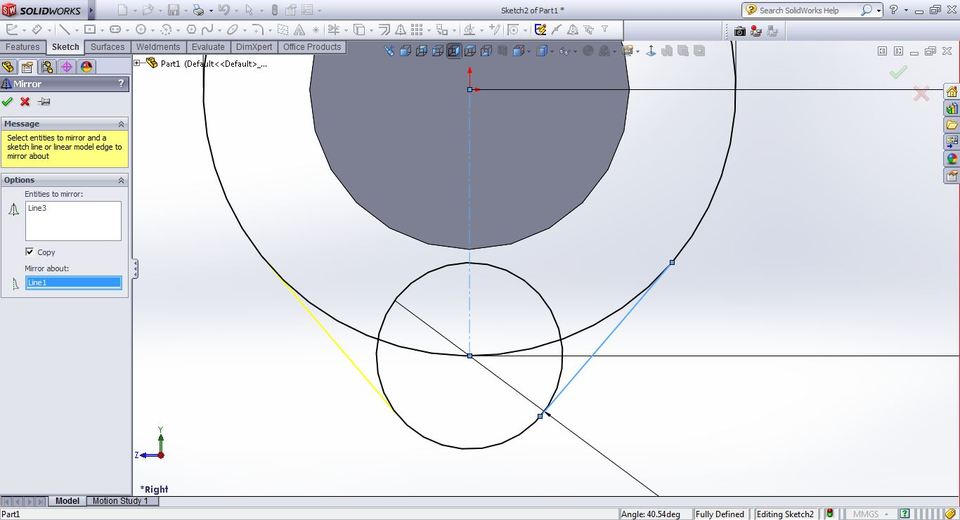

     use mirror command



  10. Step 10

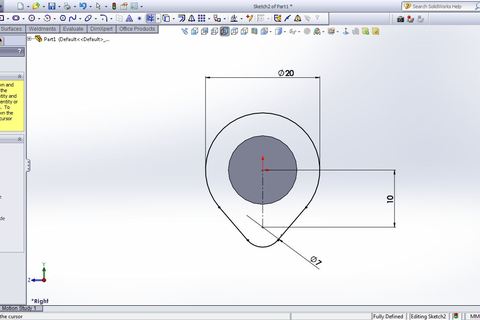

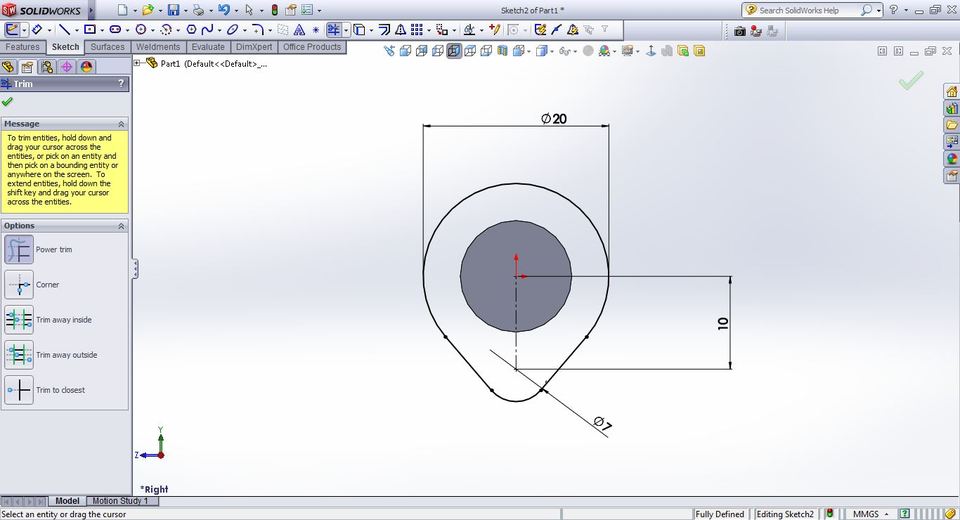

      use trim command



  11. Step 11

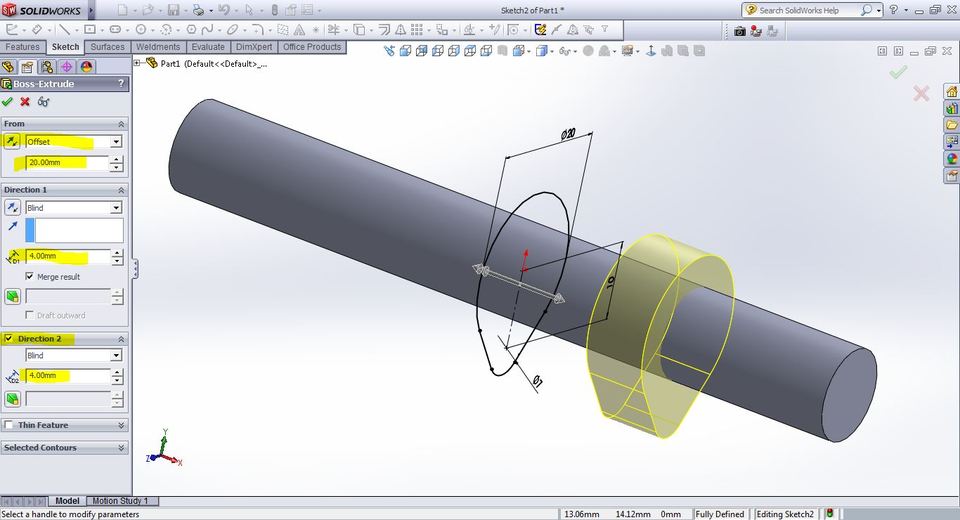

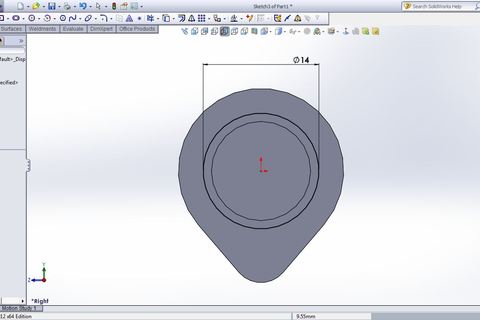

      use extrude command like shown

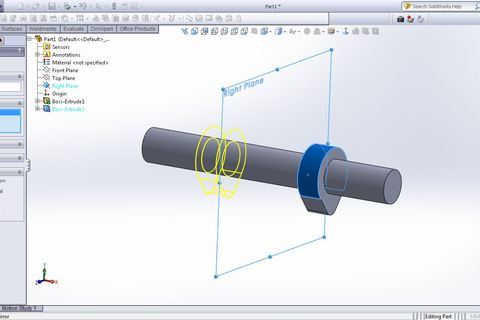

  12. Step 12

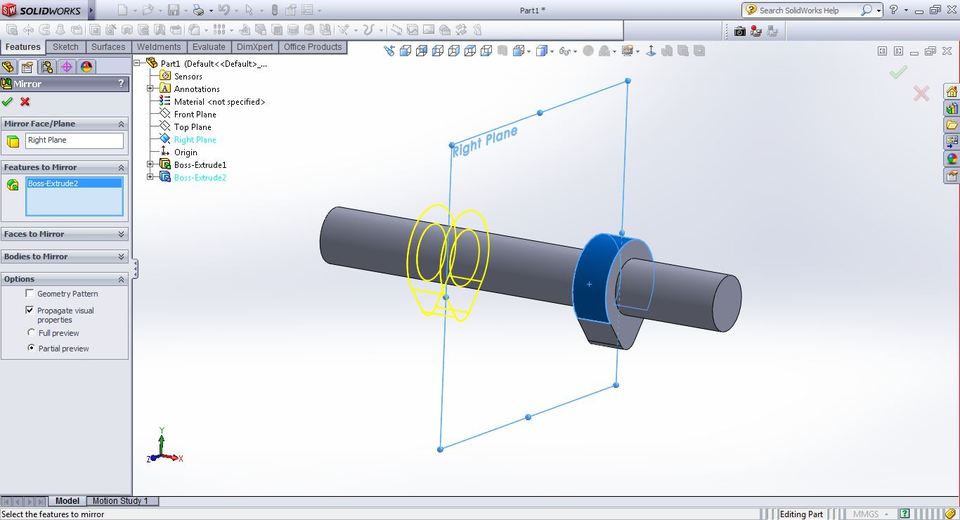

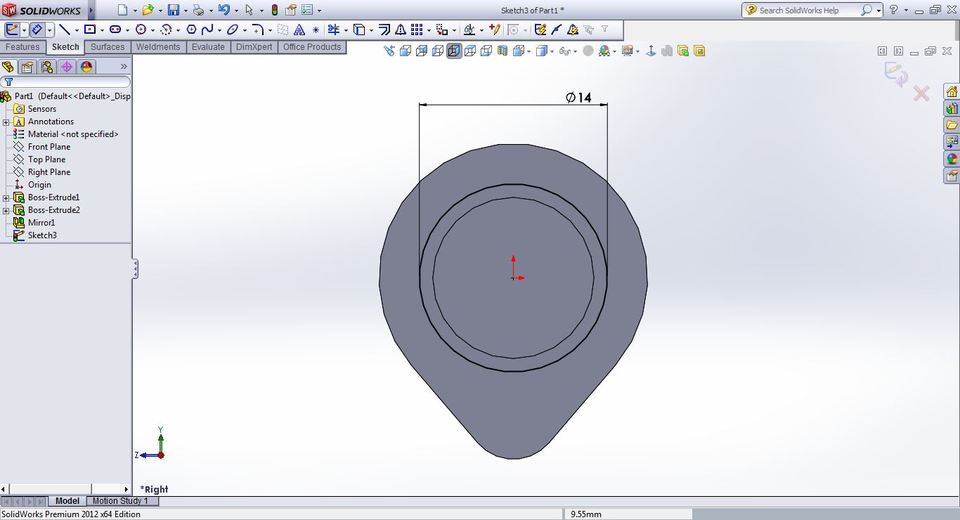

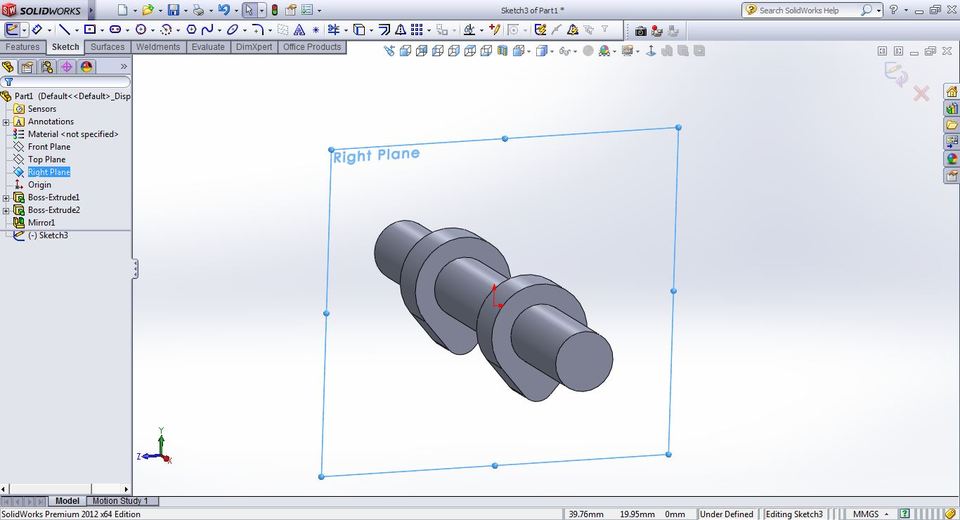

      use mirror command. use right plane as mirror plane



  13. Step 13

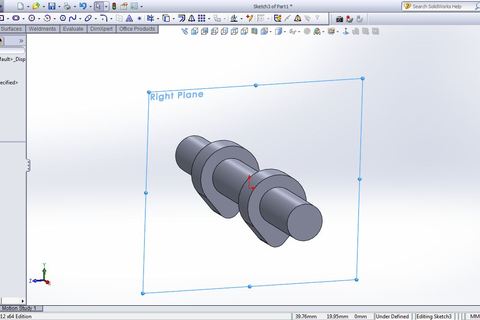

      open a sketch on the right plane..

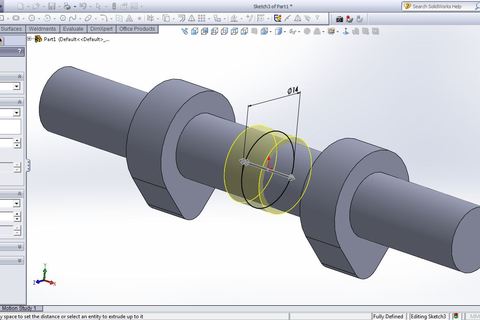

  14. Step 14

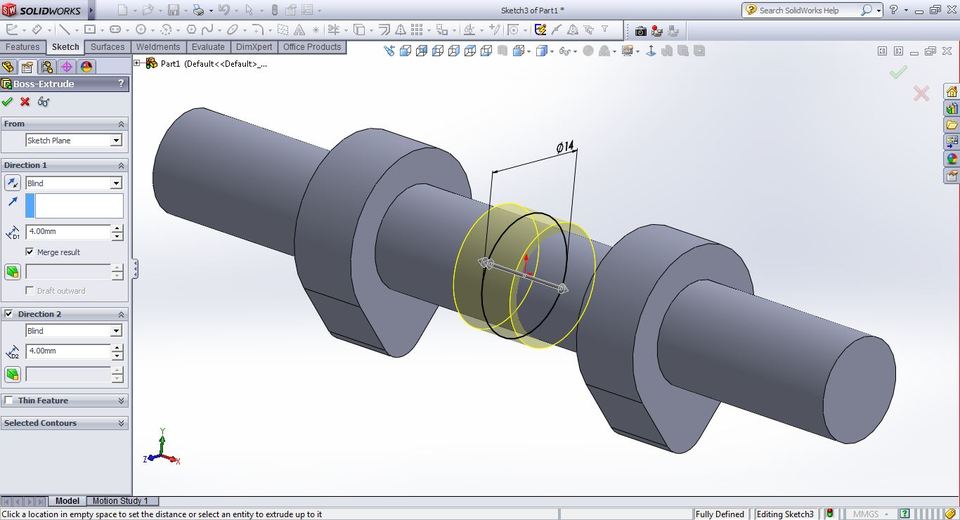

      draw a circle



  15. Step 15

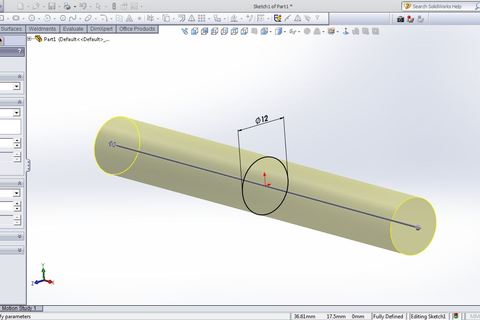

      extrude it

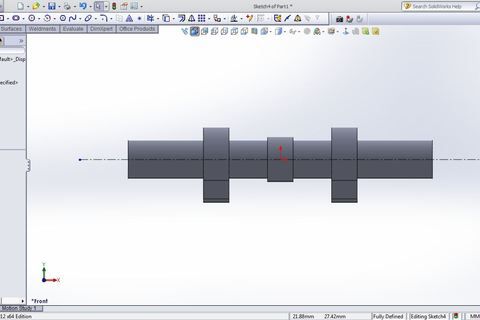

  16. Step 16

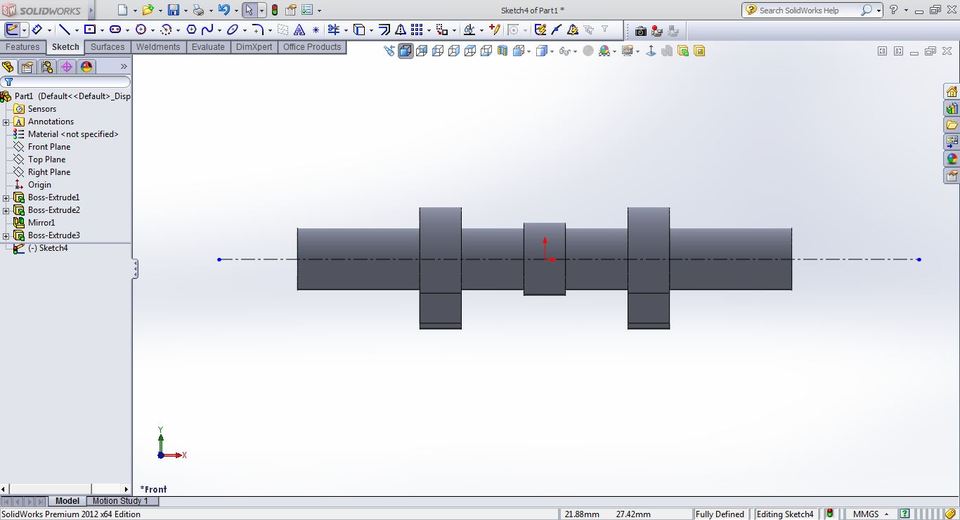

      open a sketch on the front plane and draw a centerline
