Tutorial how to make engine part 17
How to make water cooled twin turbo with intercool V12 engine - part 17 -
Carter
part 1: http://grabcad.com/questions/tutorial-how-to-make-engine-part-1
part 2: http://grabcad.com/questions/tutorial-how-to-make-engine-part-2--1
part 3: http://grabcad.com/questions/tutorial-how-to-make-engine-part-3
part 4: http://grabcad.com/questions/tutorial-how-to-make-engine-part-4
part 5: http://grabcad.com/questions/tutorial-how-to-make-engine-part-5
part 6: http://grabcad.com/questions/tutorial-how-to-make-engine-part-6
part 7: http://grabcad.com/questions/tutorial-how-to-make-engine-part-7
part 8: http://grabcad.com/questions/tutorial-how-to-make-engine-part-8
part 9: http://grabcad.com/questions/tutorial-how-to-make-engine-part-9
part 10: http://grabcad.com/questions/tutorial-how-to-make-engine-part-10
part 11: http://grabcad.com/questions/tutorial-how-to-make-engine-part-11
part 12: http://grabcad.com/questions/tutorial-how-to-make-engine-part-12
part 13: http://grabcad.com/questions/tutorial-how-to-make-engine-part-13
part 14: http://grabcad.com/questions/tutorial-how-to-make-engine-part-14
part 15: http://grabcad.com/questions/tutorial-how-to-make-engine-part-15
part 16: http://grabcad.com/questions/tutorial-how-to-make-engine-part-16
part 17: http://grabcad.com/questions/tutorial-how-to-make-engine-part-17
part 18: http://grabcad.com/questions/tutorial-how-to-make-engine-part-18
part 19: http://grabcad.com/questions/tutorial-how-to-make-engine-part-19
part 20: http://grabcad.com/questions/tutorial-how-to-make-engine-part-20
part 21: http://grabcad.com/questions/tutorial-how-to-make-engine-part-21
part 22: http://grabcad.com/questions/tutorial-how-to-make-engine-part-22
part 23: http://grabcad.com/questions/tutorial-how-to-make-engine-part-23
part 24: http://grabcad.com/questions/tutorial-how-to-make-engine-part-24
part 25: http://grabcad.com/questions/tutorial-how-to-make-engine-part-25
part 26: http://grabcad.com/questions/tutorial-how-to-make-engine-part-26
5 answers
-
Aykut Dana about 1 year ago
Carter-2
-
Step 1

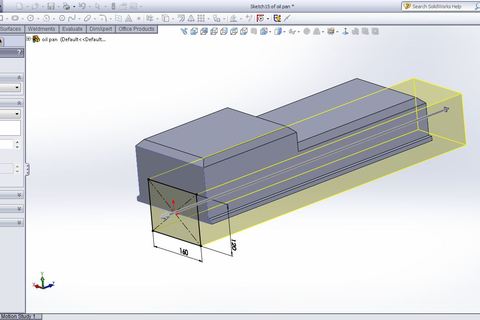

draw shown sketch on the blue surface
-
Step 2

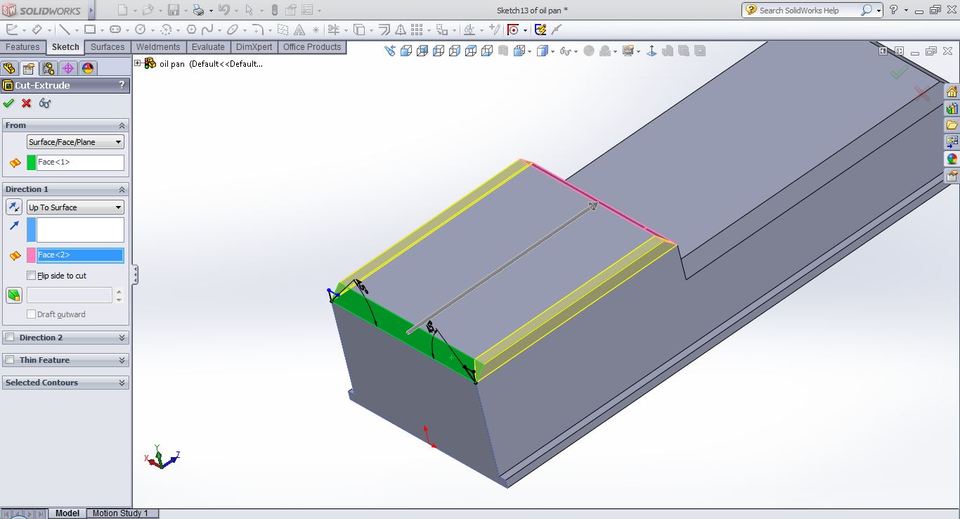

use cut extrude command .
-
Step 3

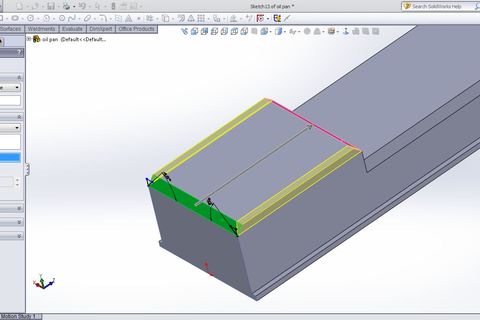

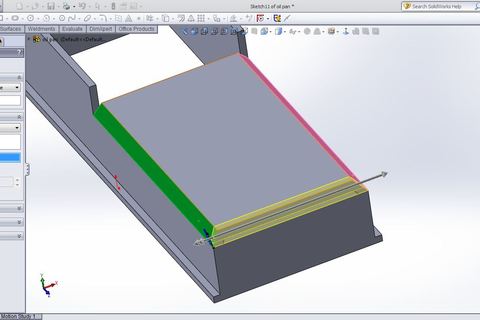

use extrude command. click on 'from surfacde-face-plane' option and select he green surface. then click on direction 1 'up to surface' and select the pink surface
-
Step 4

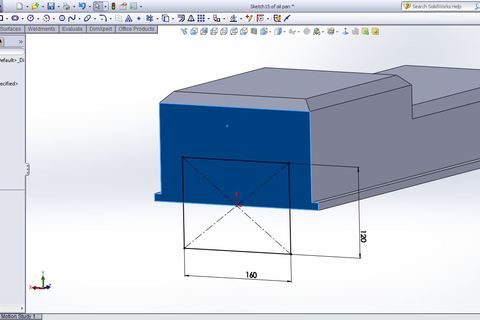

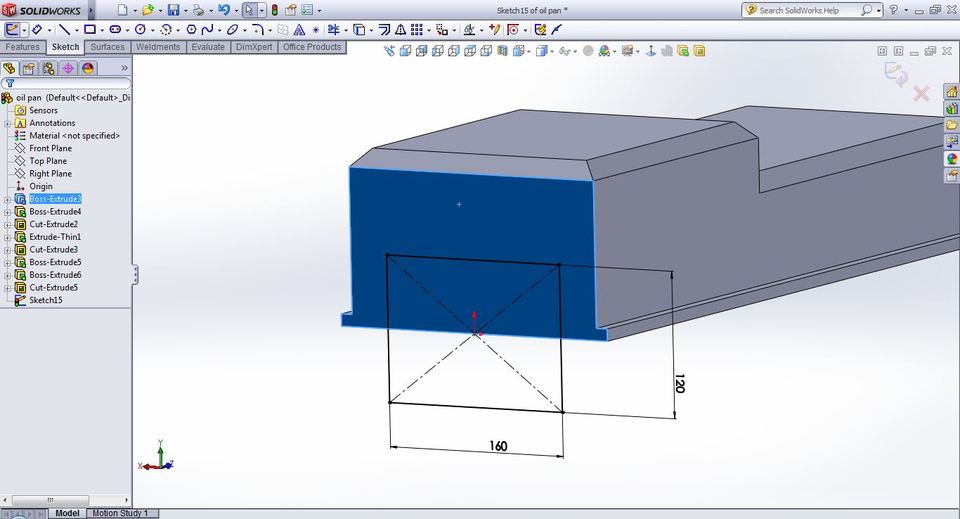

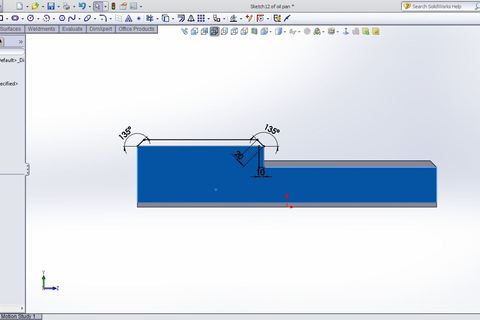

draw shown sketch on the blue surface..
-
Step 5

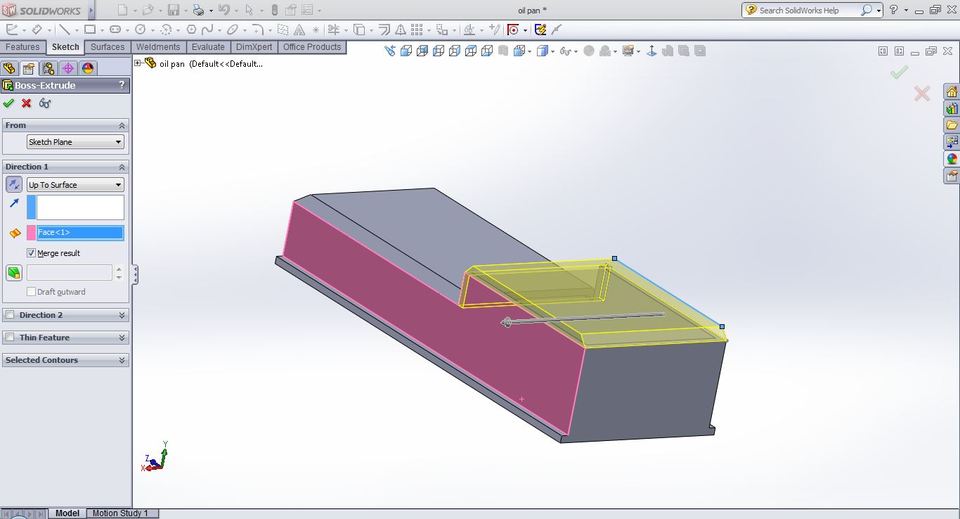

extrude the sketch up to pink surface
-
Step 6

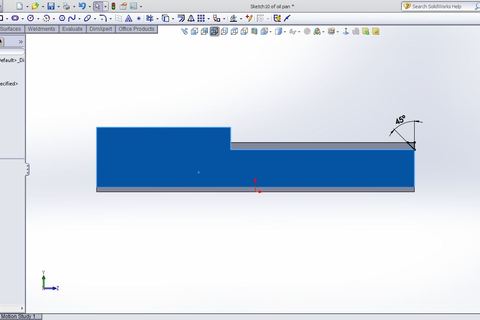

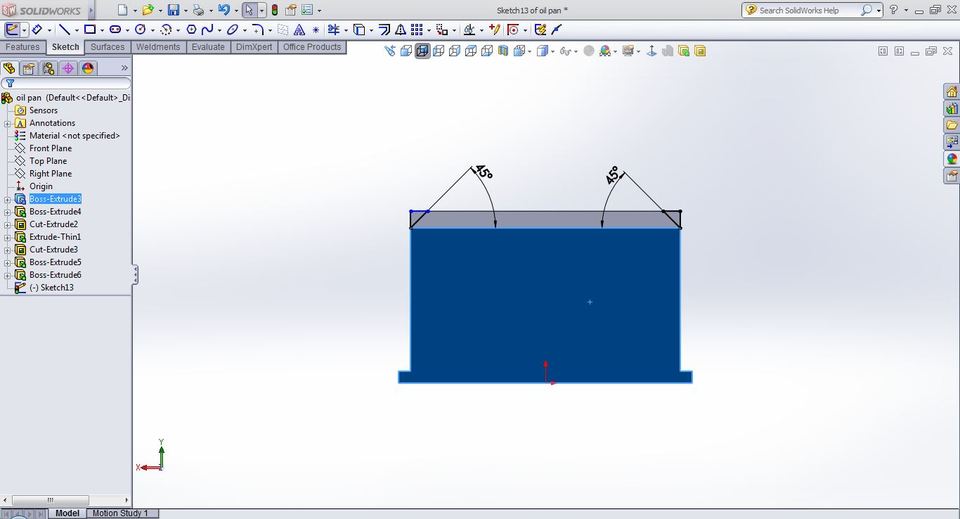

draw shown sketch front of the body
-
Step 7
make same things again
-
Step 8
draw a rectangle on the blue surface
-
Step 9
use cut extrude command.
please follow next tutorial
-
-
hcortez 6 months agoMestrell,
I will go out on a limb and say yes he created a new sketch for step 3!!

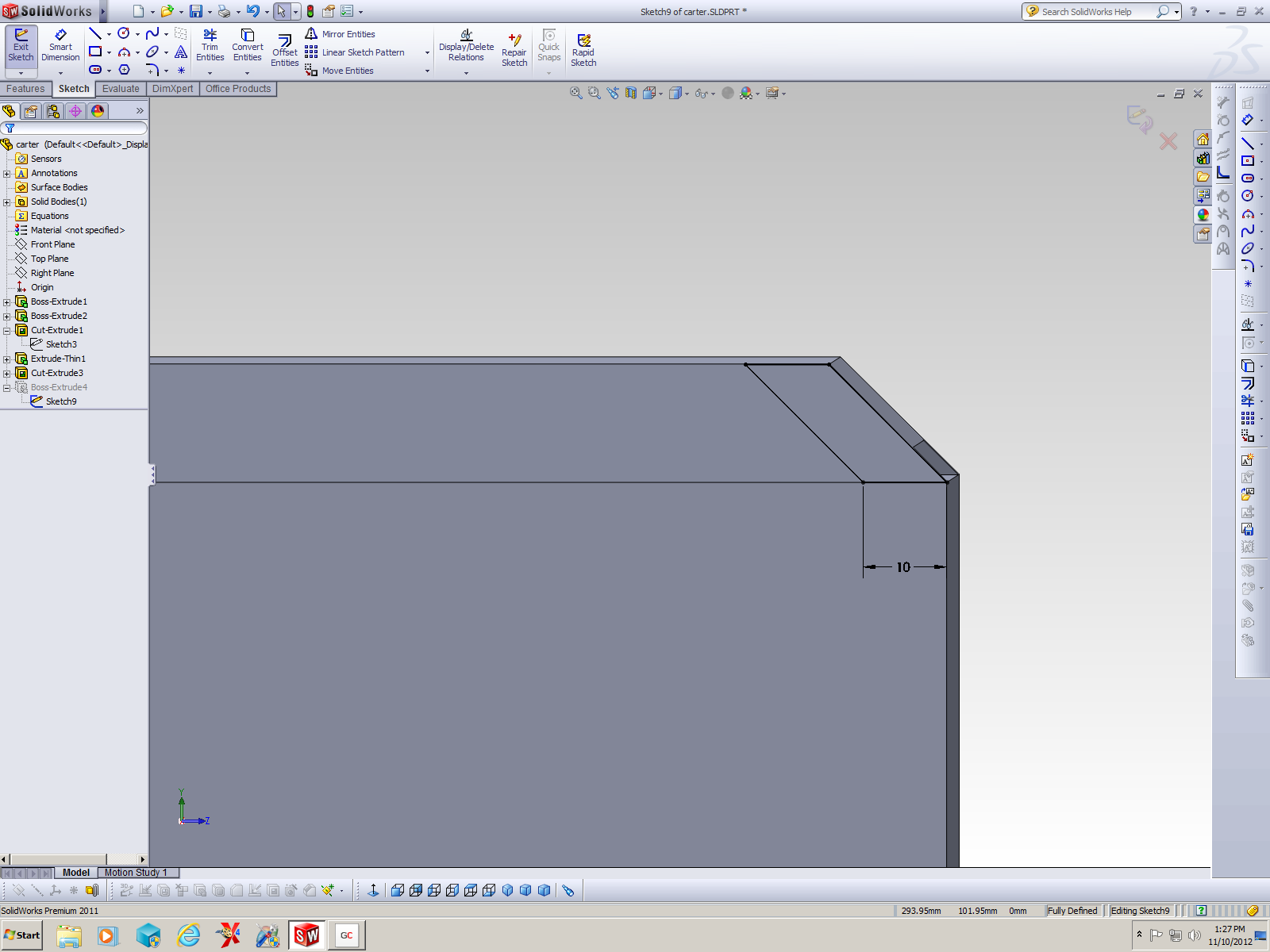

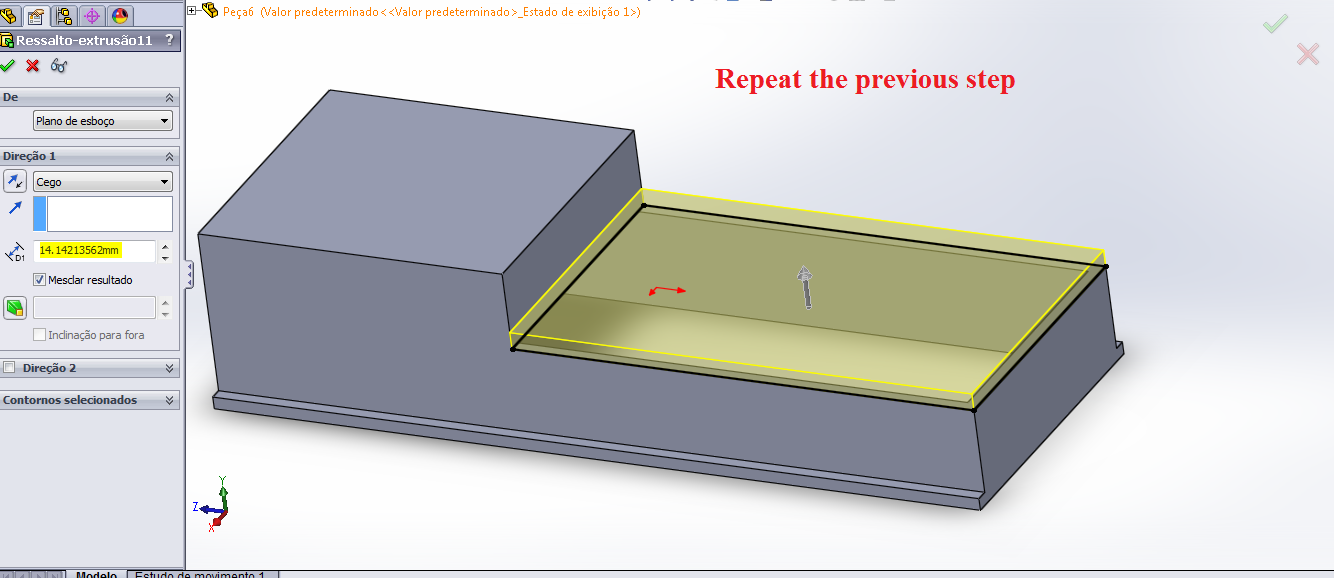

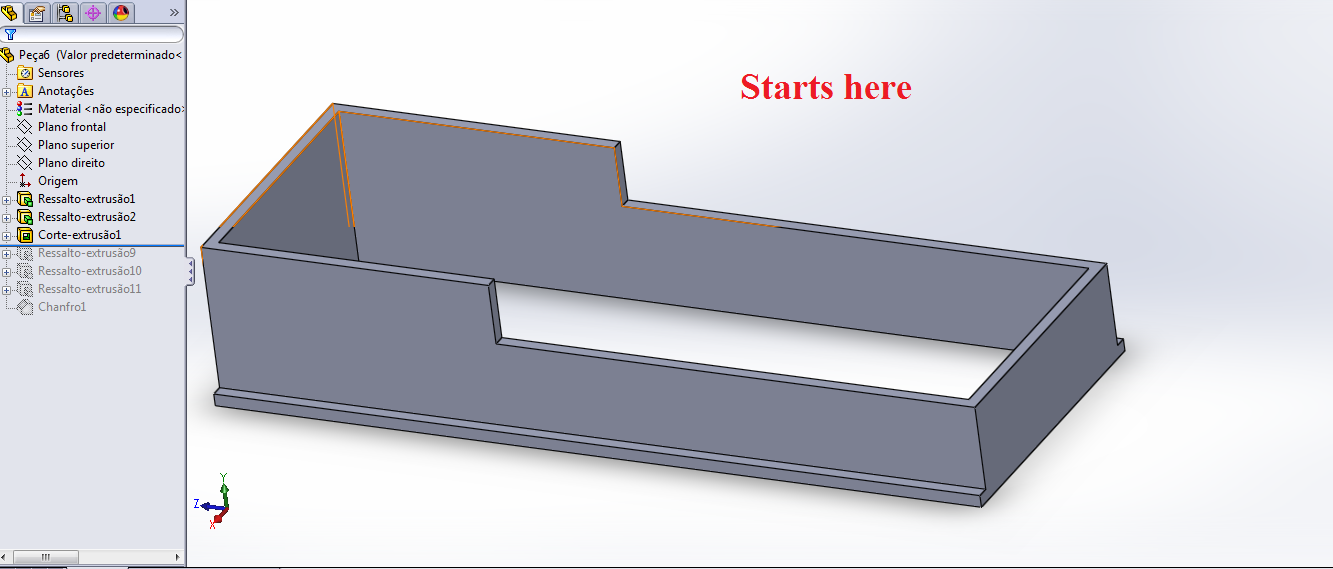

Added images
-

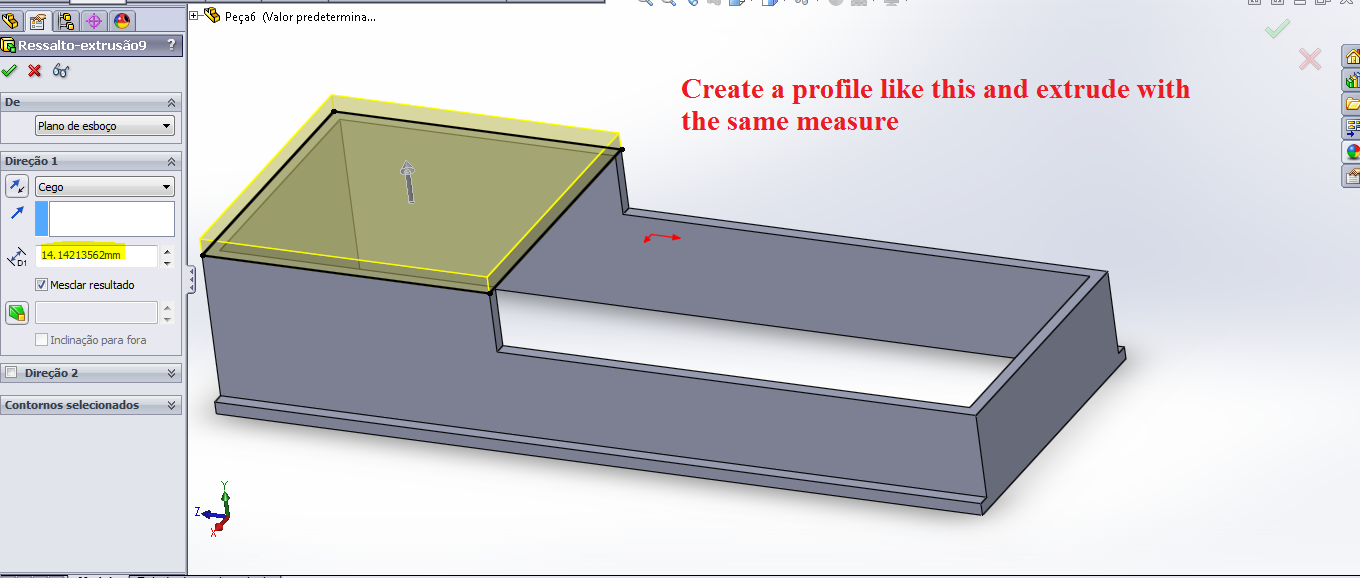

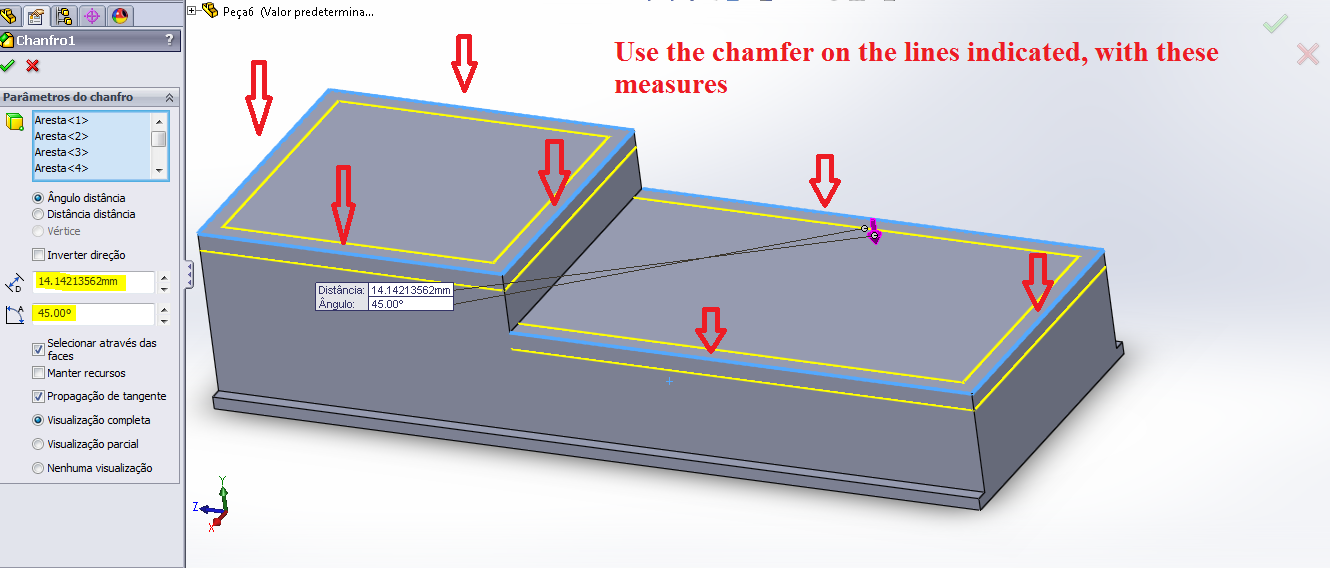

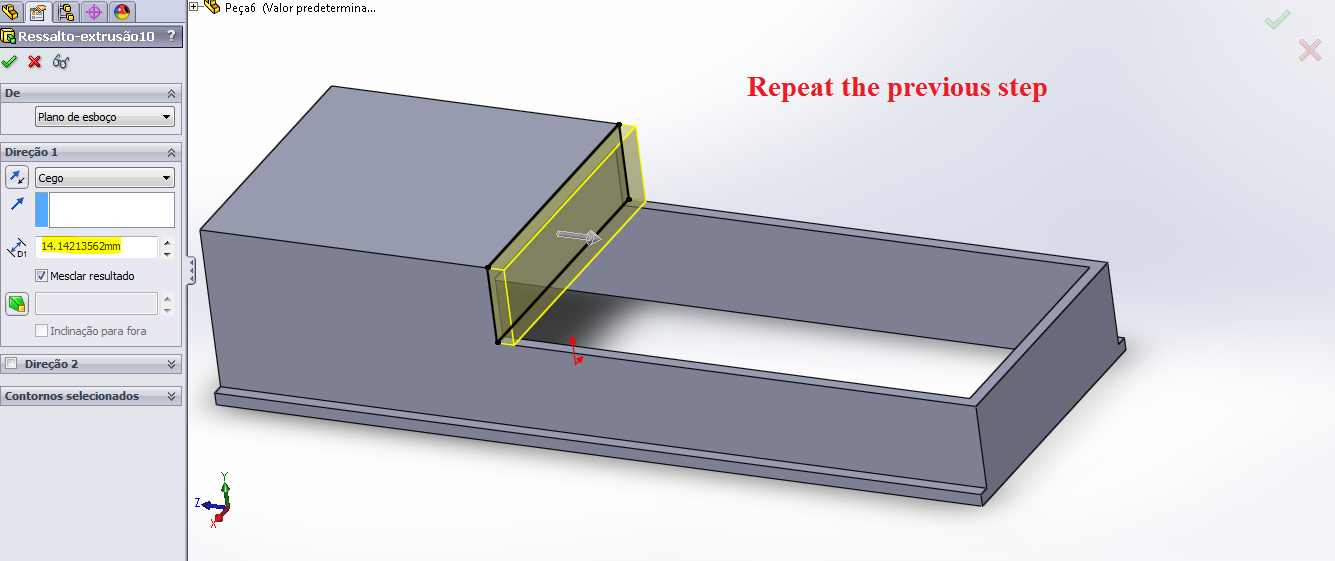

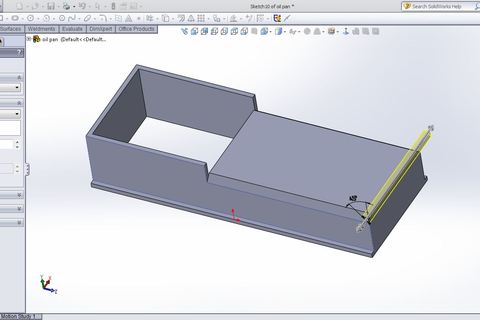

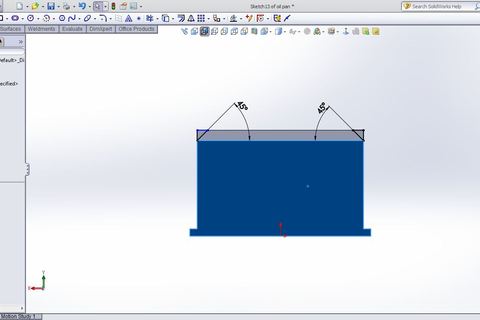

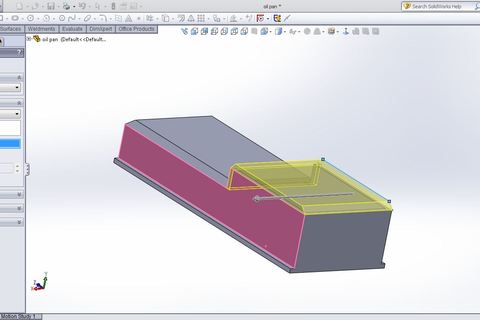

Adson Santos Silva Jr. 3 months agoI did a mini tutorial ... I think this way it's easier to make that chamfered corners
