Aykut Dana about 1 year ago
Assembly 4
-
Step 1

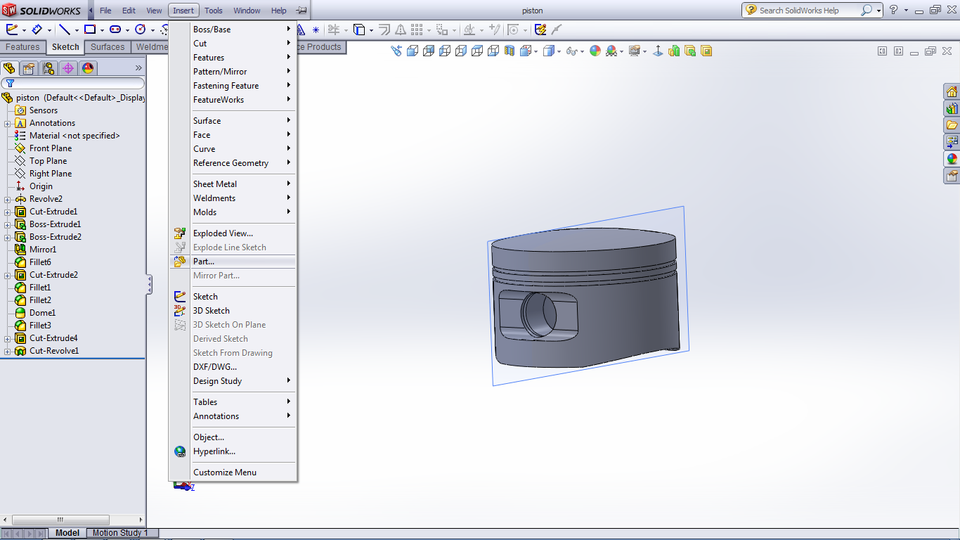

open the piston. use insert-part command and choose the pin
-
Step 2

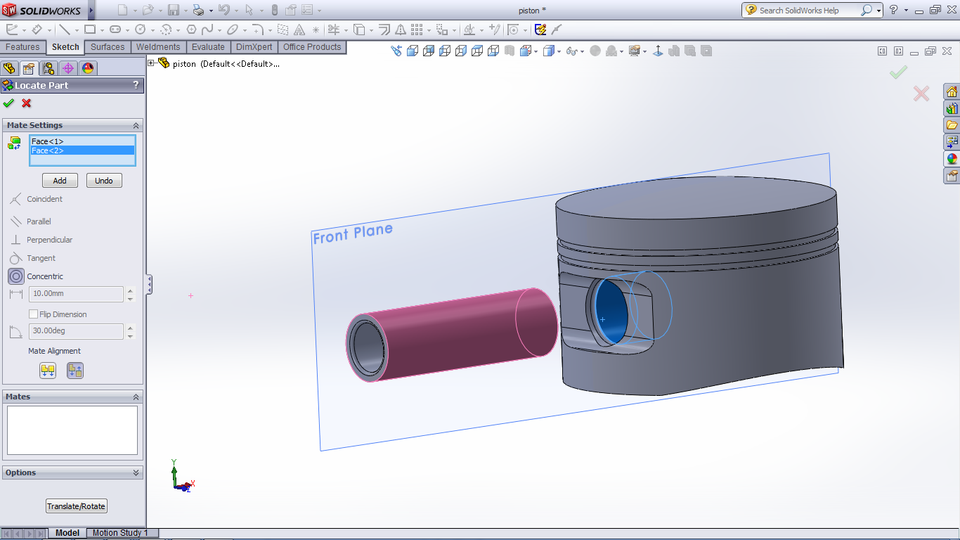

click on shown surfaces for to add matte. make them concentric
-
Step 3
then click on this surfaces and define the distance
-
Step 4

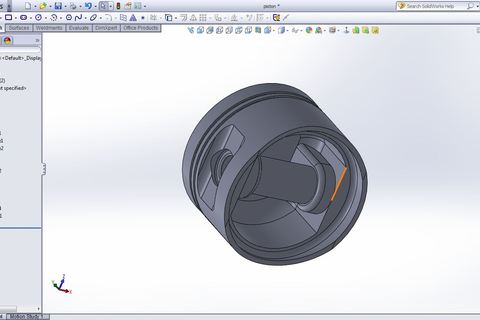

piston-pin is ready
-
