  Here is the fourth part.

  1. Step 1

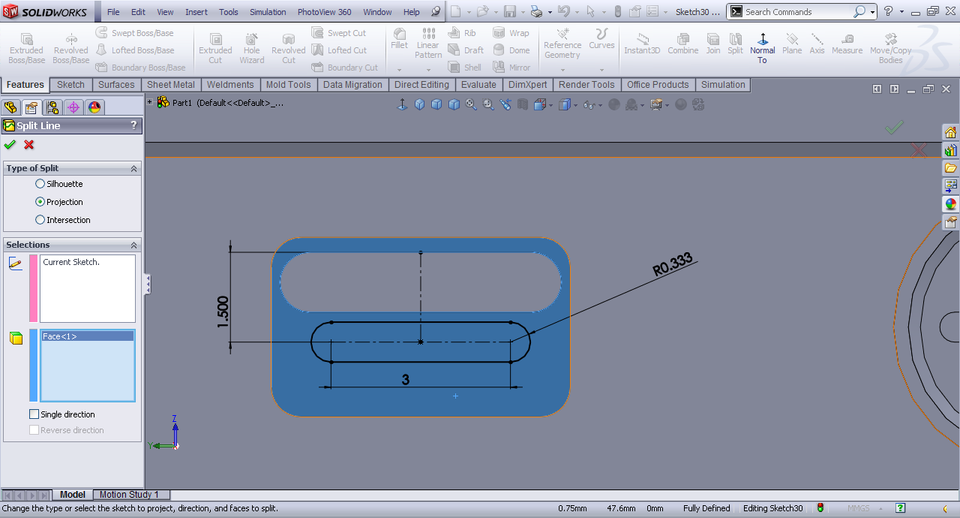

     Split line and project them on back face.



  2. Step 2

     Inner face >> Sketch.



  3. Step 3

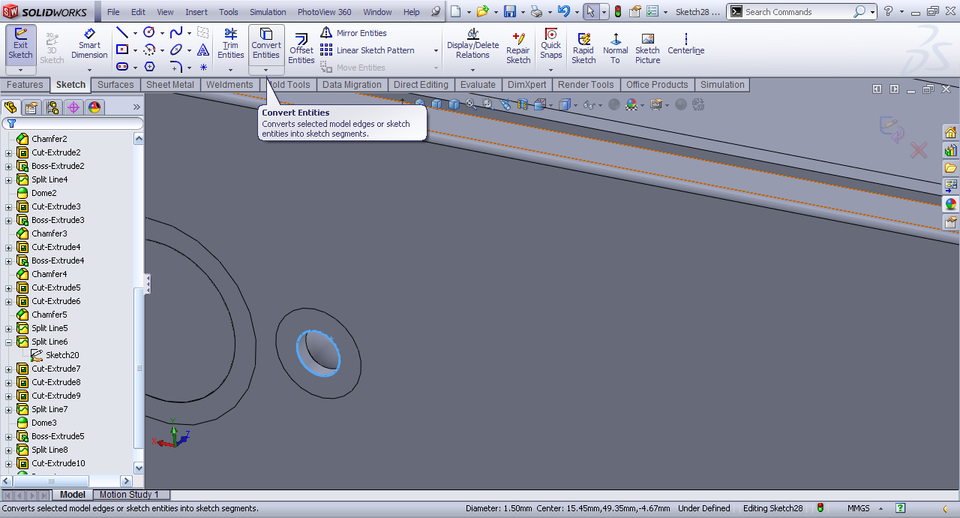

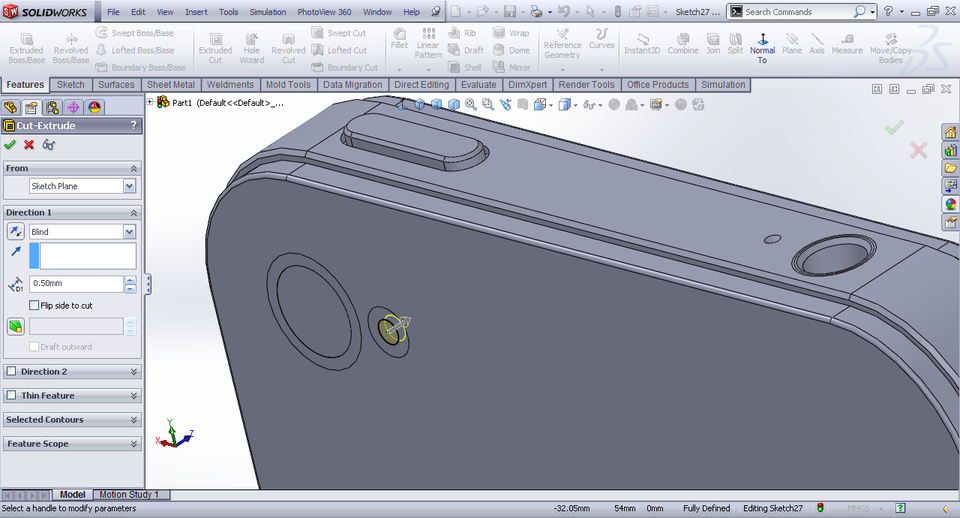

     Convert the inner edge and extrude cut it by 0.50mm.



  4. Step 4

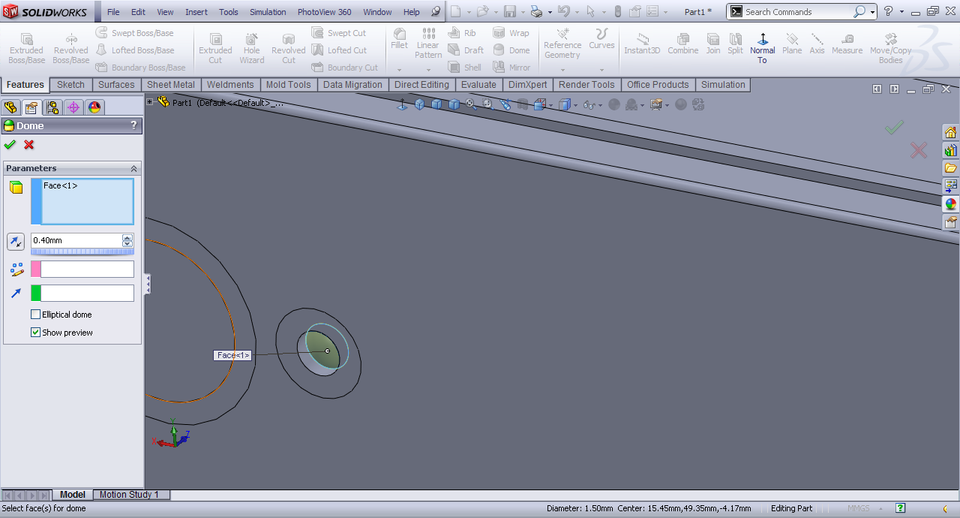

     Dome it by 0.4mm.



  5. Step 5

     Circular face >> Sketch.



  6. Step 6

     Convert the edge.



  7. Step 7

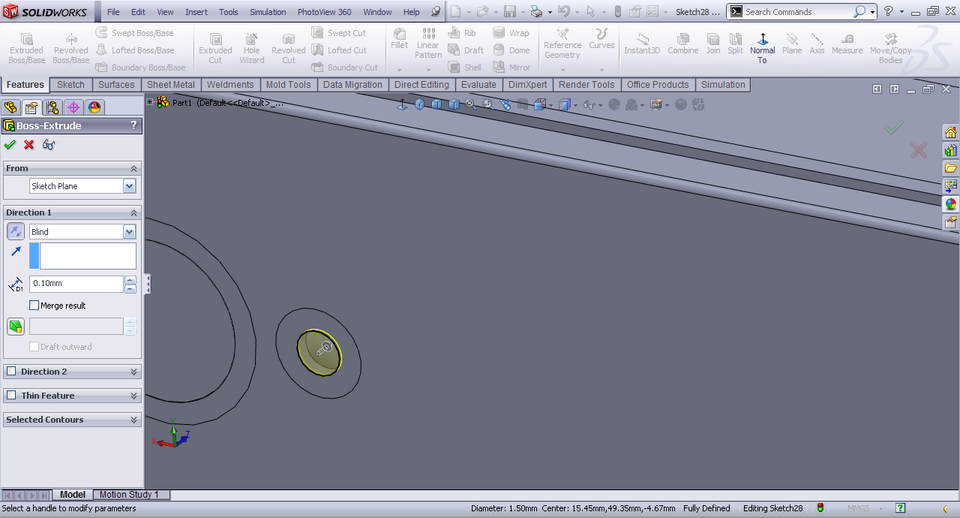

     Extrude it by .10mm and uncheck Merge result.



  8. Step 8

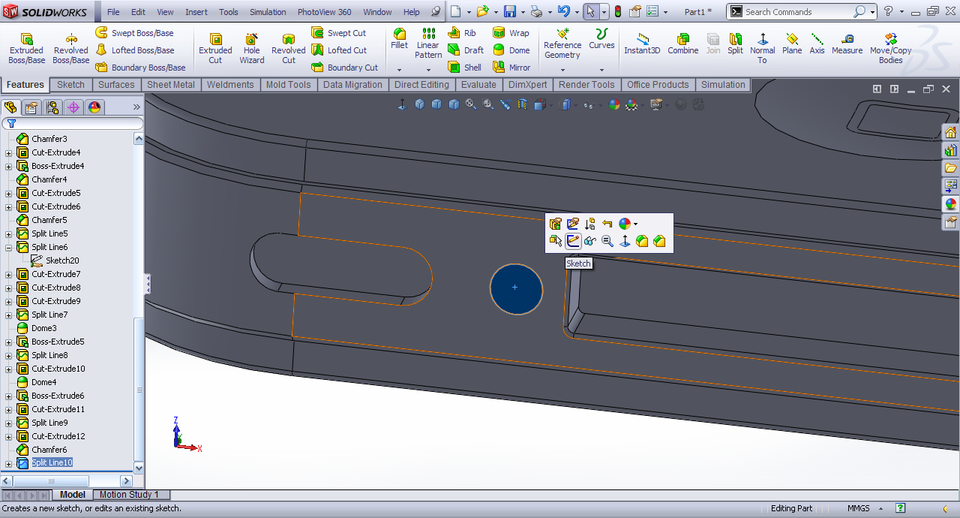

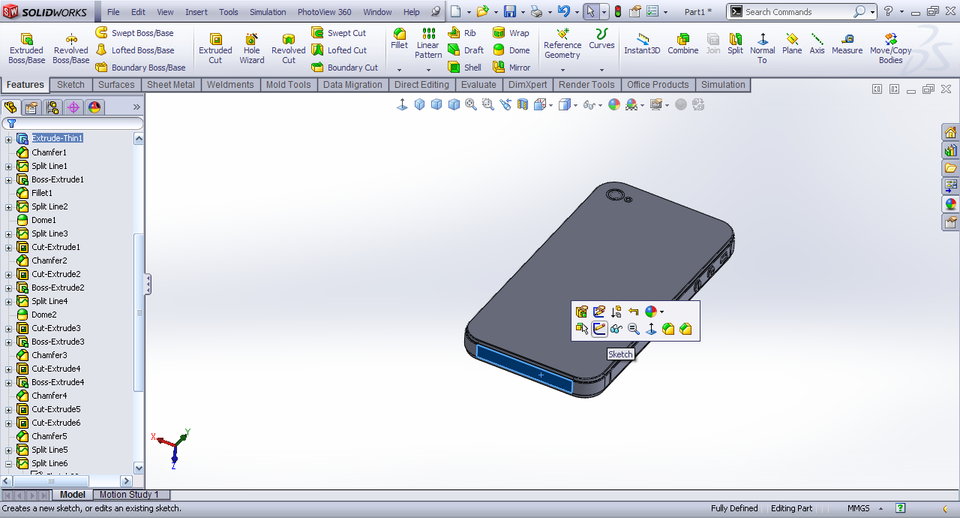

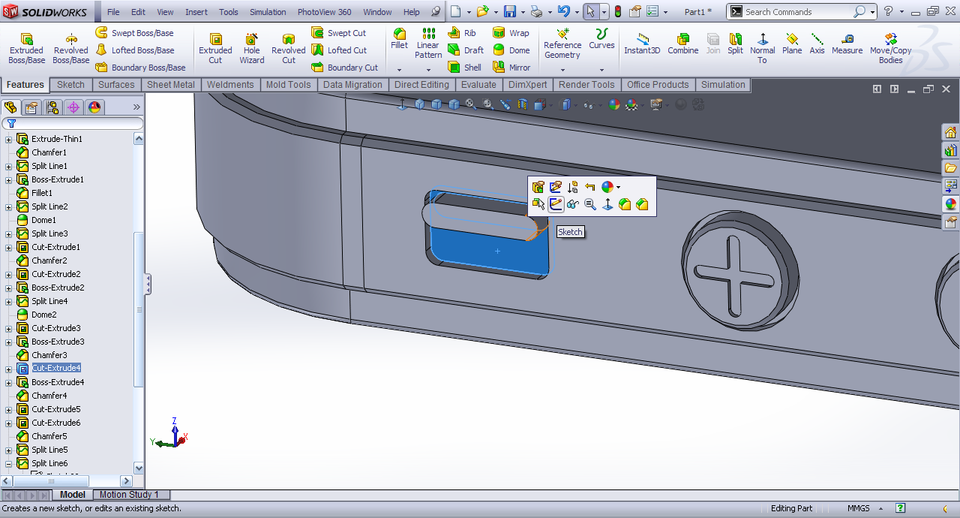

     Bottom face >> Sketch.



  9. Step 9

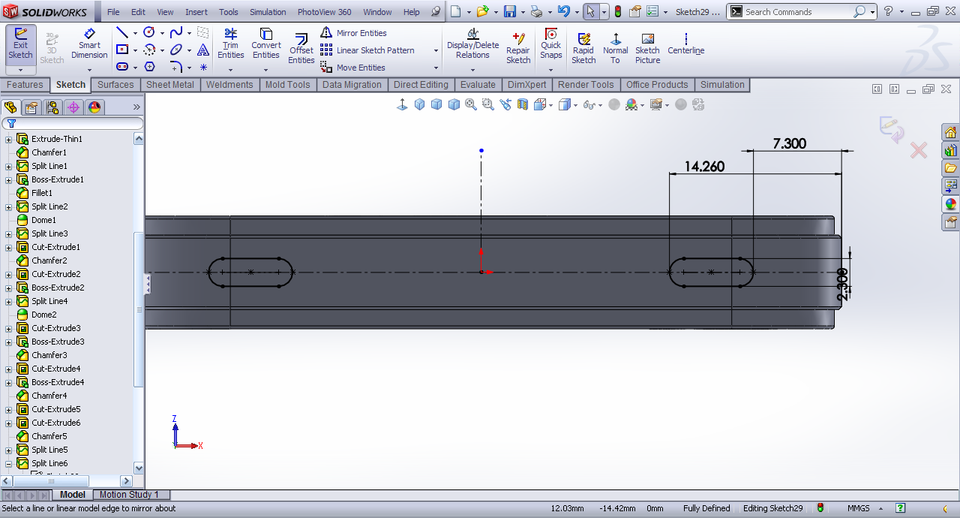

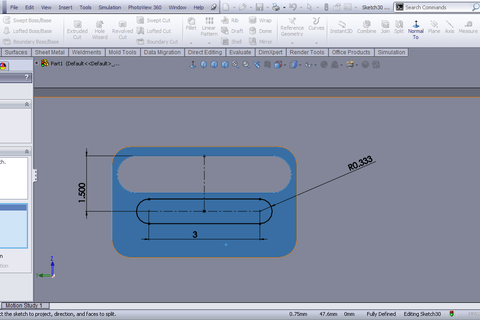

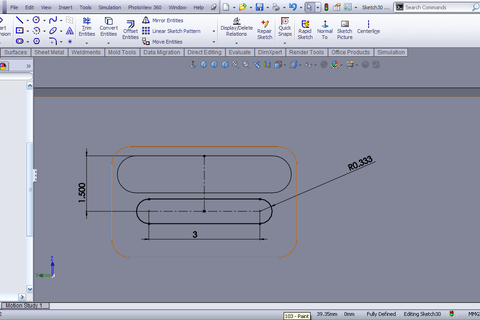

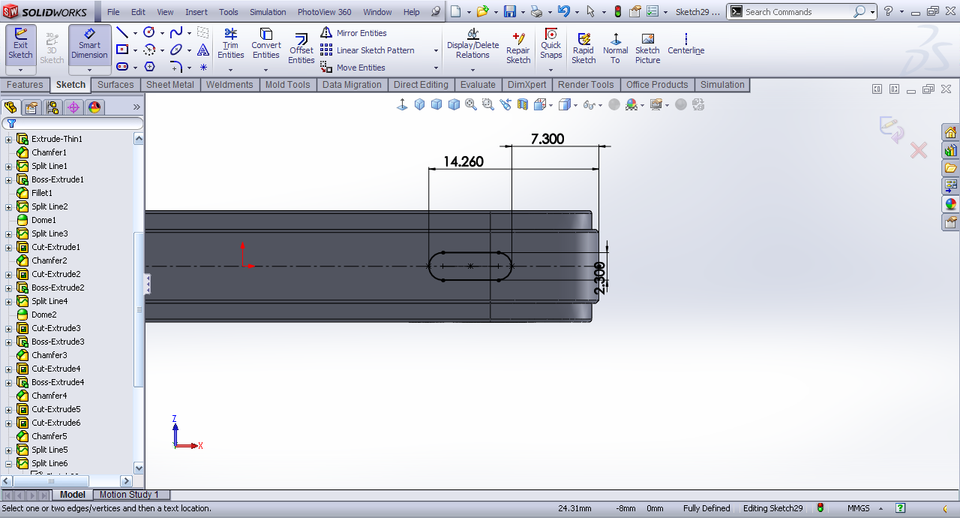

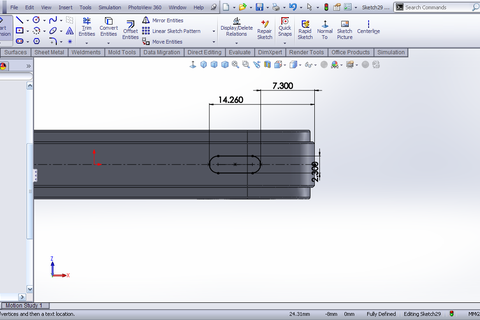

     Draw a slot.



  10. Step 10

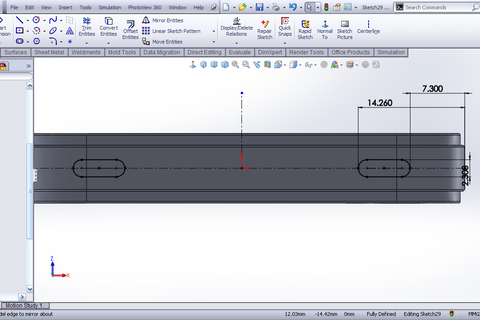

      Mirror it about a center line on origin.



  11. Step 11

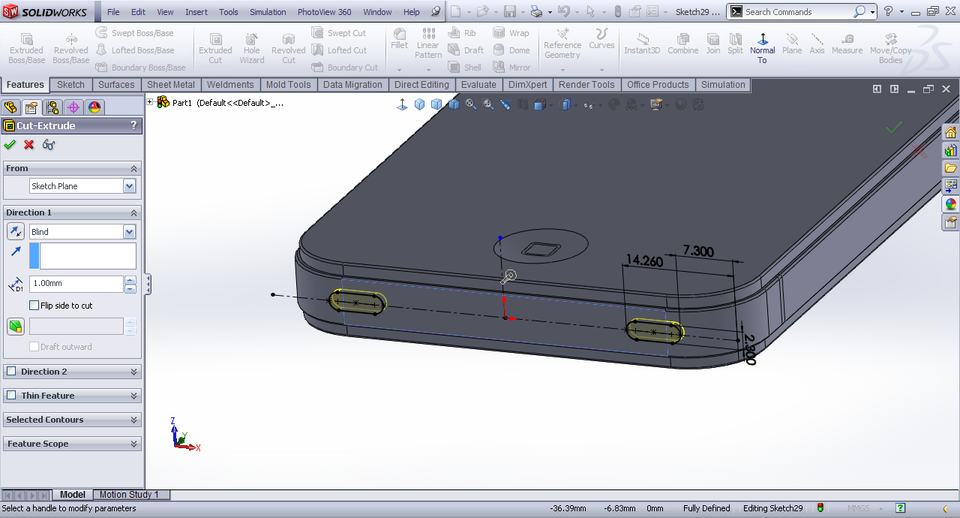

      Extrude cut by 1mm.



  12. Step 12

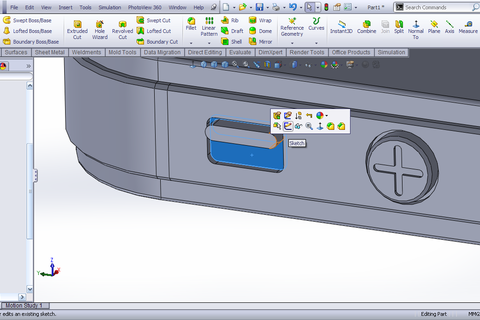

      Left face >> Sketch.



  13. Step 13

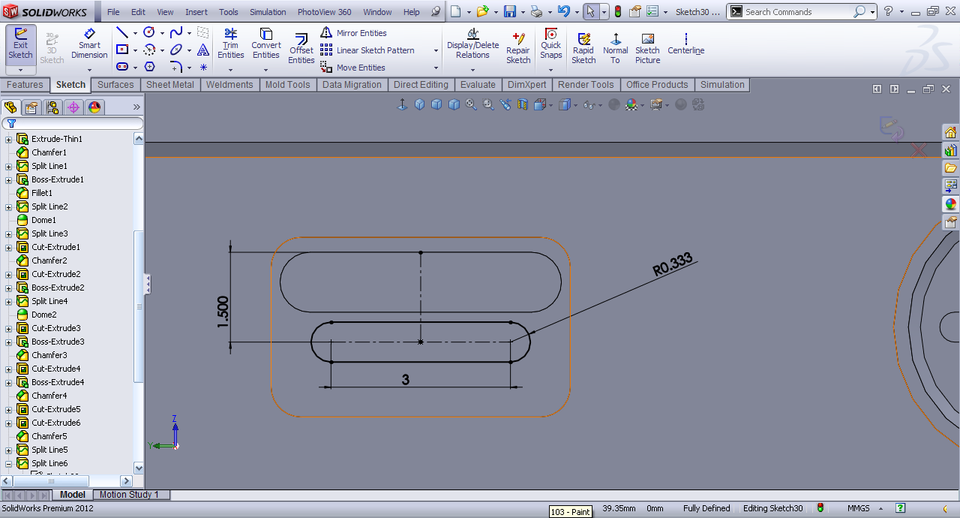

      Draw this slot.



  14. Step 14

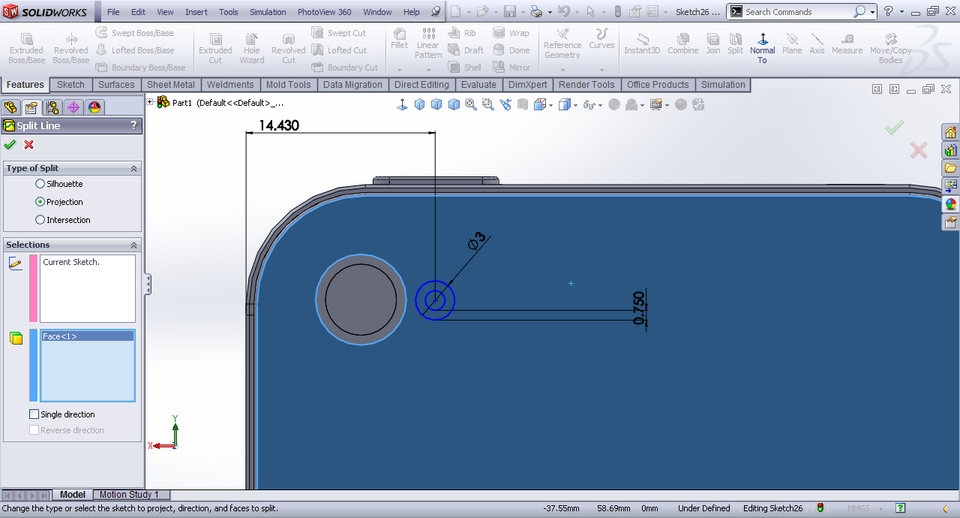

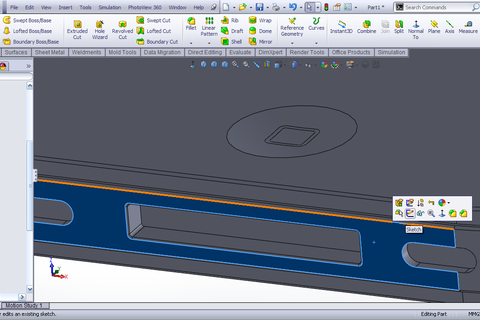

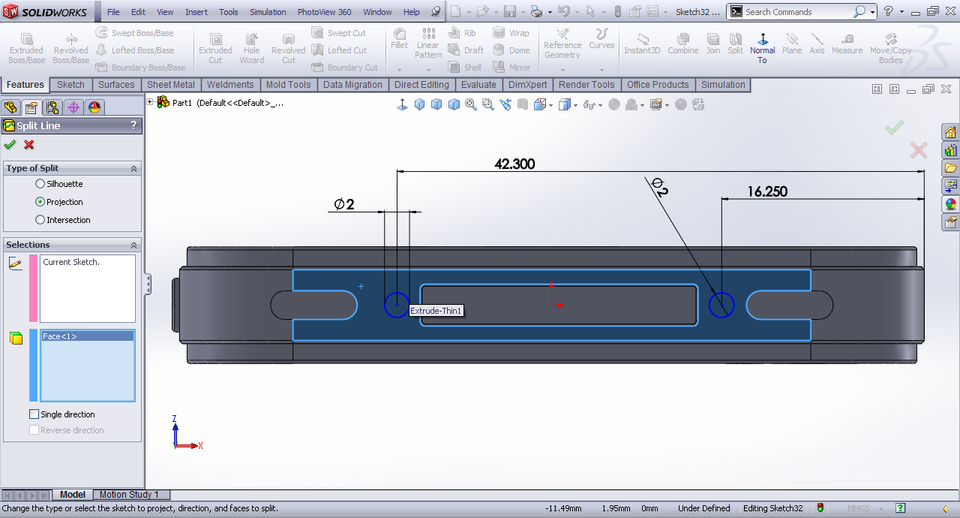

      Split line and then select inner face.



  15. Step 15

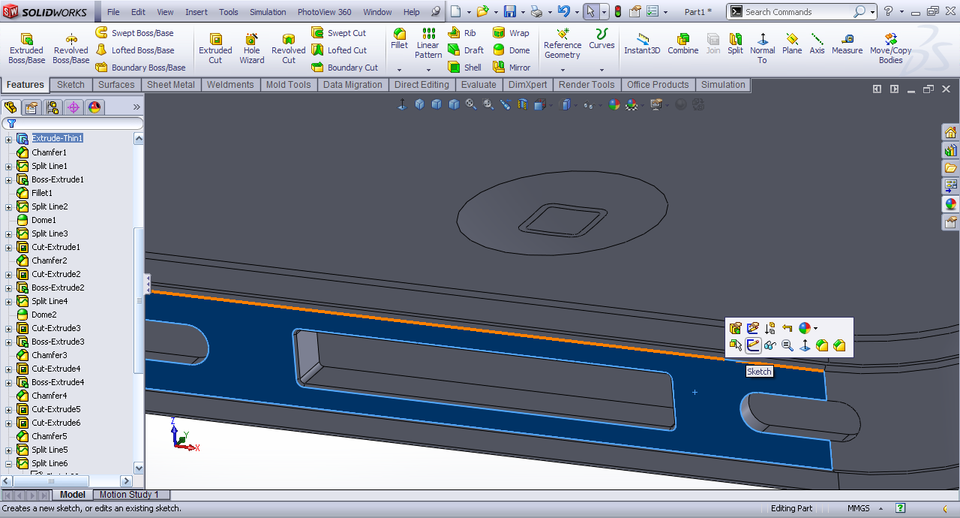

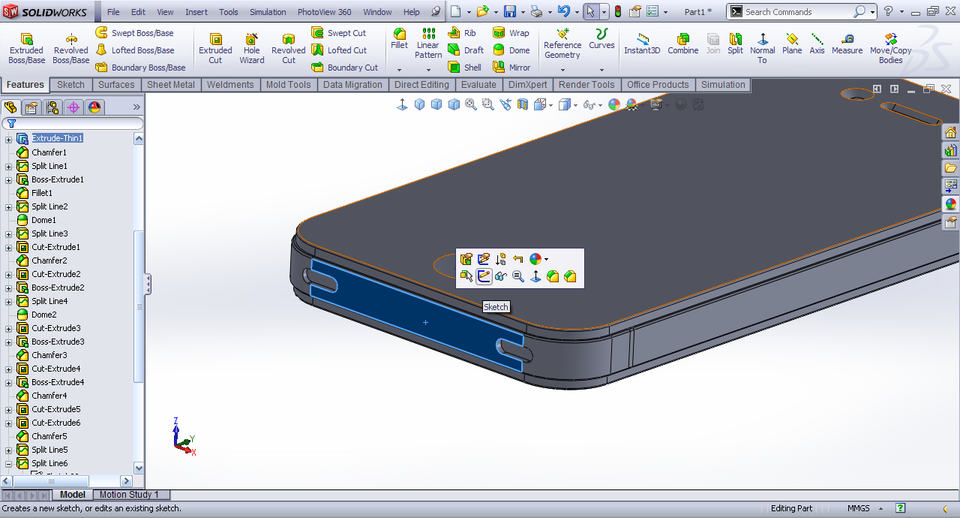

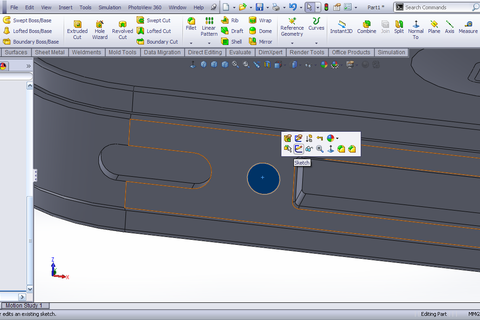

      Bottom face >> Sketch.



  16. Step 16

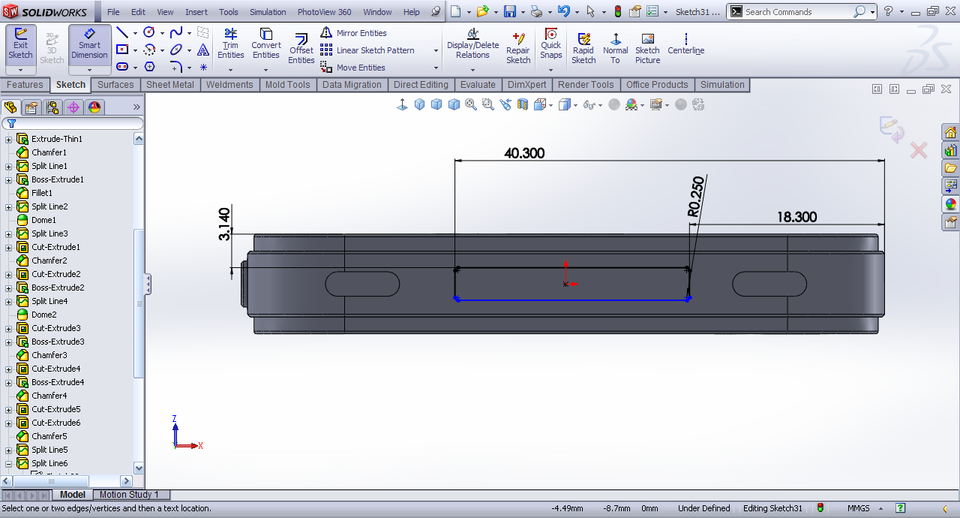

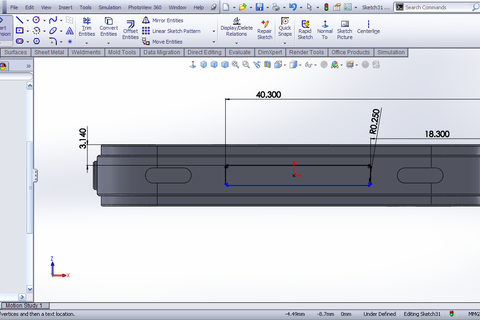

      Draw a rectangle.



  17. Step 17

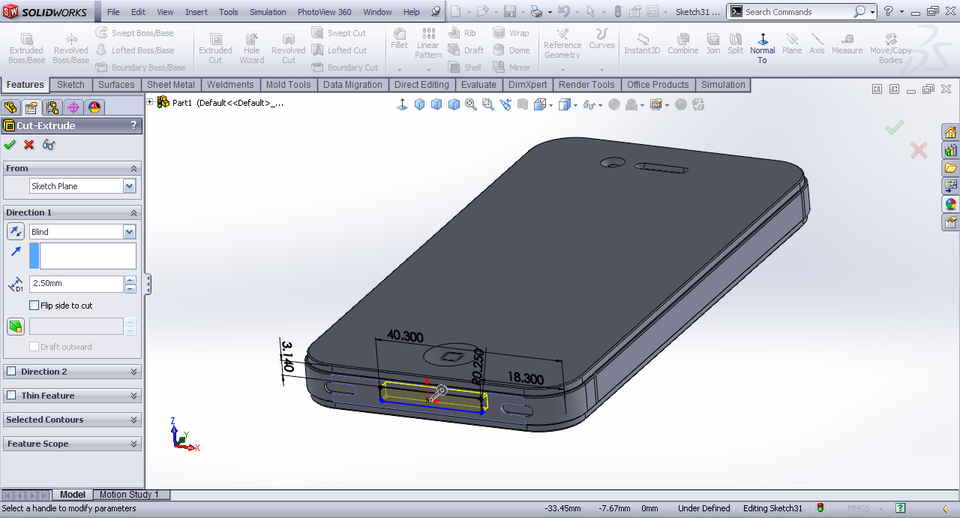

      Extrude cut by 2.5mm.



  18. Step 18

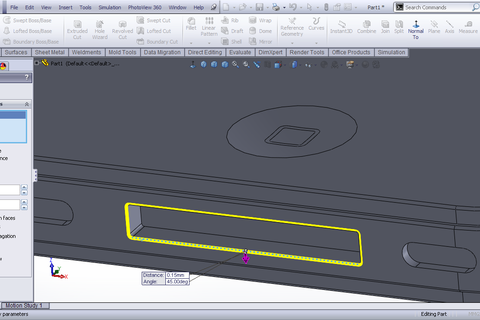

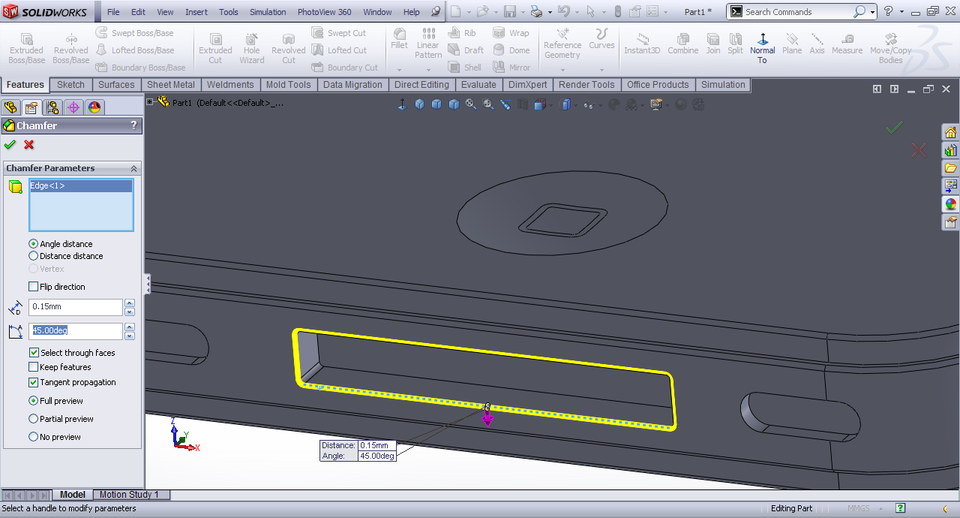

      Chamfer the cut edge by 0.15mm at 45º.



  19. Step 19

      Bottom face >> Sketch.



  20. Step 20

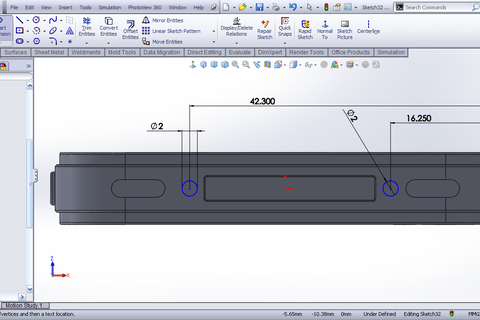

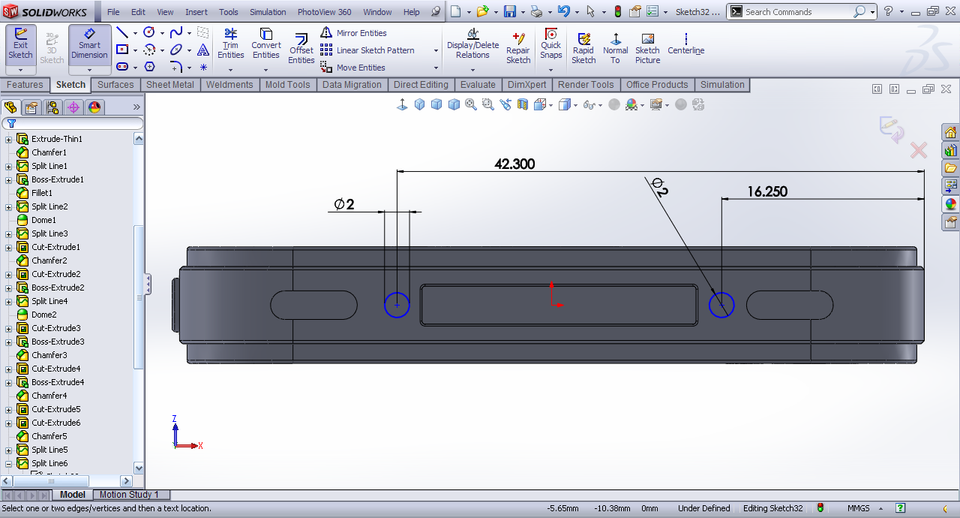

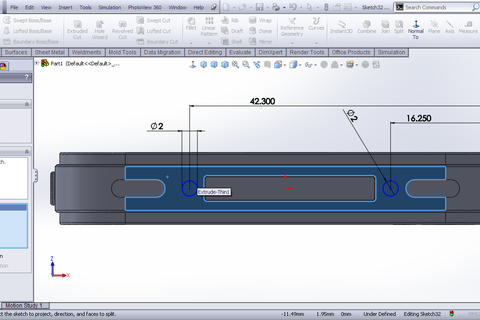

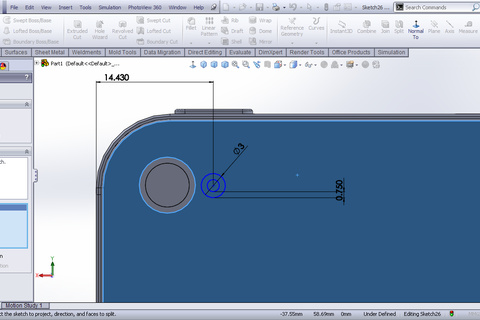

      Draw two circles.



  21. Step 21

      Split line and select bottom face.



  22. Step 22

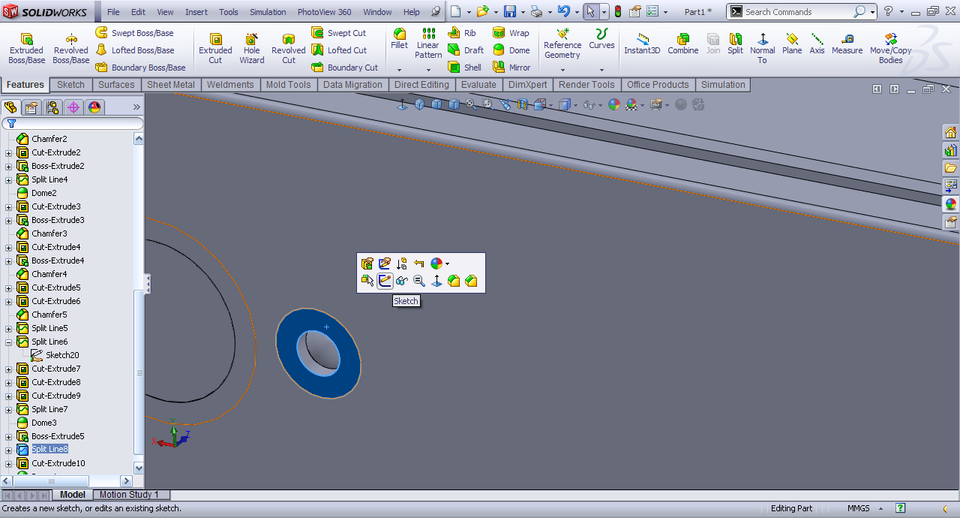

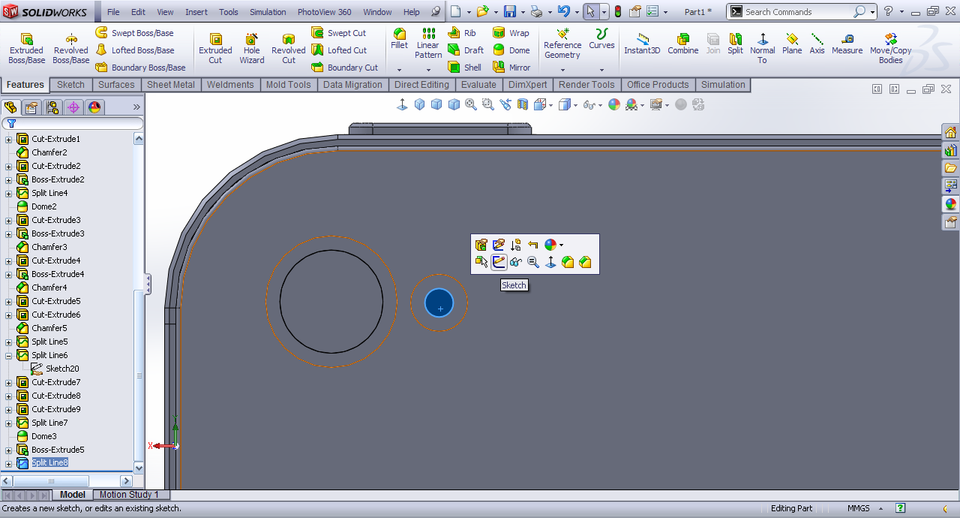

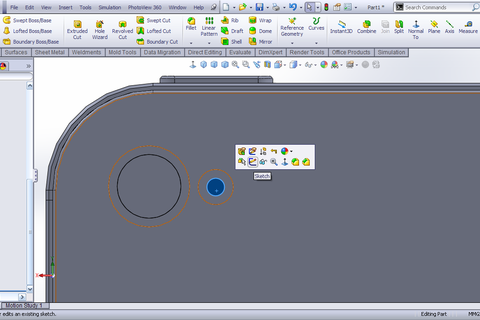

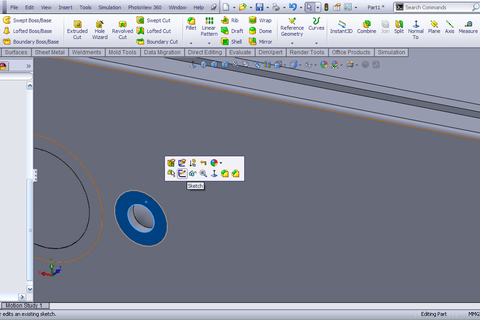

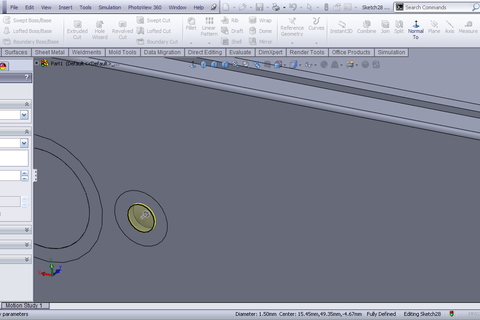

      Circular face >> Sketch.



  23. Step 23

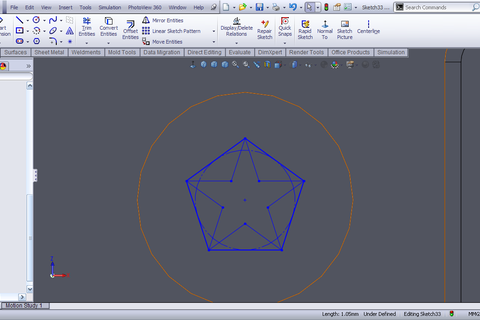

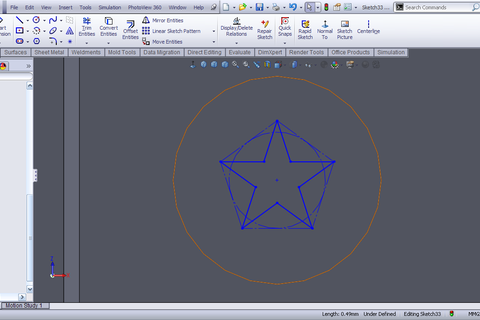

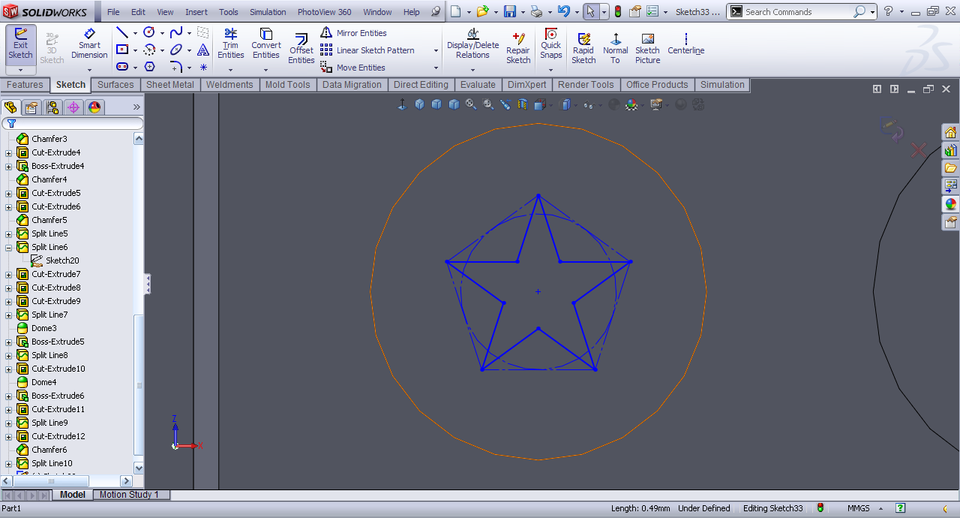

      Draw a 5 side polygon and construct star.



  24. Step 24

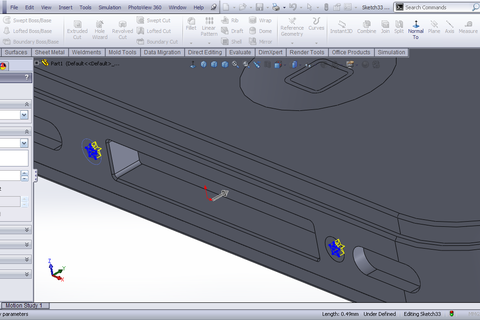

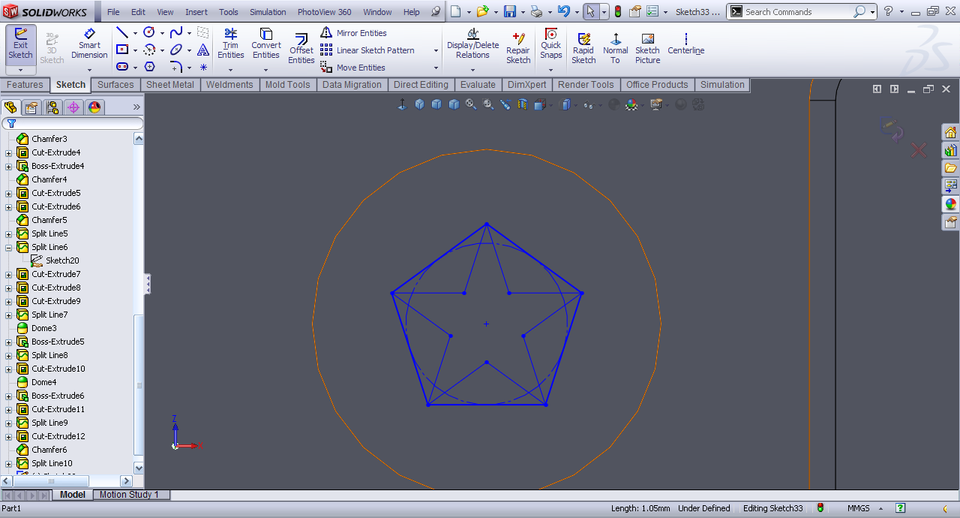

      Repeat same step for other circular face. Make polygon construction.



  25. Step 25

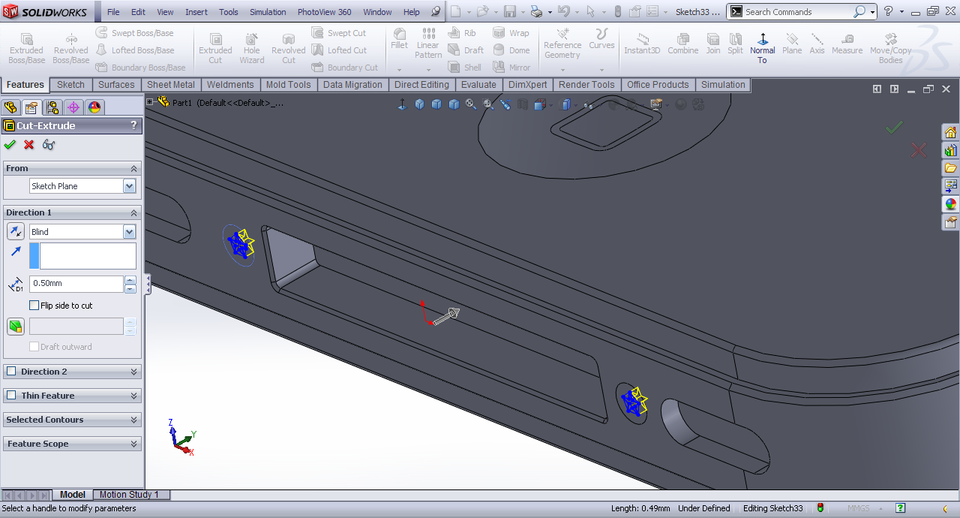

      Extrude cut by 0.50mm.



  26. Step 26

      Here is fifth part.
