NASA is seeking innovative solutions for a synchronized antenna deployment system. The primary objective is to develop a mechanism that ensures sequential deployment of antenna panels, addressing a critical aspect of space-based communication technology.
In this challenge, participants are tasked with designing a mechanism that will release hexagonal panels in a predetermined sequence. Specifically, the mechanism should trigger the release of the next hexagon in a stack only after the previous one has successfully latched into place. This sequential deployment is crucial for maintaining the antenna's structural integrity and operational efficiency.
The proposed design must be compatible with one of the winning latch designs from the previous "Let's Connect" challenge. Additionally, it must integrate seamlessly with the provided backing structure model without compromising the parabolic surface of the antenna. Participants should focus on creating a solution that is both effective and adaptable to existing NASA technologies.
Background:
In space, there's a growing need to build large, precise structures like antennas, booms, and telescopes. These structures are too big to fit inside a rocket during launch, so we need a way to deploy them once they reach their orbit.

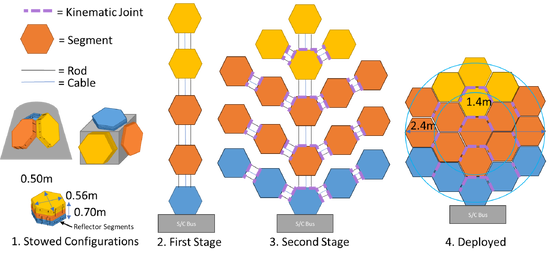

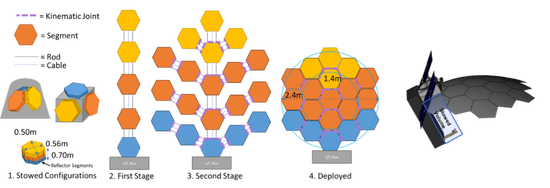

One idea for deployment is the Starburst architecture, which uses high strain rods to deploy and cables to pull the different parts together after launch. In our last prize challenge on this topic (Positive Connections), we asked participants to design a latching mechanism, that would latch the hexagons after the cable pulls them together. This new challenge will build on the previous results. The goal is to design a mechanism that will release the next hexagon in the series after latching.
Our key example is an Earth observing antenna. The antenna's segments are stacked neatly on top of each other, taking up a compact space (1). After launch, the segments are released from their locked positions, and a set of high strain rods deploy the system into an initial configuration (2). Each element is aligned correctly by two high strain rods, so they can be pulled together. Once the antenna opens up, the cables start retracting, gradually pulling in each segment until they form the final deployed shape (3). The segments are precisely located relative to each other using special joints, with an accuracy of around 20 microns, and held in place by the tension in the cables. (4) Upon fully deploying, the latching mechanism from the “Positive Connections” challenge locks the segments together. The overall surface alignment has a root mean squared (RMS) error of approximately 60 microns. Check out the image below for a visual representation of how the antenna transforms from a packed state to a fully deployed state.

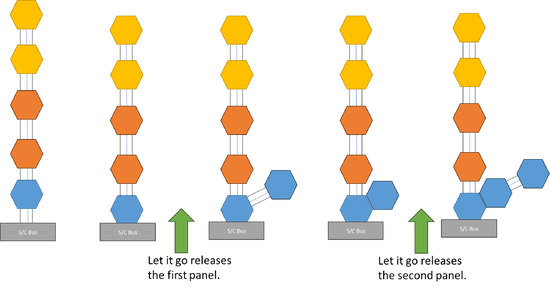

Initially, all the hexagons are stored in a stack. One of the challenges we have realized in our prototyping efforts over the last year, is that we can't just release all the hexagons at once. The result is too dynamic and they may collide with each other! Therefore, our goal is to have a system that will release the hexagons in the stack one at a time, after the previous hexagon is deployed and no longer moving. The goal of this challenge is to design a mechanism that will release the next hexagon after the latch engages, allowing steps 2 and 3 in the figure above to occur in smaller steps. See the second image below, with arrows where the “let it go” system will release the next panel after each deployment.
Your goal is to create a mechanism the “let it go system” which will release the next hexagon after the latch engages. This will then allow our hexagon deployment to be sequenced, consisting of release, deploy, latch... which then triggers the next release, deploy, latch. This is where it connects to the previous GrabCad challenge. You can choose any of the 5 winning latch designs as a starting point for your design.
The Challenge:
The study "Starburst: A Revolutionary Under-Constrained Adaptable Deployable Structure Architecture" demonstrated a unique approach to deploying large antennas to much higher accuracies than ever before. The first system had all the segments release at once, but this created problems with the segments interfering with each other during deployment, except for very simple “Z-fold” stowing patterns. We want to sequentially deploy the segment after the prior segment latches to enable more complex deployments. CAD files of the current segments are provided with the Egyptian key design.

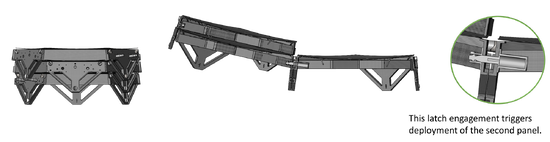

Below identify the key parts of a single hexagon which are useful for understanding the detailed requirements. Each hexagon consists of two key parts, backing structure which serves as the structural background, and a precision parabolic surface on top of the hexagon. The backing structure and precision surface are connected with a set of monopods. On the backing structure, there are face plates where it connects to other hexagons. On each face plate are three kinematic couplings, which connect each hexagon with each other with exactly 6 points of contact.
CAD Files for Download
CAD Files
Explanatory Video: Let It Go NASA Challenge Reference Model
Detailed requirements, assumptions and/or constraints:
1. The release system must work with the existing latch systems as designed. It can be trigger by latch, or by the proximity of the two faces in how close they are together when latching.
2. It can be assumed that the latch produces 25N of force which can be used to trigger the next panel release, or that there is 25N of preload between the panel faces that can be used.
3. The release system must not interfere, contact or penetrate the kinematic couplings, monopods, or parabolic surface at any point before, during or after operation. It should hold on to the backing structure above the prior mount.
4. The release mechanism must not extend more than 60 mm from the backing structure when stowed, and after the panels are deployed cannot extend above the parabolic surface. While additional holes and cutouts can be added to the backing structure, this may only be done in the middle 25 mm (in other words, it cannot remove the top 5mm or bottom 5 mm of backing structure material).
5. The system must be entirely self-contained, and not require any external power sources or signals to operate. It must be able to detect when the latch engages, and use this as the criteria to release the next panel.
6. Release mechanism components should weigh less than 1 kg (2.2lbs). It must work in the vacuum of space, and a variety of temperatures. The mechanism must be able to be triggered at any temperature between -10C to 60 C (14F to 140F) and survive temperatures ranging between -60C to 100C (-76F to 212F).
7. The system cannot be triggered without the latching components coming together. For example, high G-forces or shock loads that come with spacecraft launch should not trigger the release mechanism. Expect that the mechanism could see accelerations up to 250 G’s. It can be assumed that each panel weighs 3 kg, plus the mass of the release mechanism. It can also be assumed that an external device holds all the panels together during launch, so your release device does not need to hold the mass of the entire stack of panels. It just needs to survive the 250 G launch load itself.
Criteria:
Each entry is expected to include.
1. CAD model of the release mechanism
2. Rendered images showing the sequence of how the release device works.
a. Cross sections, especially annotated cross sections can be very helpful for the judges to understand how deployment mechanisms work.
3. (Optional but encouraged) Animation showing the how when the panels latch the release device is triggered, and how the release device releases the next panel. Animations are extremely helpful in selecting the finalists.
4. An explanation document in .pdf format
a. This document must include:
i. How the release mechanism will work.
ii. Why an acceleration of 250G’s will not accidentally trigger the device.
iii. That the device can operate at both -10C to 60C and survive temperatures between -60C to 100C.
iv. All written justification should be in one .pdf document.
v. Written justification should include a references/credit section, which includes:
1. Links to any CAD files used as a starting point.
2. Any ideas on GrabCAD or from other sources that inspired your concept. Includes ideas from the current challenge, and prior challenges, and anywhere else on GrabCAD. Be sure to list both the submission name and the username of the person who made the submission.
3. The GrabCAD community excels in collaboration so make sure to give credit to ideas and/or recommendations from other community members that have helped you mature your design as failure to do so may negatively impact scoring.
a. Hint, you must reference at least one of the latch designs from the “lets connect” challenge.
4. If relevant, any publications used to justify the design.
5. (Optional but encouraged): Images of prototypes to help justify the design. Does not need to be a 3D printed prototype, but it can be. Also detailed analysis of device operation can be a substitute for prototyping (this can be included in the prototype above). Images of a prototype greatly help with judging criteria 2 and 8.
Required deliverables (CAD files, reports, images, etc.):
• CAD Files used in model.
• An image of your design, and images or animation of the deployment sequence (animations are strongly encouraged)
Accepted file formats:
• STEP, IGS or native Solidworks files are acceptable for CAD.
• If applicable, use a CAD file naming convention that makes it easy to determine how each file fits into the larger assembly.
• Image files should be .jpg or .png
• All animations should be compatible with embedding in Microsoft PowerPoint and separate viewing in Windows Media Player
• Reports should be in .pdf format (can be saved from MS word to a .pdf).
• If zipped, the file compression shall be compatible with Windows 10 and not require any special software to unzip.
Page limits and file size limits:
• Total size of all files combined should not exceed 250 MB
• There is no page limit to the report.
Eligibility: Solutions from countries listed as Type 1, 2, or 3 on the NASA Designated Countries List are Not eligible for monetary prizes. The list is frequently updated, and the latest version can be found here. This challenge is not open to NASA Personnel.
ENTERING THE COMPETITION The Challenge is open to everyone except employees and families of GrabCAD and the Sponsor. Multiple entries are welcome. Team entries are welcome. By entering the Challenge you: 1. Accept the official GrabCAD Challenges Terms & Conditions. 2. Agree to be bound by the decisions of the judges (Jury). 3. Warrant that you are eligible to participate. 4. Warrant that the submission is your original work. 5. Warrant, to the best of your knowledge, your work is not, and has not been in production or otherwise previously published or exhibited. 6. Warrant neither the work nor its use infringes the intellectual property rights (whether a patent, utility model, functional design right, aesthetic design right, trademark, copyright or any other intellectual property right) of any other person. 7. Warrant participation shall not constitute employment, assignment or offer of employment or assignment. 8. Are not entitled to any compensation or reimbursement for any costs. 9. Agree the Sponsor and GrabCAD have the right to promote all entries. If you think an entry may infringe on existing copyrighted materials, please email challenges@grabcad.com.
SUBMITTING AN ENTRY Only entries uploaded to GrabCAD through the "Submit entry" button on this Challenge page will be considered an entry. Only public entries are eligible. We encourage teams to use GrabCAD Workbench for developing their entries. Entries are automatically given the tag "Let_It_Go" when uploading to GrabCAD. Please do not edit or delete this tag. Only entries with valid tag will participate in the Challenge.
AWARDING THE WINNERS The sum of the Awards is the total gross amount of the reward. The awarded participant is solely liable for the payment of all taxes, duties, and other similar measures if imposed on the reward pursuant to the legislation of the country of his/her residence, domicile, citizenship, workplace, or any other criterion of similar nature. Only 1 award per person. Prizes may not be transferred or exchanged. All winners will be contacted by the GrabCAD staff to get their contact information and any other information needed to get the prize to them. Payment of cash awards is made through Checks mailed to the Winners. All team awards will be transferred to the member who entered the Challenge. Vouchers will be provided in the form of Stratasys Direct Manufacturing promo codes. We will release the finalists before the announcement of the winners to give the Community an opportunity to share their favorites in the comments, discuss concerns, and allow time for any testing or analysis by the Jury. The Jury will take the feedback into consideration when picking the winners. Winning designs will be chosen based on the Rules and Requirements schedule.
Intellectual property considerations:
All content submitted on GrabCAD is considered to be in the public domain. The Government is seeking a full government purpose usage license for further development of the concept. This deployable was initially funded by NASA Innovative Advanced Concepts (NIAC). It is hoped that the winning concepts can be included in a follow-on study, funded by NASA ESTO Advanced Component Technology (ACT).
Schedule This Challenge ends on December 2nd 2024 at 11:59PM Eastern Standard Time. Any Changes after the date will be considered as disqualifications.
Evaluation criteria and weighting factors (what you will base your judgment on):
1. The submission clearly shows how the mechanism operates to release the next segment. 20%
2. Mechanism operation appears to be robust and work repeatably. 20%
3. Design is shown to meet the physical constraints. 15%
4. Design provides confidence it will not unintentionally activate. 10%
5. Quality and fidelity of the 3D models and renderings. 10%
6. How innovative the concept is when compared to other submissions. 6%
7. Design is shown that it will activate with 25N of force or less 10%
8. Quality of thermal and structural analysis, giving confidence that design will survive launch and space environment. 6%
9. Feasibility of manufacturing, fabrication, and assembly of mechanism. 3%
Evaluation process and timeline:
There are two evaluation processes that will be occurring. First is evaluation of the ideas, and second is for the most referenced idea award:
A subset of the judges will review all the concepts to determine which concepts are finalists. Determination of finalist entries will be primarily based images an animations submitted, and judging the first six of the evaluation criteria. After finalists are selected, the judges will then review all the finalist entries in greater detail, including a detailed examination of the report. Finalist entries will be scored per the full evaluation criteria.
Finalists will be determined two weeks after the contest closes. Winners will be determined within three weeks after the finalists are announced (longer time period due to the holidays during the judging period.
For most referenced design/community member:
• Option 1 (most referenced design/challenge participant by the finalist entries)
o This prize will go to the top two challenge participants/submissions in THIS challenge which are referenced by the most finalist entries in this challenge. References can be due to a design feature that you incorporated into your submission or direct feedback from another challenge participant that helped your submission.
Self-references to do not count. The must be from other participants.
The most referenced design does not need to be a finalist.
If one participant has multiple finalist entries, those finalist entries count as 1 reference instead of multiple. (I.e. maximum of one reference per participant).
Reference chains, will be included. For example, a Finalist references idea A, and idea A references idea B, id. Both idea A and idea B will get scores for being referenced (provided the rules above apply. Circular references will not be counted multiple times.).
CAD-Only Rendering Requirement:
All renderings and visual representations submitted for NASA challenges must be directly generated from CAD software or other approved design tools. The use of generative AI to create or enhance submissions is strictly prohibited. This policy ensures that all entries are original works and prevents the inadvertent inclusion of copyrighted material that may be present in AI-generated content. Participants are responsible for ensuring their submissions comply with this requirement to maintain the integrity of the challenge and respect intellectual property rights.
$7,000
$2,500
$1,500
$1,000
$500
$250
$750
$500
Jonathan Sauder, Mechatronics Engineer, NASA JPL
Kim Aaron, Section Chief Engineer, NASA JPL
Rob Calvet, Senior Structures Engineer, NASA JPL
Jonathan Sauder is a mechatronics engineer at NASA’s Jet Propulsion Laboratory who invents new deployable antennas and develops innovative spacecraft concepts. He also is a group lead in the technology infusion group
Have an awesome idea for this competition? Want to win cool prizes? Sign-up now to upload your entries.
If you don't receive the email within an hour (and you've checked your Spam folder), email us as confirmation@grabcad.com
