Hi everyone.
Someone has experienced this malfunction of section view?

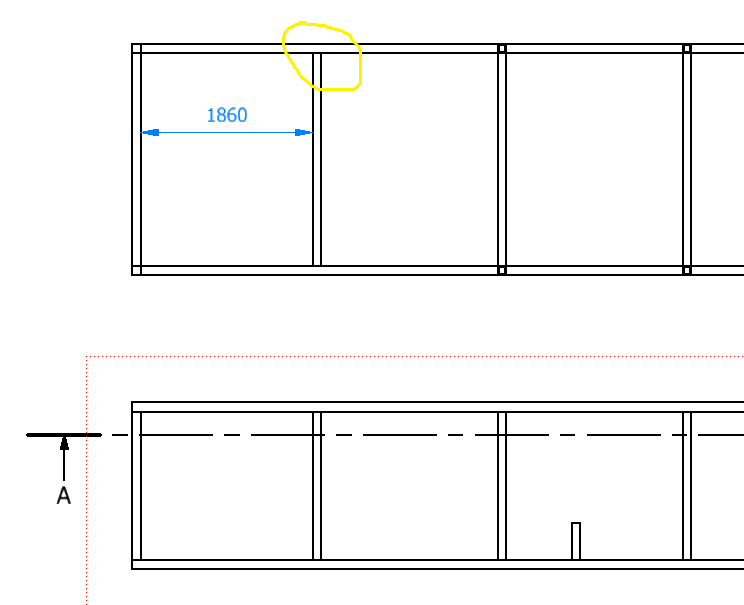

Have to appear a square tube here like the neighbor, but don't.

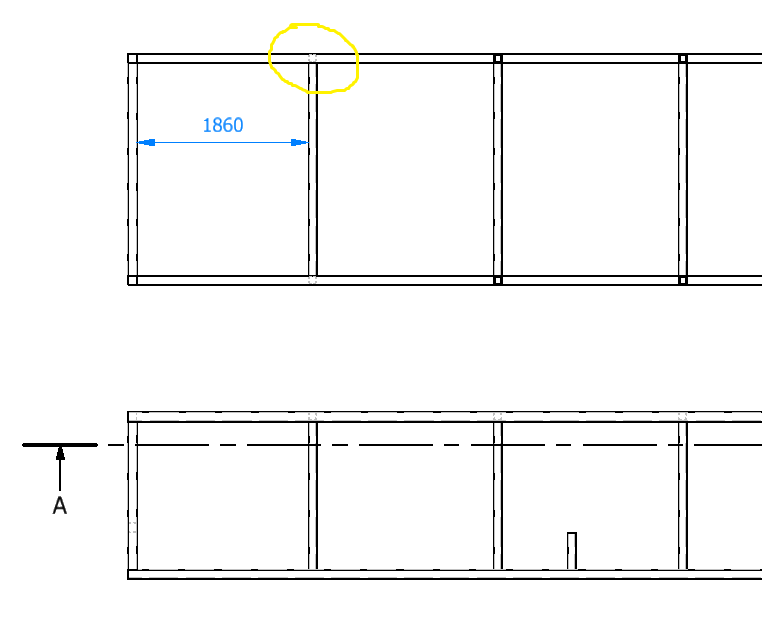

This tube only appears when i change to hidde lines.
When i do the section first time it's work well, but if i move the section line the tube section vanish.
Note: I've tried many configurations but i didn't discovered how to fix it.
It's a software bug?
No. The part set is Normal.
This is most probably caused by "standard content" which is not sectioned by default. have a look at this article: https://www.cadlinecommunity.co.uk/hc/en-us/articles/205491412-Inventor-2016-Section-view-problems
Did you check to see if the edge properties were set differently for that particular part?
