Animation in Solid Works 2014

By Rahul Kapoor on 12 Oct 05:05 0 answers 586 views 0 comments

I want to do the animation in Solid Works 2014 of the assembly as show in the pics attached below.

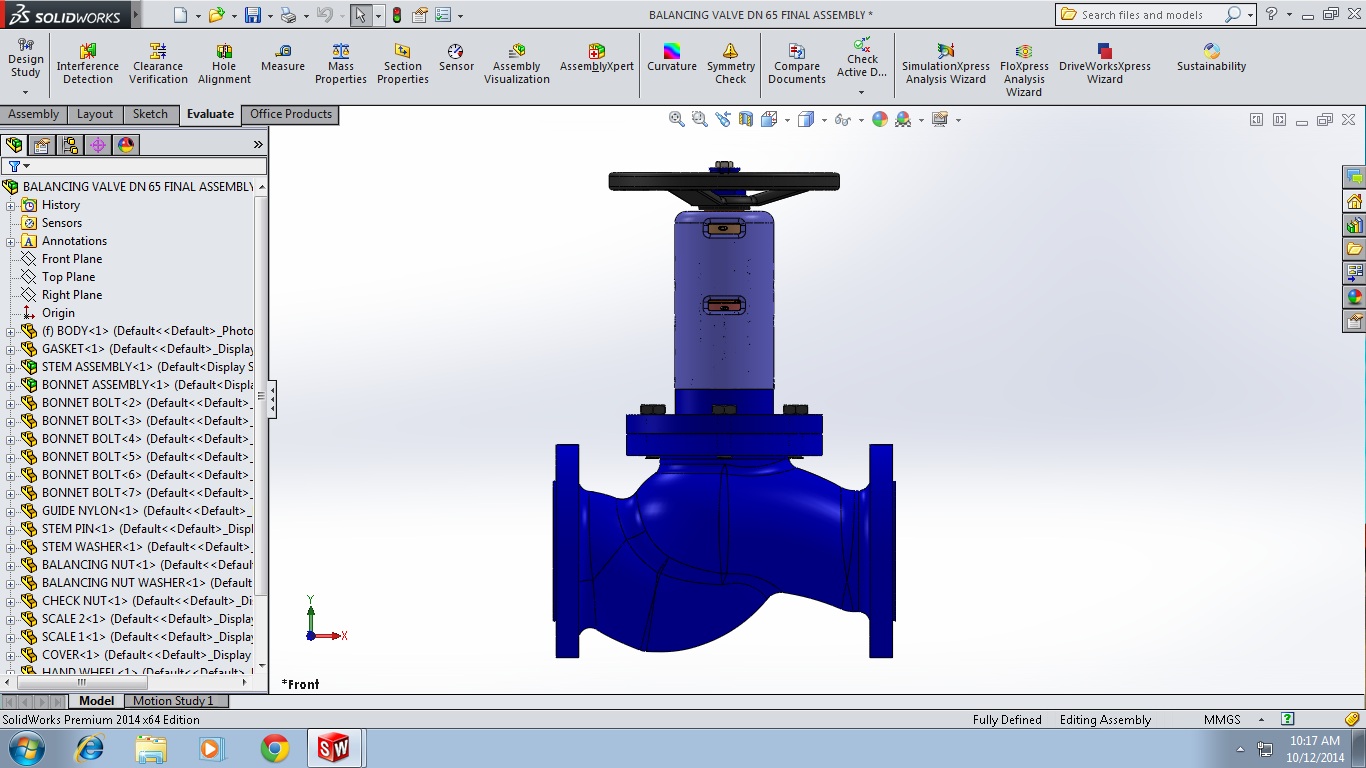

1 pic is my full assembly of the valve

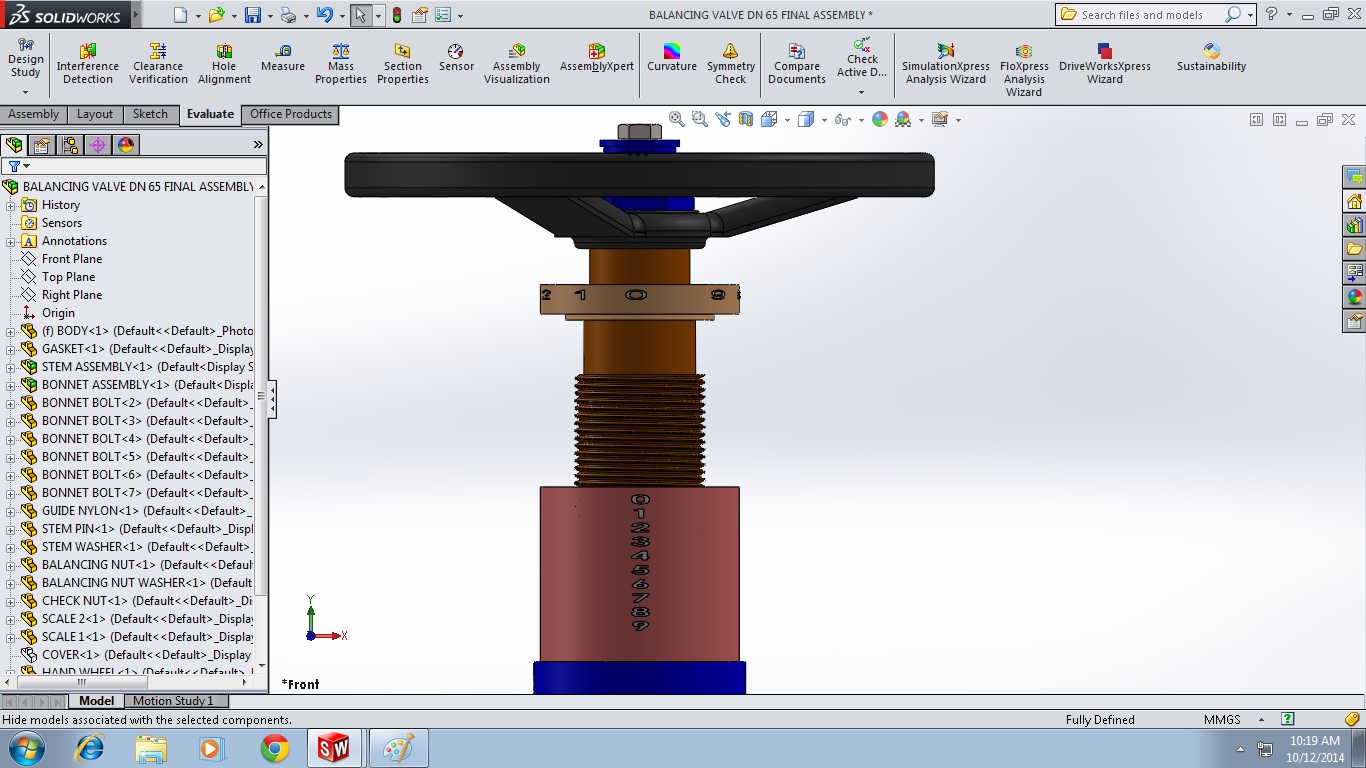

2 pic is the front section view.
3 pic is the scale used in the assembly.

I want that when I turn the hand wheel, shaft and the parts attached with the shaft move with it.
By default the assembly is at 0,0 position.

In the 3 pic there are 2 scales. I want when the shaft turn 1 revolution, both the scale moves to 1 revolution(1,1 2,2 3,3..)

I shall be very thankful if anybody help me in this..

Added images
