Chamfer to curve at distance.

Question by yo

Is there a way to make a chamfer that goes a certain distance and curves out and away instead of the whole edge?

Answer

Comments 0

5 Answers

FredSWUG
Answered on 29 Nov, 2017 04:58 PM

Not with the chamfer tool.
I think the best result would come by using the sweep command, but there are different ways to get such a result. It is difficult to give a precise solution without seeing the model.


Comments 1
dominic morrill
Answered on 29 Nov, 2017 05:03 PM
Stephen Nyberg
Answered on 29 Nov, 2017 06:35 PM

FredSWUG's answer would be the best for an actual chamfer.

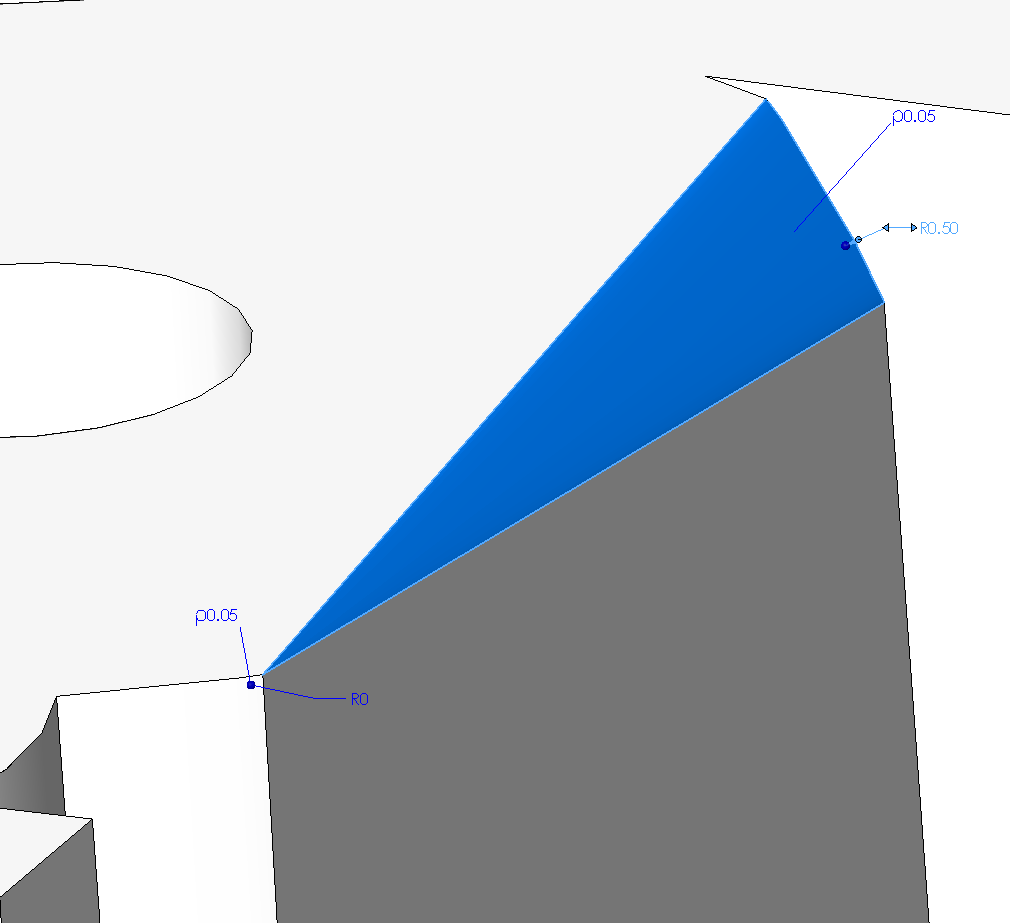

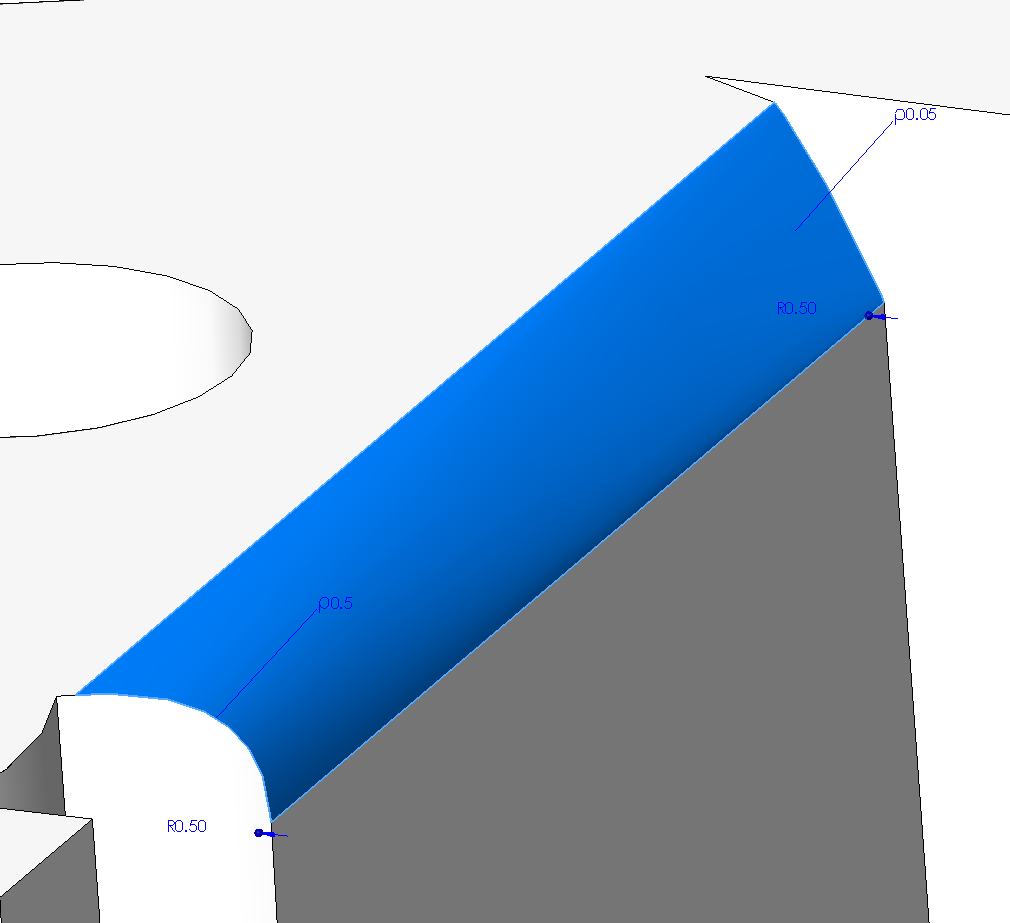

You could use the Variable Fillet option and instead of a Circular profile choose a Conic Rho profile. the closer your Rho value is to zero the closer it gets to a chamfer. Try starting with a Rho value of 0.05. This may be a little easier to adjust and tweak to get the desired results and it tied to to edges and can follow tangency. Also different points can have different Rho values so one end could be flatter with the other end more round.

A picture of what you have tired and the results you are looking for would also help.


Comments 1
wolfgang gutleb
Answered on 30 Nov, 2017 03:59 PM

best sweep it, at the end create a sketch, then rotate subtracting. not that much of an effort......


Comments 0
Mahbub
Answered on 1 Dec, 2017 11:41 AM

Use sweep or revolve or path extrusion or path rib command. Before apply these commands create your desire profile shape as you want.


Comments 0
