Design a cam

Akshay Bhat
Akshay Bhat
13 Sep, 2021 03:36 AM

Design a cam or mechanism to move the mass in vertical direction.

Design a Cam.pdf

2 Answers

SolidTweaks
SolidTweaks
Answered on 13 Sep, 2021 07:59 AM

This looks like your homework. Please say where you want some help. Nobody is going to do your work here.

bakka
bakka
Answered on 13 Sep, 2021 01:03 PM

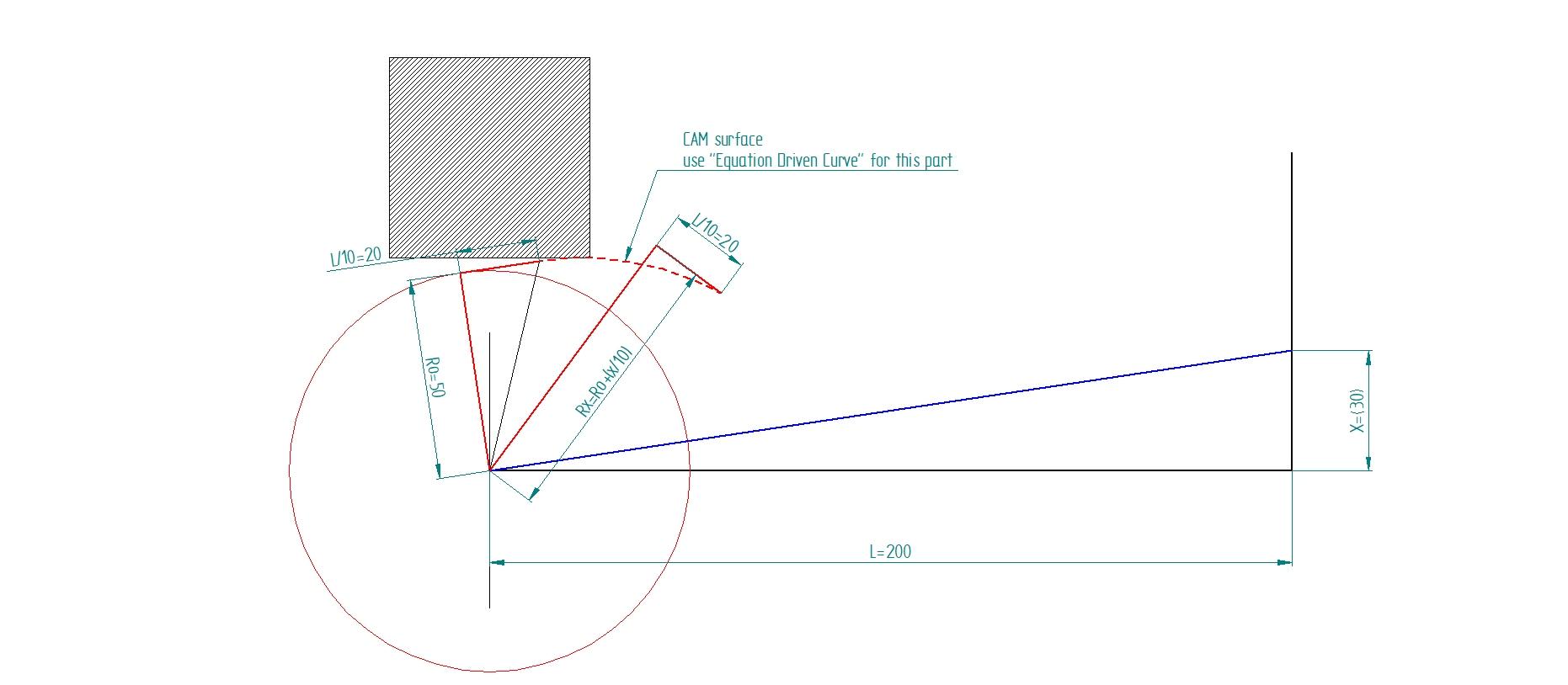

Here's a sketch.
Basicaly you need to use "Equation Driven Curve" in SolidWorks and some trigonometry.

https://help.solidworks.com/2021/english/SolidWorks/sldworks/t_creating_equation_driven_curve.htm

sketch.jpg sketch.jpg
