dimensions in nx9

aea7f2fa
aea7f2fa
5 Aug, 2014 01:37 PM

how do i change my dimensions to feet and inches ,,fractions when creating a part ,, a good man answered this question but it was for drafting only ,,which is helpful but i do my drafting in autocad ,, i just want it for when creating parts,, making a square for example and being able to type feet and inches ,,fractions and when i use my rapid dimension it pulls out measurements in fractions

2014-08-05_9-16-02.jpg 2014-08-05_9-16-02.jpg

1 Answer

Karthik Tsalla
Karthik Tsalla
Answered on 6 Aug, 2014 04:13 AM

step1

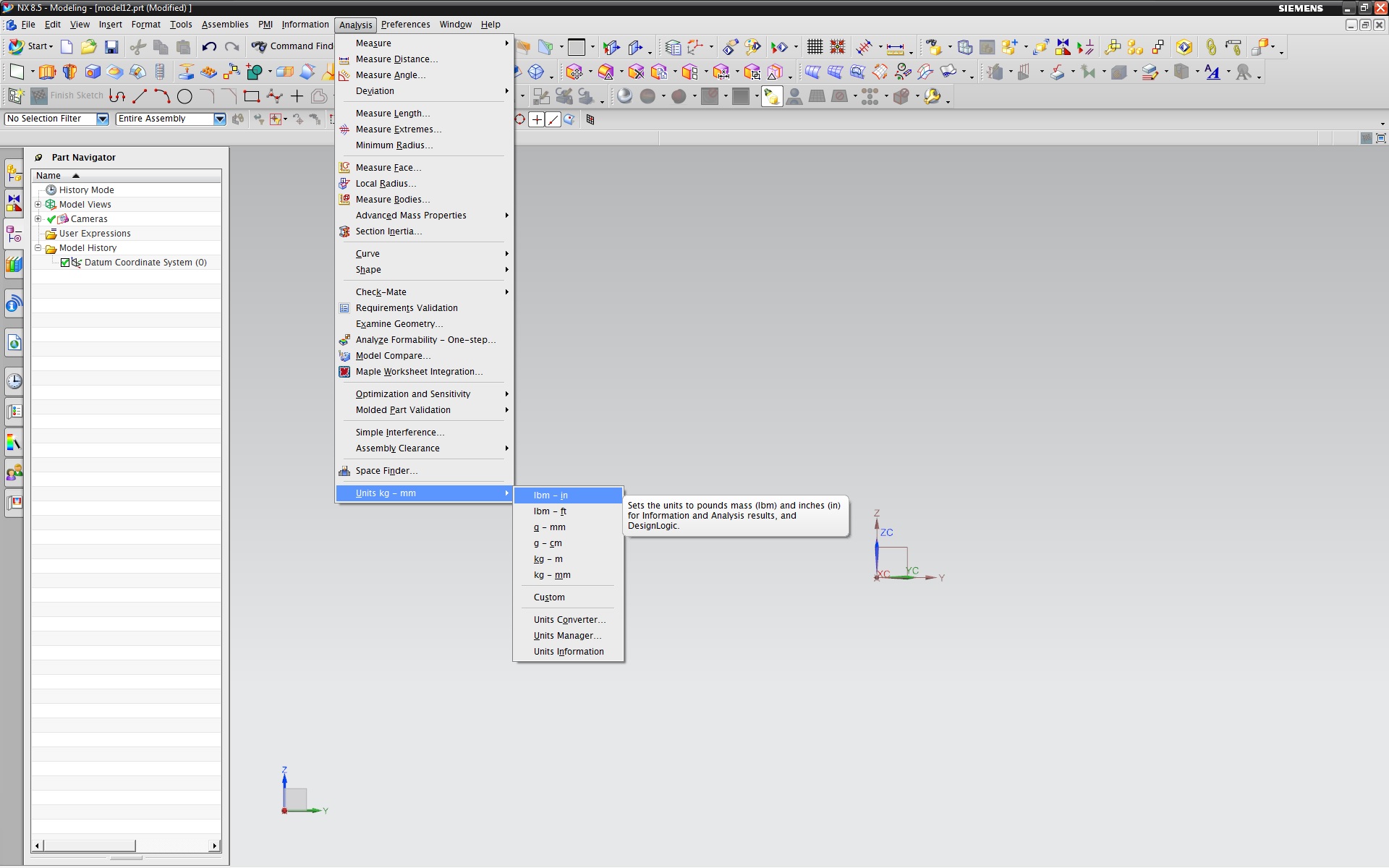

Start new part model in nx and take sketch and Go to Analysis-26th option Units change it to lbm-in if u need inch
step2
And select lbm-ft if u need feet
step3
Now take line and give dimension to it

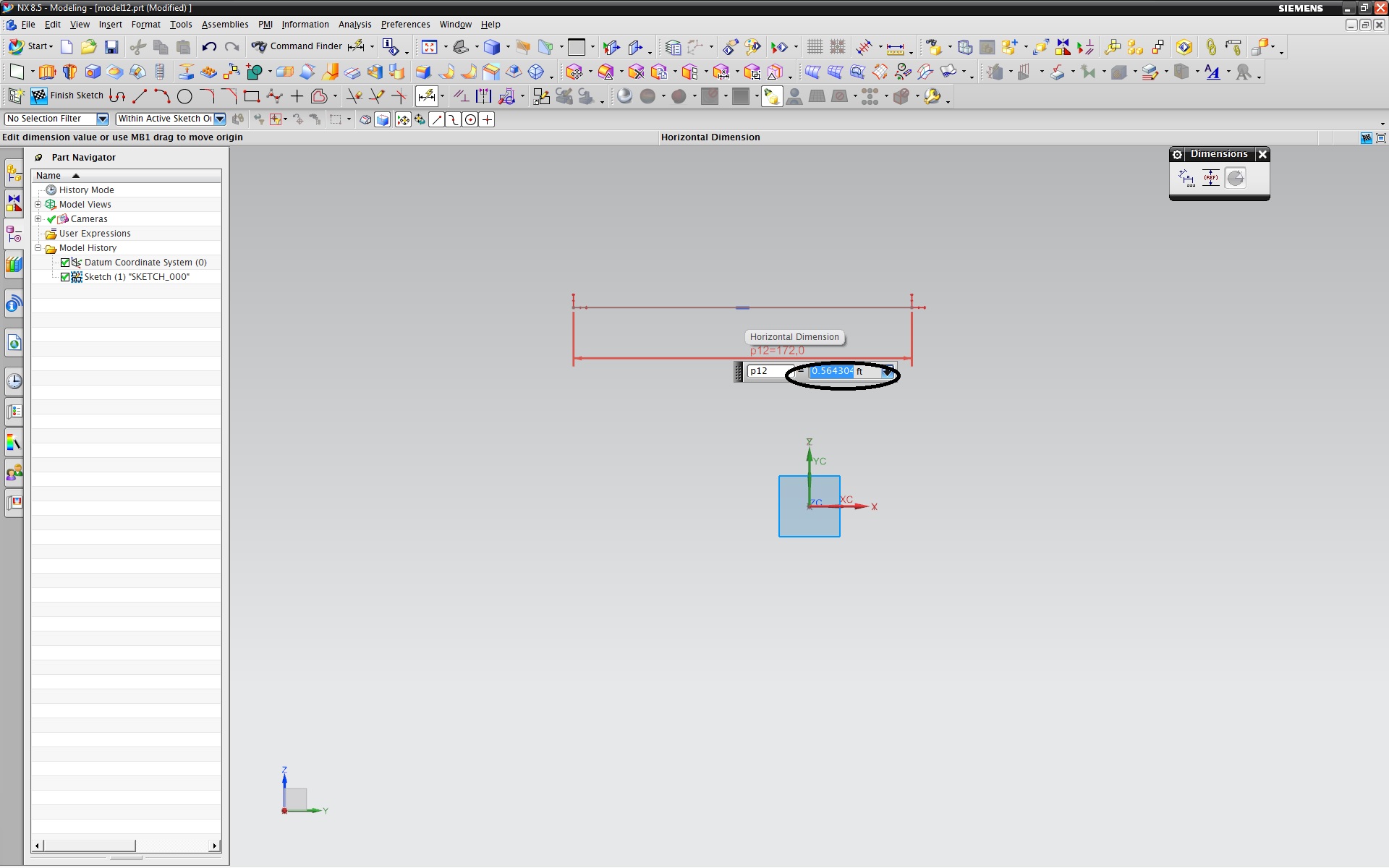

this picture is for inch
step4

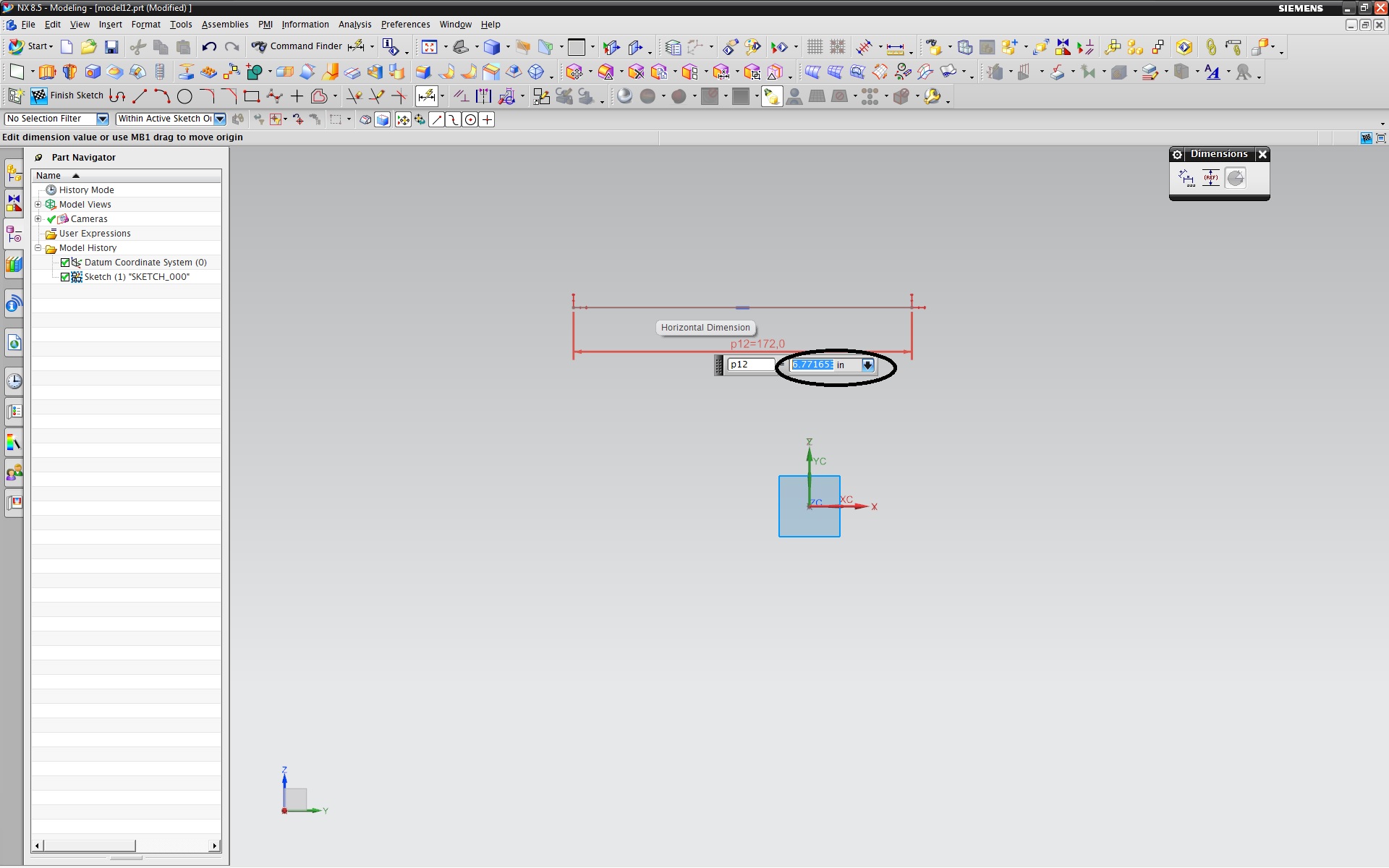

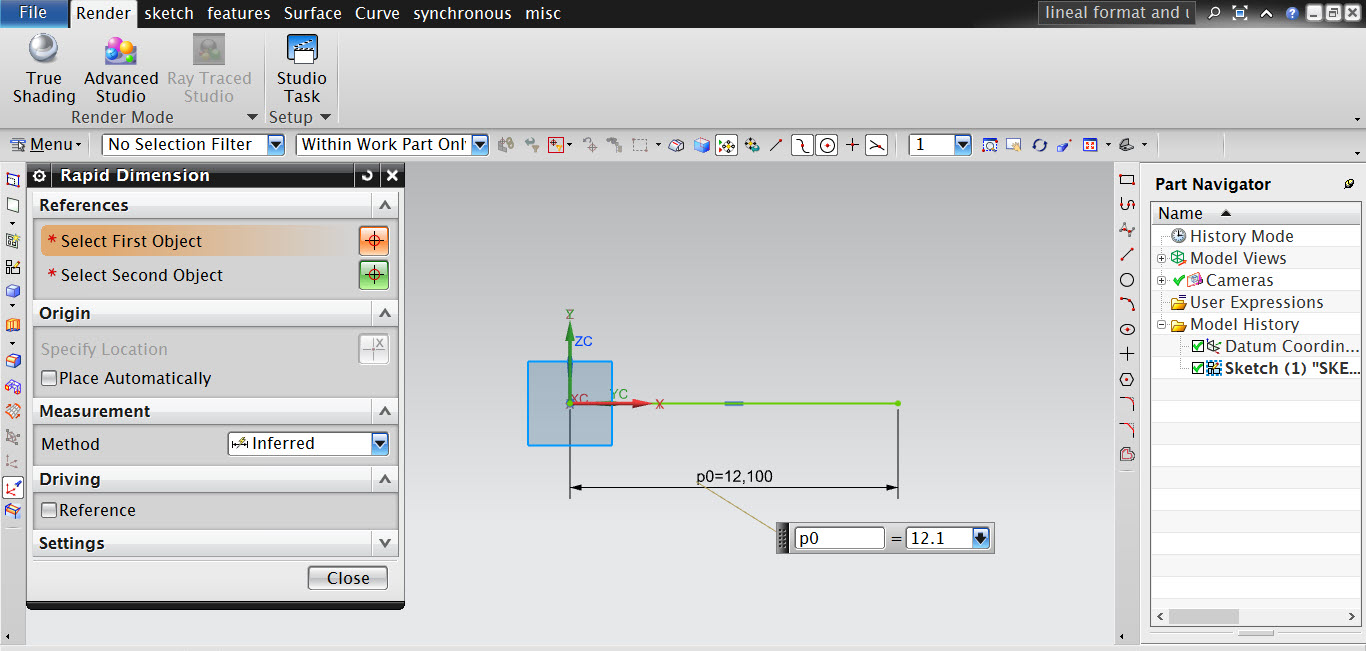

this is for feet
