draw solıdworks

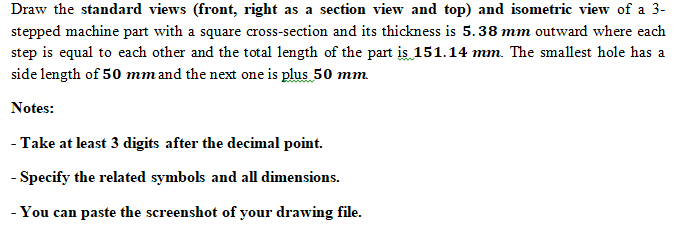

Draw the standard views (front, right as a section view and top) and isometric view of a 3-stepped machine part with a square cross-section and its thickness is 5.38 mm outward where each step is equal to each other and the total length of the part is 151.14 mm. The smallest hole has a side length of 50 mm and the next one is plus 50 mm. Notes: - Take at least 3 digits after the decimal point. - Specify the related symbols and all dimensions. - You can paste the screenshot of your drawing file.
