Extrude a path inside a sphere

By Joakim Karlsson on 11 Feb 20:54 2 answers 2 comments

Hi guys.
Having some trouble now to extrude a path inside a sphere, or through sphere to be precise.

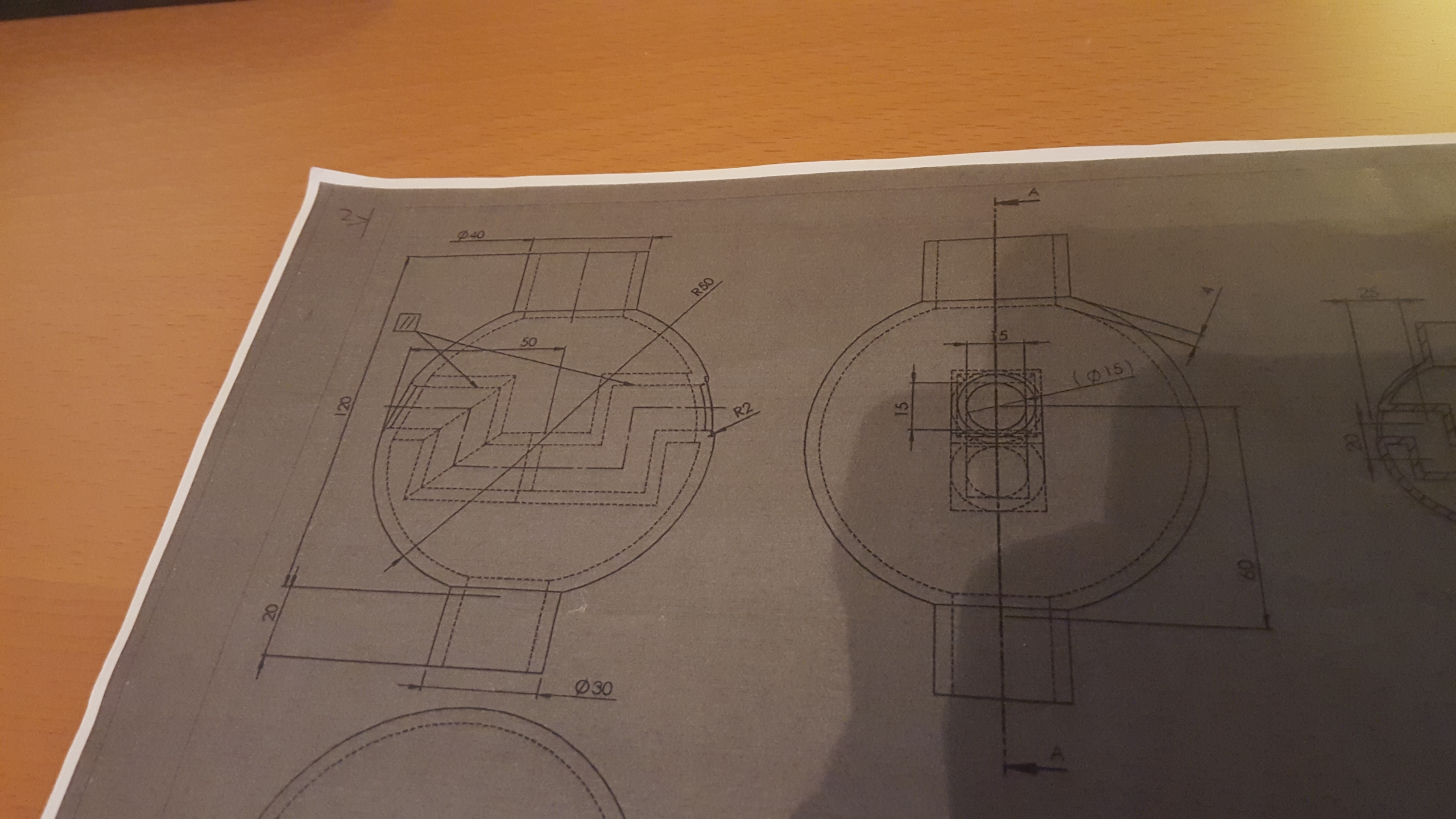

Will post two pictures from the drawing I've got.
Hope someone can bring an idea to the table :)

http://imgur.com/bTMtI6f
http://imgur.com/ReKCgrz

Thanks!

Added images

Square Square

2 answers

  • Roger-Marie Couture
    Roger-Marie Couture over 1 year ago

    Sorry I did not see the picture: Now everything is fine, I do not see what could belfry! I did not see the wall shown in the center that makes the connection between the round tube and square tube. I imagine that the passage of the round tube to square tube, used to create turbulence?

    Answered with a tutorial: https://grabcad.com/tutorials/extrude-a-path-inside-a-sphere

    Attachments

    sphere avec tube interne.SLDPRT, 317 KB
    Download
  • JSE
    JSE over 1 year ago

    is this what your talking about?

    Attachments

    Part1.SLDPRT, 1.21 MB
    Download

Add your answer to: "Extrude a path inside a sphere"

Save Cancel
