Flatten an elliptical model
Hi everyone,

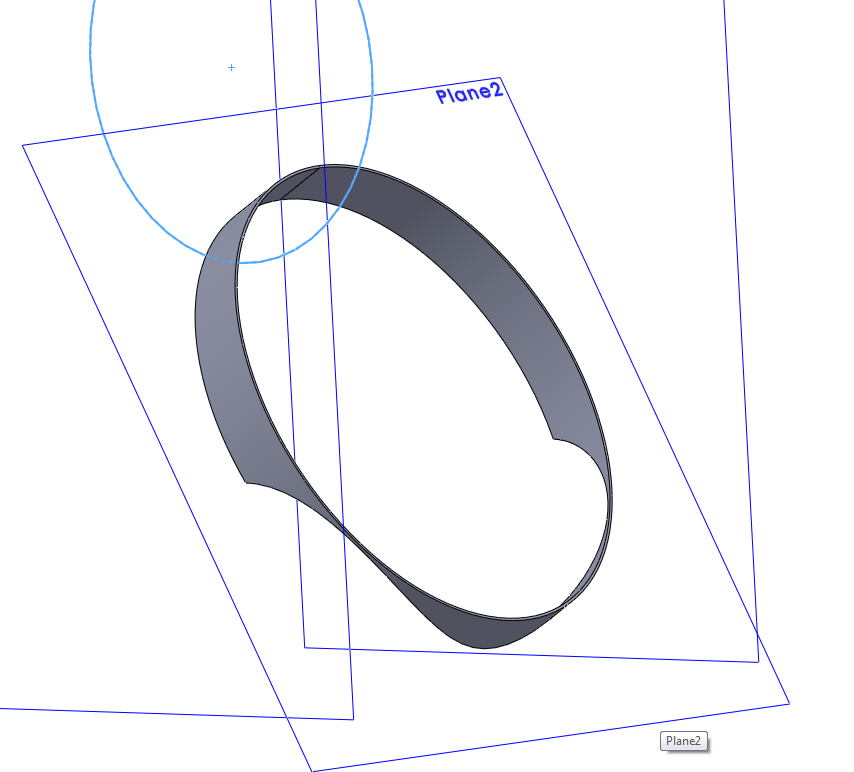

I have modelled an elliptical model. I now want to make a flat pattern as a template for cutting.
When I'm trying to flatten my oval model in sheetmetal it won't work.
Is there a solution for this problem?
7 Answers
I am uploading the model also.
Thanks everyone for helping me.
Open it in inventor no problem.
Step attached
Dear CadCloud,
thank you for your answer, but I don't have inventor.
If it is possible, can you export the template for cutting in *.dwg or *.dxf File?

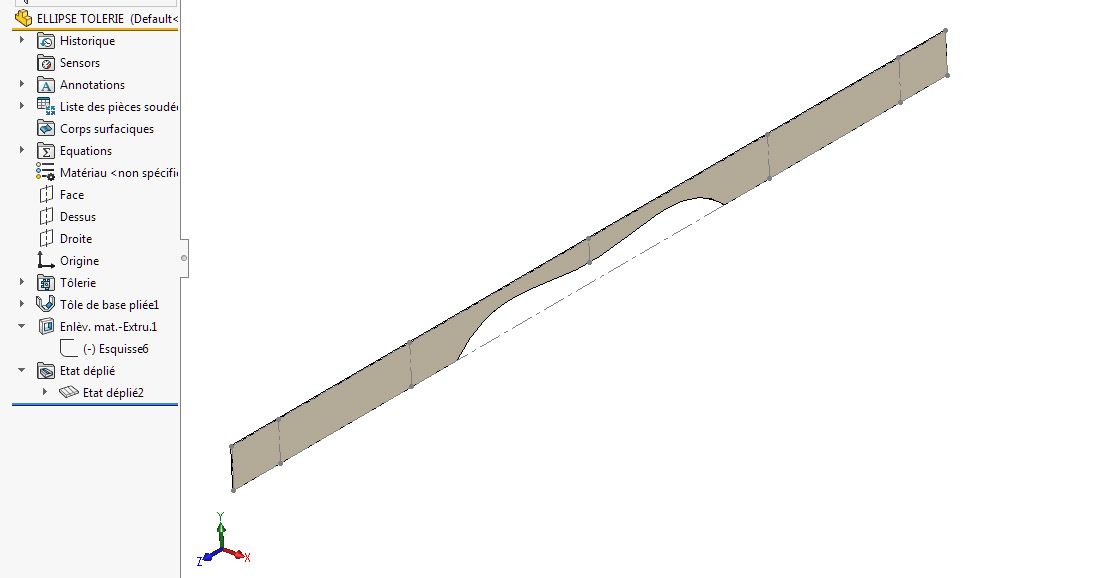

ok here is a DXF
Finally I opened both of your files.
That solved my problem.
Thank you very much, CadCloud.
I appreciate it. I think, I should look for Inventor.
Have a nice day an best regards from north of Germany.
If you want flat pattern for sheet metal It MUST be OPENED, so keep one side at least opened (Not welded or connected) and generate the flat pattern
Very simple. Sheet metal requires you to draw only linear segments and tangent arcs. So here you have only to draw an ellipse at 4 centers.
