Help on how to start modeling this file

ali
ali
14 May, 2017 09:42 PM

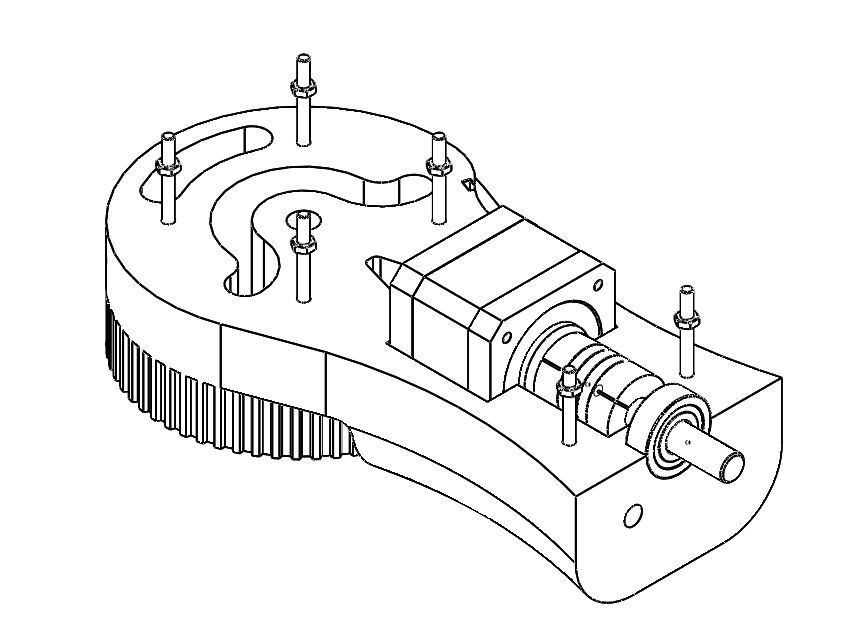

Any suggestions on where to start when modeling the picture attached (except for the motor in the middle). I am fairly decent modeling "blocky" parts but don't have much experience with "rounded" parts like the one in the picture.

forearm_image2.JPG forearm_image2.JPG

3 Answers

kuldeep sharma
kuldeep sharma
Answered on 24 May, 2017 12:14 PM

Best method for making objects is removing material means make solid objects then start remove as machine do there process.

Richard Barber
Richard Barber
Answered on 15 May, 2017 06:15 AM

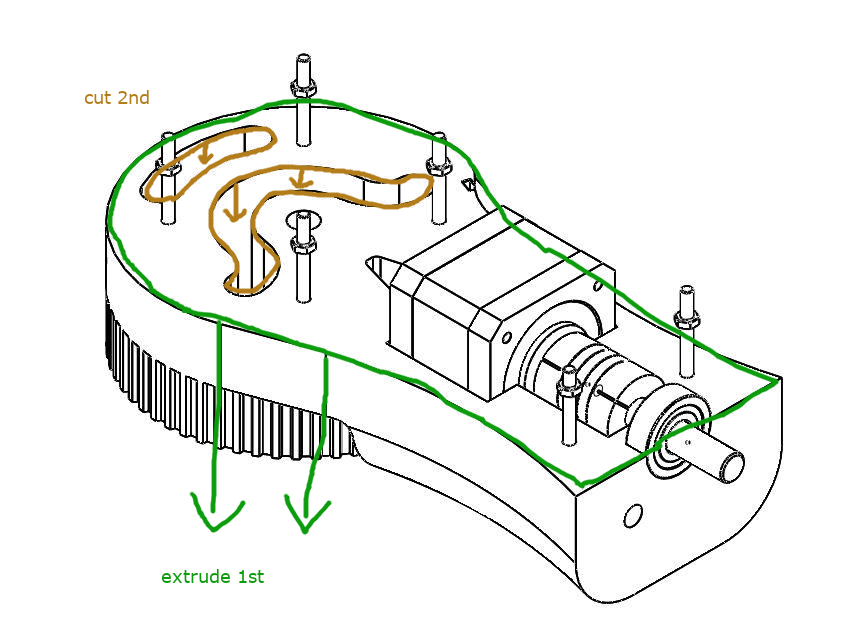

Not entirely sure about the underside, but I'd probably start here...

large.JPG large.JPG
Roger Couture
Roger Couture
Answered on 19 May, 2017 07:01 PM

The best way is to model the part by designing how it will be machined.

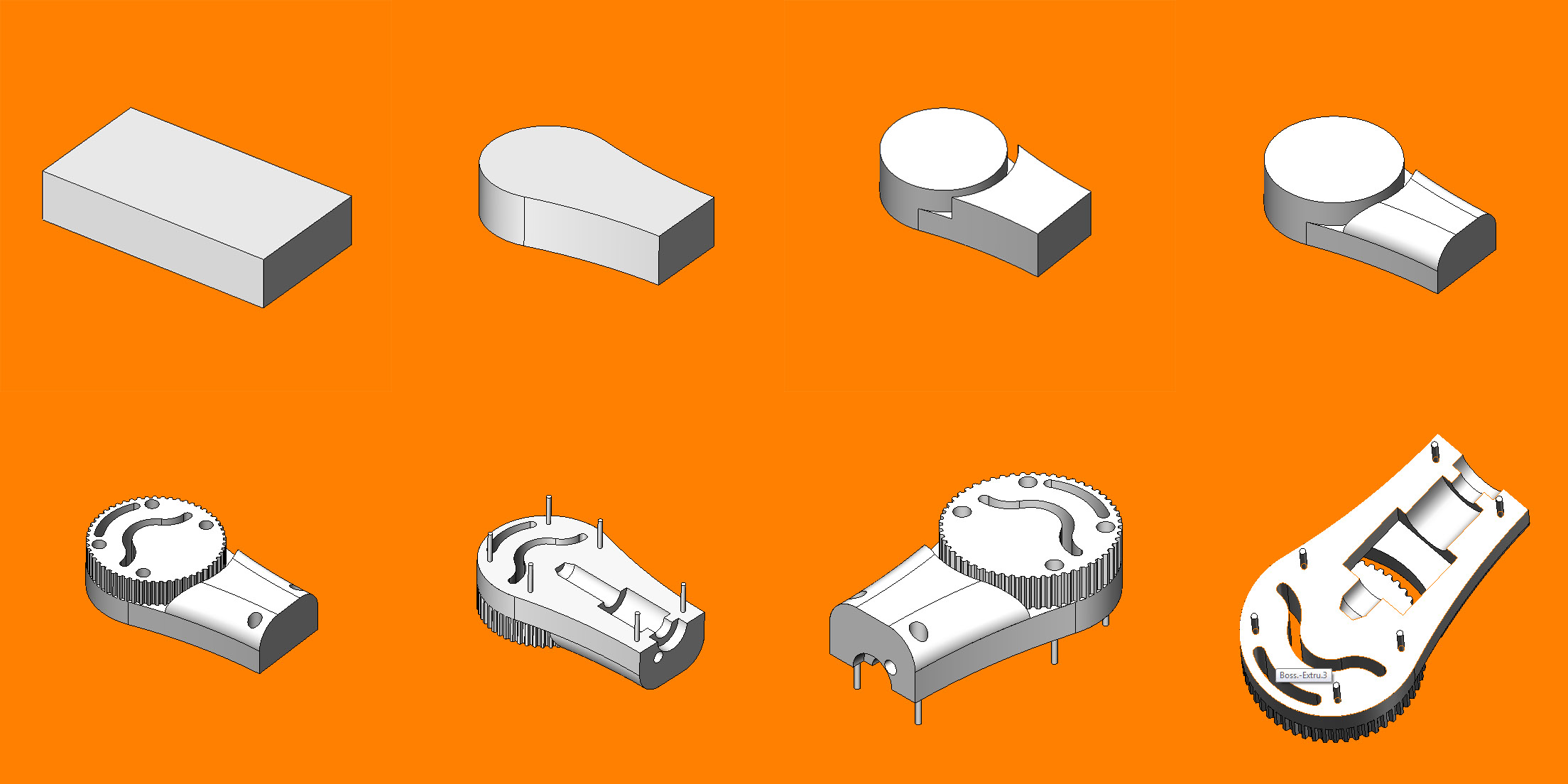

ALI forme usinée.jpg ALI forme usinée.jpg
