Help with CATIA

looks like some pretty simple parts. do you have dimensions?

Hi Lovro,

First: Understand what is needed.

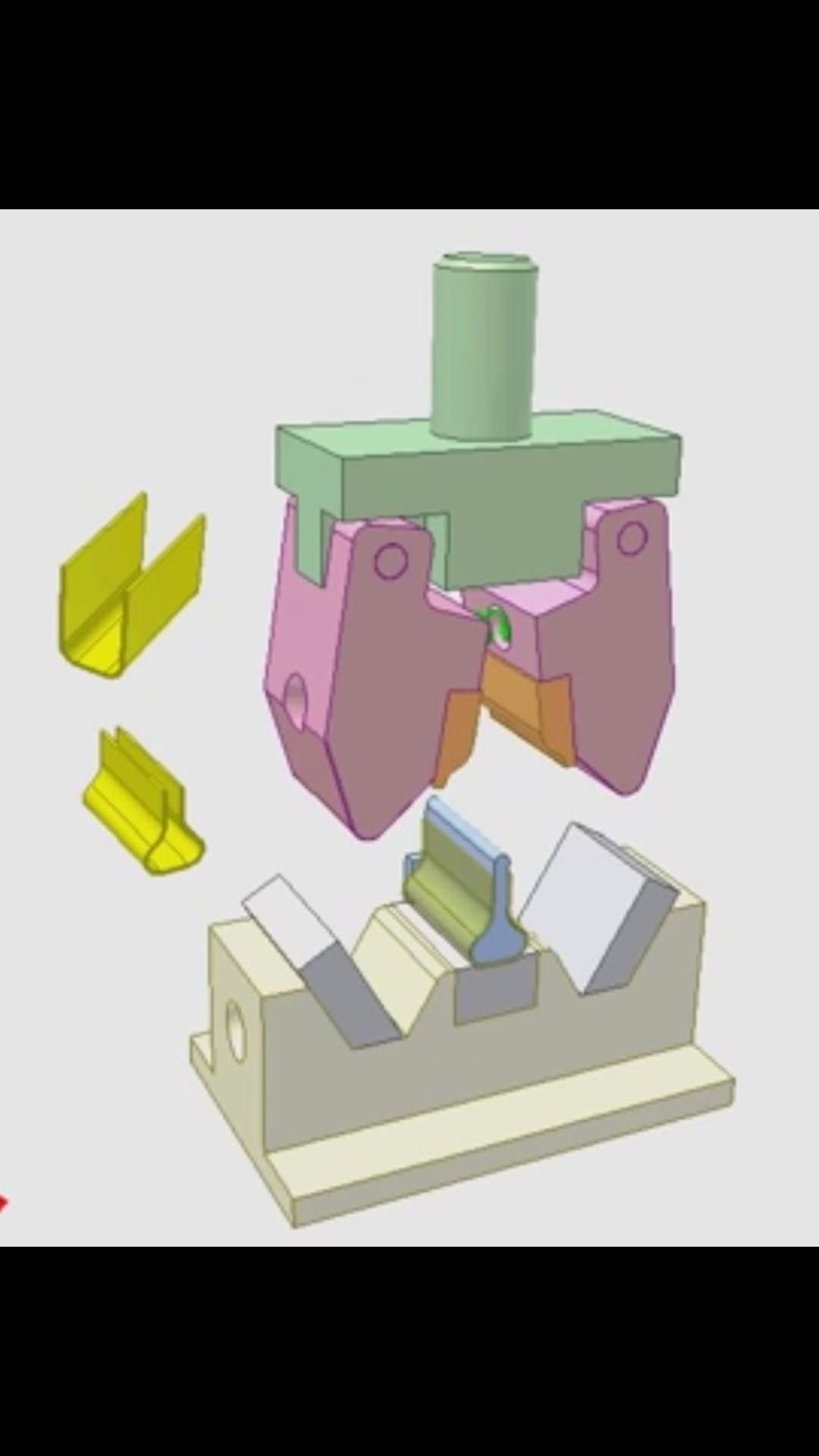

Make one part (yellow part) using the tool shown (light brown, green, pink, orange, gray and blue parts).
Yellow part needs to have a ''U'' pre-form and then final form.

Second: Order and indentify with numbers each part from larger to smaller.
1 - light brown.
2 - green.
3 - pink.
4 - gray.
5 - yellow.
6 - blue.
7 - orange.

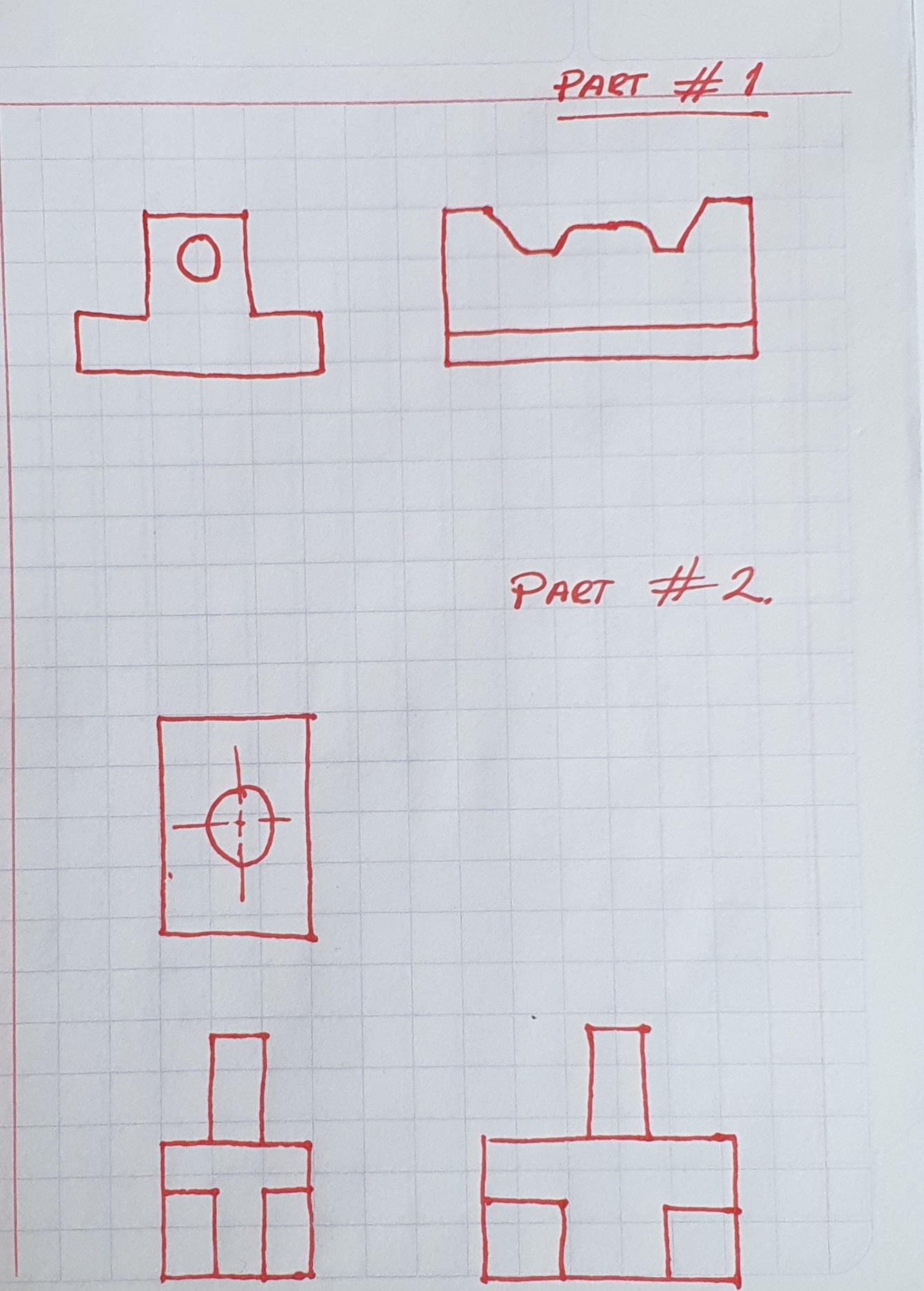

Third: Using a piece of paper, make an sketch views (I suggest you make only three - Front, Upper and Lateral Right -- Tip: use third angle --) of each part (without dimensions), starting from the number one (obviusly).
Be careful because we have three repeated parts, pink, orange and gray (only left & right) so you need to make only one.

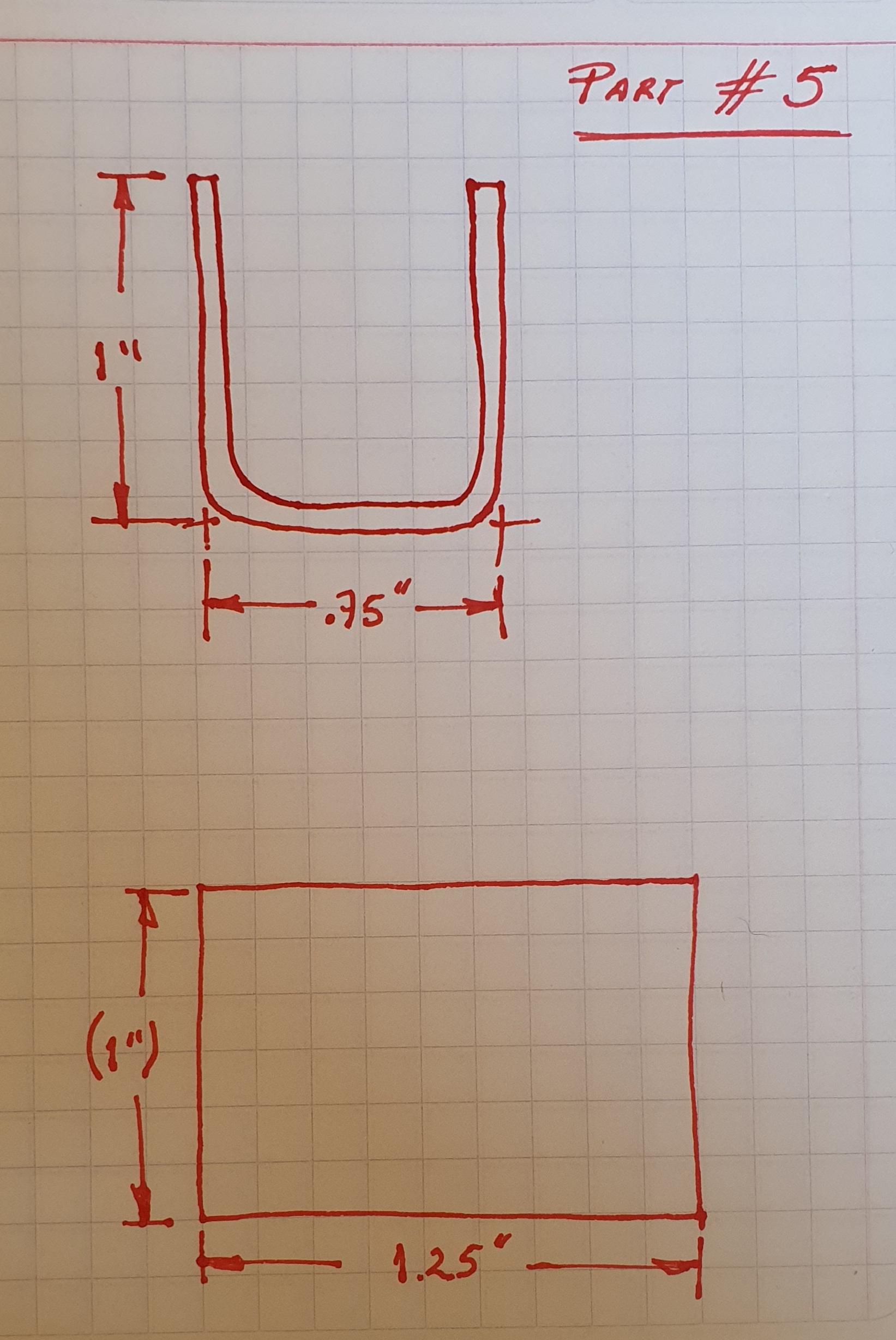

Fourth: Assign dimensions, now starting with number 5 because it is what you need, the product. You could use: 1'' x .75'' x 1.25'' (See attach). And from now on, you may give dimensions to the next components.

Fifth: Now you can model them in CATIA.

I hope this helps. Feel free to contact me if you need something else.
