How can I fix text height of dimensions in sketch module of NX 9.0.

By Ujjwal on 27 May 07:01 2 answers 2726 views 3 comments

I am not able to find an option in sketch module (in NX 9.0) from where I can fix text height of dimension as it was on NX 8.5. I want to fix text size such that once upon defining its height in the module its does not get changed while I zoom in or out of the sketch.

Attachments

Dimension Text.avi, 3.24 MB
Download

2 answers

  • 82d936ba
    82d936ba over 2 years ago

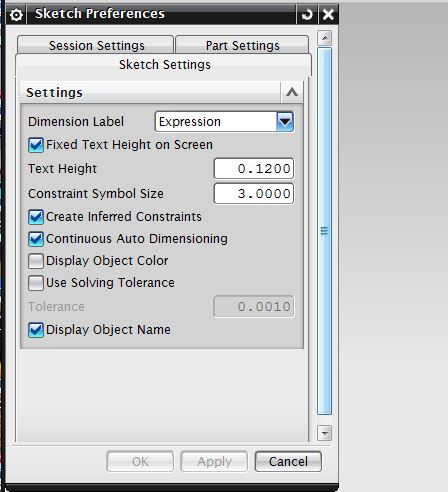

    Try Preferences...Sketch...Sketch settings

  • 82d936ba
    82d936ba over 2 years ago

    In NX 9.0 you double-click a dimension to edit the format.

Add your answer to: "How can I fix text height of dimensions in sketch module of NX 9.0."
