How can i set this dimension in SW?

Question by Viktor

Hi everyone!

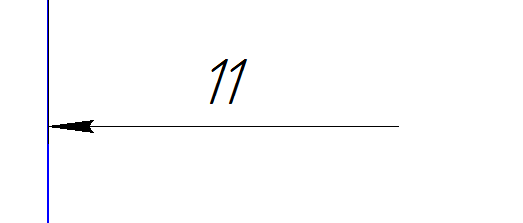

Please tell me about this dimension (look at picture).
I set dimension at picture in other software. But I dont know how can I do this in SW.
Ordinate (in SW) is not the same thing.

Answer

Comments 1

5 Answers

46a01e21
Answered on 20 Jun, 2013 09:53 AM

Not sure about that, but you can remove the chain leaders from the ordinate

Answered with a tutorial: https://grabcad.com/tutorials/how-can-i-set-this-dimension-in-sw


Comments 1
46a01e21
Answered on 21 Jun, 2013 09:07 AM

Tajinderpal
Thank you.
I think you mean when the geometry is blue, the dimension in the example is blue because it is selected - to bring up the property manager.
Julian


Comments 0
Paolo Comand
Answered on 22 Jun, 2013 09:38 AM

The question is not very clear. However I am assuming that you are making a drawing table and that you want hide the extension line and quotation line from one side. Right click on the dimension. From the context menu choose HIDE EXTENSION LINE or HIDE QUOTATION LINE


Comments 1
mano vaithilin
Answered on 7 Jul, 2013 12:47 AM

This dimension is very useful in structural steel Detailing, regularly use in the "Tekla" software, but it may available in "BuiltWorks SolidWorks Structural Steel Add-in Product"


Comments 0
Tajinderpal singh
Answered on 21 Jun, 2013 08:37 AM

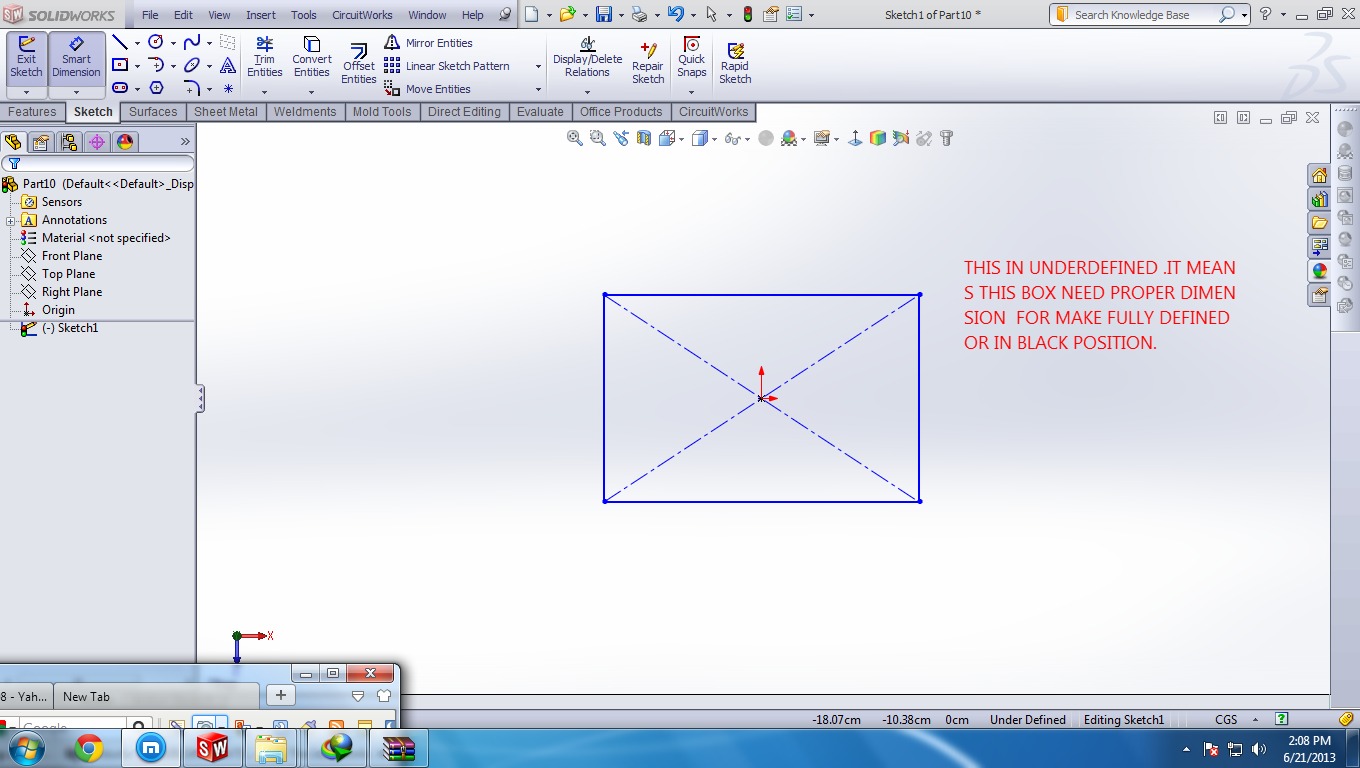

WHEN THE DIMENSIONS ARE IN BLUE COLOUR,THEN DIMENSION ARE NOT FULLY DEFINED,OR YOU MAY NOT GIVE IT FULL DIMENSION.

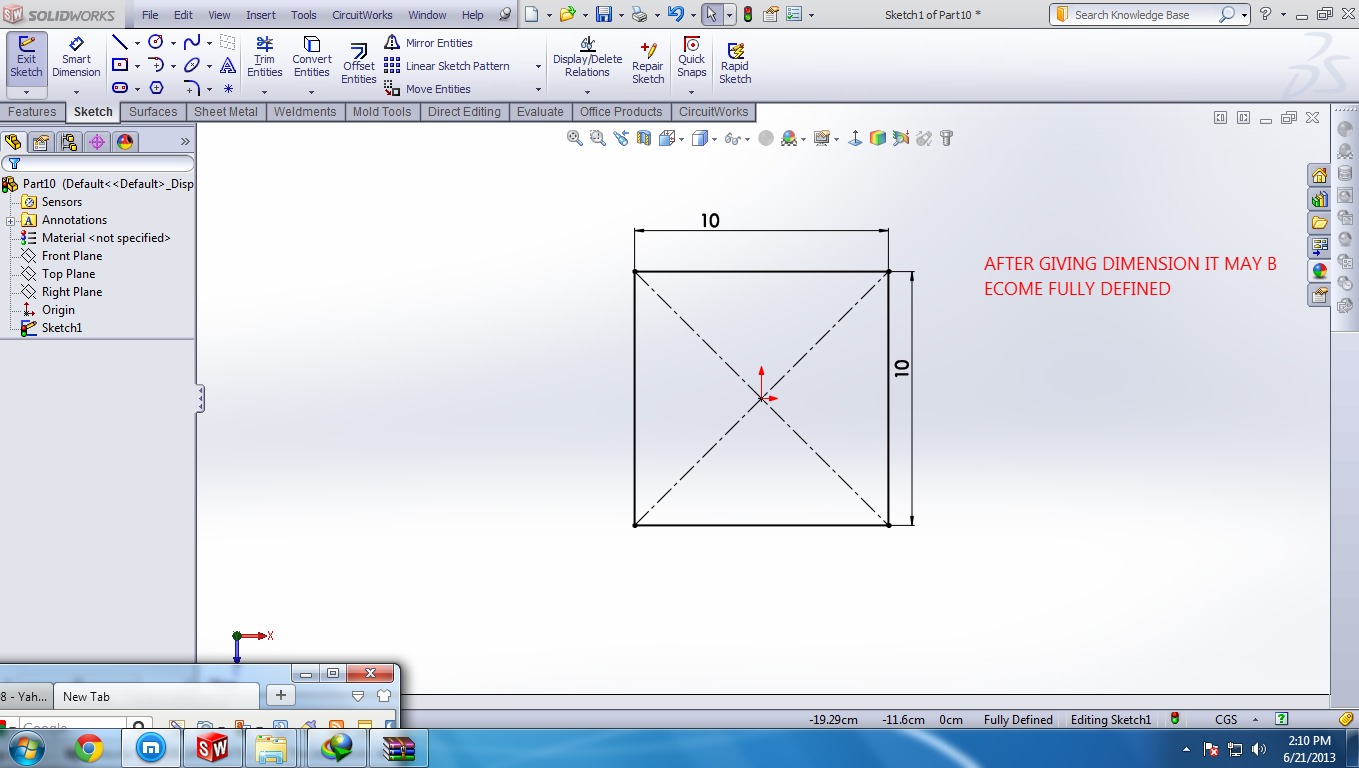

SO WHEN YOU CLICK ON DIMENSION THEY COME IN EDIT MODE,AND YOU CAN CHANGE IT EASILY,AND AFTER GIVING ALL DIMENSION IT MAY COME IN BLACK POSITION .THEN IT IS FULLY DEFINES .


Comments 2
