How draw this part ?

By Nistor Alexandru on 18 Jan 20:10 4 answers 883 views 2 comments

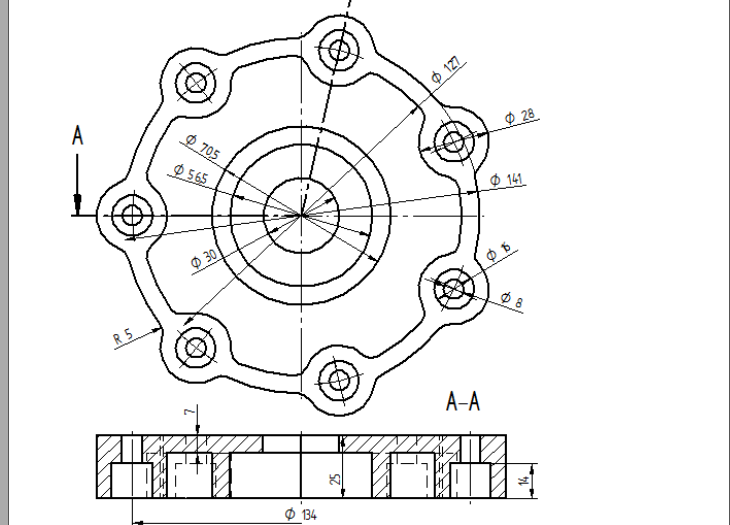

How drawing this part ? Please help me.

Added images

Square

4 answers

  • Roger-Marie Couture
    Roger-Marie Couture over 1 year ago

    Mais lorsqu'on veut obtenir un retour d'infos dans la mise en plan, mieux vaut faire un perçage chambré avec répétition circulaire de la fonction.

    But when you want to get a return information in the drawing, it is better to make a hole chambered with circular pattern of the function.
