How to add exploded view in drawing?

By rakesh on 18 Apr 10:21 5 answers 0 comments

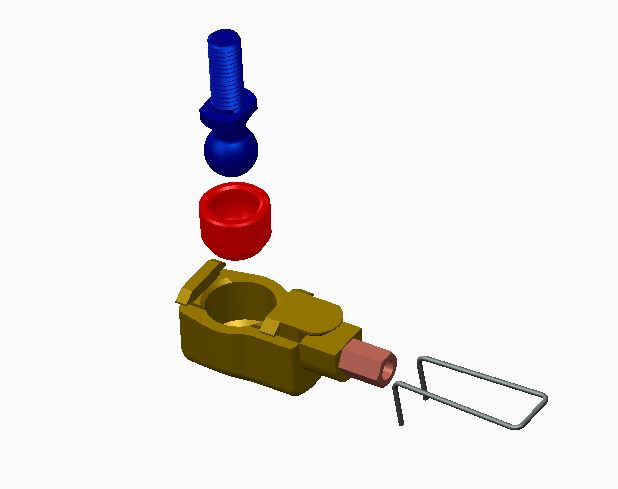

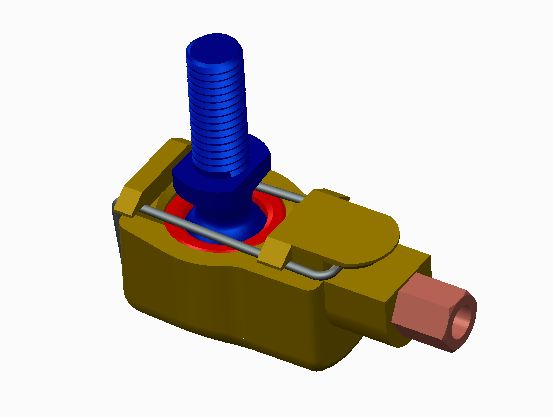

Here is a tutorial showing how to add exploded view in drawing.

Added images

Square

5 answers

  • a1ce339a
    a1ce339a over 4 years ago

    I guess dynamite is out. (:

  • nikhilbhope
    nikhilbhope over 4 years ago

    Step 1: Open the assembly for which u have to add an exploded view.
    Step 2: Go to view manager and then select the tab "Explode".
    Step 3: Create the new explode view name and then start exploding the parts accordingly. (Note: Dont forget to save the view after exploding.)
    Step 4: Now go back to the drawing and add the whole assemble.
    Step 5: Select the assembly and open its properties. Select the view option and then select the name of the exploded view u gave. Hence it displays the exploded view.
