How to add fillet when a curve is drawn through points???

Naveen Kumar Gulla
Naveen Kumar Gulla
11 Feb, 2018 05:11 PM

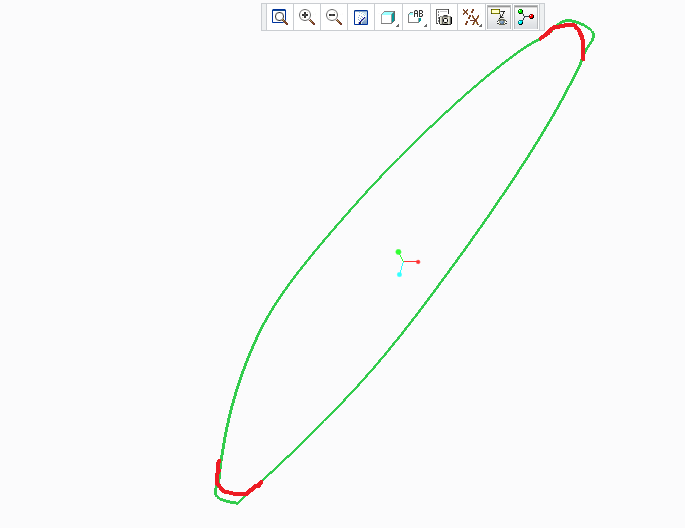

Can someone help to draw a fillet at the ends of the curve which are marked in the red colour of the attached screenshot, part file of the curve is also attached.

Thank You,

Section.PNG Section.PNG section.prt.1

2 Answers

Jaydeep Phalke
Jaydeep Phalke
Answered on 16 Feb, 2018 05:44 AM

Hi Naveen,

I have some suggestion for you,

Step 1. Just create new point at the center('s).
Step 2. Edit definition the curve. Omit the remaining two (Both point side of new point) points in curve command.
You might got help from rearranging the points.

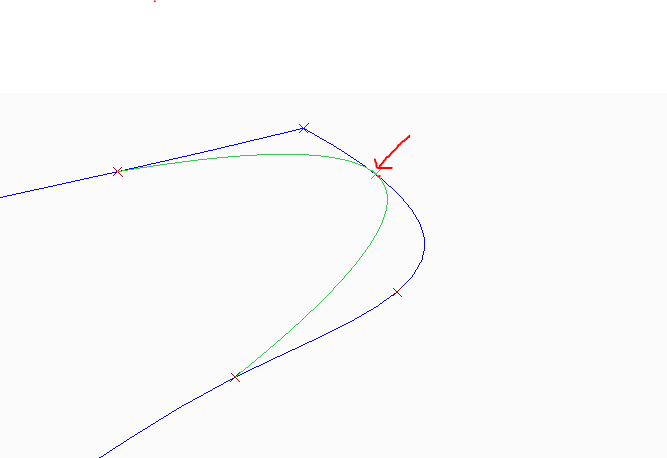

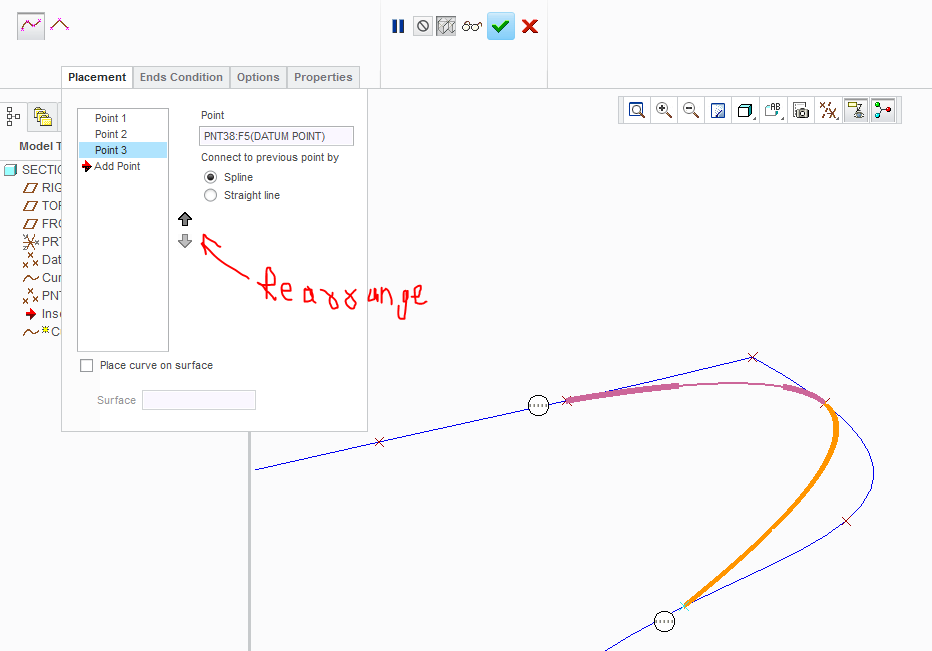

q3.PNG q3.PNG q2.PNG q2.PNG
BH Ooi
BH Ooi
Answered on 22 Feb, 2018 01:52 PM

see the attached Creo2 file.

section.prt.2
