How to create a joint connection in Ansys Workbench

Kelvin
Kelvin
13 Feb, 2015 04:17 AM

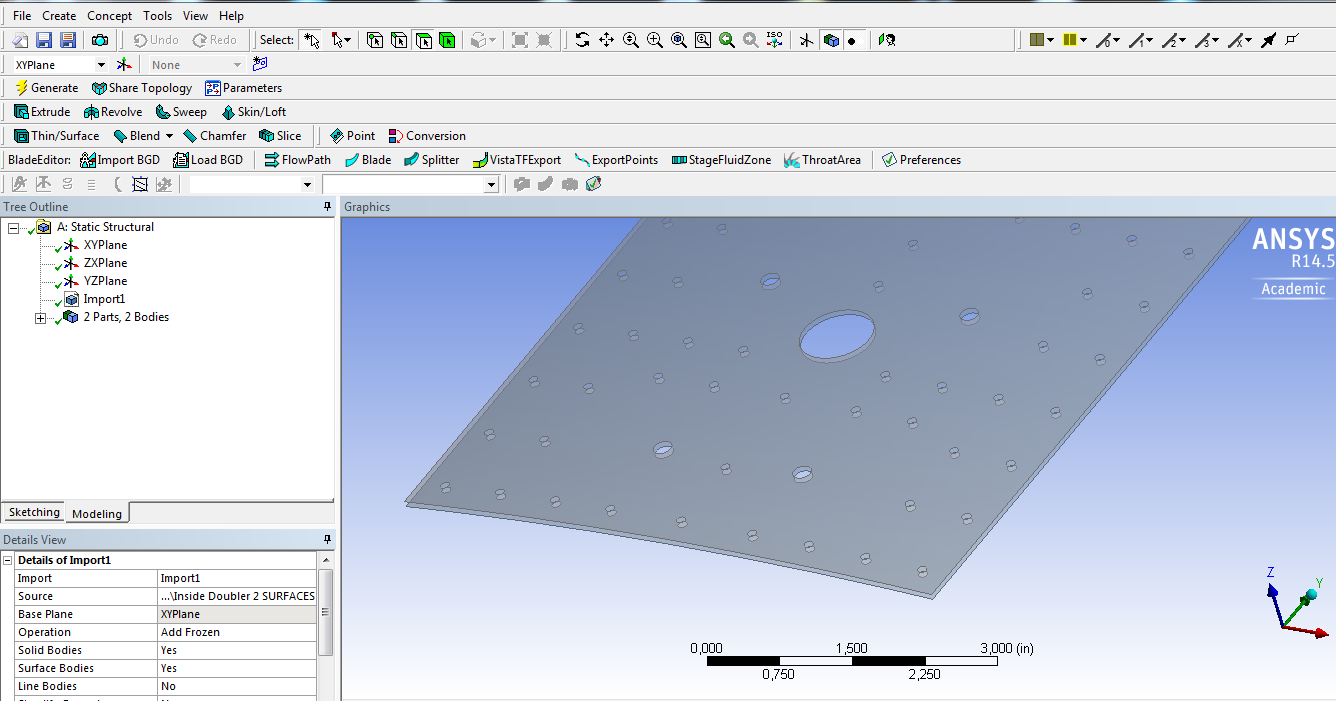

I have imported 2 surface bodies from Catia V5 (IGES) to Ansys Workbench 14.5.

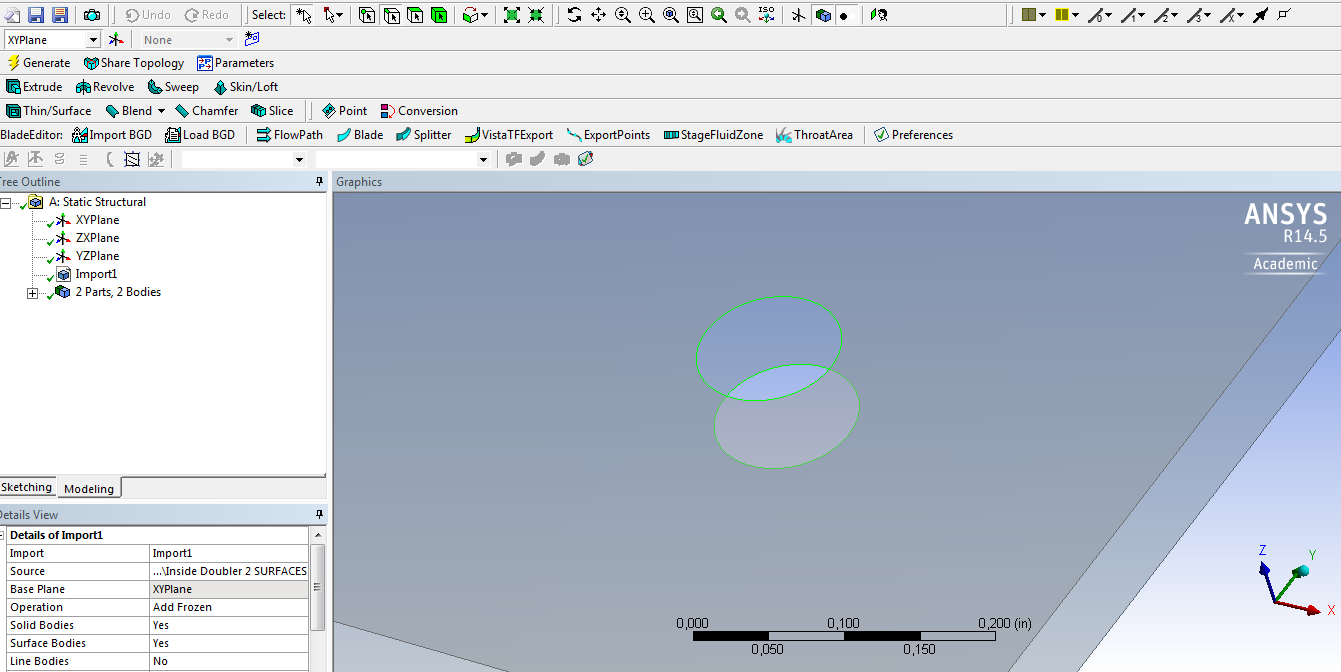

I have created holes in my surface bodies, and how do I create a rivet connection between my holes?

ANSYS 2.PNG ANSYS 2.PNG ANSYS.PNG ANSYS.PNG
