How to create a specific box handle

Daniel Bleijenberg
Daniel Bleijenberg
5 May, 2021 03:33 PM

I'm modelling in Fusion 360, but I can't succesfully design this specific box handle due to the bends in the vertical.

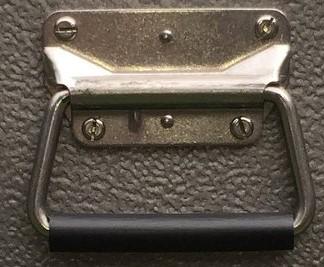

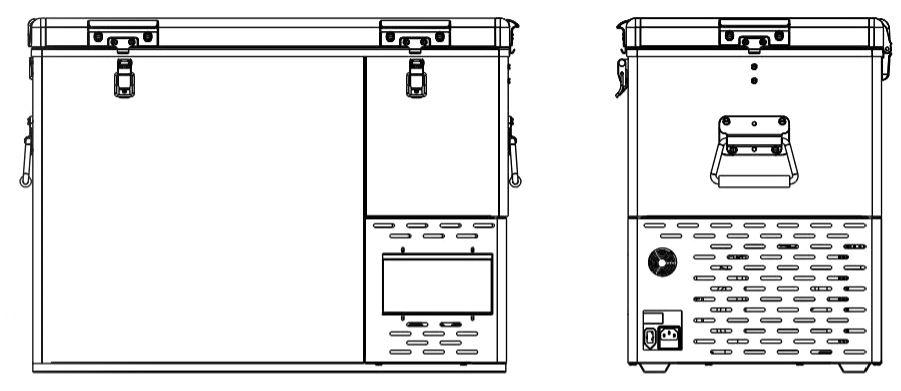

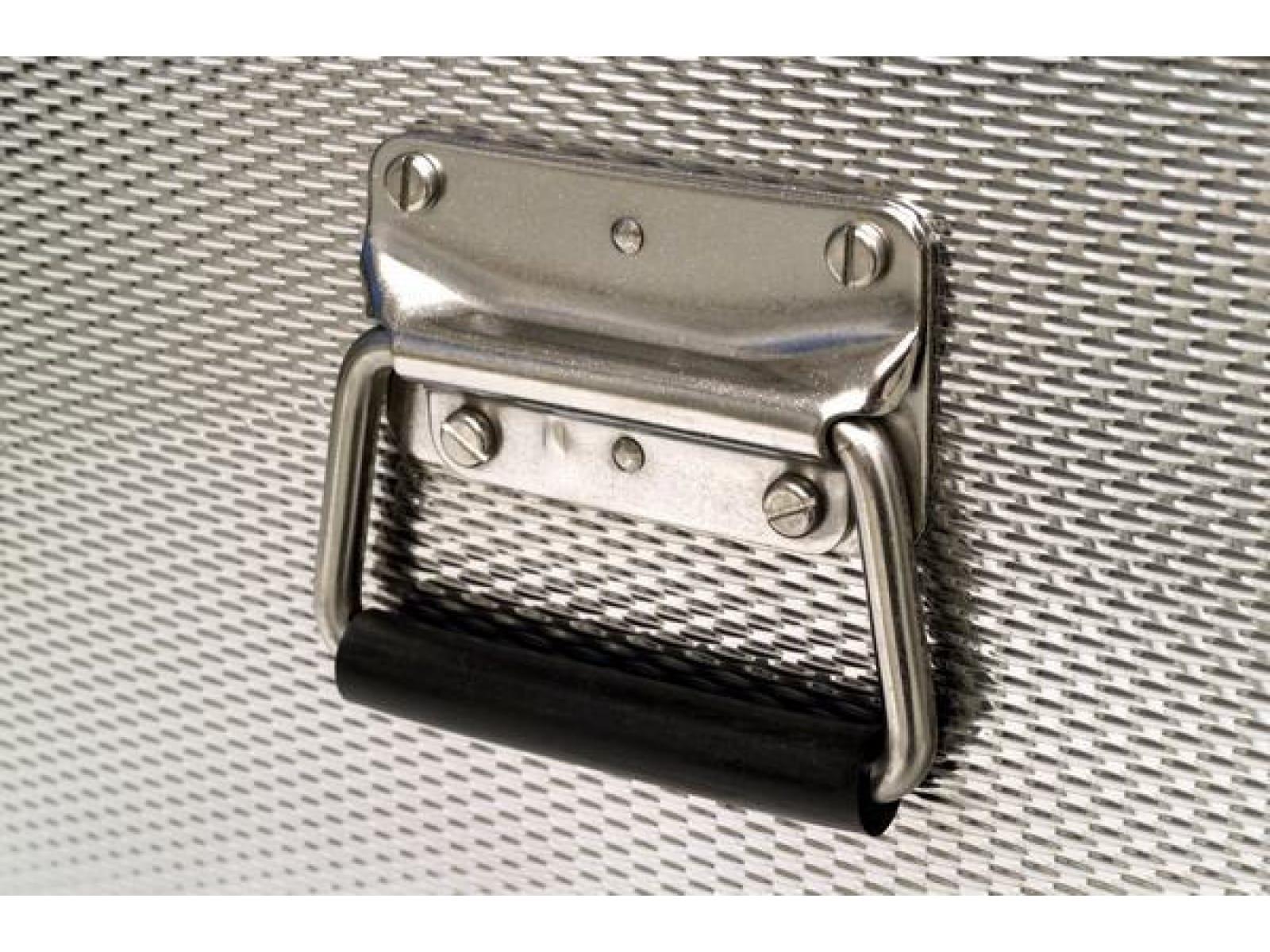

national-luna-spring-loaded-stainless-steel-handle-fridge-accessory-4x4-down-under-579_1600x1200.jpg national-luna-spring-loaded-stainless-steel-handle-fridge-accessory-4x4-down-under-579_1600x1200.jpg Hinge.JPG Hinge.JPG 43000371_2221187774572754_4133310246011535360_n1.jpg 43000371_2221187774572754_4133310246011535360_n1.jpg 43148288_2221187811239417_7475925418080468992_n1.jpg 43148288_2221187811239417_7475925418080468992_n1.jpg

Accepted answer

CadCloud
CadCloud
Answered on 6 May, 2021 03:44 AM

Here´s a step hope it helps

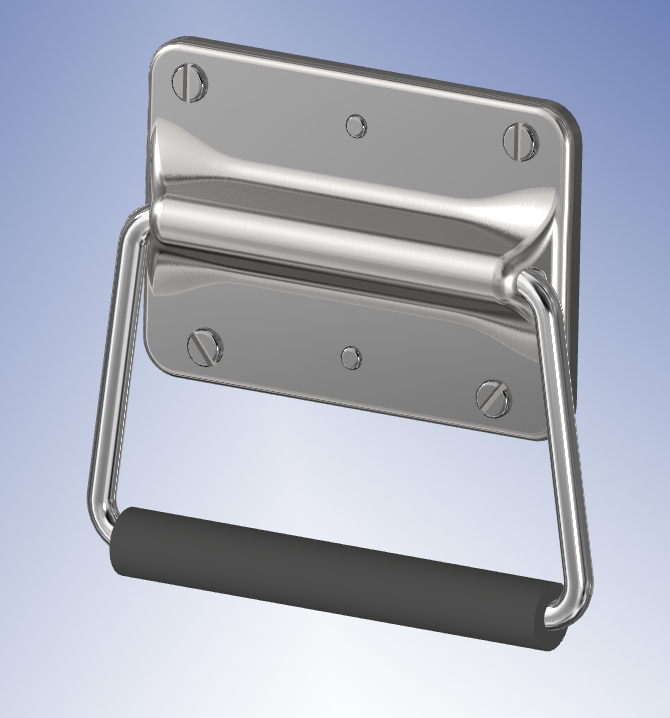

Handel.png Handel.png Handel.stp
