How to create custom shape for Tab and slot.

lololamoto
lololamoto
6 Feb, 2023 03:05 PM

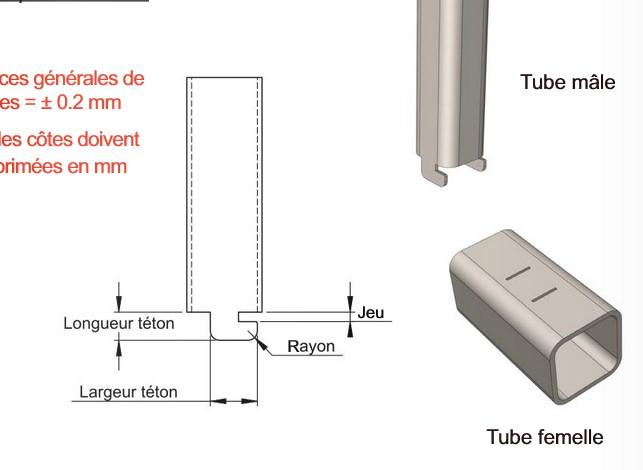

Hello, is there a way to get a custom shape for the tab and slot, like the drawing attached?
Thanks

Anchor Tab and slot.jpg Anchor Tab and slot.jpg

1 Answer

Roger Couture
Roger Couture
Answered on 12 Feb, 2023 08:04 PM

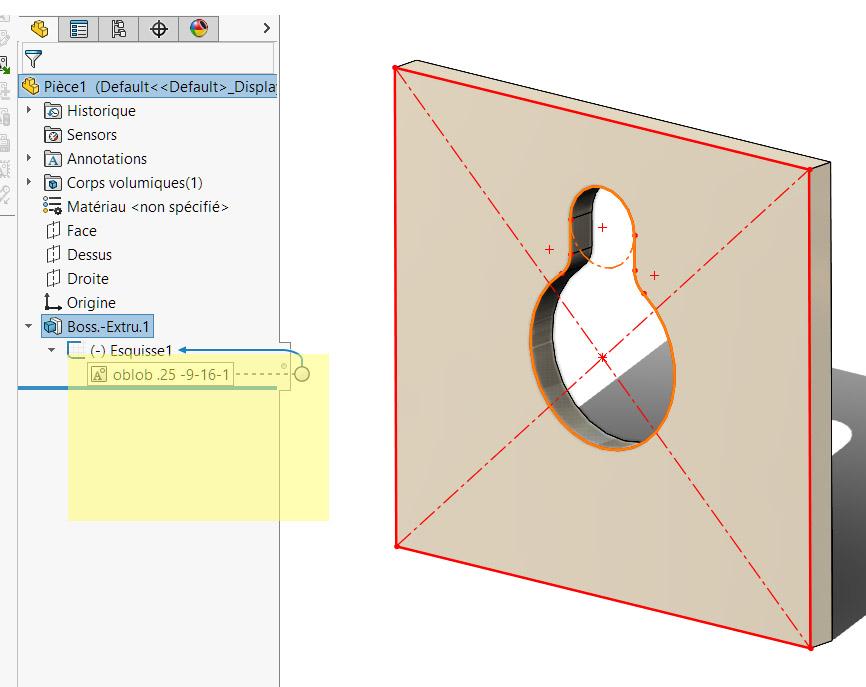

Customize your cutouts using the "sketch blocks" in the cutout sketches. Group your sketch blocks into a folder and name them for quick recognition.

blocs.jpg blocs.jpg
