How to Create Helical Model

By Keenan Kon on 28 Mar 07:22 2 answers 1352 views 0 comments

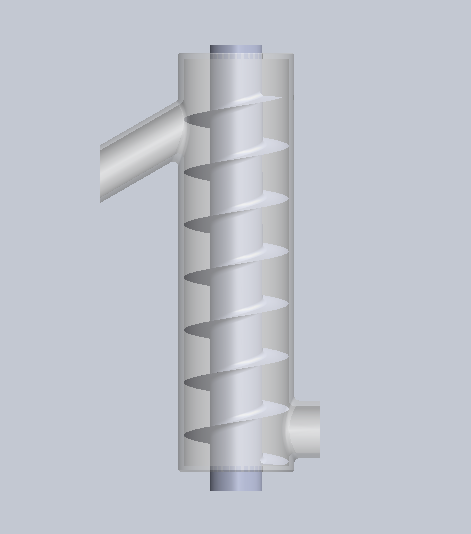

Hi, may I know how do I create the Sweeping surface along the vertical interior cylinder? I created a Helix but I'm not sure how should I proceed next

Added images

Square

2 answers

  • Kashish
    Kashish over 2 years ago

    After the creating the helical curve, sketch a rectangle on a plane normal to the helix, preferably at the starting point. Sweep this rectangle along the curve and you will have your screw thread surface.
    If you need advanced help on sweeping zero thickness surfaces leave a comment.

    Answered with a tutorial: https://grabcad.com/tutorials/how-to-create-helical-model
