How to create Thread as show in figure?

By Ravichandran on 12 Aug 11:06 2 answers 759 views 2 comments

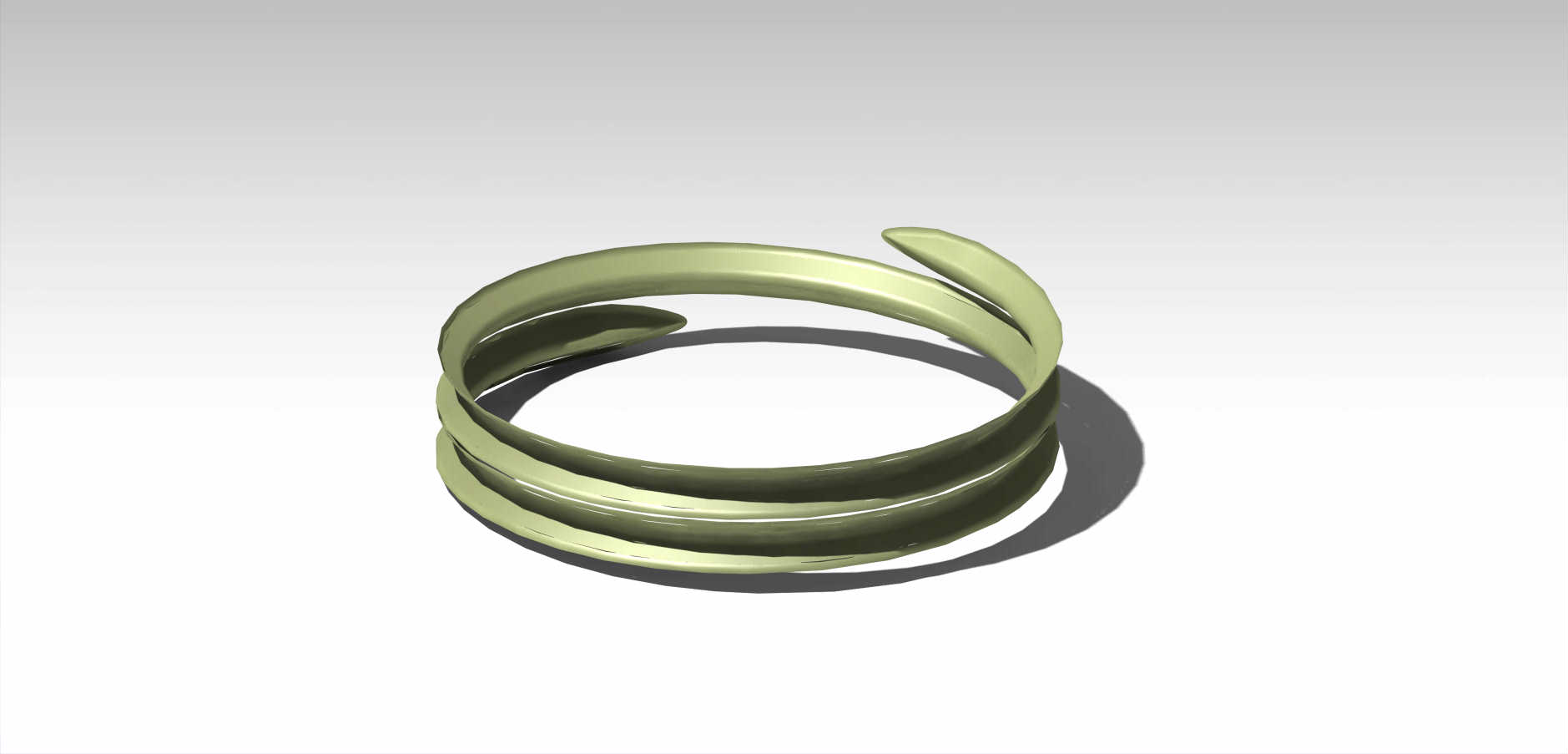

I need to create Thread as show in figure in Catia.

Added images

Square

2 answers

  • vicen
    vicen about 4 years ago

    You need to do a spring with wireframe desing, after that, create a plane perpendicular to the spring and made a sketch with the thread section. after all this just create a rib or grove (external or internal thread) arround the spring.

    I hope this could solve to you

  • vicen
    vicen about 4 years ago

    add this file

    Attachments

    helix.CATPart, 101 KB
    Download
