How to drive chain along the curved path in autodesk inventor

Hasnain Bhatti
Hasnain Bhatti
24 Dec, 2015 07:05 AM

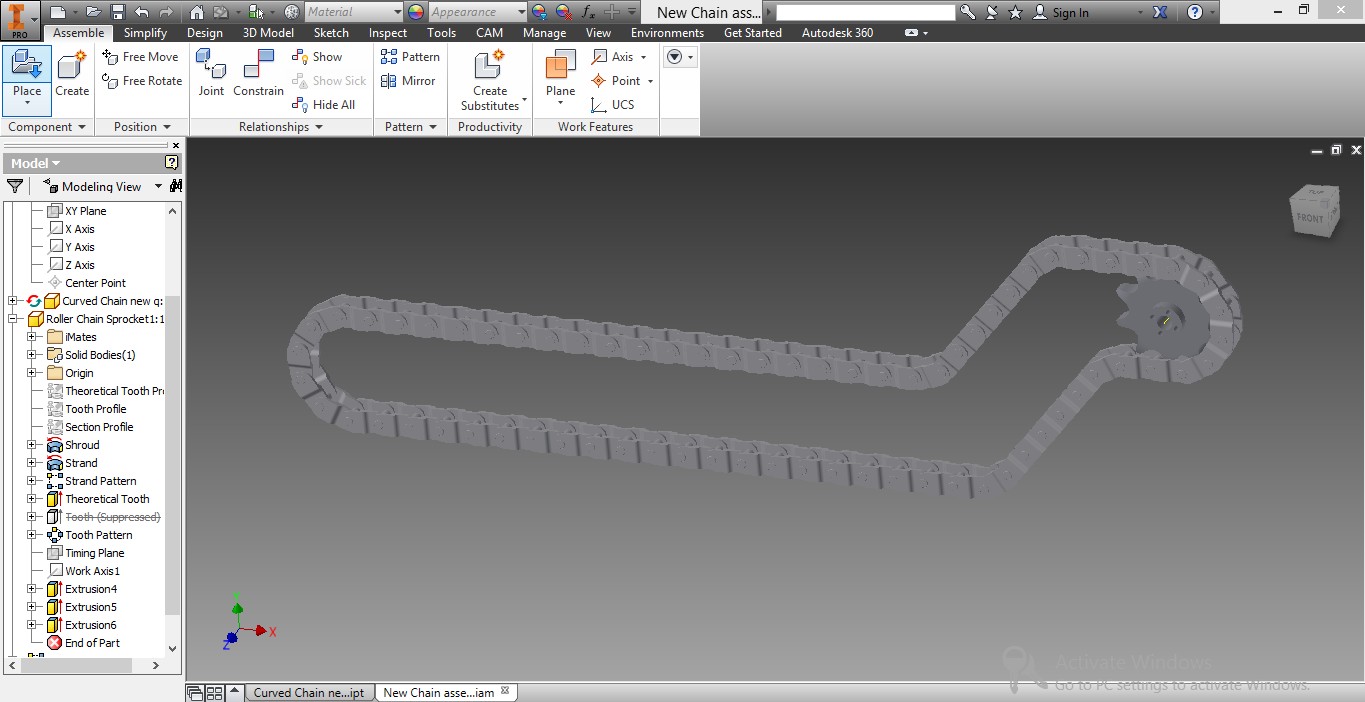

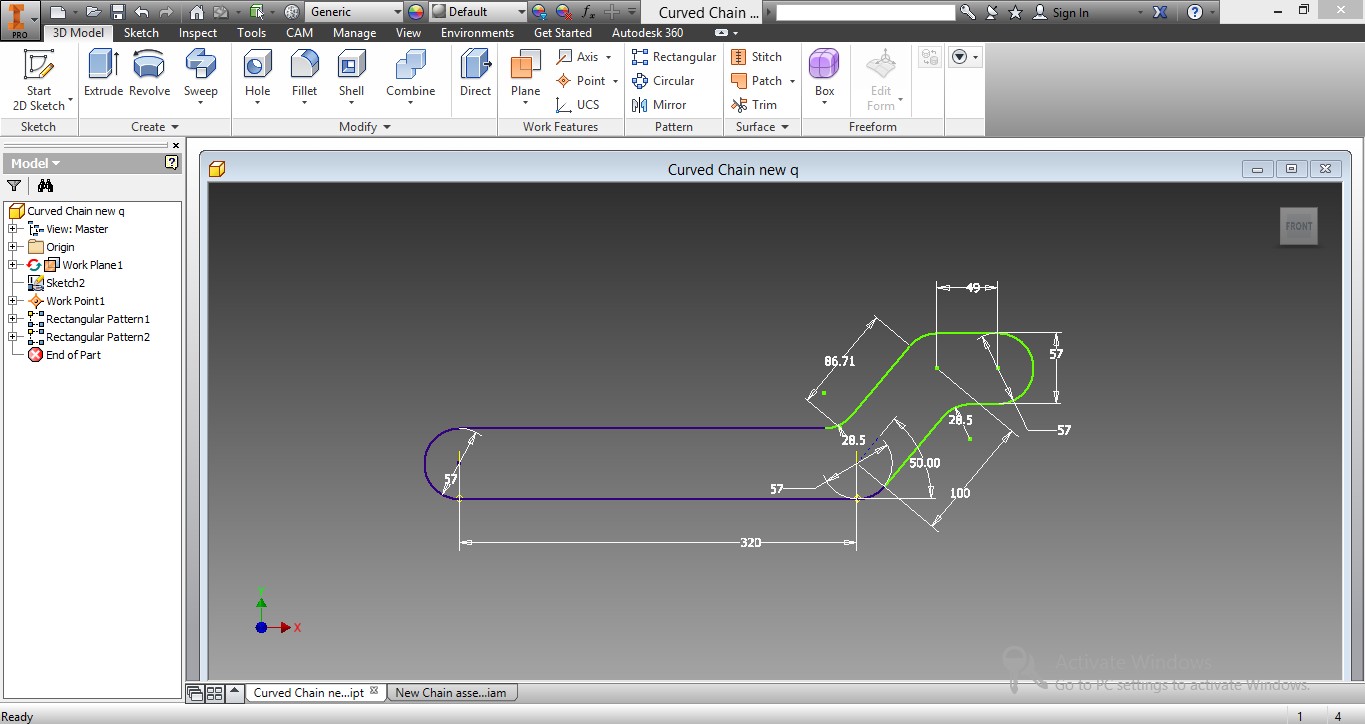

I want drive chain having 15.875mm pitch along the curved path to animate a conveyor. path is shown in the attached file. Help in this regard will be appreicated thanks

Image 2.jpg Image 2.jpg Image 1.jpg Image 1.jpg New Chain assembley1.iam Bike Chain - Copy.ipt Roller Chain Sprocket11.ipt Curved Chain new q.ipt

2 Answers

JSE
JSE
Answered on 24 Dec, 2015 05:54 PM

you can try this.
http://forums.autodesk.com/autodesk/attachments/autodesk/78/375667/1/Animated%20Chain.pdf

Hasnain Bhatti
Hasnain Bhatti
Answered on 27 Dec, 2015 12:44 PM

I downloaded this file and will try by using this method..I want for someone expert who download my models and work on it and share to me for better understanding.Any way thanks JSE for sharing me this link...
