how to export a NX drawing file(.part format) into AutoCAD drawing file(.dwg format)?
hi pals,

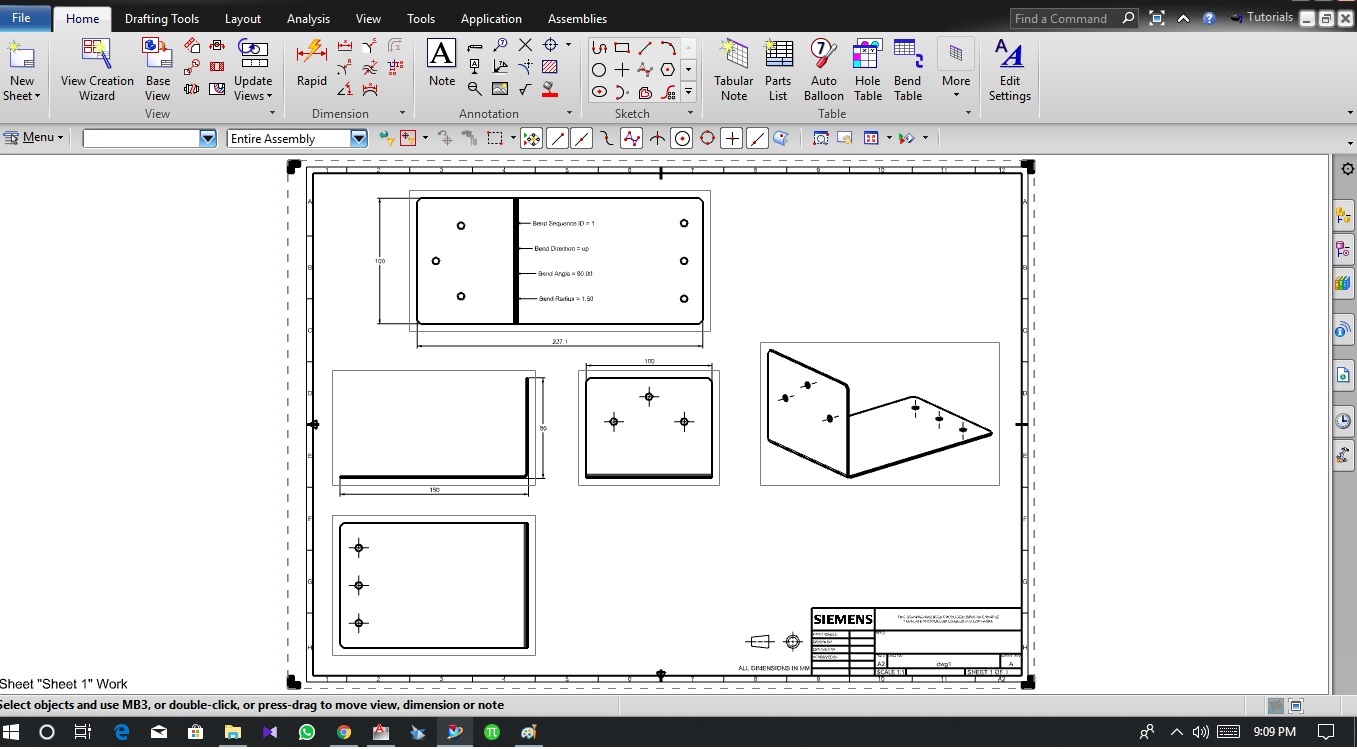

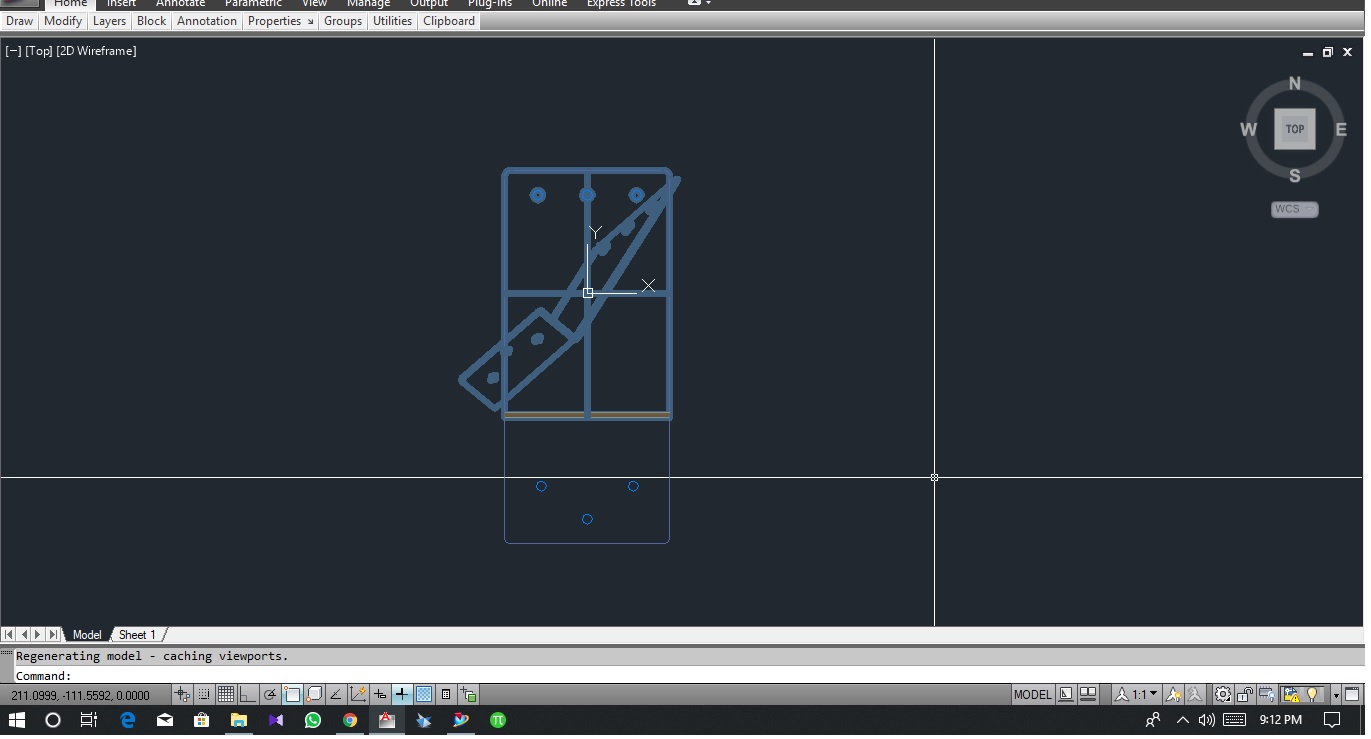

i designed a sheet metal part and created the drawing of the same using NX. saved both files with different name, one as 'sheetmetal01.prt' and other as 'sheetmetal01_dwg.prt'. i used 'export->AutoCAD DXF/DWG' command to export 'sheetmetal01_dwg.prt' into AutoCAD 'DWG' format. but it wasn't successful at all. the created dwg file does not show the drawing as it showed in nx drawing environment. i need help to export the drawing to AutoCAD. thanks in advance
2 Answers
Hello,
Follow the path below,
File-Export-Autocaddrawing fiel
You need to export your drawing from drafting by using:
"File"
"Export"
"2D Exchange"
then change "output as" to .dxf or .dwg
then save it in your desired file location
then it will open in autocad exactly as displayed in nx drafting.
