How to flatten a pipe with non-linear edge?

By Amir on 26 Nov 18:18 3 answers 3 comments

Hello everyone.

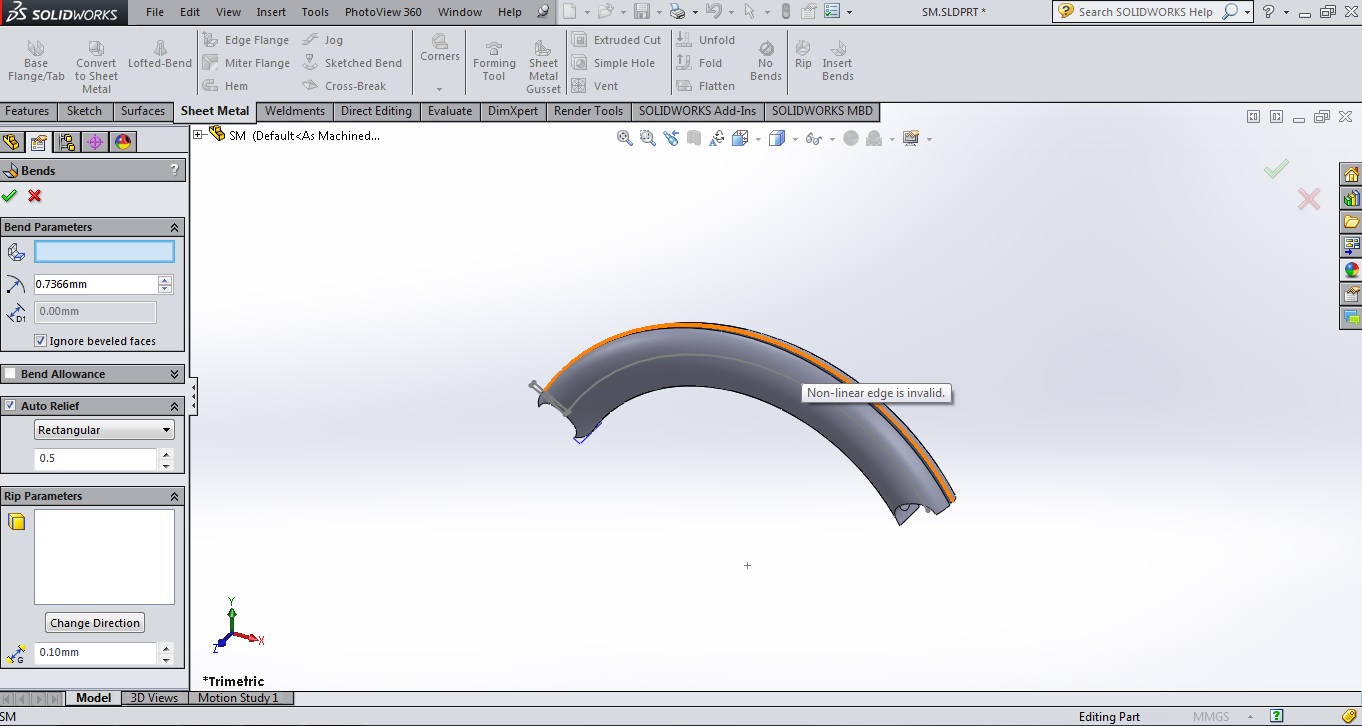

I want to flatten a pipe that has non-linear edge. In linear pipe, I easily use "insert bends" then with "flatten" create my model. But in non-linear, when I use the "insert bend" command in sheet metal part, an error appears that "non-linear edge is invalid". Does anyone have any idea to solve this problem?

Added images

Square

Attachments

SM.SLDPRT, 134 KB
Download
SM.STEP, 93.5 KB
Download

3 answers

  • Valerij Rutkovskij
    Valerij Rutkovskij over 1 year ago

    Exist some applications for Solidworks to do this
    - blankworks
    - logopress

Add your answer to: "How to flatten a pipe with non-linear edge?"
