How to hide a feature on creo??

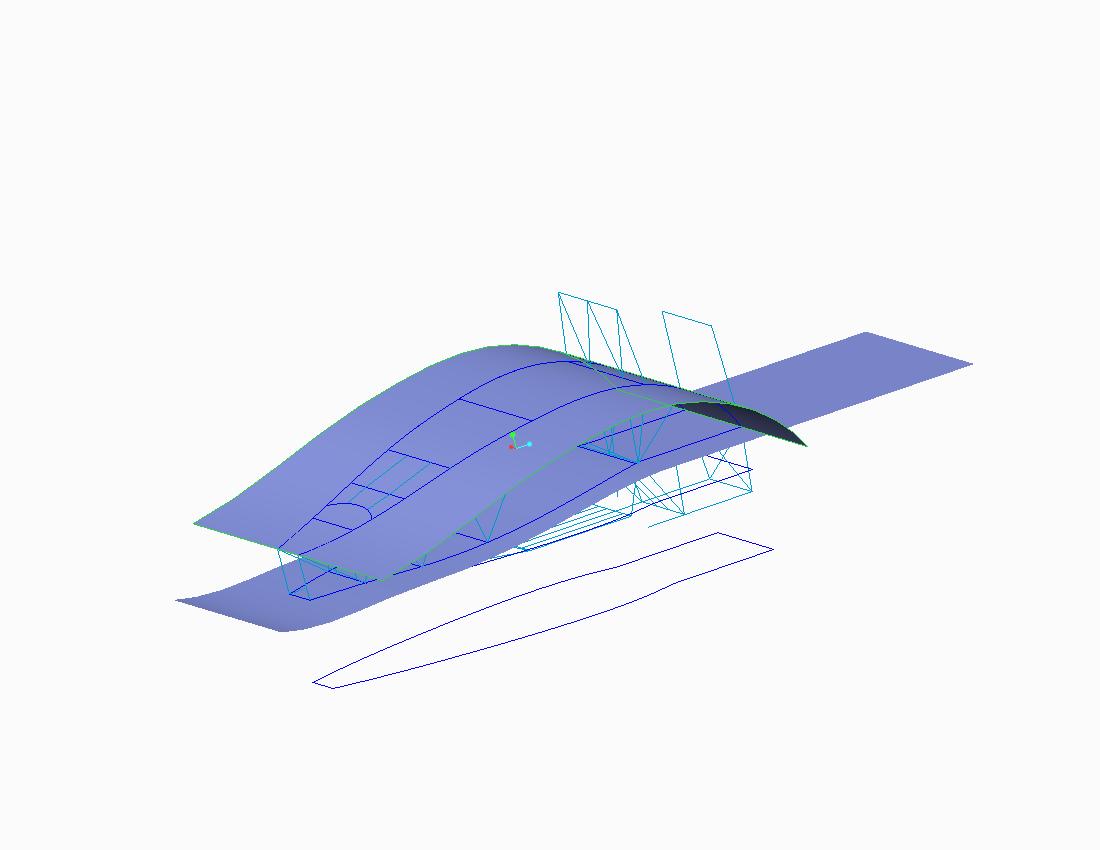

I wanted to hide an exrtuded surface ( which i created in order to make a 3D curved line) as in image. now want to remove the surface from preview and saved file. i tried excluding and hiding the surface . but it is not enough.

Comments 0

2 Answers

Use layer

In model tree , switch to layer mode

Create new layer and add surface to that layer

Right click on layer and select hide layer

Then right click again and select save status.

You will not see surface in that layer until you unhide that layer

Comments 0

U can simply use insert hear for hiding. Drag it and place above the feature u want to hide

Comments 0
