How to make symmetry of part in an assembly without creating a unique part number/file?

By joe blumka on 14 Feb 13:42 1 answer 3533 views 3 comments

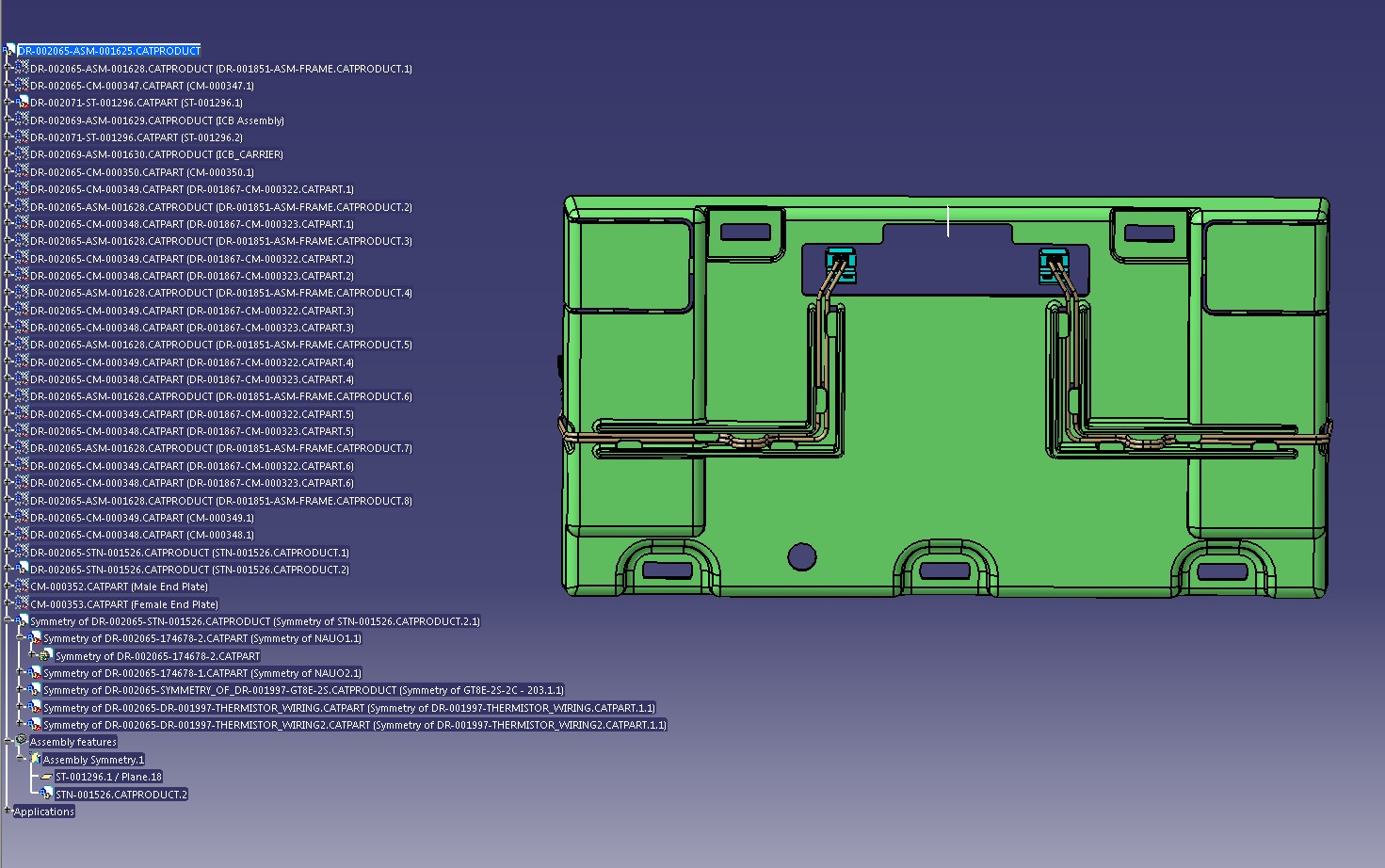

In the assembly we have two short wires with connectors. It is technically the exact same part, but it just gets routed differently. (See attached picture)

I can use the assembly symmetry command to create a mirror image. This makes the assembly *look* right.

However, when I upload it into our PLM system (Agile) it has to treat them as separate parts since the symmetry part is made of unique files. This messes up the auto-generated BOM.

Any other ideas for working around this issue? It comes up a lot with our assemblies since almost all products have these short wiring harnesses.

I don't know if we can use Variants since the PLM system will not play nice with Solidworks files with configurations.

Added images

Square

1 answer

  • vinoth
    vinoth over 3 years ago

    Yes we can.. why don't you do it in part level.

    If you want single part number, you can go with mirror option in part level and then assembly it.
