How to orient a section view?

By Lavakesh Kumar on 19 Jun 09:32 1 answer 54 views 0 comments

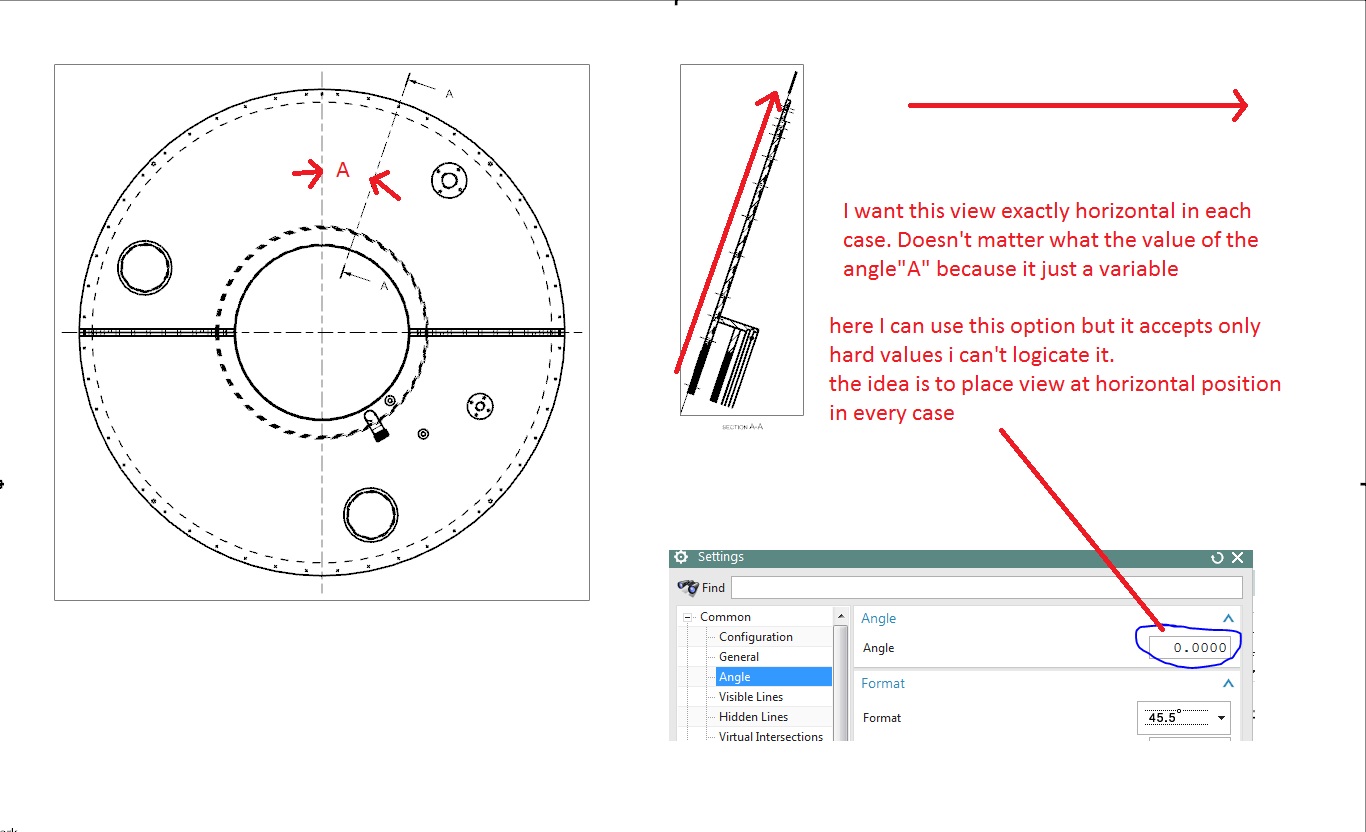

I want to control section view orientaion by expression.
kindly have a look attached jpg.

Added images

Square

1 answer

  • Jack Knapp
    Jack Knapp 8 days ago

    Standard drafting convention is to orient the section view parallel to the cutting plane, as shown in the attached image of the OP.

    However, you can rotate the section view, as long as you specify that it is ROTATED FOR CLARITY below the SECTION A-A label.
