how to simulate belt drive using nx motion simulation ?

By jithinraj N on 09 Dec 06:16 2 answers 0 comments

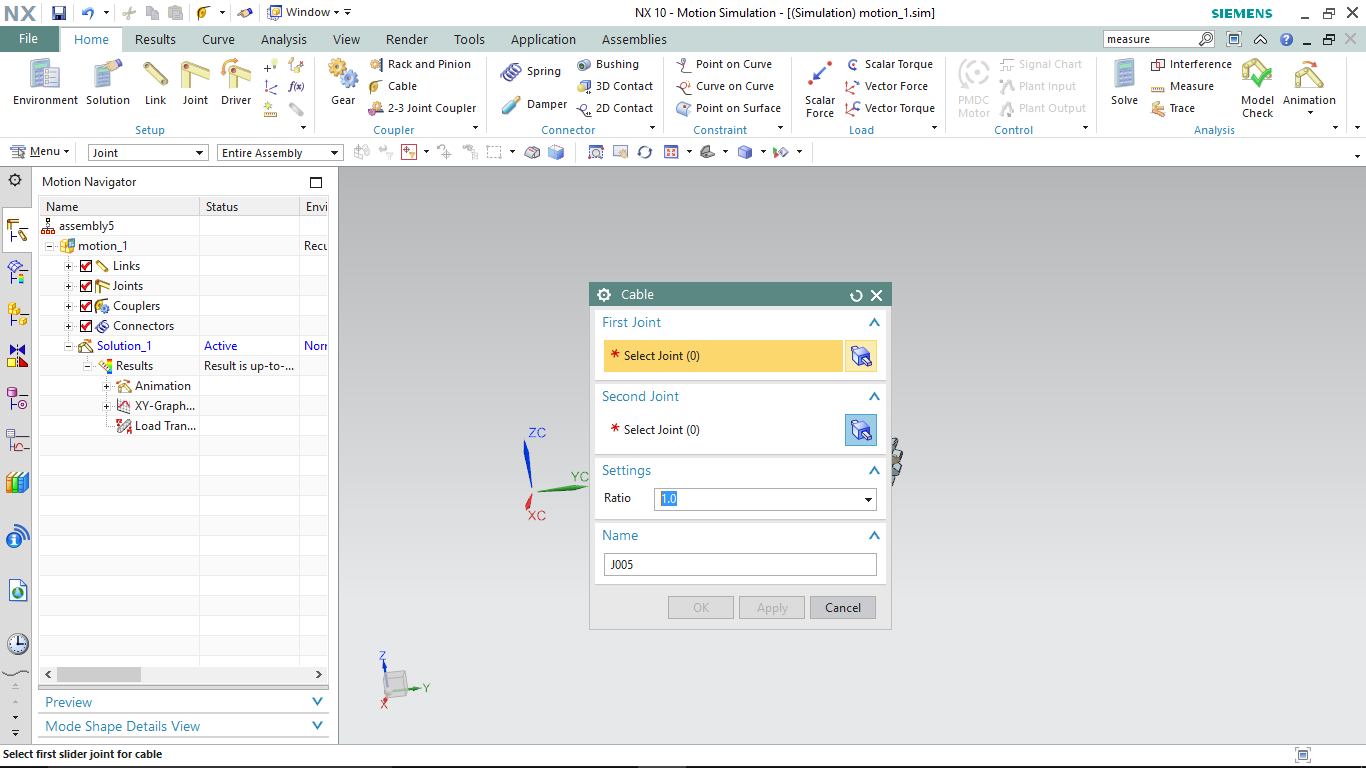

how to use cable tool in motion simulation ?
How to link assembly constraints to motion simulation ?
creating flexible belt in NX?
is there any specific tool in NX for creating standard mechanical components like gear, pulley, belt etc..?

Added images

Square

2 answers

  • Mr. Singh
    Mr. Singh about 1 month ago

    Bro, did you got the solution. I also want to know how to simulate the pully and belt in nx. If you got the solution then please tell me.

  • Mr. Singh
    Mr. Singh about 1 month ago

    Is that work with the cable tool, but that is only suitable for the slider joints, and the pully and belt are not make a slider joint, I think it's cylindrical joint.
