How to stop automatic creation of geometric set in part design?

Whenever offsetting a plane, the plane is created in a new geometric set. How to stop this and create the offset plane in the part body itself?

Answer

Comments 0

6 Answers

I you want wireframe in the partbody you have to enable the hybriddesign. Here you can " mix" wireframe and volumes.
Geometrical sets will give your wireframe structure. Many companies do not allow hybriddesign, so you should think twice, if you want to use this modeling strategie.

Best regards


Comments 3

as u start new file in catia , it asks ---create Geometric set-just uncheck that box


Comments 1

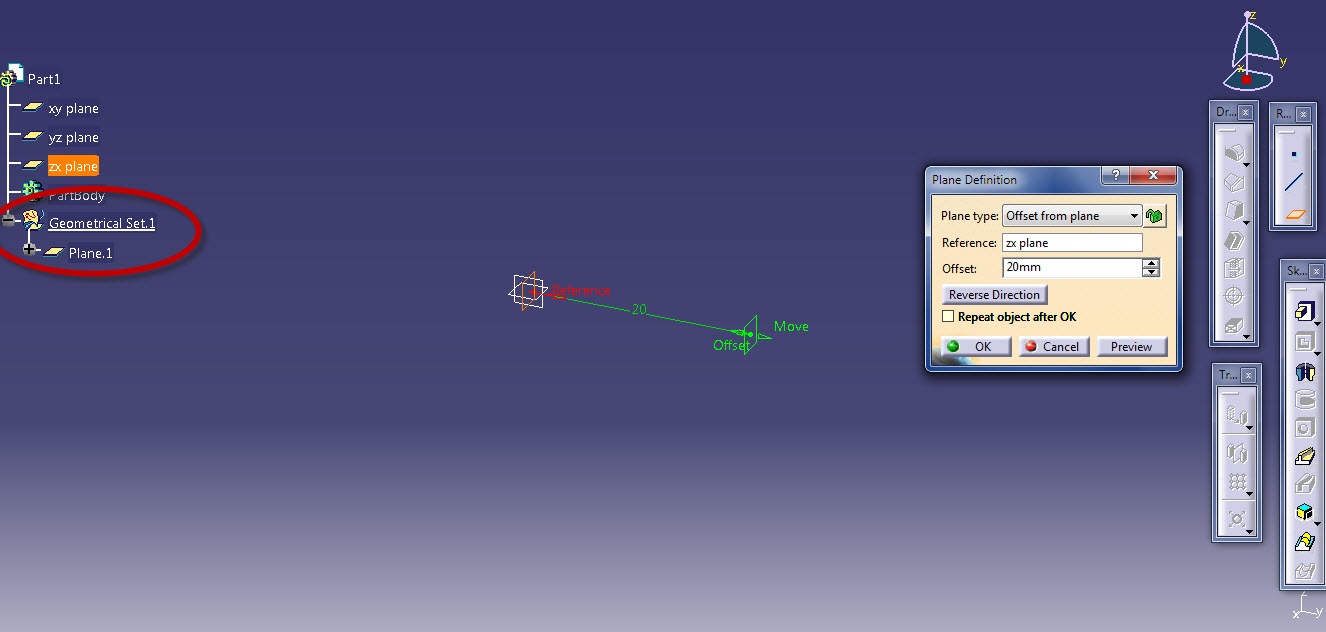

this is what happens when i try to offset a plane... while starting the part design, create geometrical set was unchecked.. i also disabled create a geometrical set in infrastructure options.. but still this happens...


Comments 4

go to tool-option-infrastructure-part infra-part document-disable d create geometrical set....
