in catia v5r20 want to use measure command while using dynamic section

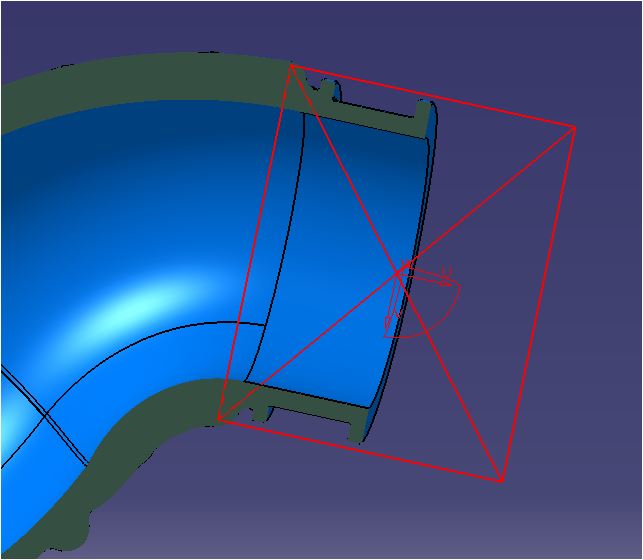

by using dynamic section i cut the section of the part now i want to use measure command to measure the section thickness and other dim.

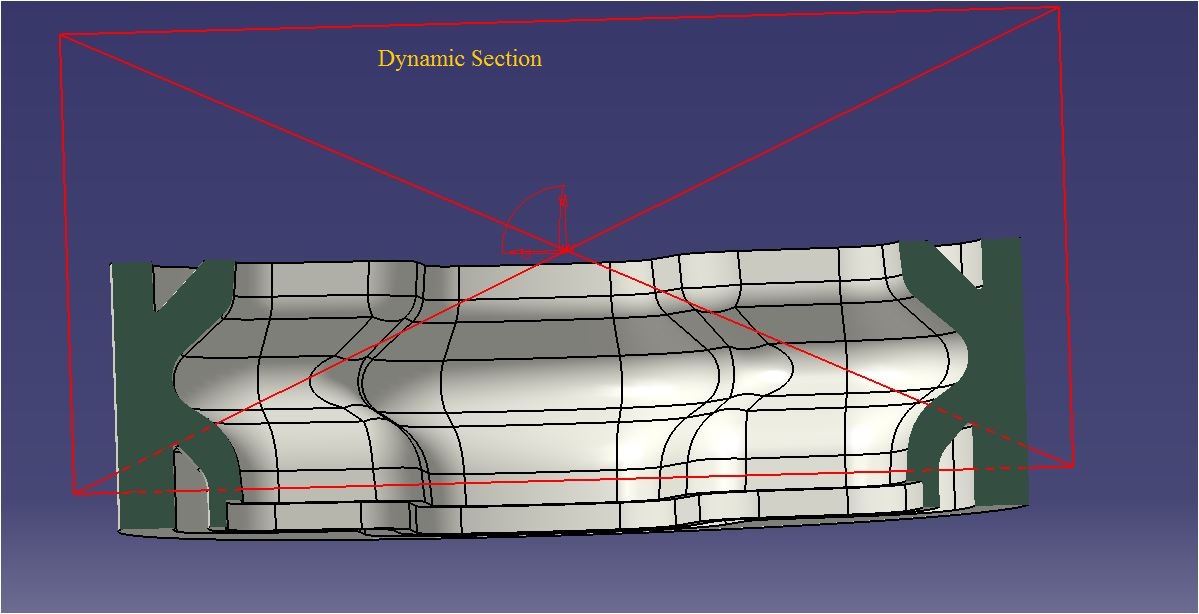

attached the snapshot for reference.
4 Answers
You should be able to use the normal MEASURE and MEASURE BETWEEN tools while taking sections of parts and assemblies.
If not, check your Options and make sure you have the ALLOW MEASURES ON A SECTION WITH A SIMPLE PLANE
Dear Jack Thanks for your support.
i have already check the option in the setting. bt still not able to use measure command.

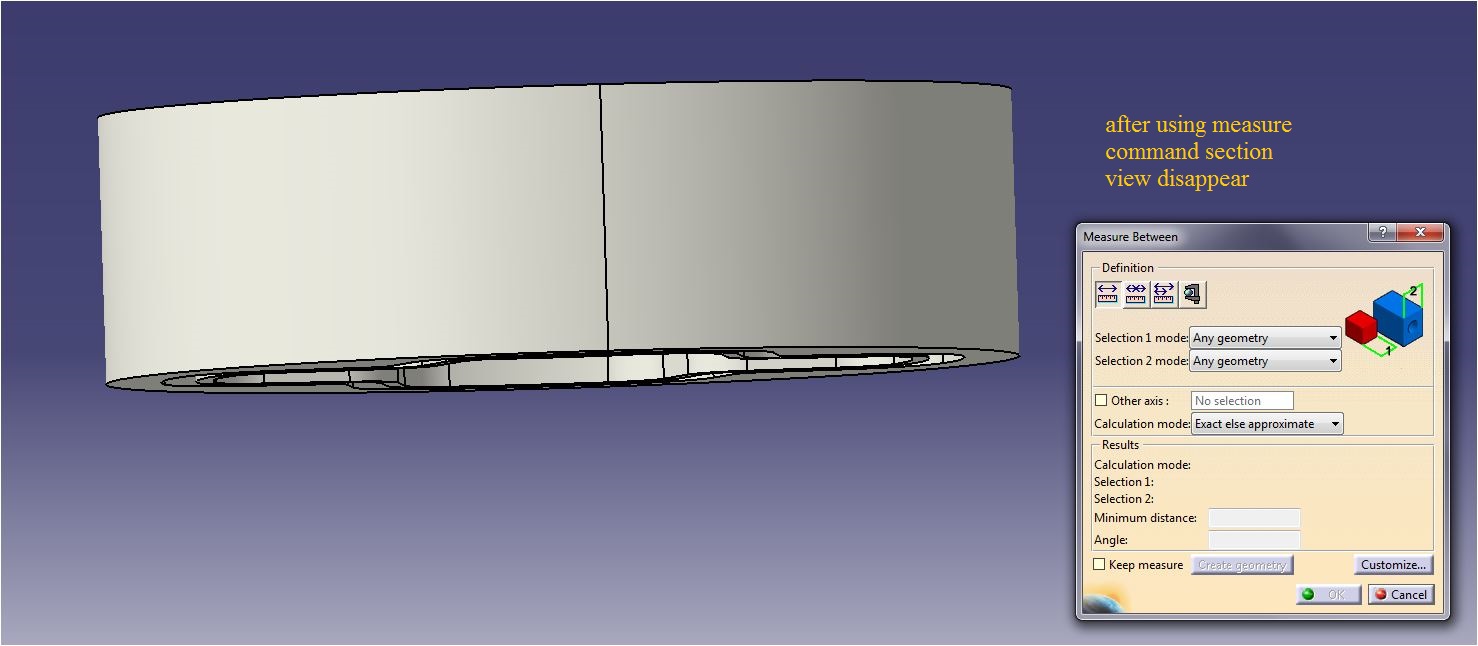

as i do dynamic section with a plane to see section the section appear but then as i use measure command to the section the section view disappear and full part appear.
i have attached snapshots for more clarification.
please help and check if there is any other setting
Hi,
This is not possible with the dynamic section tool. You would need a SPA license to perform the action using the assembly based sectioning tool.
Work around would be to create a sketch with intersection projections to get geometry to measure. You could make it dynamic by placing the sketch on a plane controlled by an offset parameter.
You can learn more at www.intrinsys.com

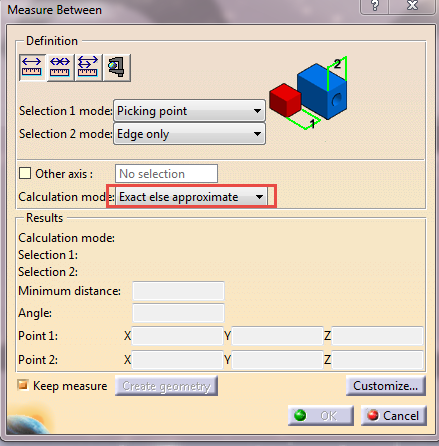

All you need to do is change the Calculation mode to Exact else approximate. As far as I know you can measure in assembly dynamic sectioning. check the attached image for reference.
