Is it possible to show a spraying pattern of a nozzle in SW Flow simulation

By DR on 14 Mar 12:28 2 answers 3301 views 0 comments

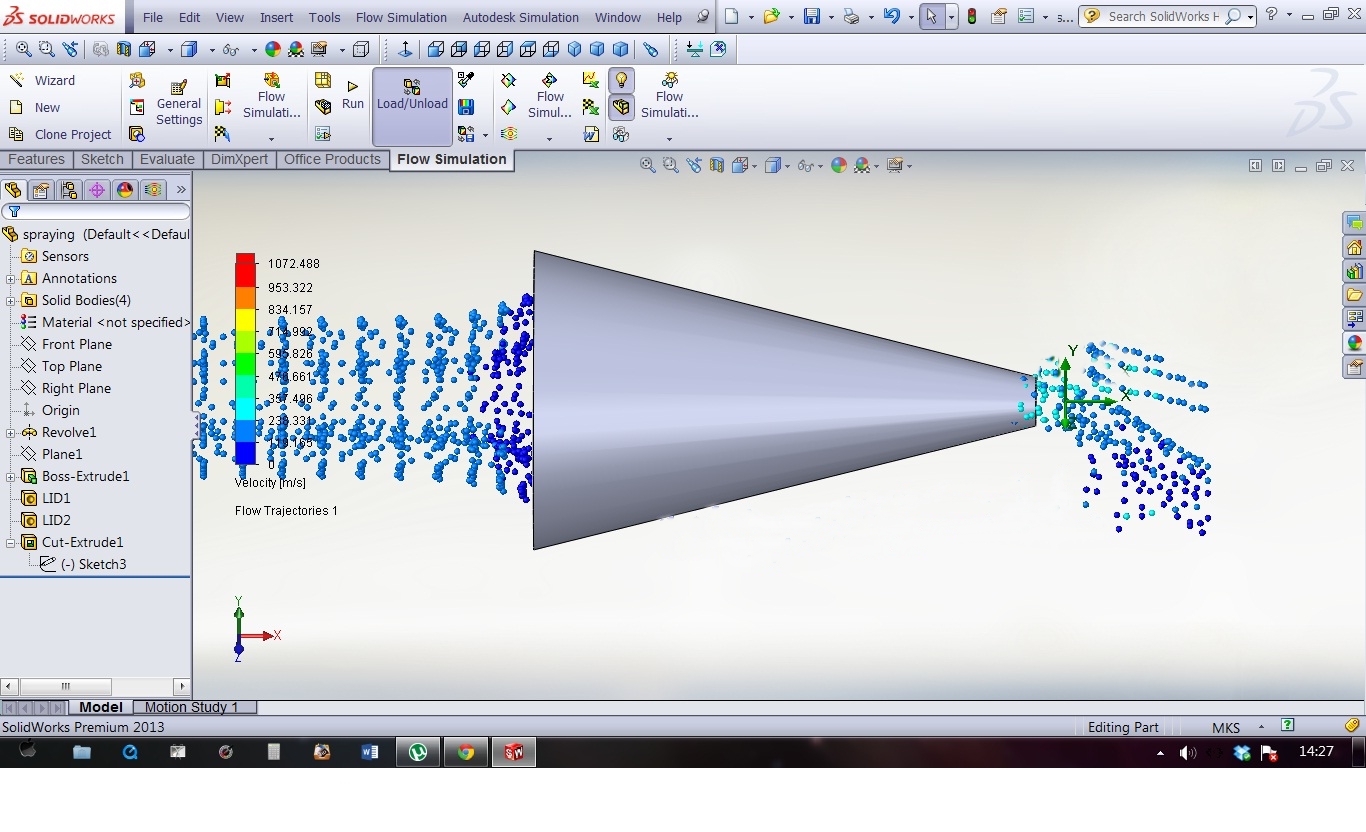

I'm new to FloXpress and Flow Simulation and I'm trying to simulated the spraying pattern (full cone) of a spray tip, but I've to add lids for in- and outlet, so I can't see the spraying pattern and that's the most important. I can only see the liquid flow inside the nozzle. Is't possible to simulate a water spurt completely through my model and see the outcome; the spraying pattern?

2 answers

  • Christoffer Wallstenius
    Christoffer Wallstenius over 4 years ago

    Not in that way, no. The calculation domain resides "between" your boundary conditions, simulation will not show you what's going on outside the BC's.

    You can try to add a larger open "chamber" that the nozzle spray into, and then inject particles in the fluid. I'm not sure that would work satisfactory though.

  • Sankar
    Sankar about 4 years ago

    A simple flow simulation of sprayer....... and the spraying pattern

Add your answer to: "Is it possible to show a spraying pattern of a nozzle in SW Flow simulation"
