Isometric drawing

Matt Thomson
Matt Thomson
17 Nov, 2021 10:56 AM

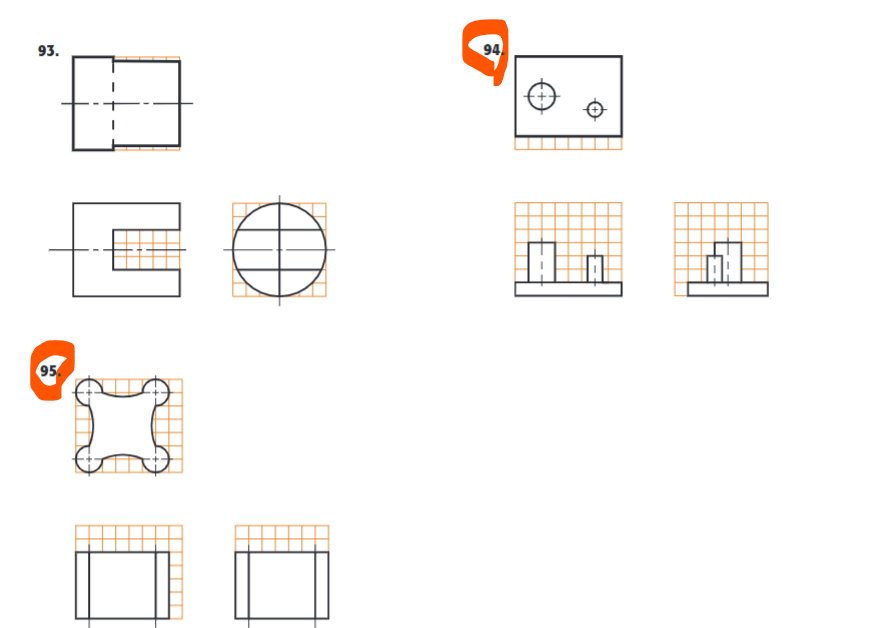

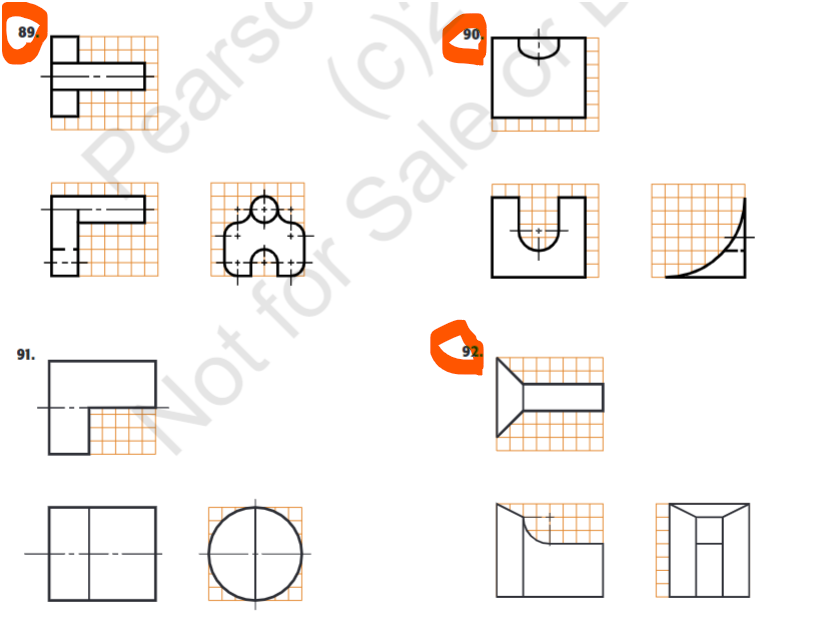

Could someone help me with the isometric views of these orthographic views?
For me its quiet hard to visualize them in my head.
Thank you.

2.png 2.png 1.png 1.png

Accepted answer

Steven Kiley
Steven Kiley
Answered on 17 Nov, 2021 02:54 PM

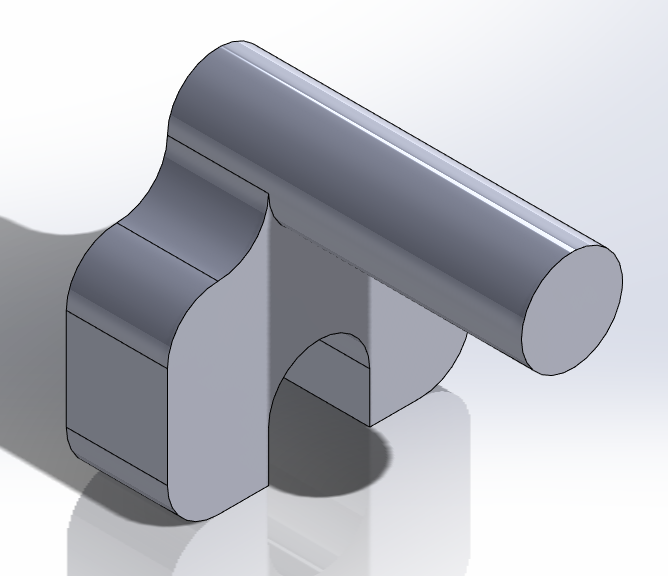

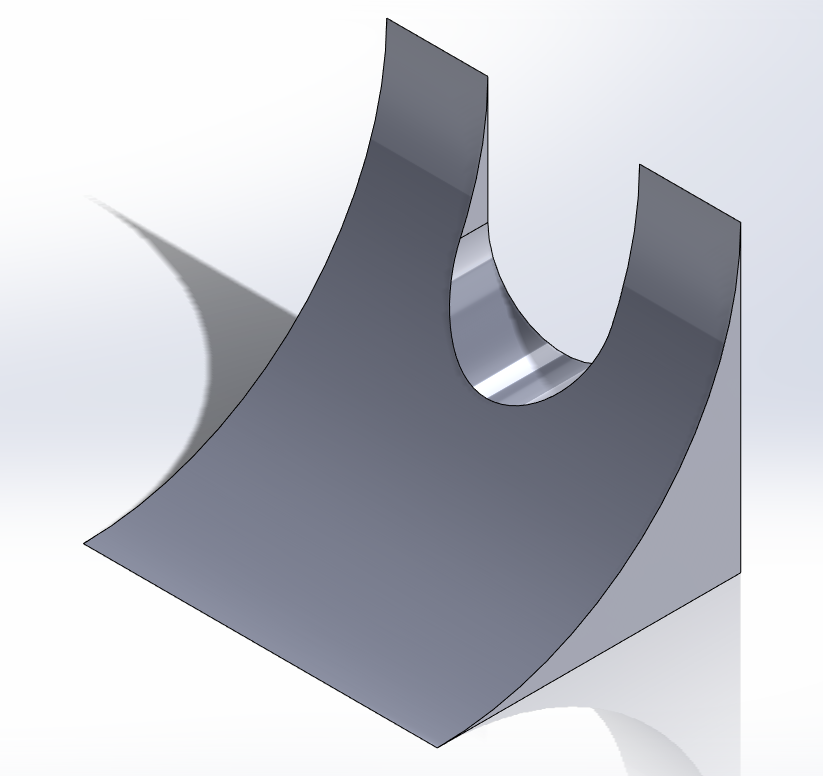

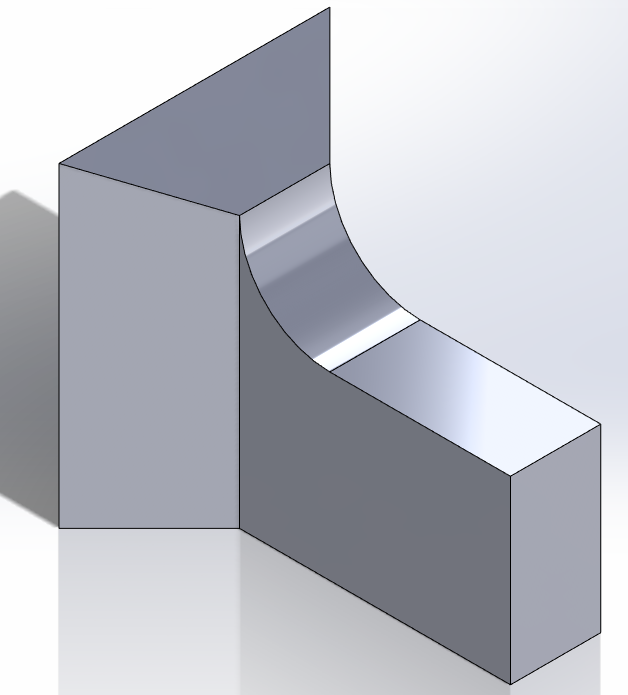

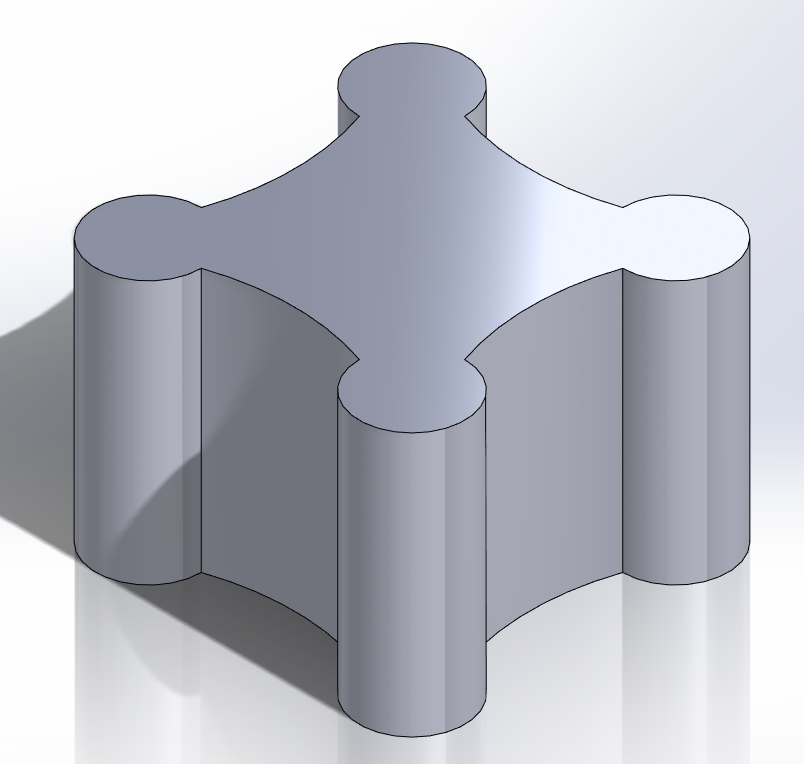

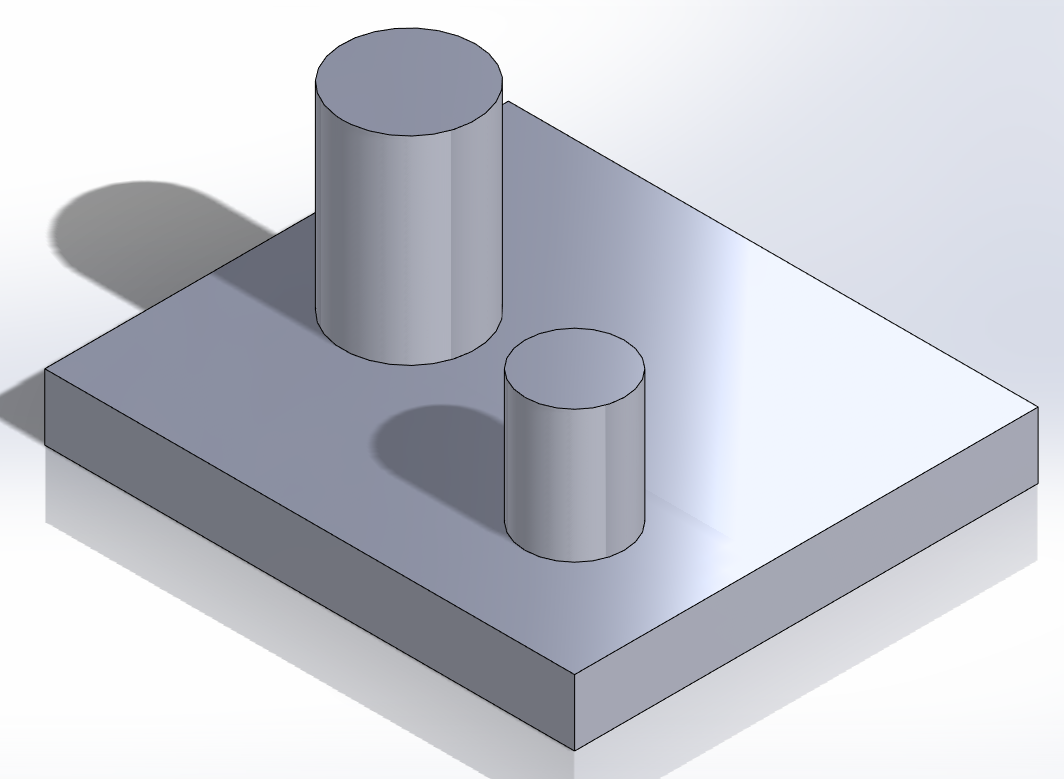

See attached.

95.PNG 95.PNG 94.PNG 94.PNG 92.PNG 92.PNG 90.PNG 90.PNG 89.PNG 89.PNG

0 Other answers

Share this awesome question with your friends
Social
Copy link
1 Answers
0 Followers
148 Views

Details

Created: 17 November, 2021
Software: SOLIDWORKS
Category: Modeling
