Issue with importing fillet in Showcase

By Nathan Kirton on 13 Jun 21:02 1 answer 1 comment

I have been playing with Inventor and showcase for a while now.

I came across an error that adds additional faces to my model in showcase when I import it there.

I have attached two images.

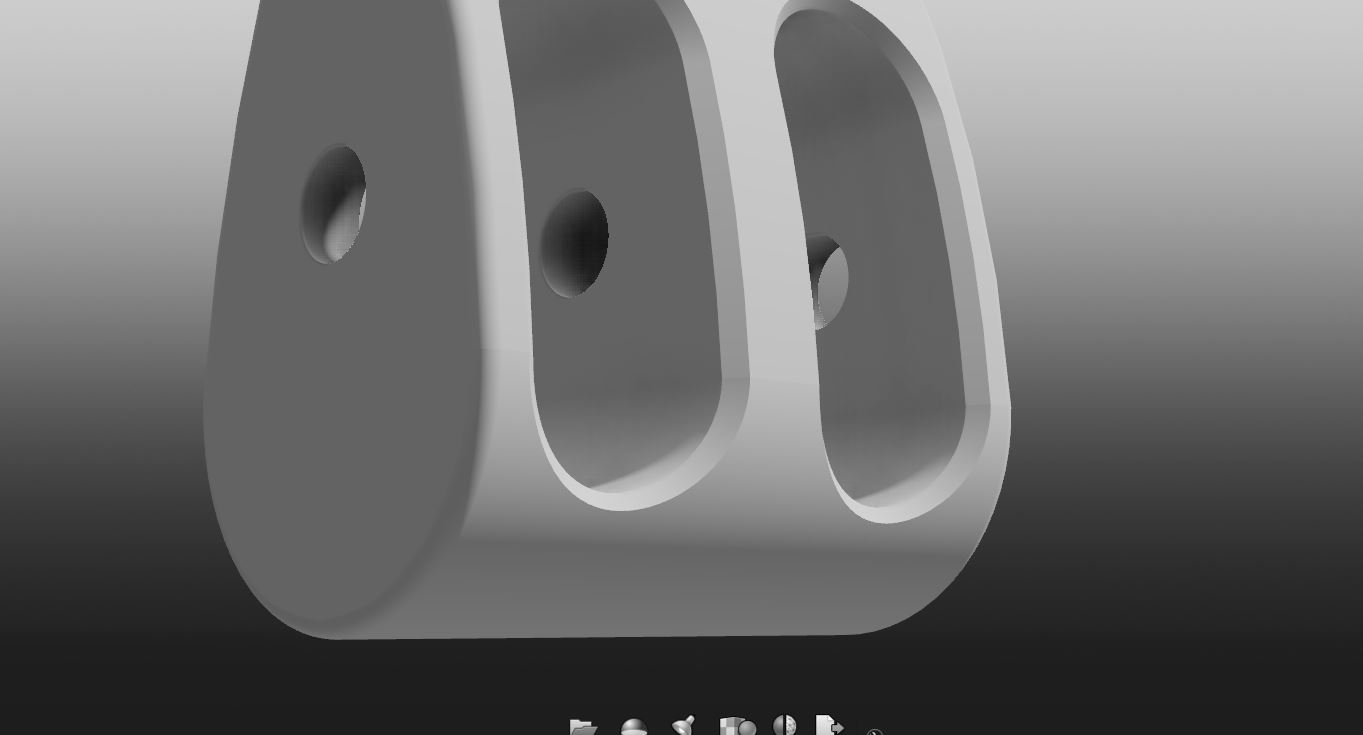

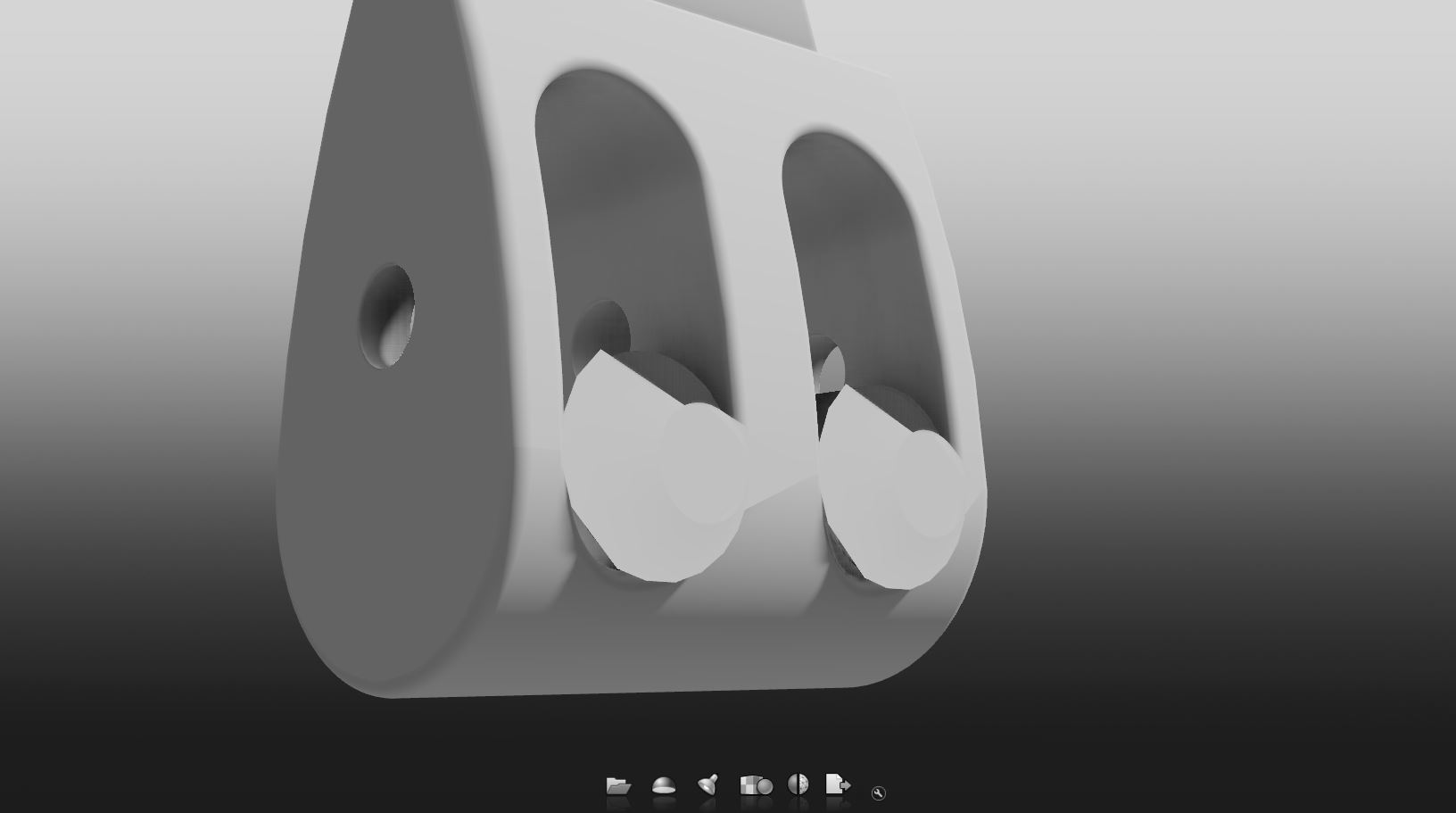

The one I used the fillet command and it added the weird looking faces. The other I just used a normal chamfer command and it works perfectly.

Has anyone had this issue before? It's kind of hard to find the right words to search for online.

Thanks in advance! :)

Added images

Square Square

1 answer

  • Diego D'Orta
    Diego D'Orta over 2 years ago

    hello Nathan, try deleting the bad surfaces in the "Organizer" or use Fix Object patches. I think is a problem with the boolean operations.
