Lattice structure Optimization

Huzaifah
Huzaifah
5 Mar, 2020 02:39 PM

Please see the attached file.

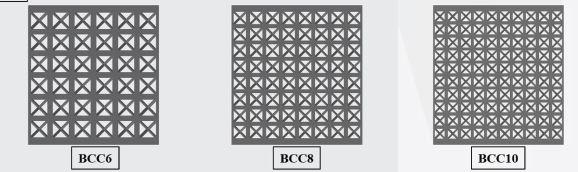

There are three lattice structures BCC6, BCC8 & BCC!0. These three models have same volume and mass. I want to ask that in which CAD tool i can model these structure so that by changing the lattice cells, i.e 6, 8 and 10, the volume and mass does not change.

BCC.JPG BCC.JPG

1 Answer

Danny Key
Danny Key
Answered on 7 Mar, 2020 07:21 AM

Hi Khuram,
the best way is to make the model in 3D, I think any 3D program will do. Just use a program that you know best. For me this is Inventor. If you develop this lattice structure, you have to just bear in mind that the volume of all three must be the same. Then when assigning material, the weight will also remain the same.

Regards,

Danny
