How to design a lattice structure ?

Djeniah Nadir
Djeniah Nadir
28 Jun, 2018 11:32 AM

hello

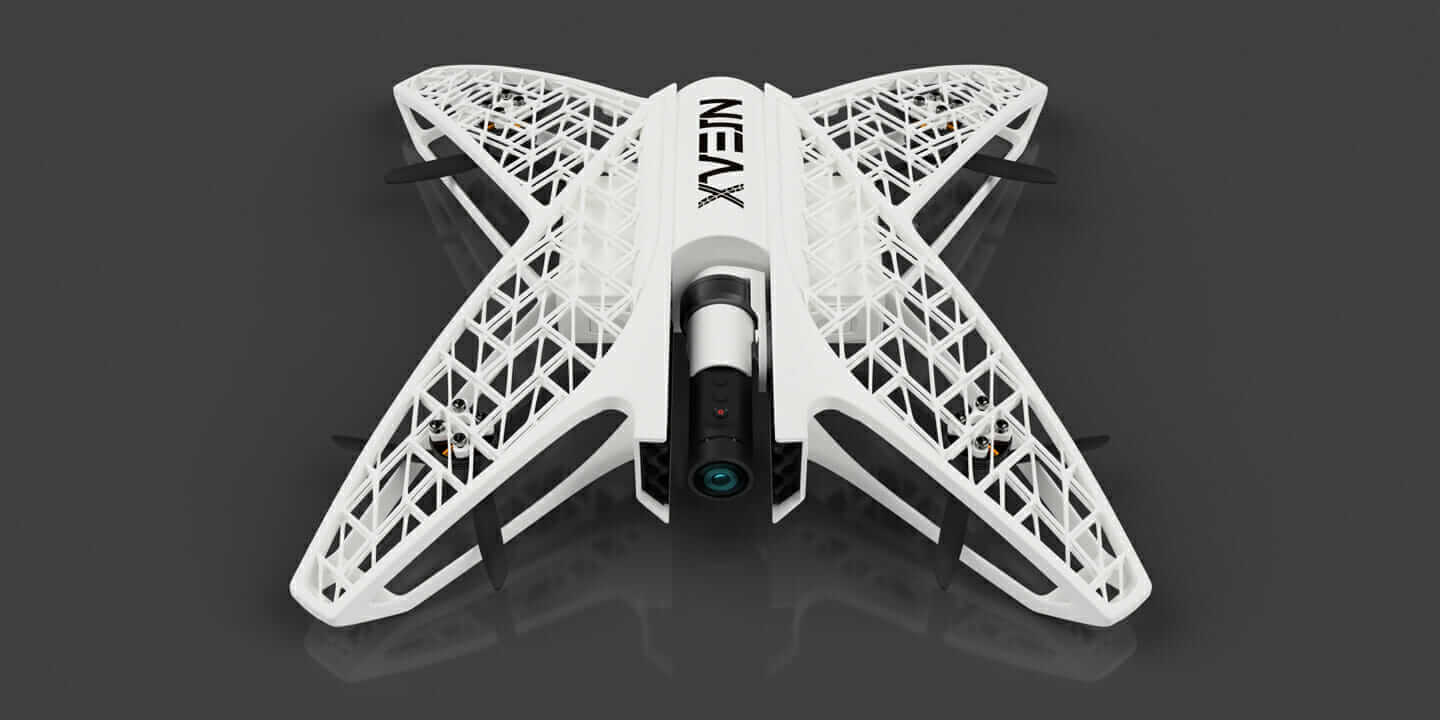

i want to know how can I design a structure such as the one shown in picture

life-saving-drone-header.jpg life-saving-drone-header.jpg

1 Answer

Amit Patel
Amit Patel
Answered on 29 Jun, 2018 02:47 PM

Hi,

You could use the powercopy functionality in CATIA V5. This is taught in our CATIA V5 Advance course. More info at www.intrinsys.com
