Making a Star Model

By Simon Davis on 08 Mar 19:43 3 answers 202 views 2 comments

Can someone make this part in Solidworks 2015 format or lower and upload it? I can easily make this part's geometry but the blueprint is confusing me a little. Such as how far should the tip of the star be away from the circle and the engrave part.

Here is the website with the .pdf files: http://academy.titansofcnc.com/video/titan-5m

3 answers

  • Yang Ji
    Yang Ji 6 months ago

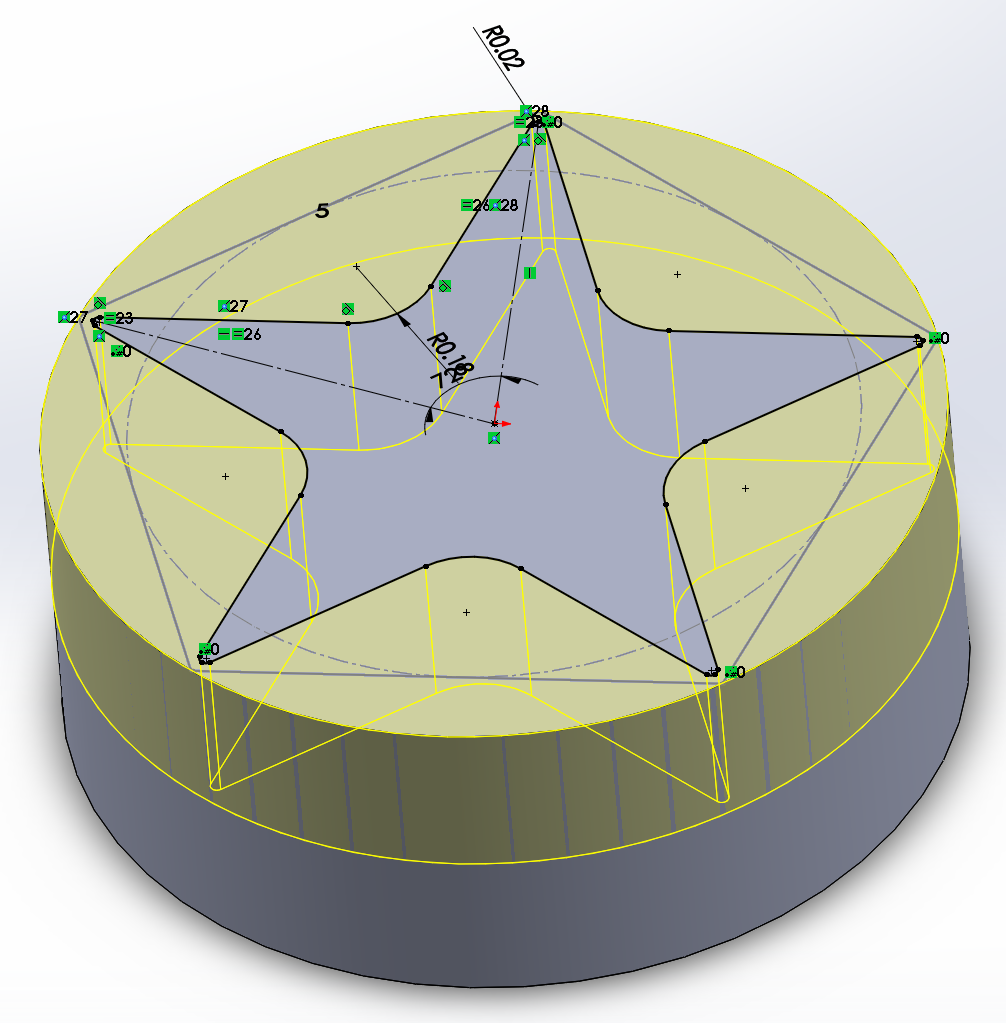

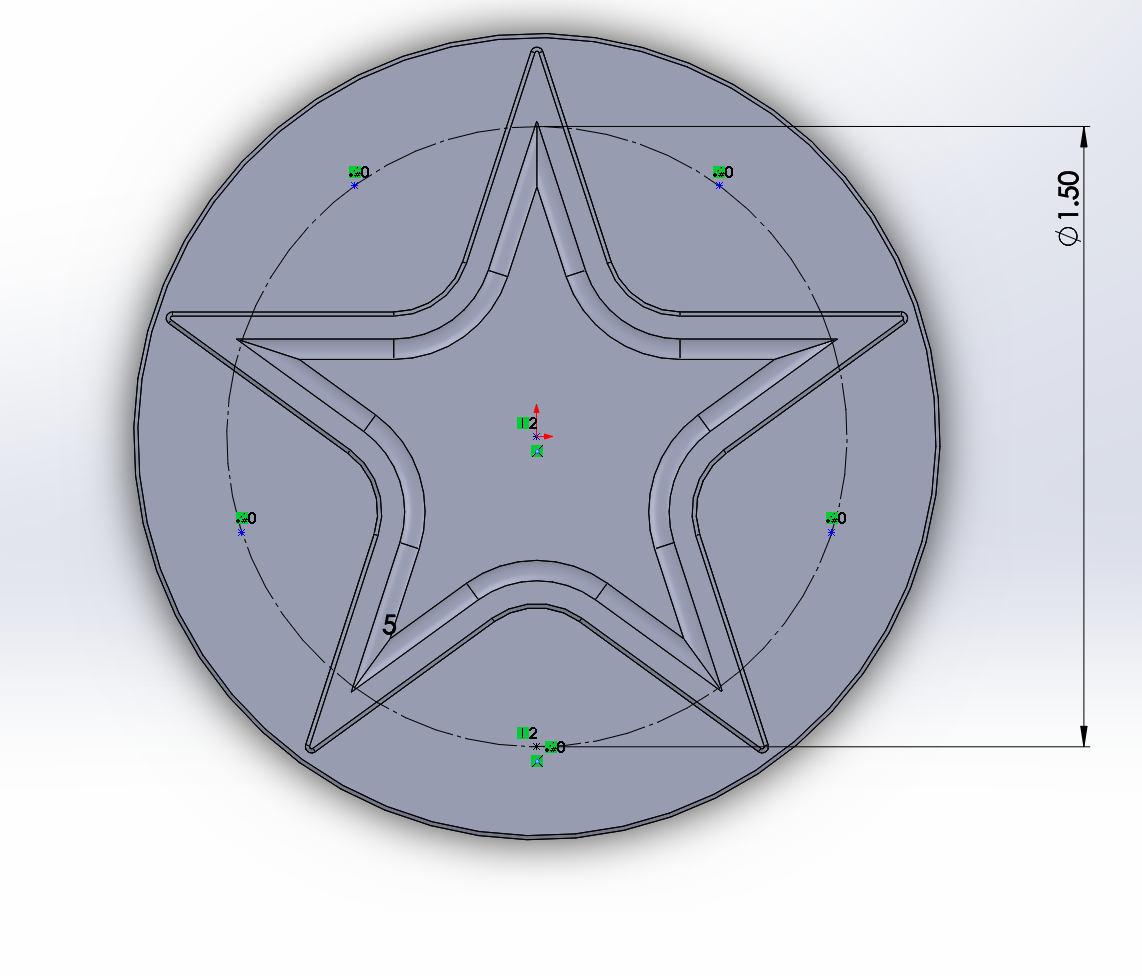

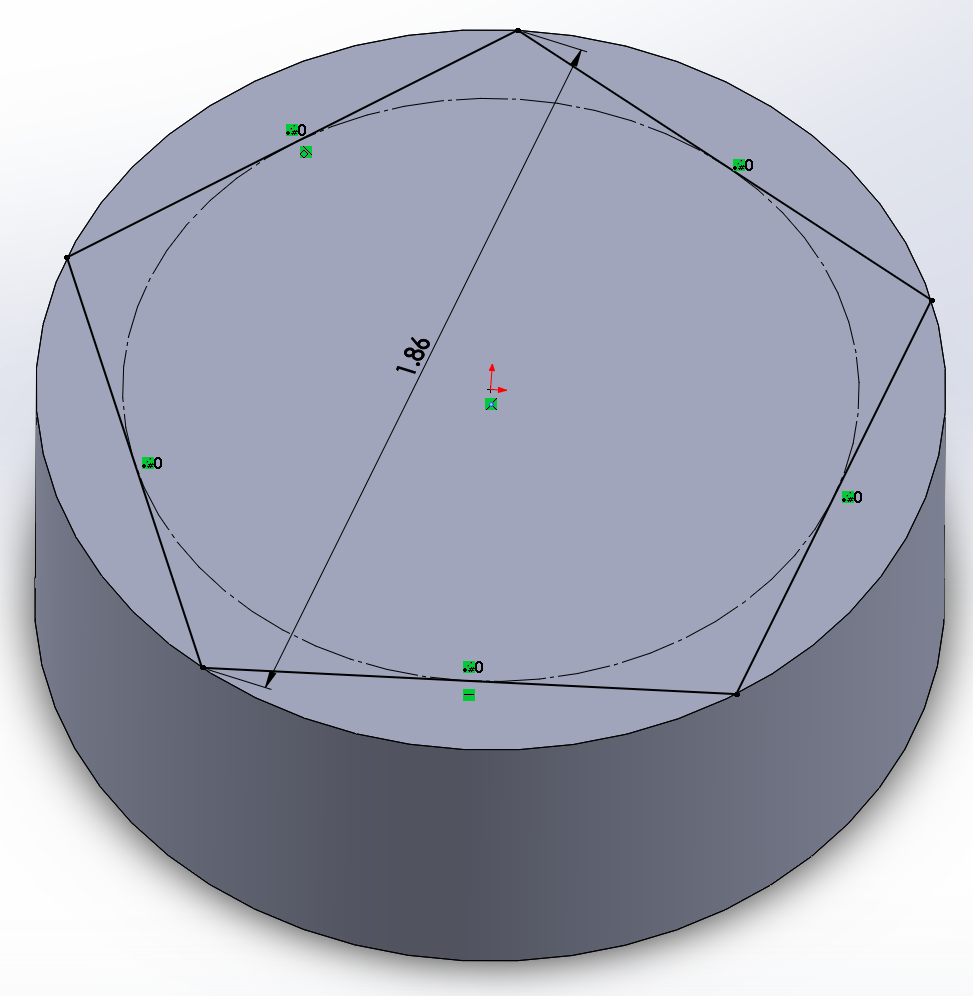

    In star2.pdf, it states a distance of 1.855, that is from point to point of a 5 pt star. As shown in my screenshot, the sketch is fully defined. The key is to defined the pentagon size first.

    It is strange that it has a dimension at all. I would place the point on pentagon on the circle.

  • Yang Ji
    Yang Ji 6 months ago

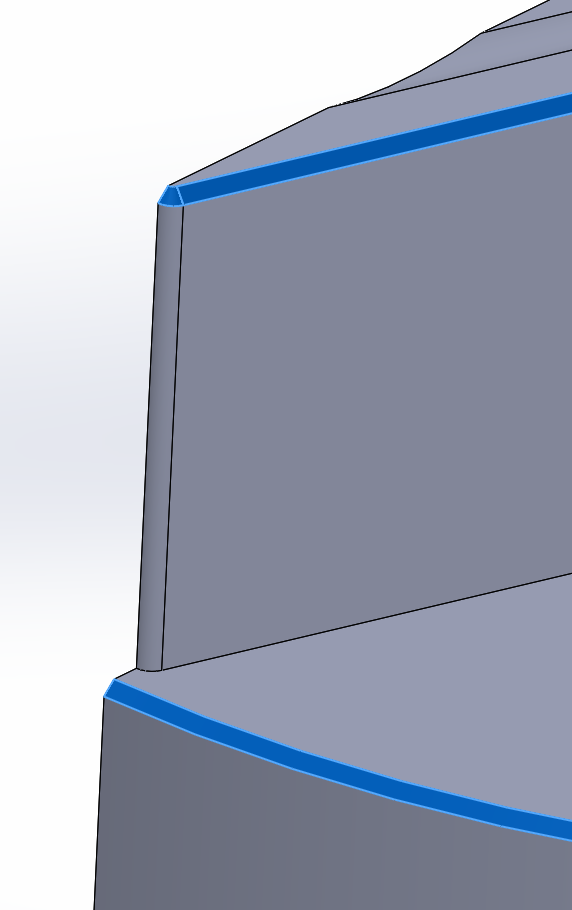

    For the engrave part, it is not very practical to be milled in its current definition but modeling it is certainly not hard at all.

    I always to model only one section of half of a section if I can see I can circular pattern later.

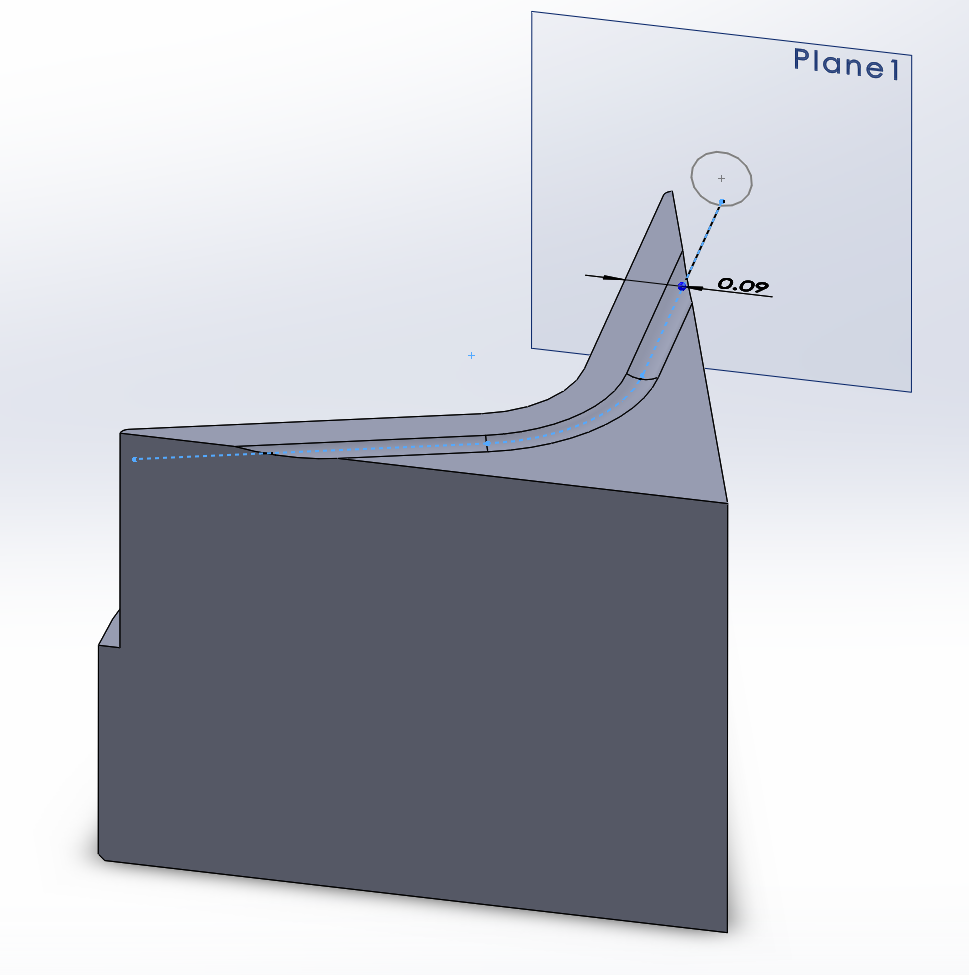

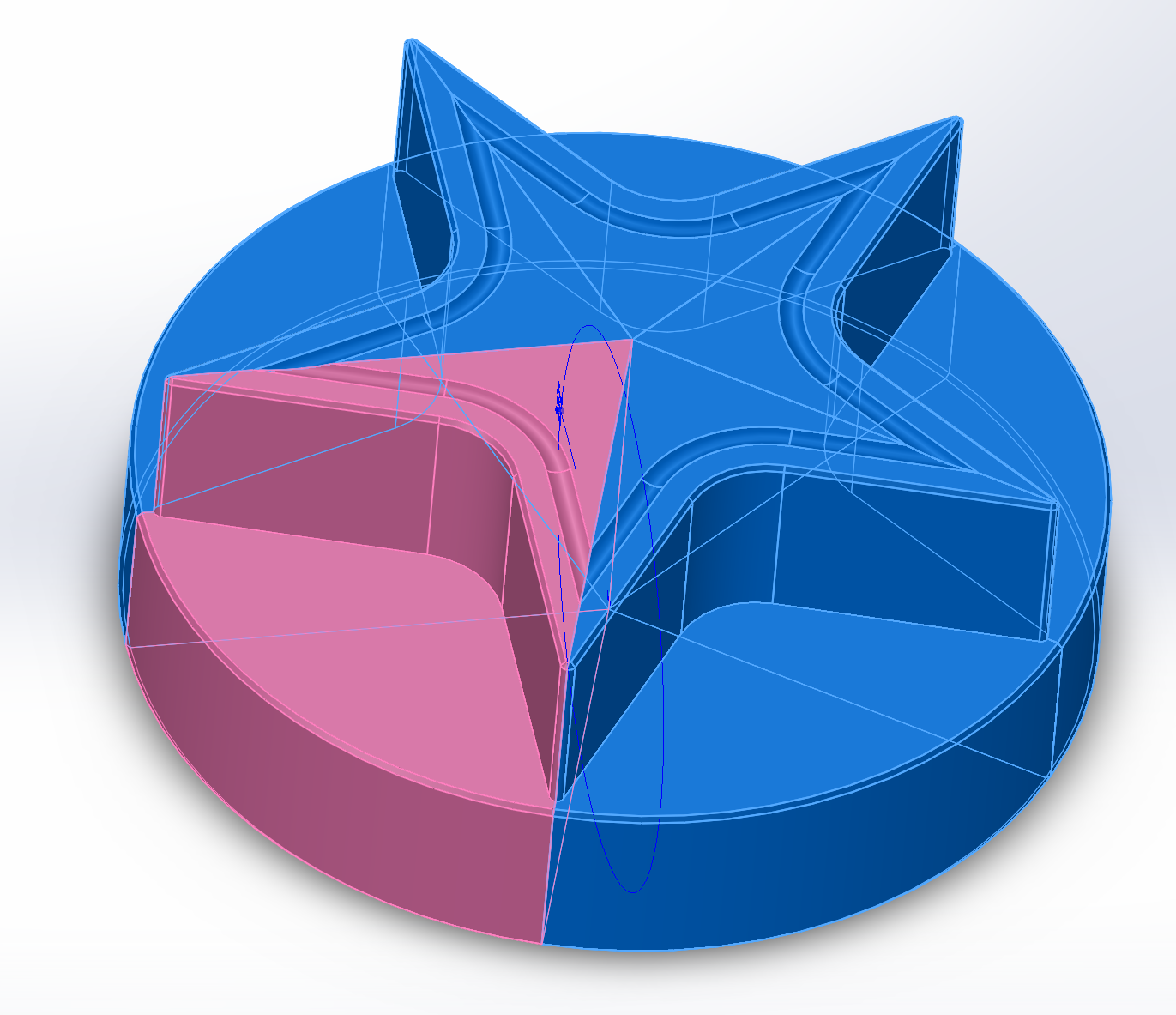

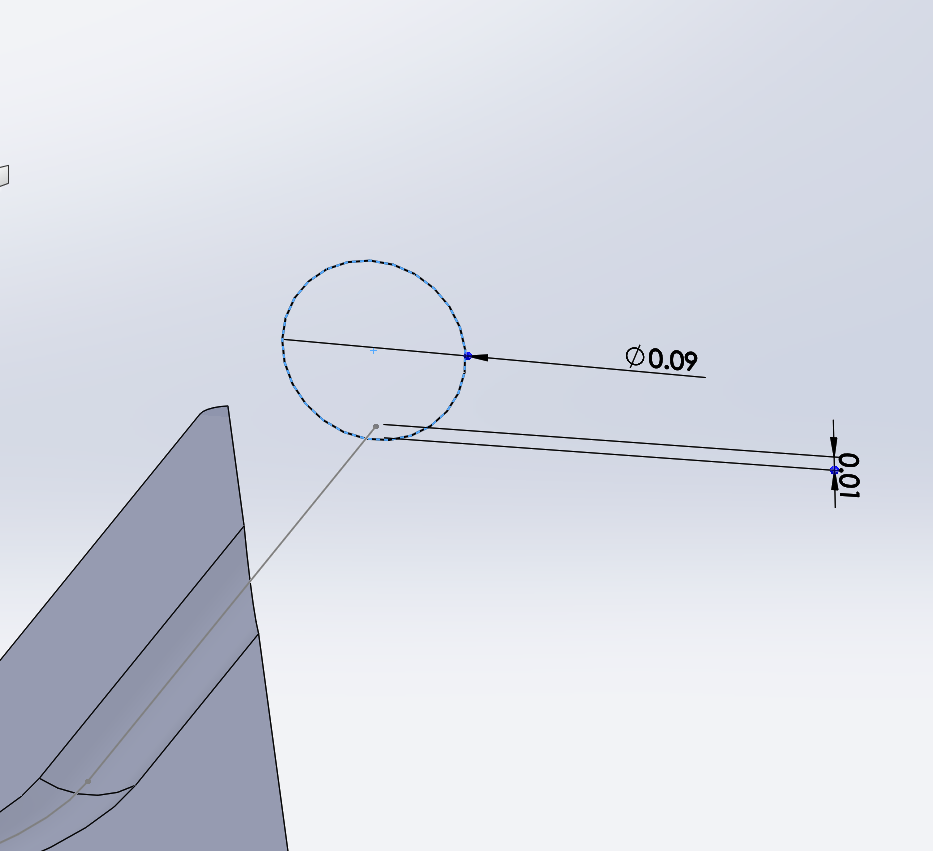

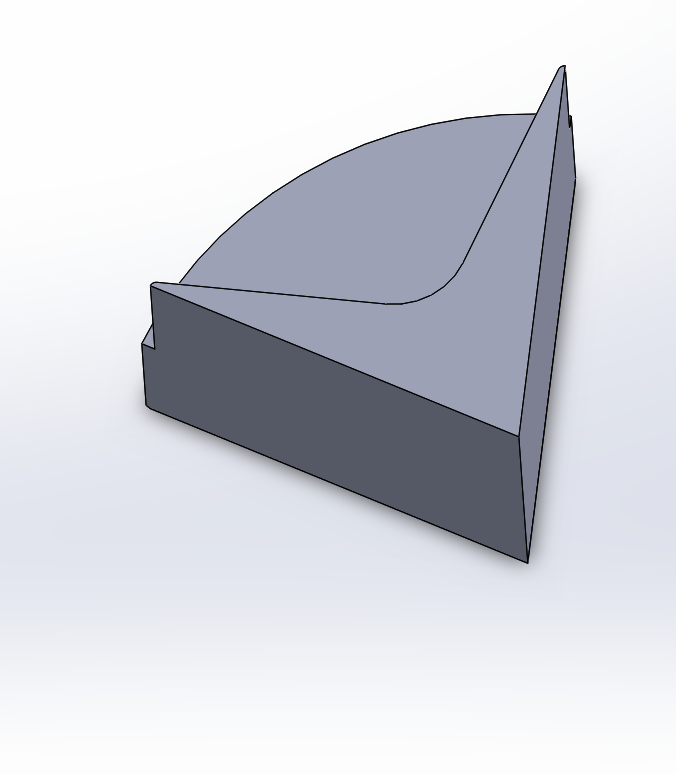

    Cut to 1/5 of the whole part, offset for path, use path to start a new plane, draw a circle on new plane, set to proper dimension then swept cut.

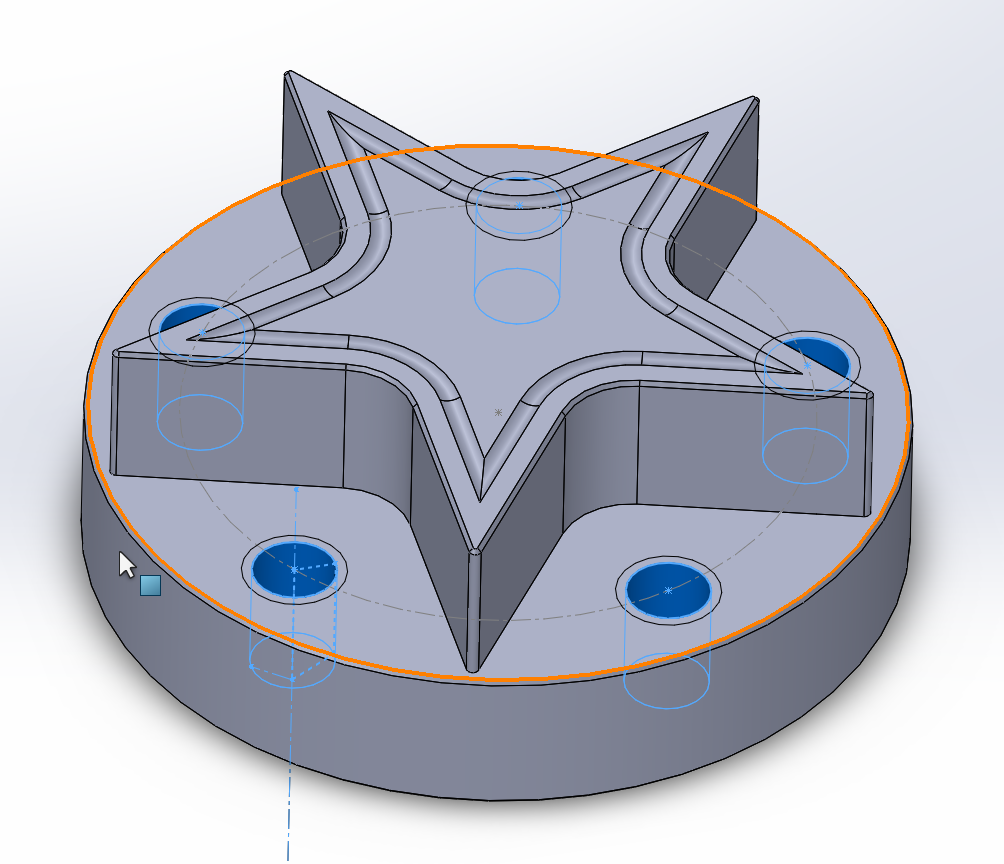

    Circular pattern the other 4 bodies, combine, draw a circle and dimension it, place a point on circle and under the origin and set vertical relationship, circular pattern this point for reference on hole wizzard, hole wizzard.
