Meshing problem in solidworks?

By amr salim on 01 May 13:26 2 answers 208 views 0 comments

i have making adrum consists of sheetmetal in circular shape and merged with extruded base when i merge the results meshing fails but when does not merge them it make interfernce what can i do with this hard situation

Attachments

drum sides.SLDPRT, 1.83 MB
Download

2 answers

  • Robert H.
    Robert H. 4 months ago

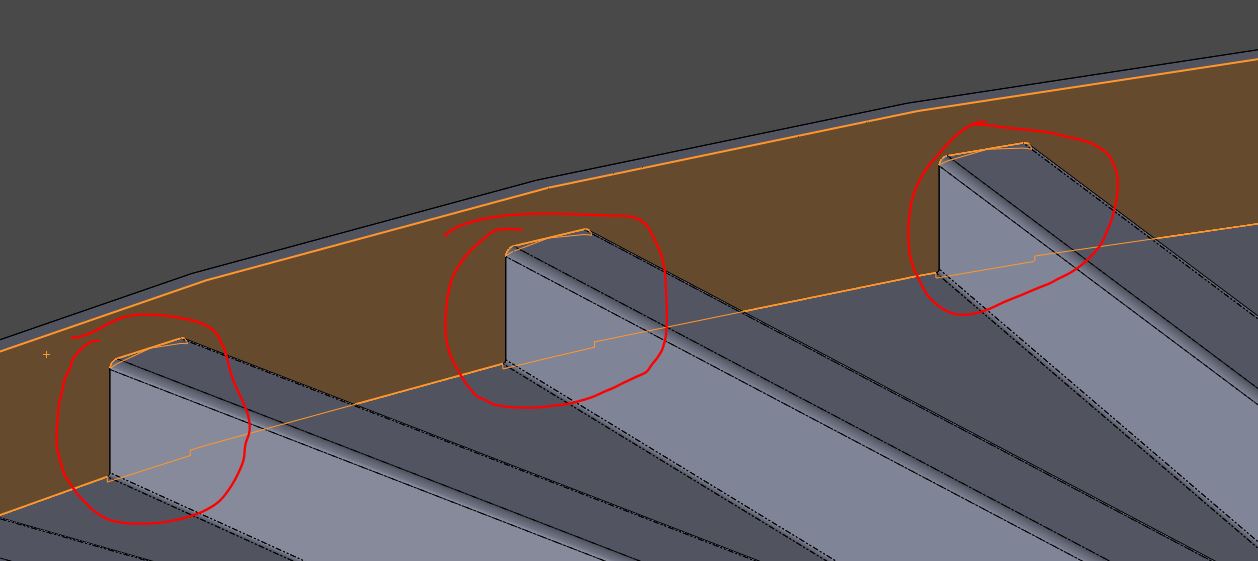

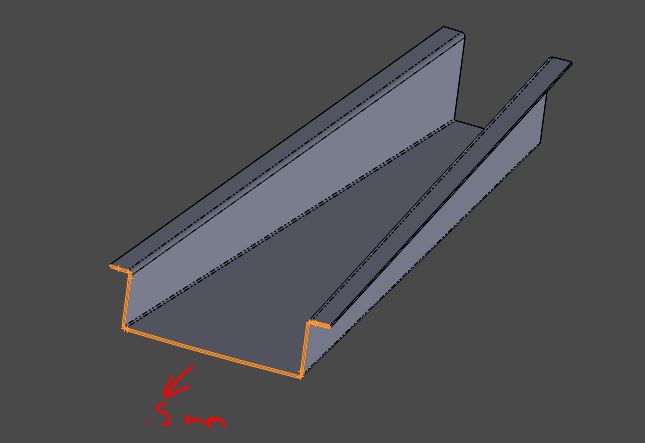

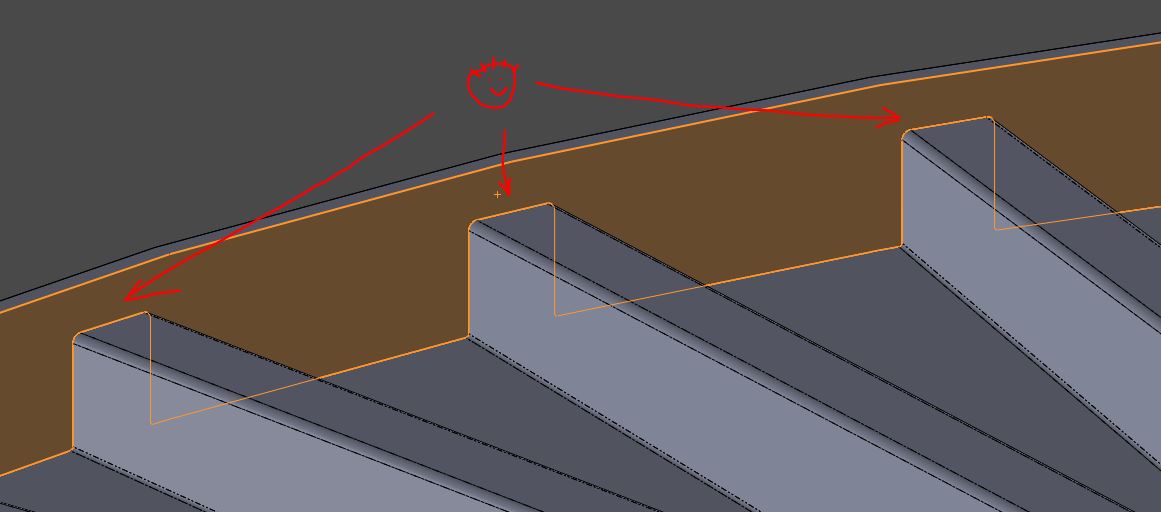

    I think the problem is the tiny gaps created when the outer hoop is combined with the folded sheet metal features and doesn't fully intersect with them. I have circled the evidence of these gaps in the first picture.

    One way to get rid of the gaps is to place a slight 'move face' feature right after 'Edge-Flange2' such that these faces will fully intersect the outer hoop.

    This should allow the solids to intersect properly and allow the mesh to work.
