Multiple Joint on Beam

By Mohd Fitri on 29 Oct 11:11 1 answer 299 views 0 comments

Hi,

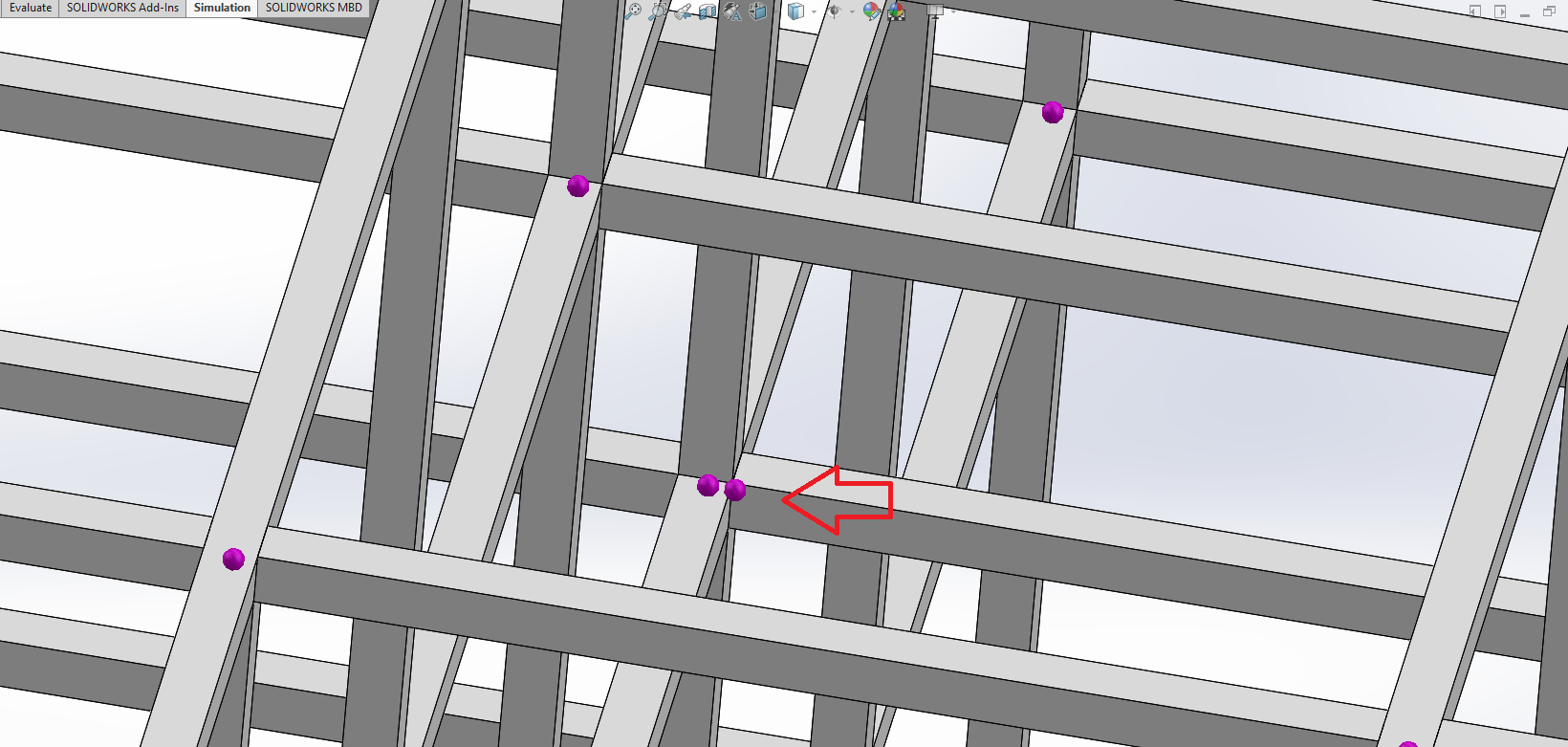

I`m trying to do a simulation on a hollow beam structure. When i enter simulation mode, i notice some of the beam joint having 2 purple joint dot ( as attached ). Can anybody explain to me why does this happen because the structure were created by using linear pattern of solid bodies, and majority of the joint were ok.

Added images

Square

1 answer

  • Carlos Soler
    Carlos Soler 9 months ago

    I suppose you work with 3dsketch and weldments. The purple spheres are joints. When you draw the sketch you must be precise .The final point of lines must be coincidents. A tiny difference generate two joints instead one
