Need help with Catia Generative shape design

Gilbert Manjoh
Gilbert Manjoh
14 Dec, 2017 09:37 AM

Hi everyone!
I have a project at school to recreate an Ajax detergent container. I have searched youtube but haven't seen any with the same shape. I have tried a couple of ways but stuck recreating the designs on it.
Can someone help me with some tips on how to go about it? I am using sketch tracer to get the photo into catia then redesign it.

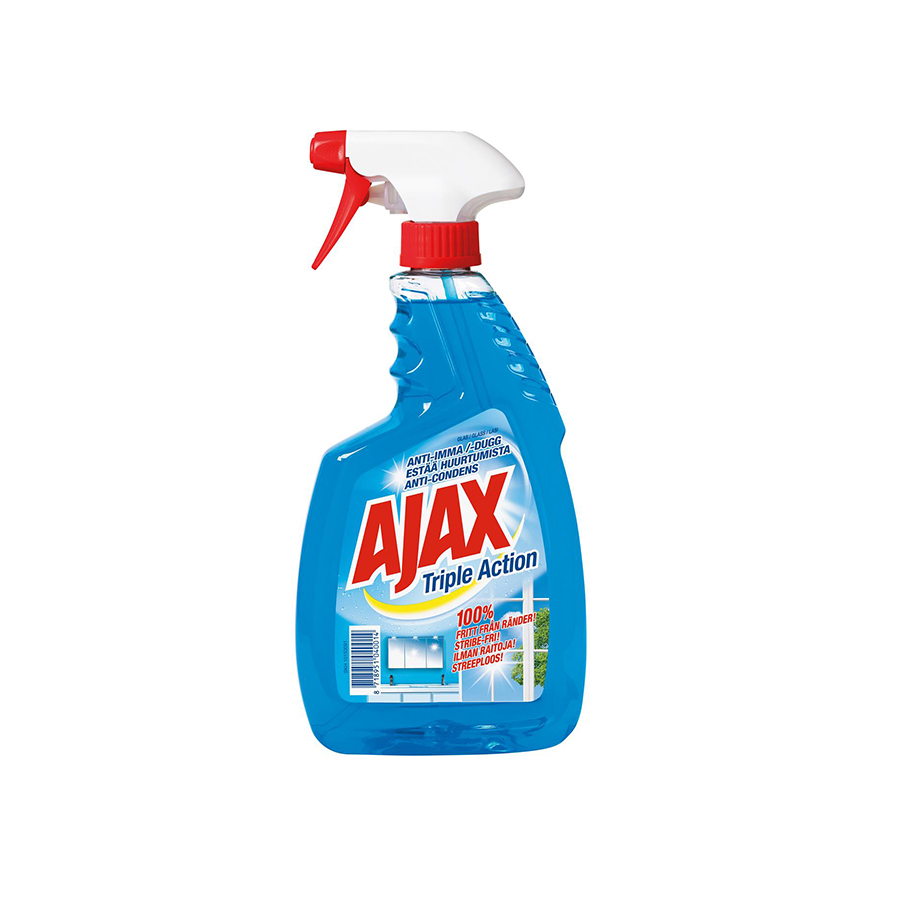

Below is the photo
Thanks

Ajax-Triple-Action-Spray-750ml.jpg Ajax-Triple-Action-Spray-750ml.jpg Ajax-Triple-Action-Spray-750ml.jpg Ajax-Triple-Action-Spray-750ml.jpg

1 Answer

Anuj Malviya
Anuj Malviya
Answered on 14 Dec, 2017 10:52 AM

Best and perfect way to design this kind of project is reverse engineering,
arrange a 3D scan model of the bottle and then recreate the surfaces in CATIA because CATIA having good perfection in the surface.
Then you can do changes according to you.

Thank you
