Pneumatic Actuator

Rahul Kapoor
Rahul Kapoor
22 Mar, 2013 04:17 AM

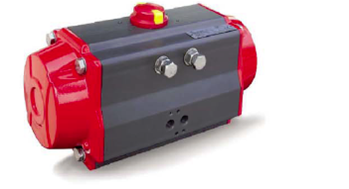

Does any body have 3d model or 2d drawing of the pneumatic actuator that i attached. I want the dimension of all the components.

HP_actuator.png HP_actuator.png

2 Answers

Eckhard Hofmann
Eckhard Hofmann
Answered on 22 Mar, 2013 05:02 AM

But well! It is worth an attempt! Look this:

2605921-al77-210-sr-axel-larsson.step
Georg Borka
Georg Borka
Answered on 24 Jul, 2019 07:37 AM

Hello Rahul,

check page 39 of my file. Sorry the description is in german, but on page 39 are the dimensions of the actuator defined.

Best regards

Pneumatischer_Aktor.pdf
