ST9 Modeling Assistance

Question by JP Johnston

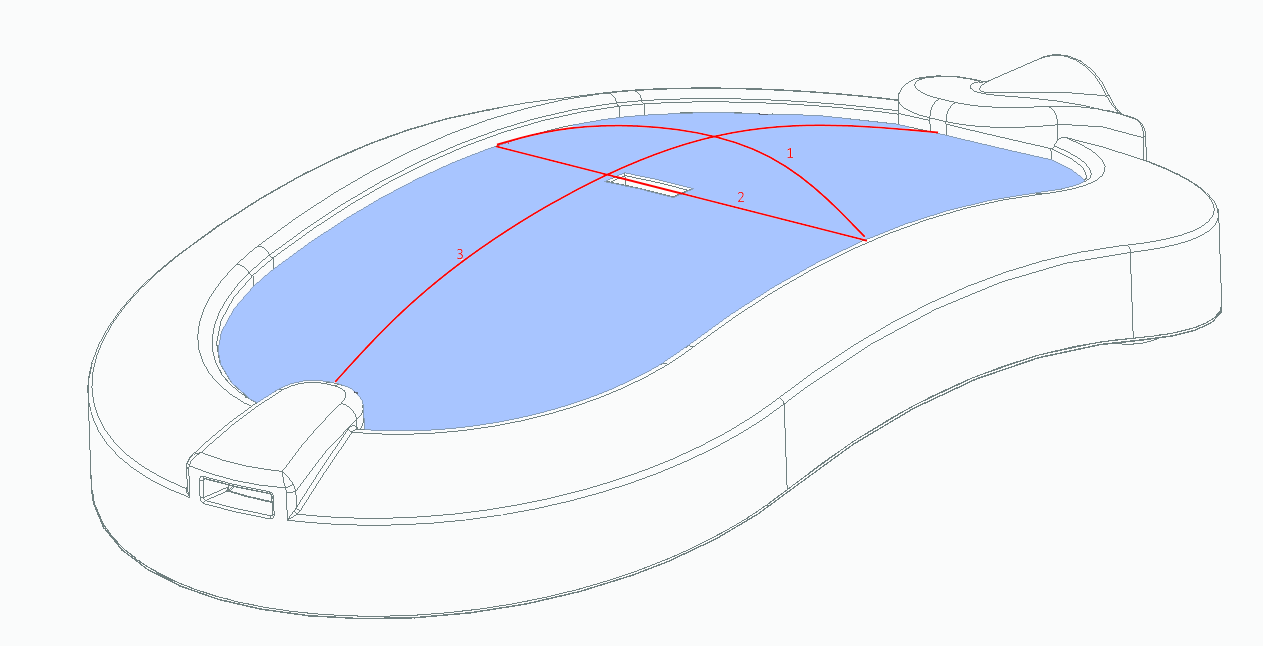

Can anyone assist me in modifying a ST9 part like the attached screenshot?

I am trying to take the arc out of #1 and make it flat as in #2, without having to recreate the entire part.

I'm not well versed in Solid Edge. SolidWorks is where my skill set is.

Thank you in advance.

Jonny

Answer

Comments 0

1 Answer

Francesco Arfilli
Answered on 18 Dec, 2017 04:22 PM

There is no much difference from SE to SW in this kind of tasks so if you are able to do it in SW you are able to do it in SE as well.

I would create a surface that replicate #2 and the use a "Replace face".
To create surface #2 probably the best method is a swept of line 2 along path number 3
