I recently downloaded the following model :
Jaguar XJ-S Sunvisor Clip
After conversion from .stl file to .model to use it in CATIA V5, i can't copy paste the content of the .model in a new .CATPart.

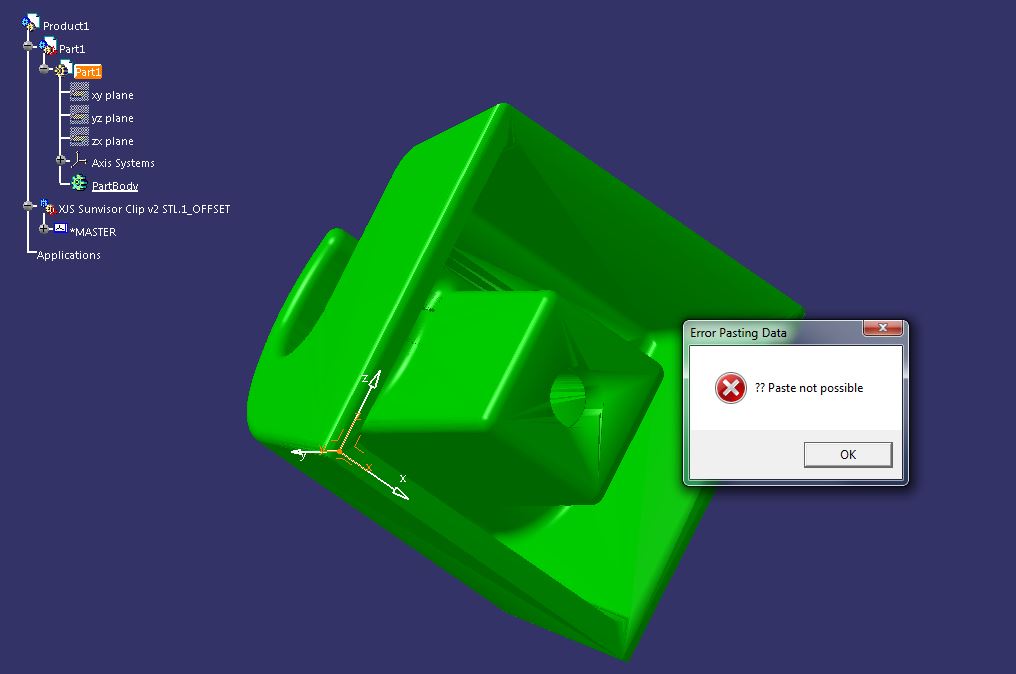

The following error appears : "?? Paste not possible"
Could you help me find out what is the problem ?
Hi friend its me again, I think you can create a copy of this model, as the same I made it, please check the picture that I attach you, and in a catproduct assembly the model and add a new part and change the name with your name for example, and try to start to project lines with the edges, and if you have questions, just let me know, you can use surfaces or solid module.
Answered with a tutorial: https://grabcad.com/tutorials/stl-model-conversion-problem-with-catia-v5
Thats why I was asking you the dimensions, but as you told me the dimensions you dont have, and if you want to learn catia tips, try to search in google, or some videos in yout tube, thats the manner like I've learned catia.
Have a good day,
i will try that and let you know.
Thanks a lot
Hi friend, could you send me the model converted into catia format, to paste in my computer catia, in a new part to make some test, and investigate, which was the problem, and let you know to fis this issue.
Thank you for your reply.
here you go.
By the way, here is the method I used to convert from .stl to .model.
1) create a product in catia
2) go to DMU optimizer
3) insert new component (.stl file)
4) click offset button
5) register the file with 0mm offset as a .model file
AttachmentsXJS Sunvisor Clip v2 STL.model, 2 MB
Hi friend, its me again, unfornatelly show me the same message error than you, I have an idea, I can model in catia, Do you have the real dimensions, and I can model in catia, and save you in step file or iges file, the same form than solidworks file, and I think you wont have a problem to open in solidworks, but if you have the real dimension, please send me for modelling
another way I dont know how to fix this issue.
Have a good day.
No i don't the dimensions. as explained above, i got the model from a user post on grabcad.
And i just wanted to practice my catia skills on this part so no need to model it for me.
I suppose i should look for CATIA made files from now on as the ones from solidworks doesn't seems to like the convertion.
Thanks for the links. I can't read the first one but i should manage to understand with pictures.
I have some tutorials .pdf also but it's all in french.
Let me know if you're interested.
