Tutorial: How to make engine part 36

CYLINDER HEADS

Answered with a tutorial: https://grabcad.com/tutorials/tutorial-how-to-make-engine-part-36

Dificult but wondrfull. I did it and I loved it! Thank you master.

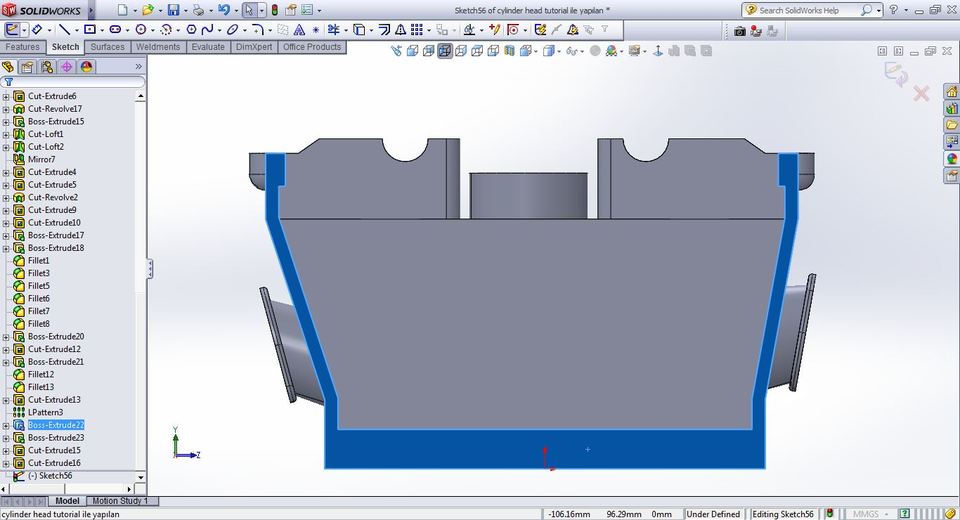

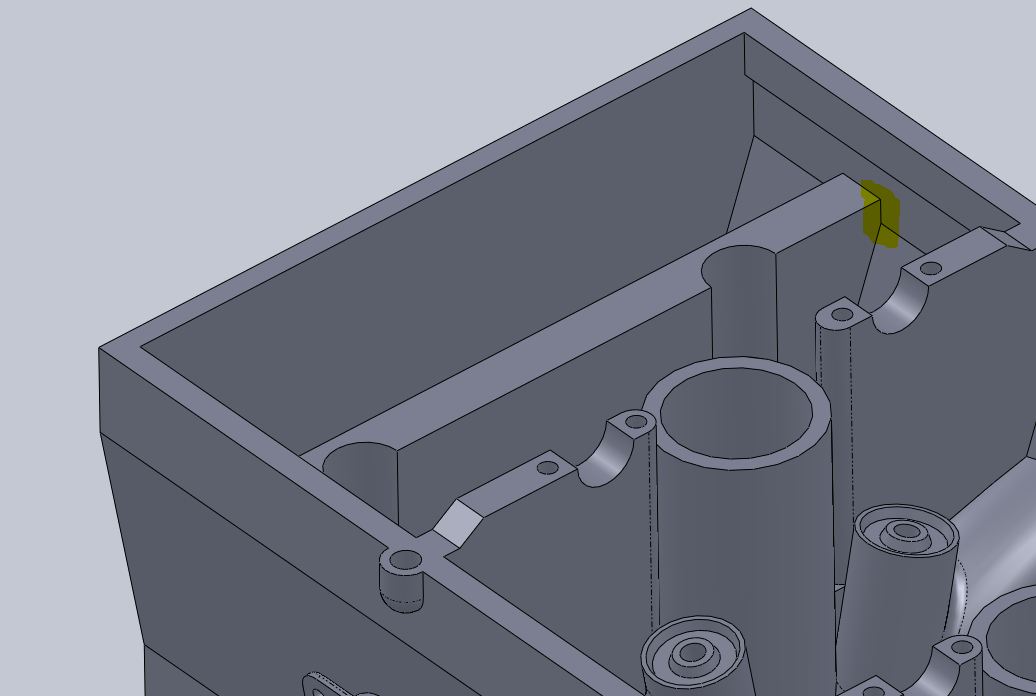

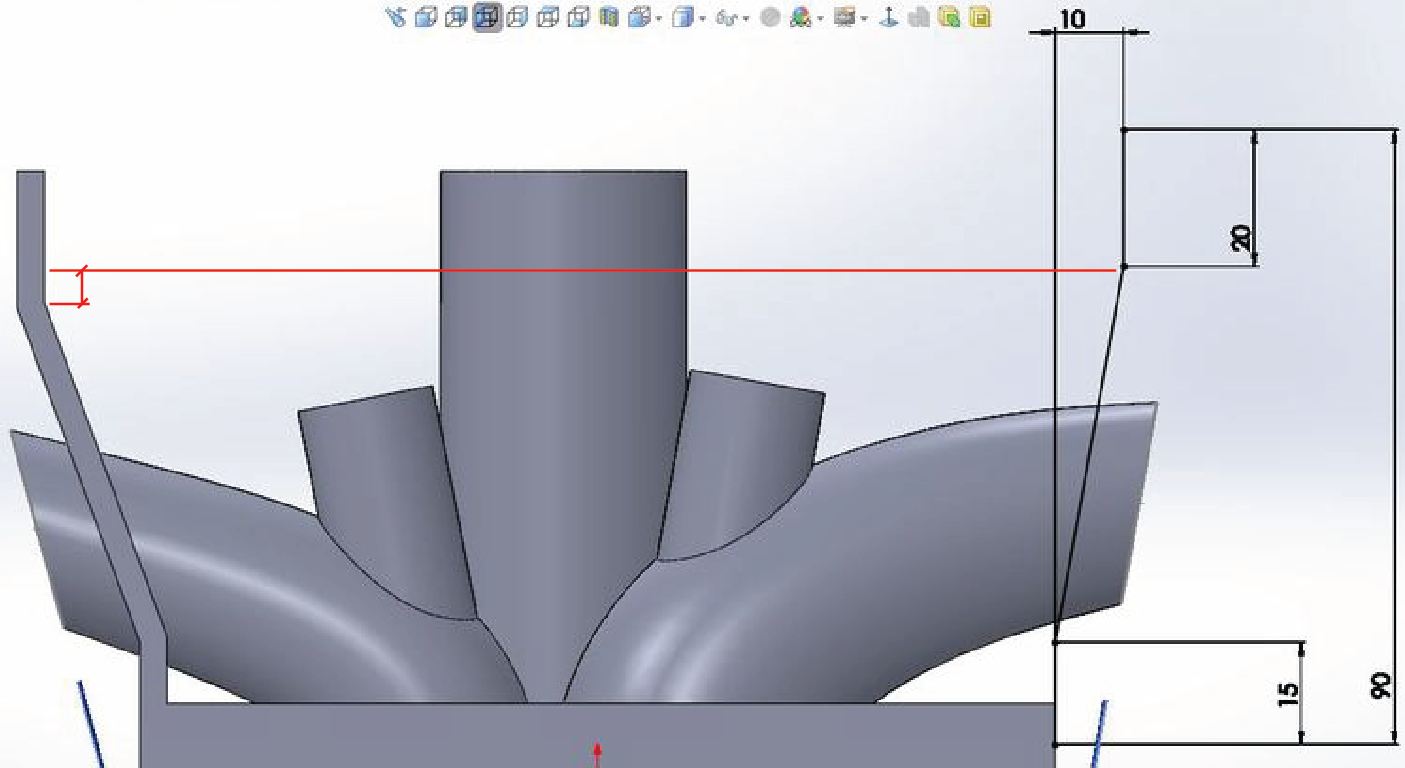

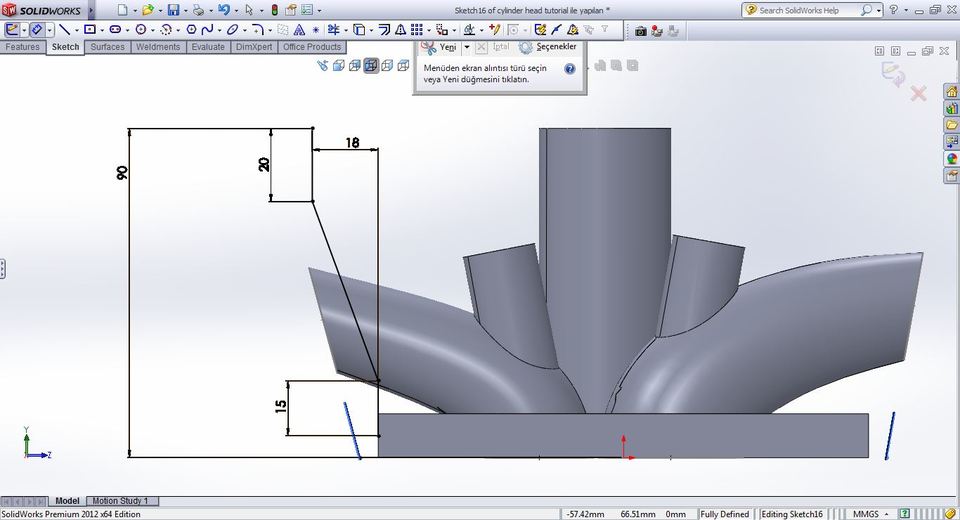

Thanks, Only issue I had was a difference in height of the walls. In the step 8 and 11 the height is slightly different because one if fixed at the endpoint and the other is at the mid point.

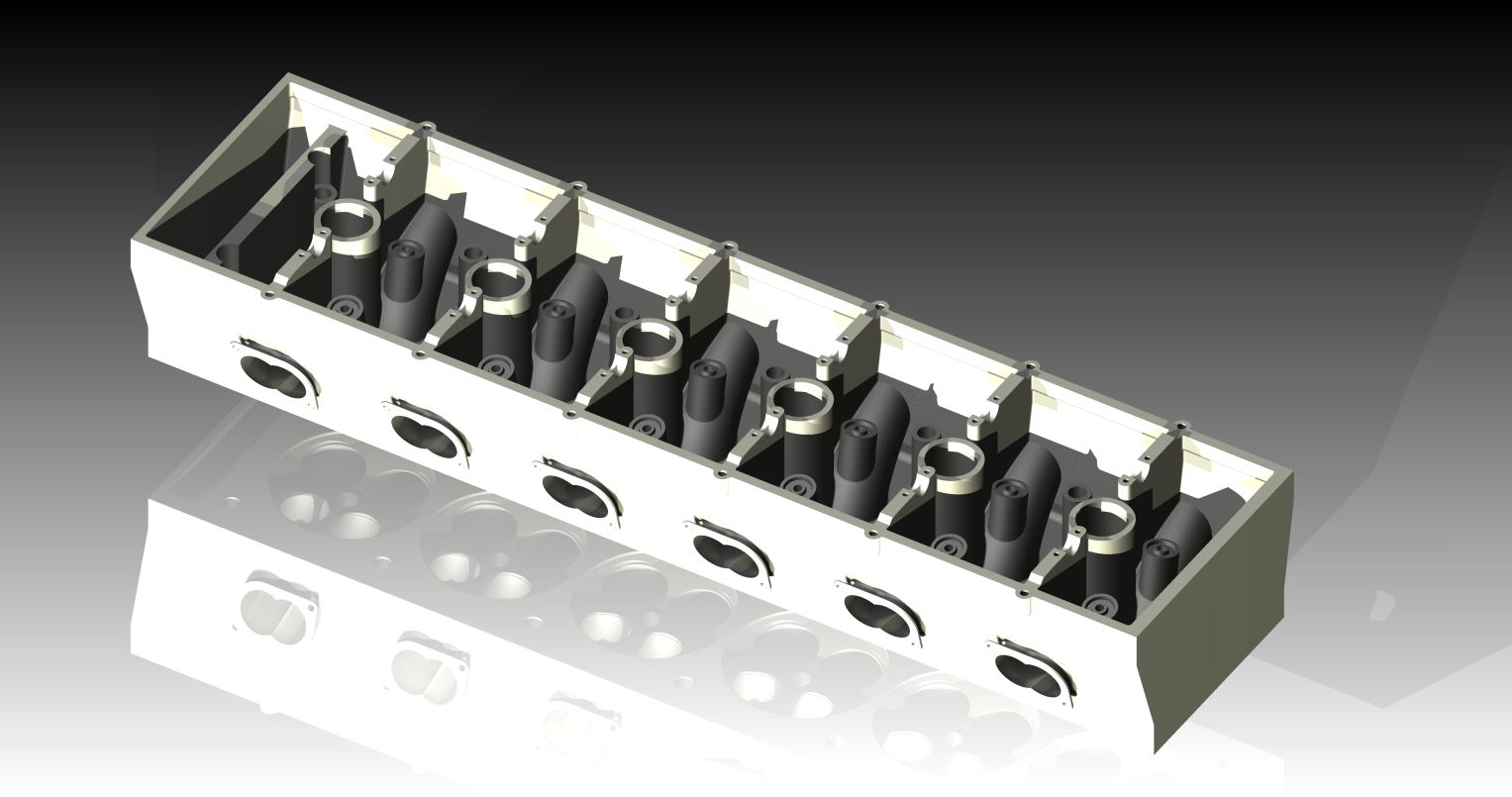

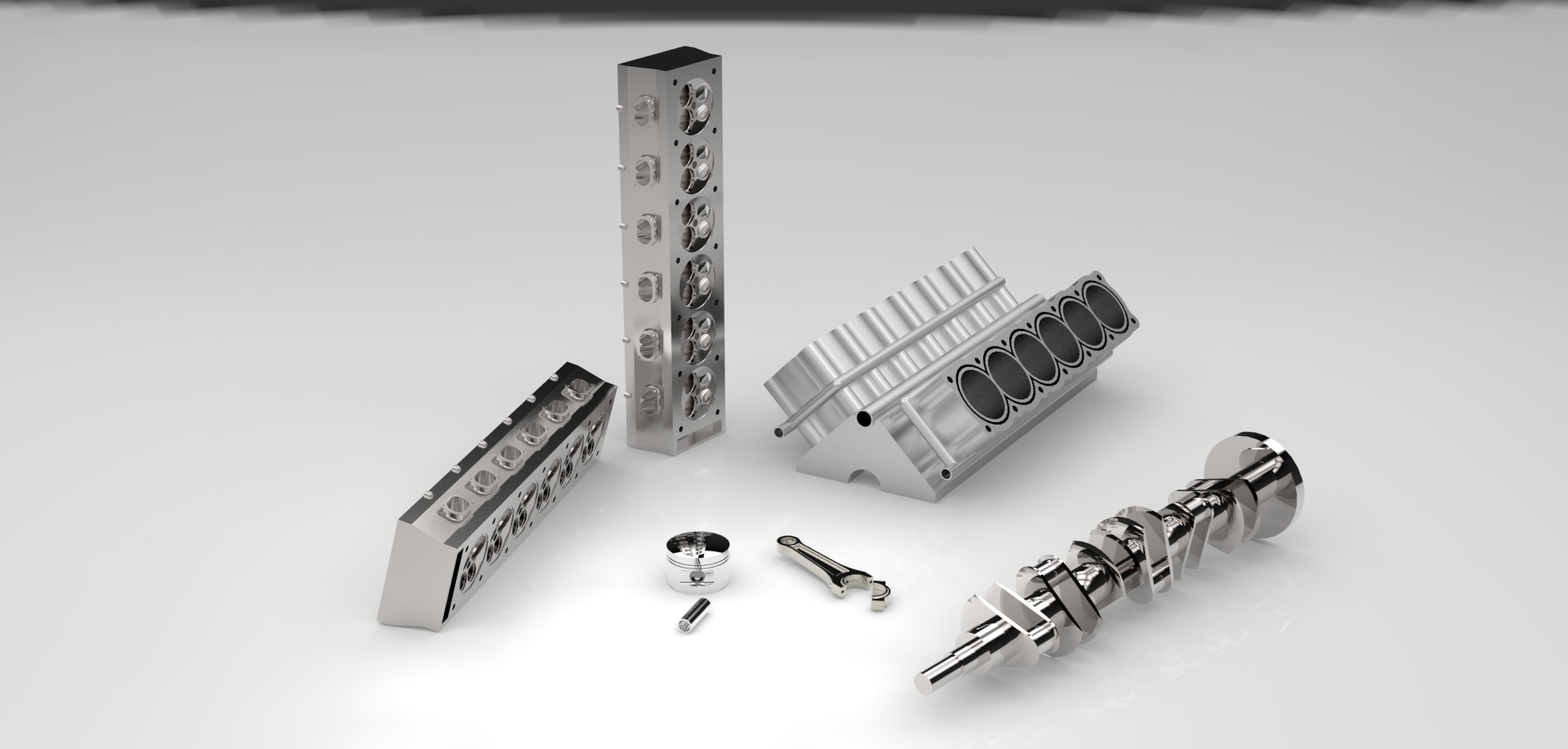

Here the cylinderhead in Autodesk Inventor.

Thank you for this tutorials, looking foward for the next ones.

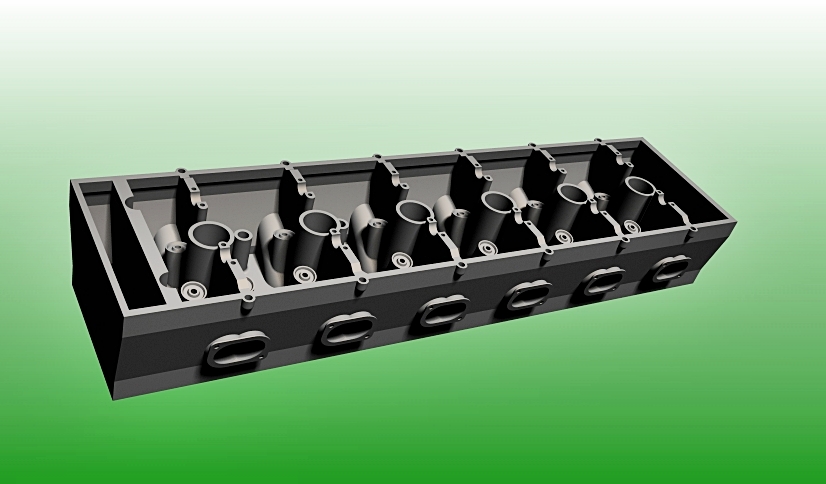

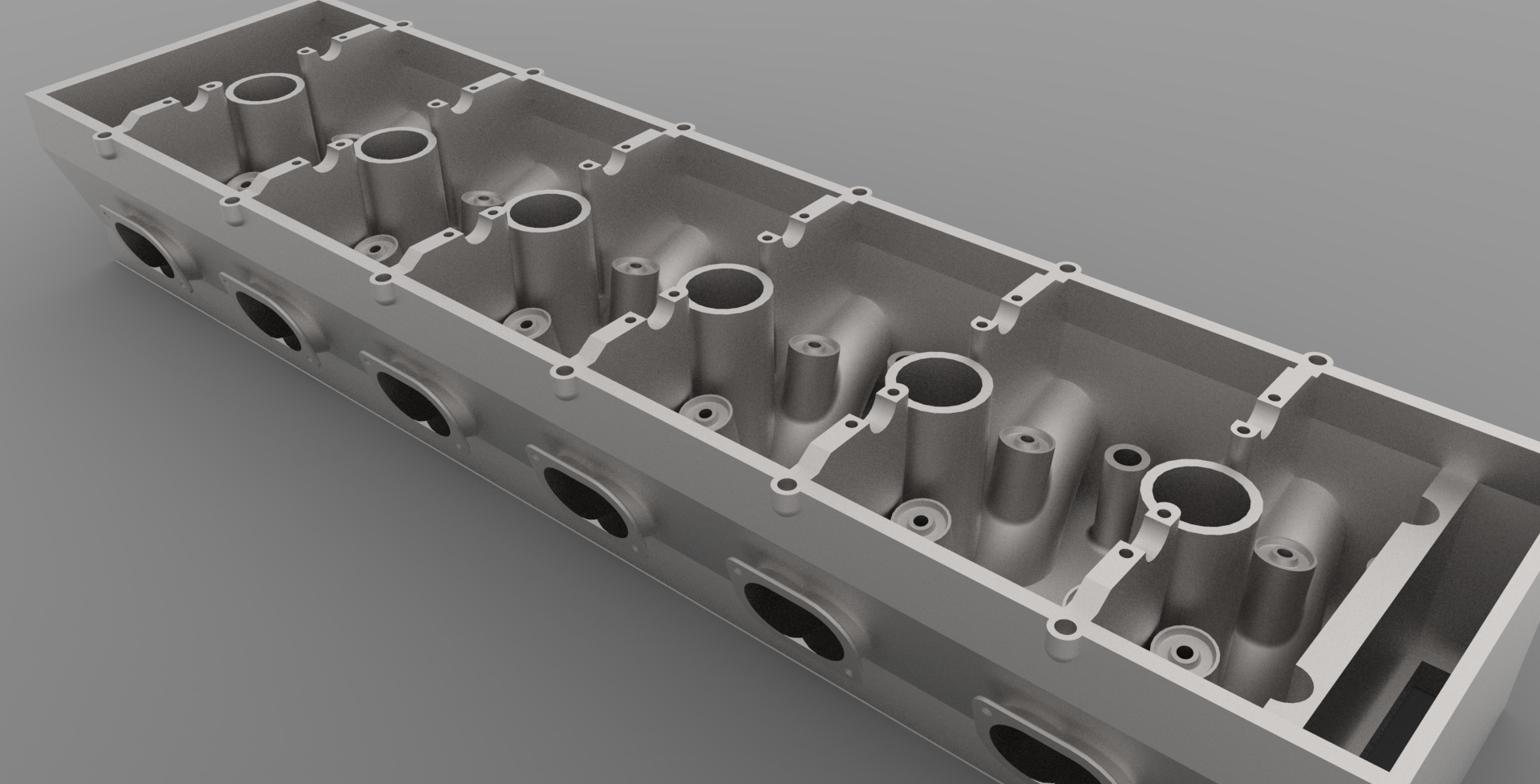

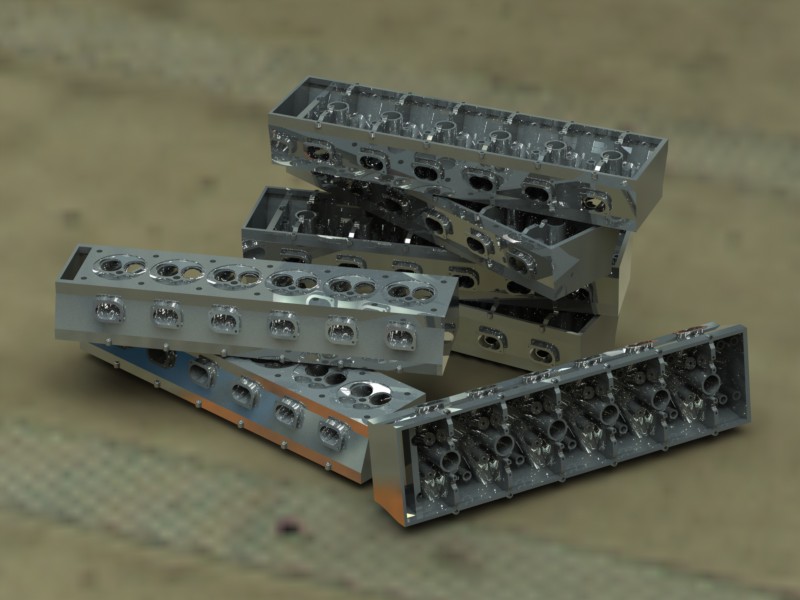

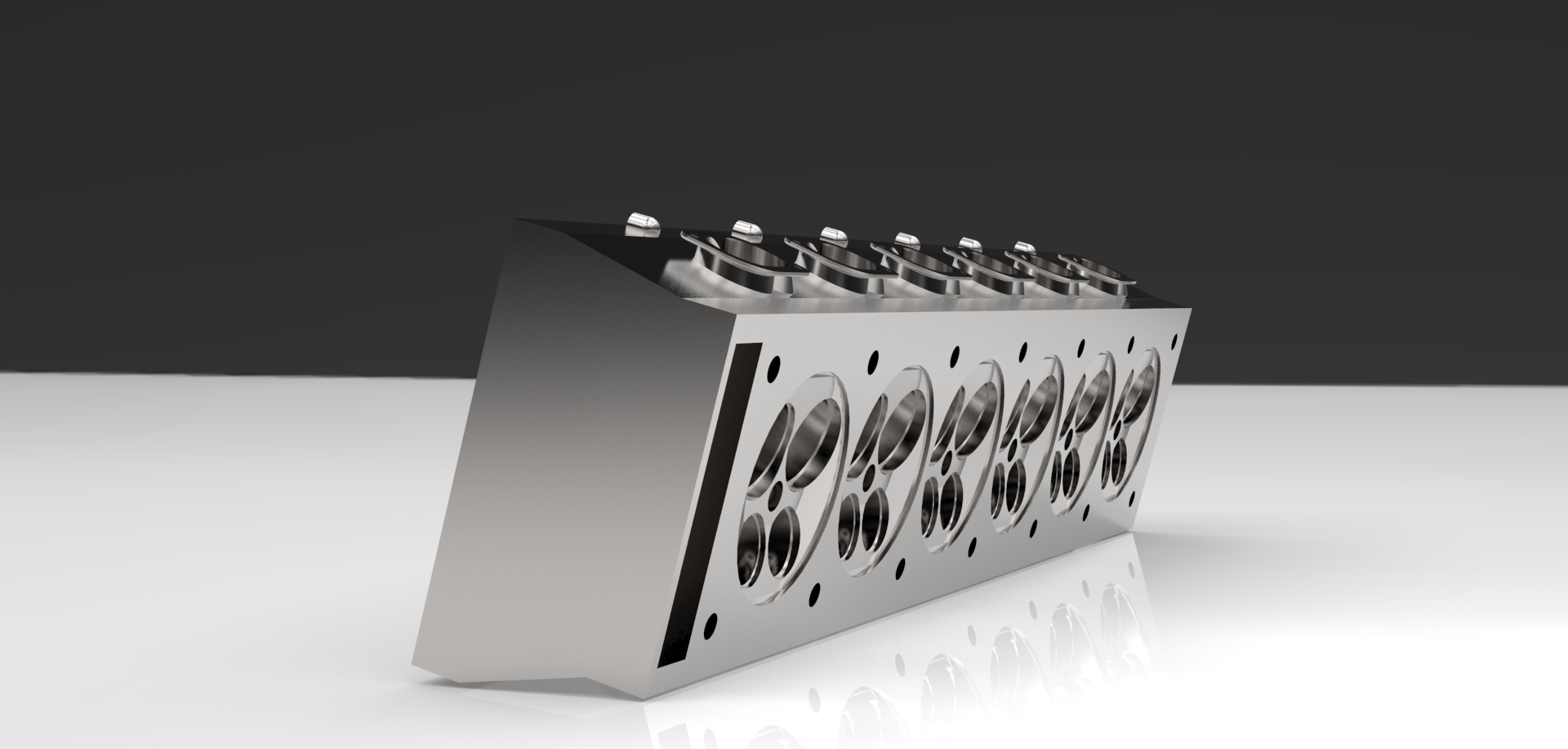

Here's 2 renders.

Regards!

Congratulations to all of you friends, cylinder head was the most difficult part on the engine. Other parts will be more easier than this.

Aykut,

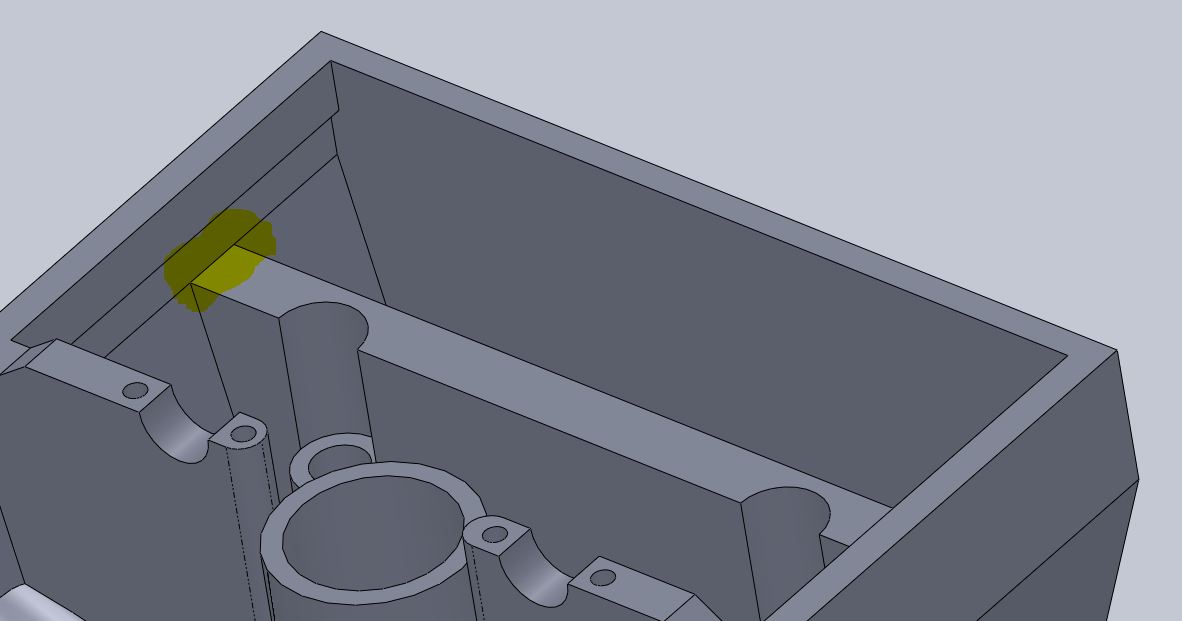

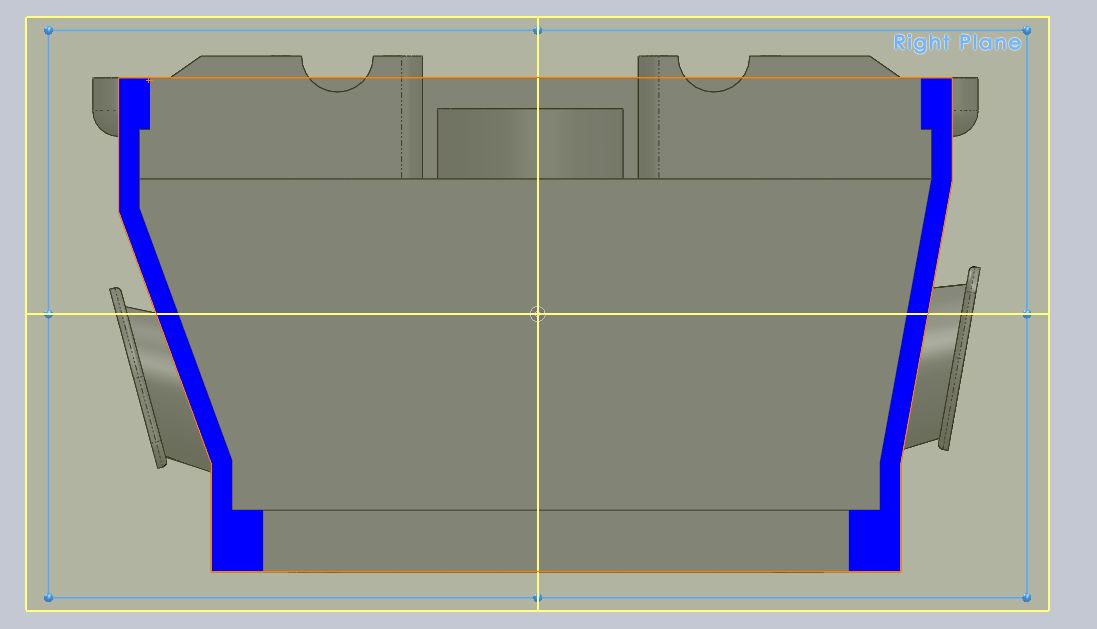

It is hard to explain without images to show you what I mean.

I done it...I learned a lot from this exercises...thank you aykut

Thanks a lot Aykut it was soo educative, some problem firstly to understand the main idea but then was easy.

Thanks a lot

Not bad for an amateur. No water jacket, square internal corners, structurally flimsy, no oilers...
My job is safe... for now

Very nice and helpful tutorial!!!May I suggest you people consider adding the cooling fluid lines! Other than that it is maybe the easiest and most clean way to design a cylinder head!!!

Step 36. How did You know I was totally exhausted with cylinder head at that point?

can u please upload the rest of the parts because it's hard to draw ??

I used an Combine Command at the end, does that matter?

It was hard and when i was using the linear pattern command BOM!! my solidworks closed up and without saving anything, anyway I started once again and now it´s done! great teacher, thanks. Hi! from México!

Fue el más dificultoso de todos los pasos hasta aquí recorridos, pero gracias, excelente propuesta. Saludos desde Colombia.
