Tutorial: How to make engine part 36

Tutorial by Aykut Dana
Small

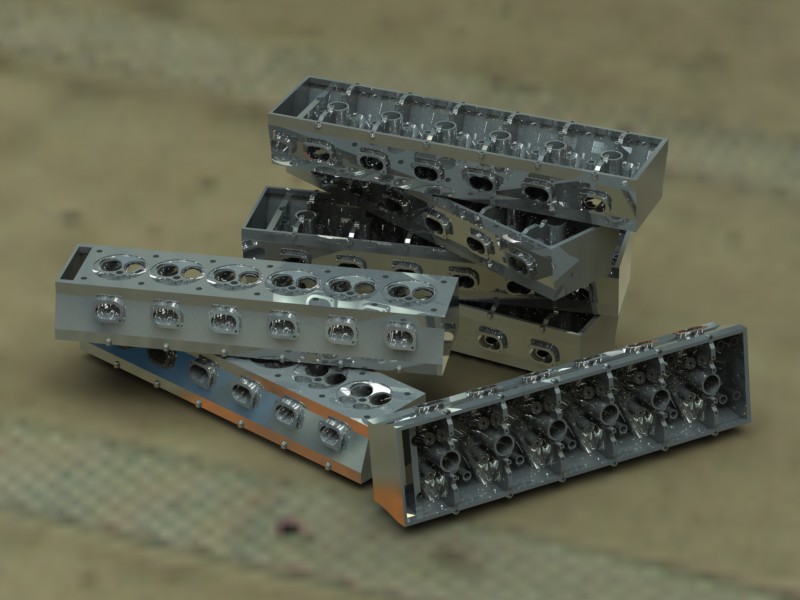

CYLINDER HEADS

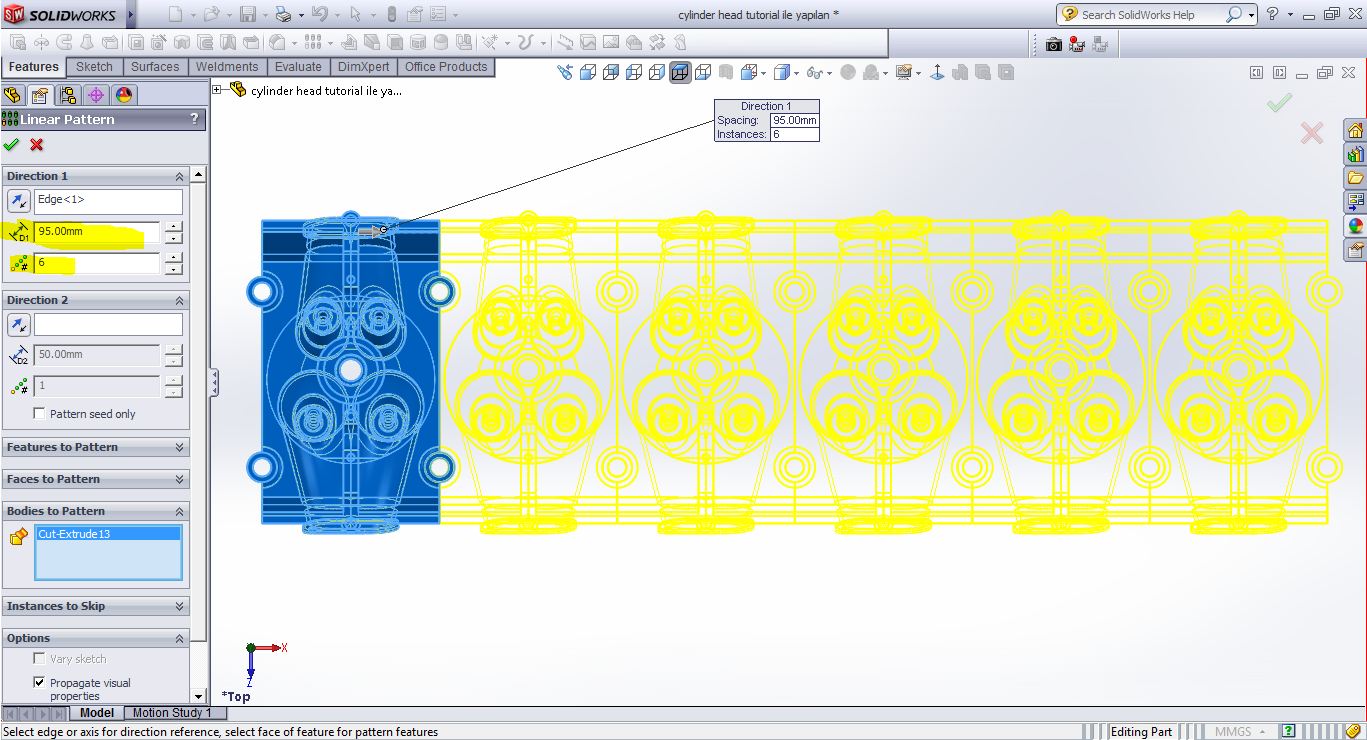

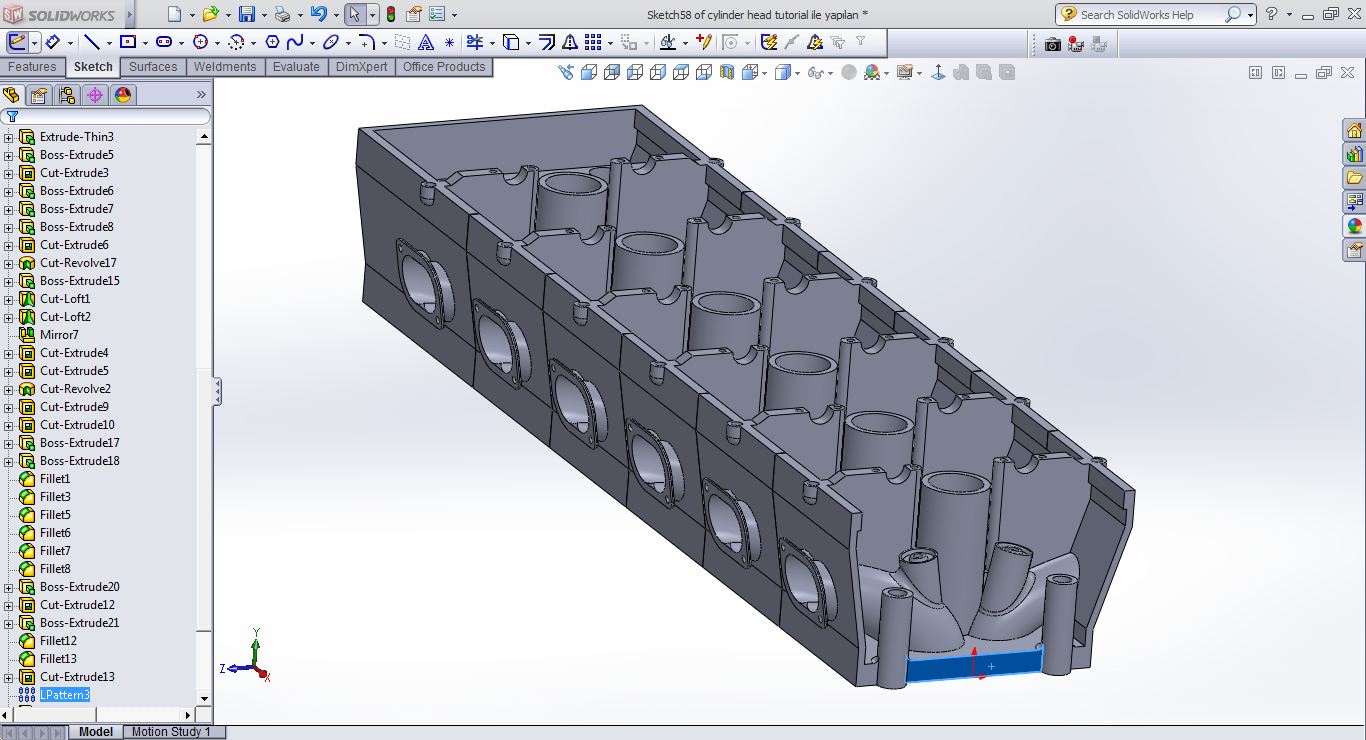

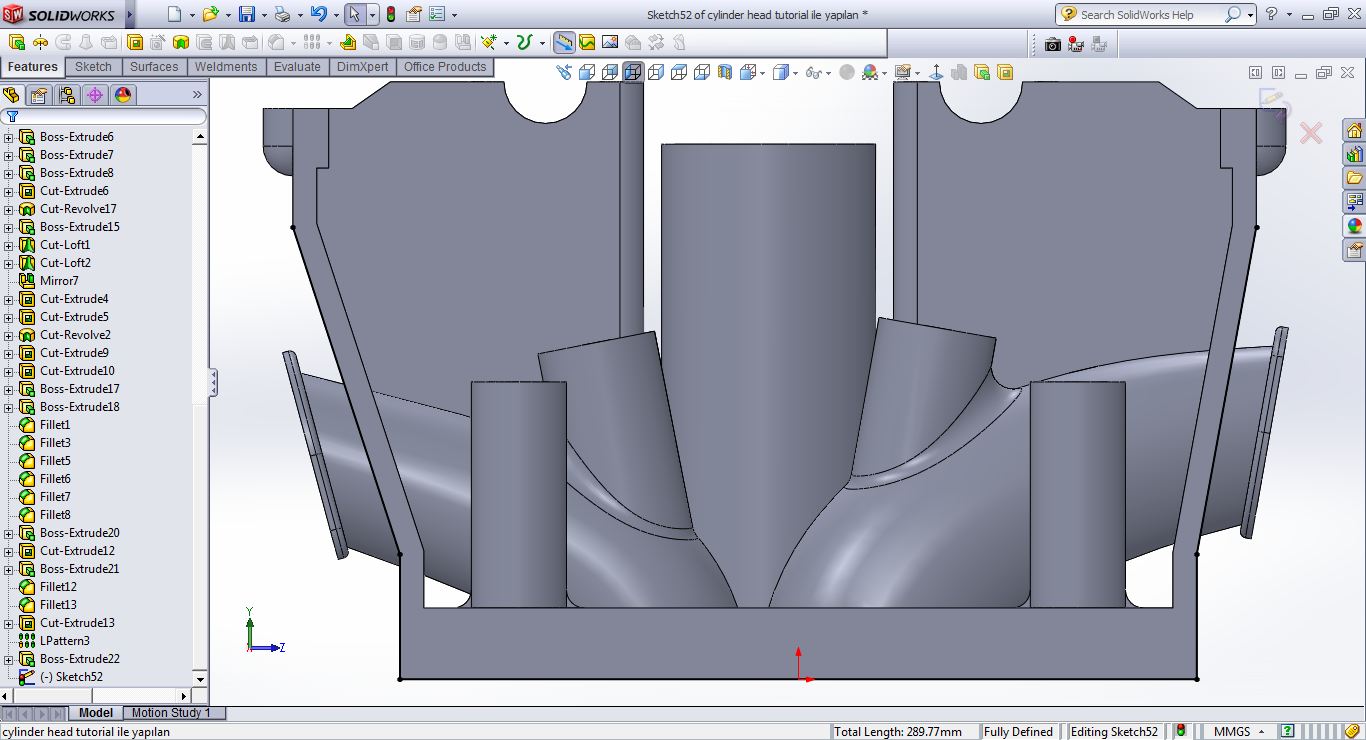

  1. Step 1:

    use linear pattern command

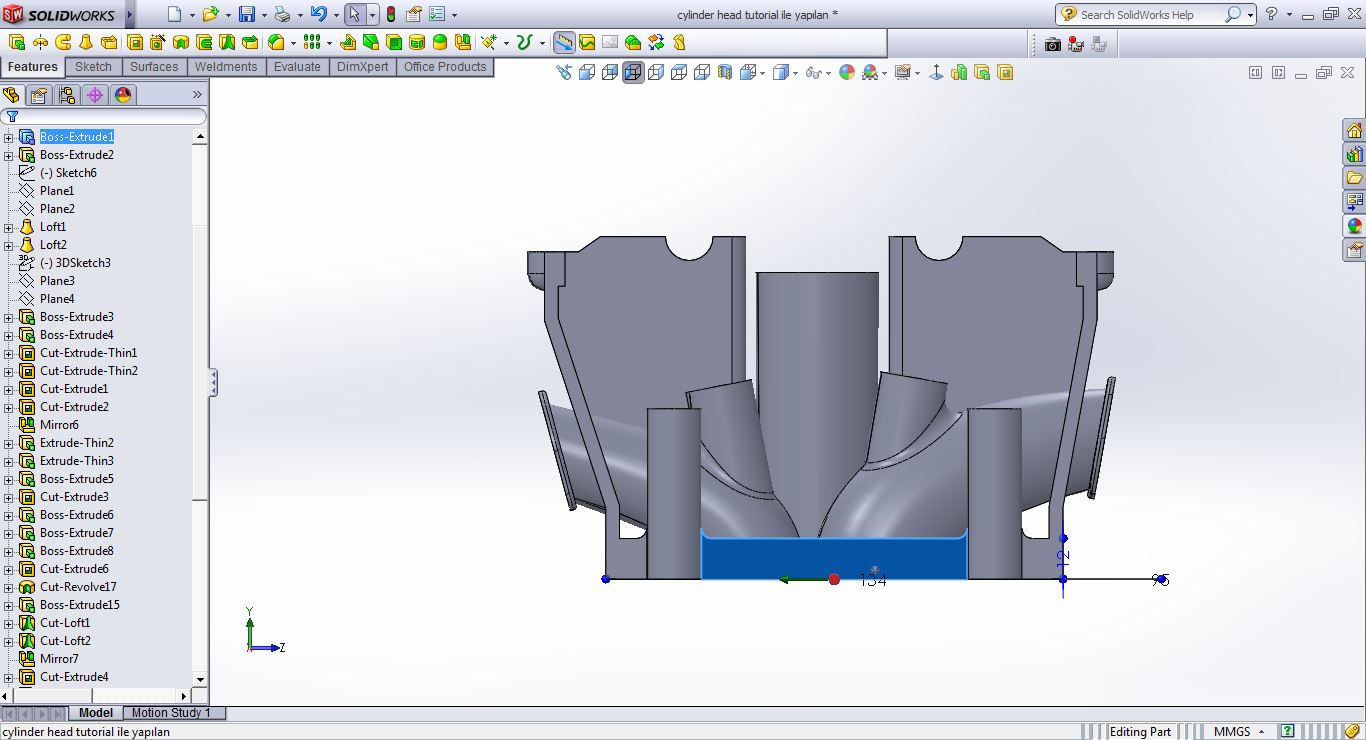

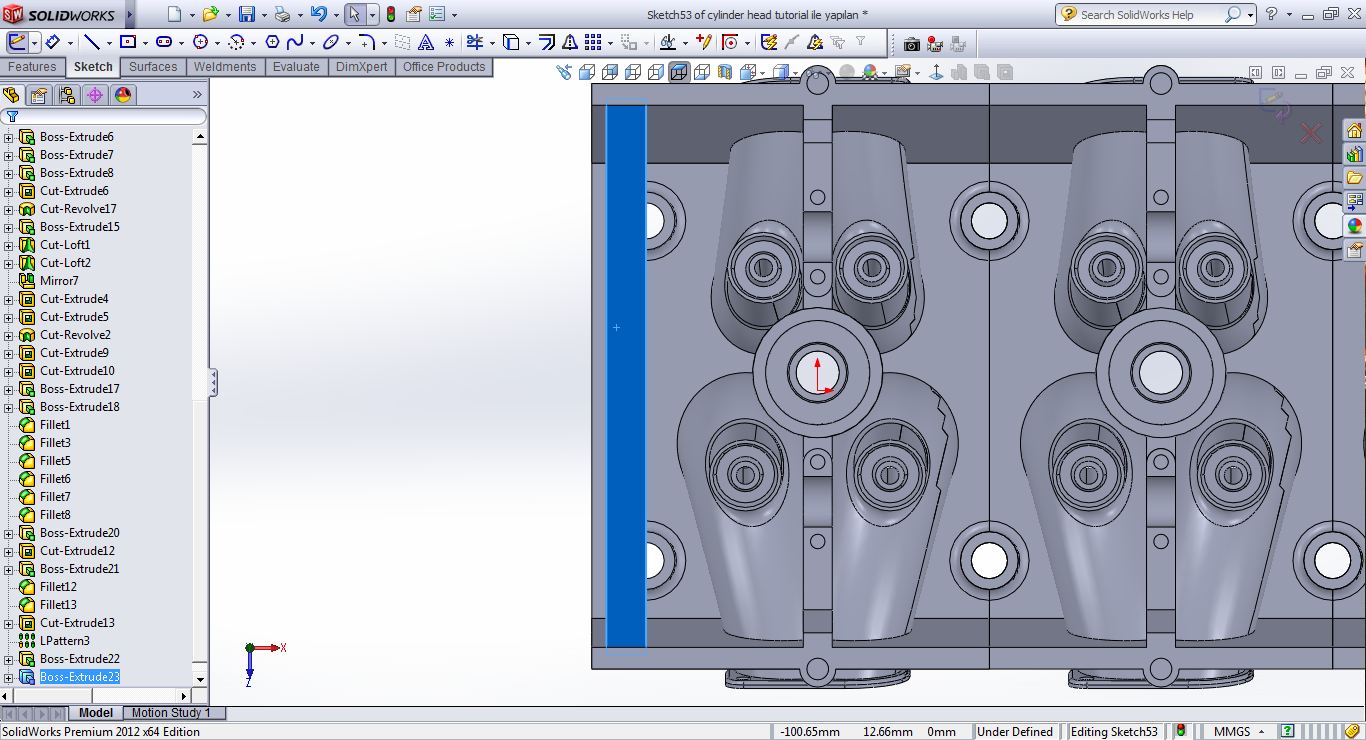

  2. Step 2:

    open a sketch

  3. Step 3:

    use convert entities command

  4. Step 4:

    check the edges that you used for convert entities command

  5. Step 5:

    add a line

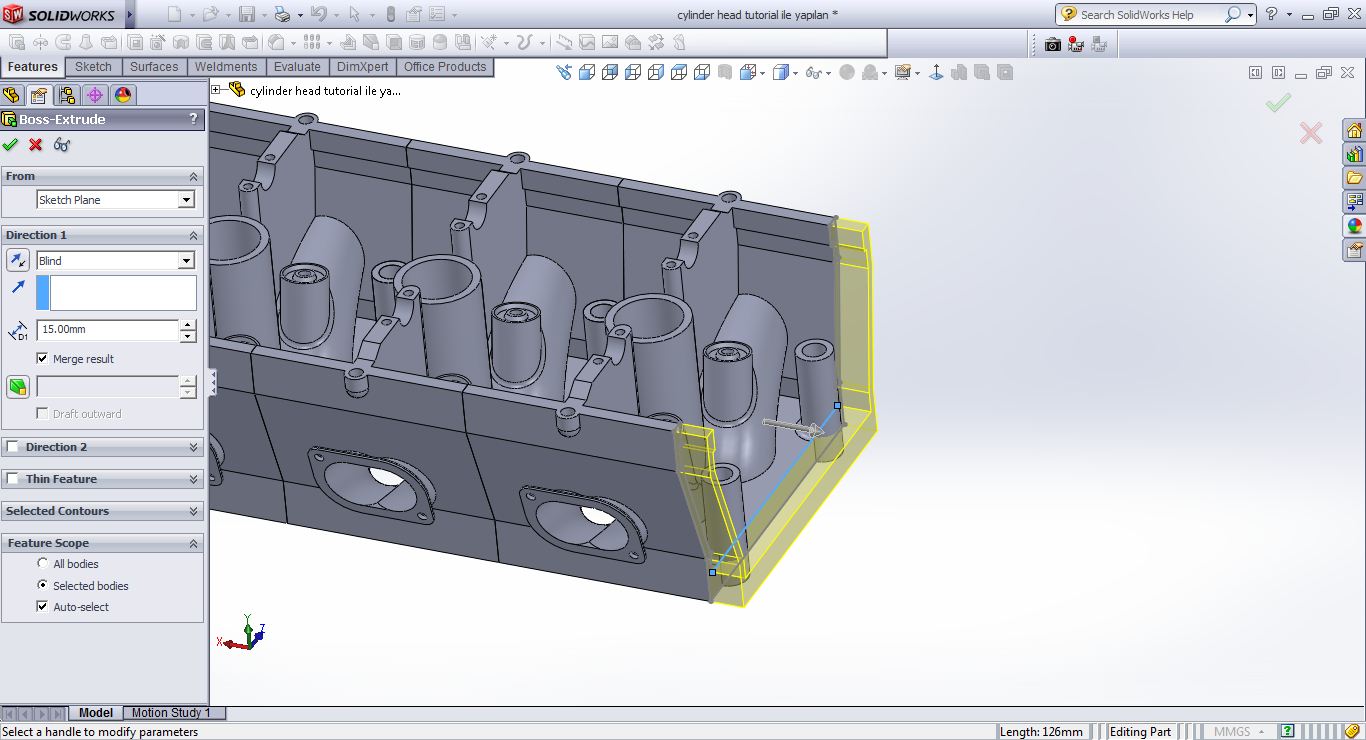

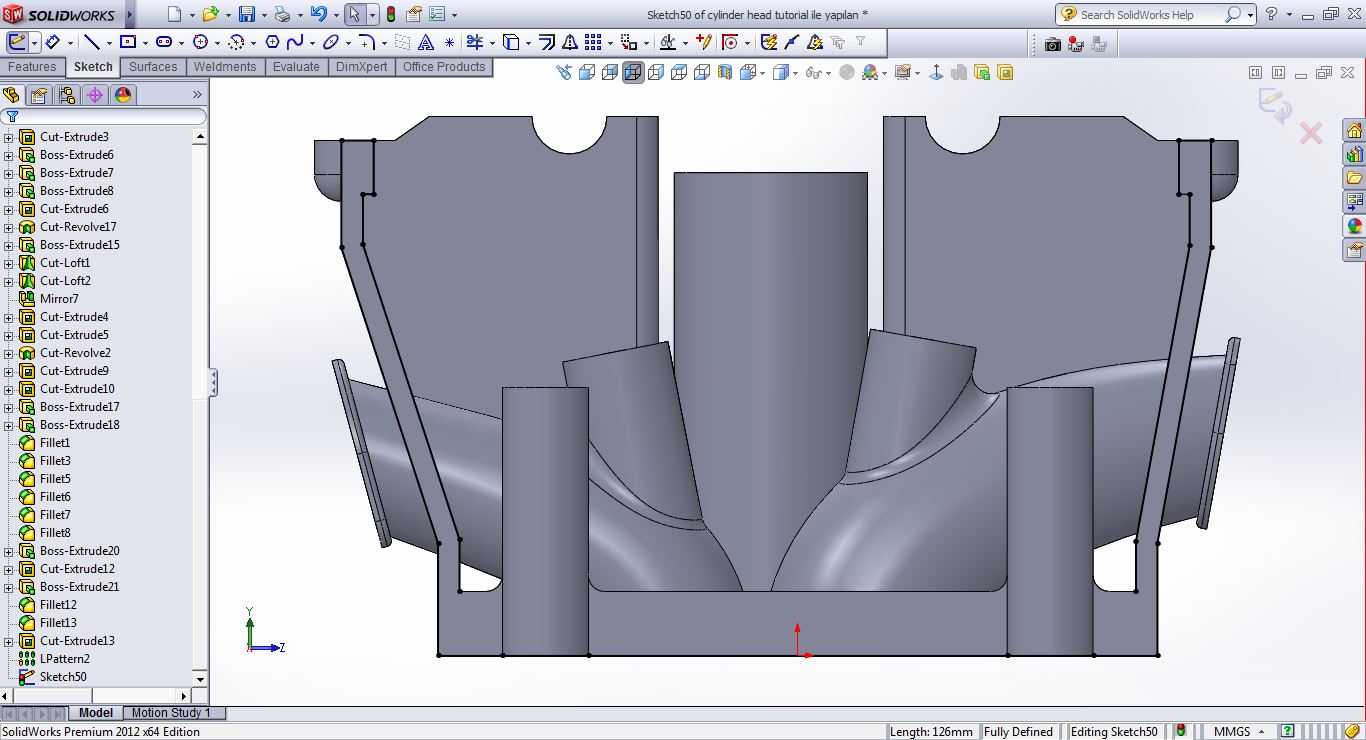

  6. Step 6:

    extrude it by 15 mm

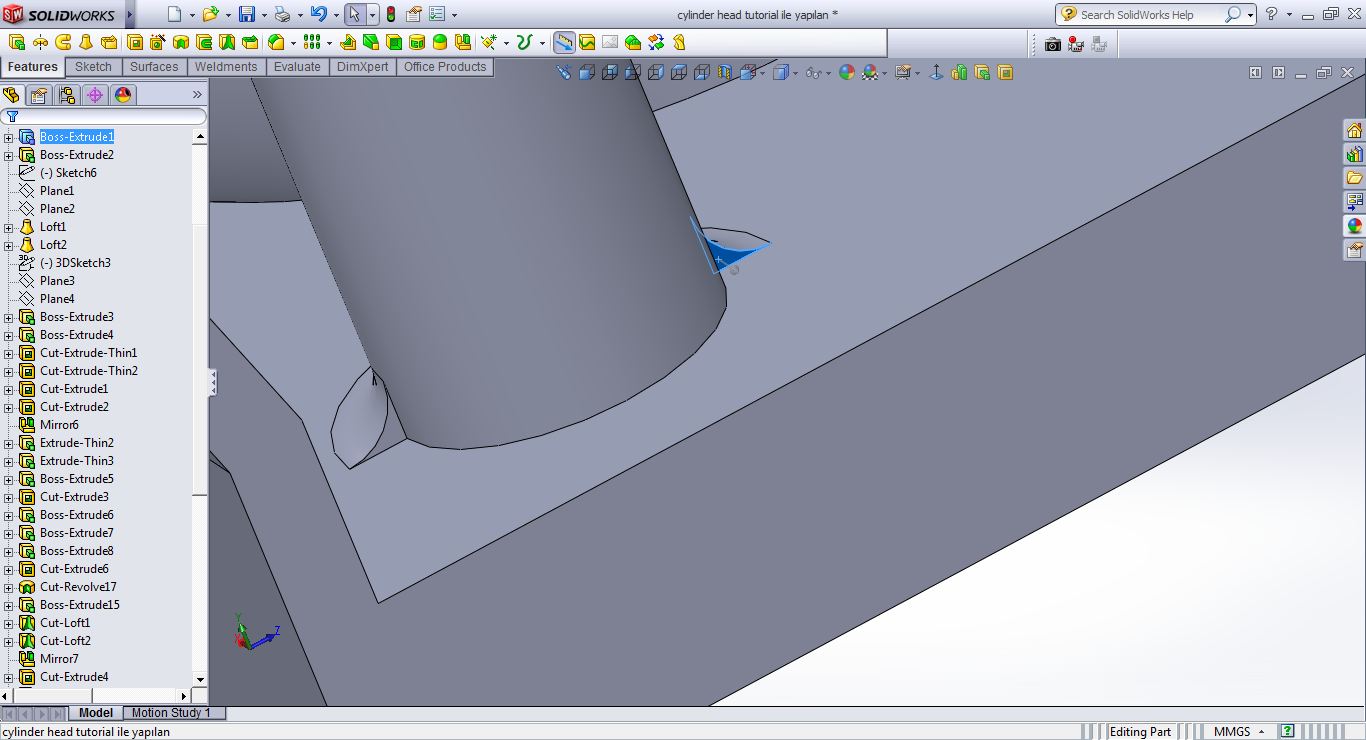

  7. Step 7:

    open a sketch on this litte face

  8. Step 8:

    use convert entities command again

  9. Step 9:

    finish your sketch like shown and use extrude command

  10. Step 10:

    open a sketch .

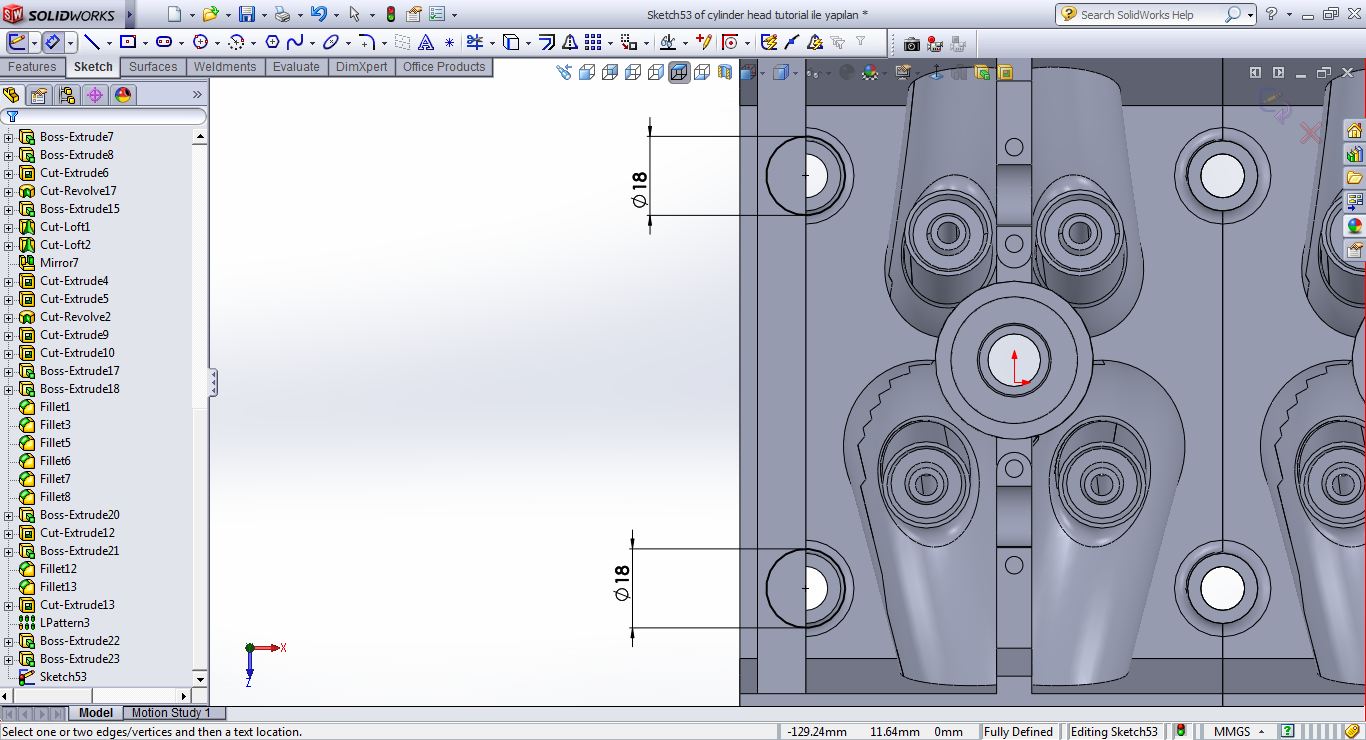

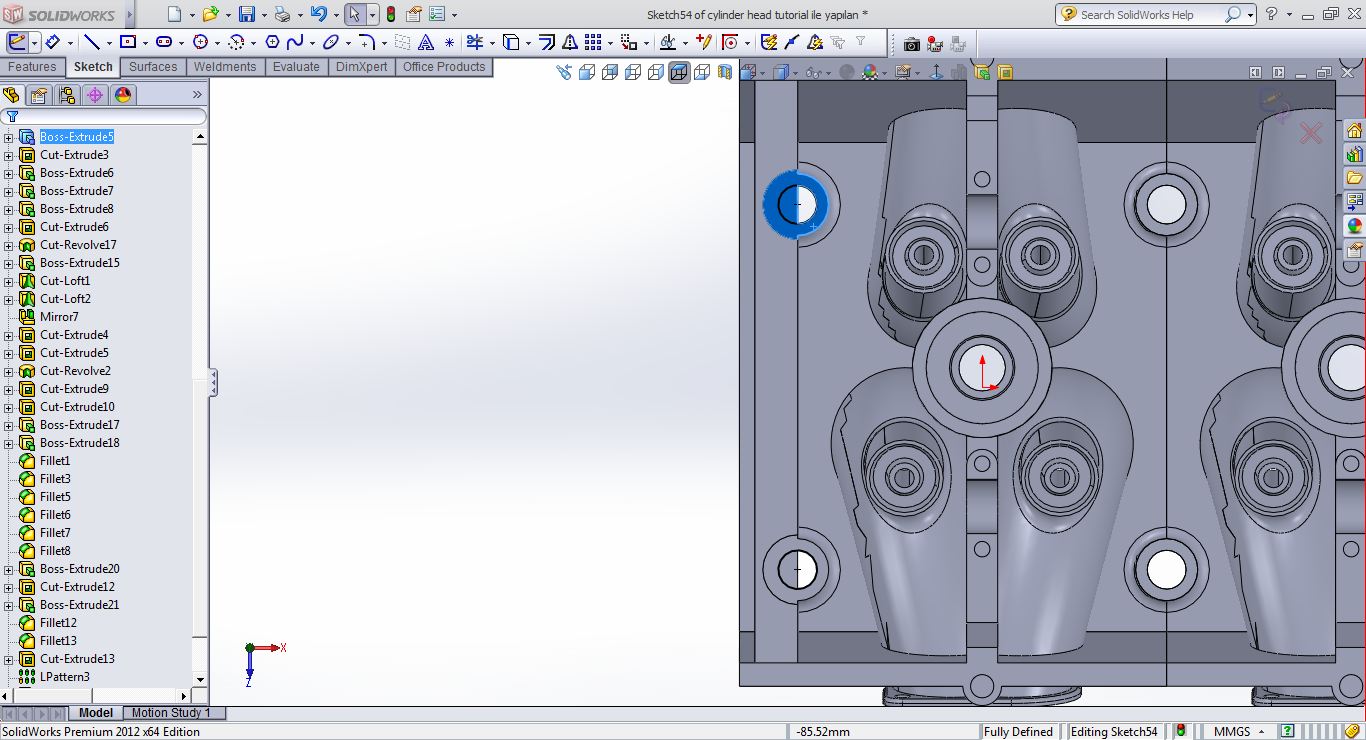

  11. Step 11:

    draw two circles.

  12. Step 12:

    use cut extrude command like shown

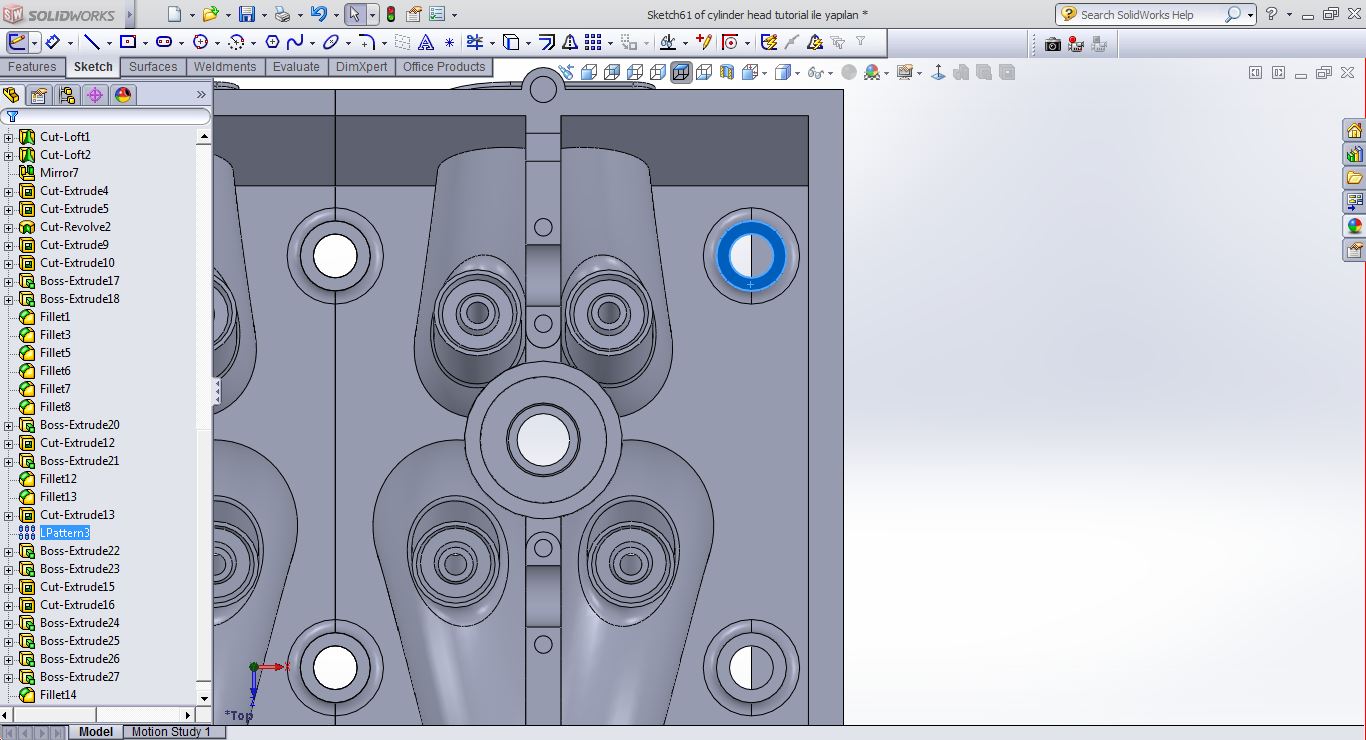

  13. Step 13:

    open a sketch on the shown surface and draw two circles

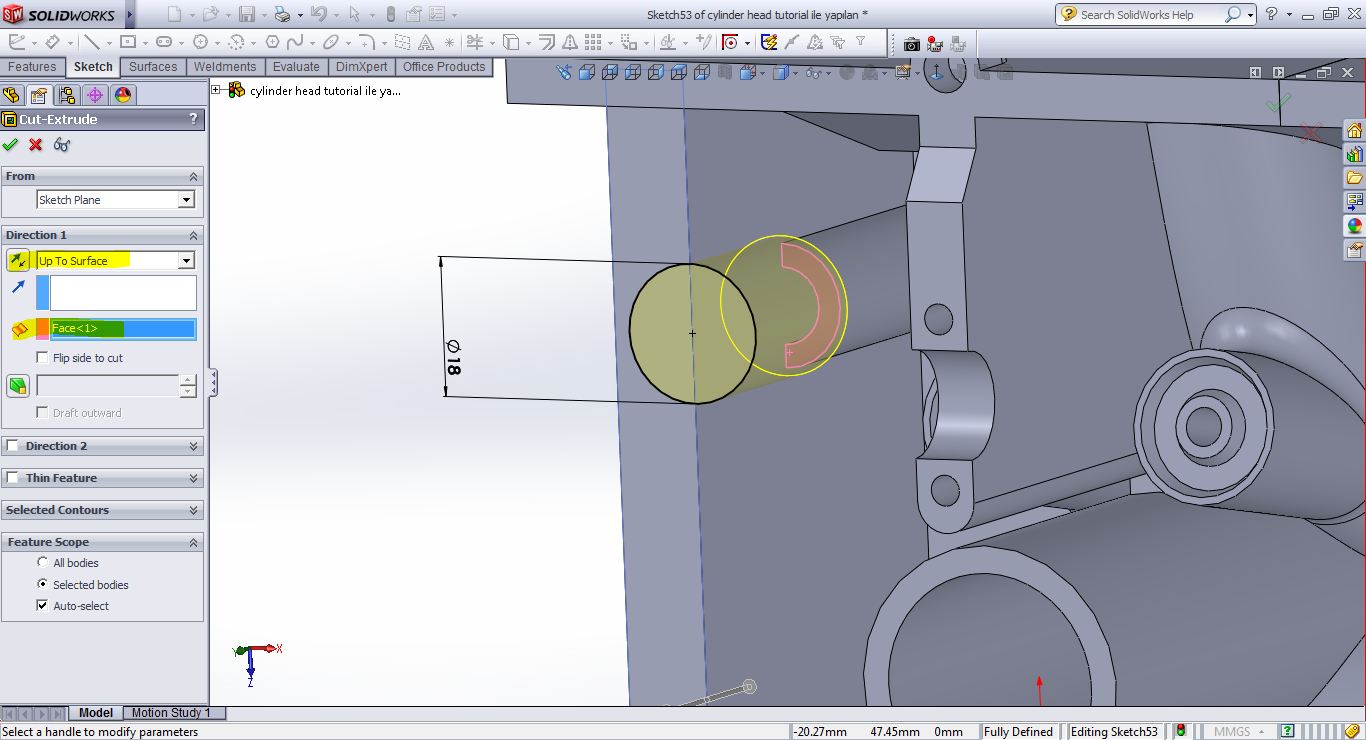

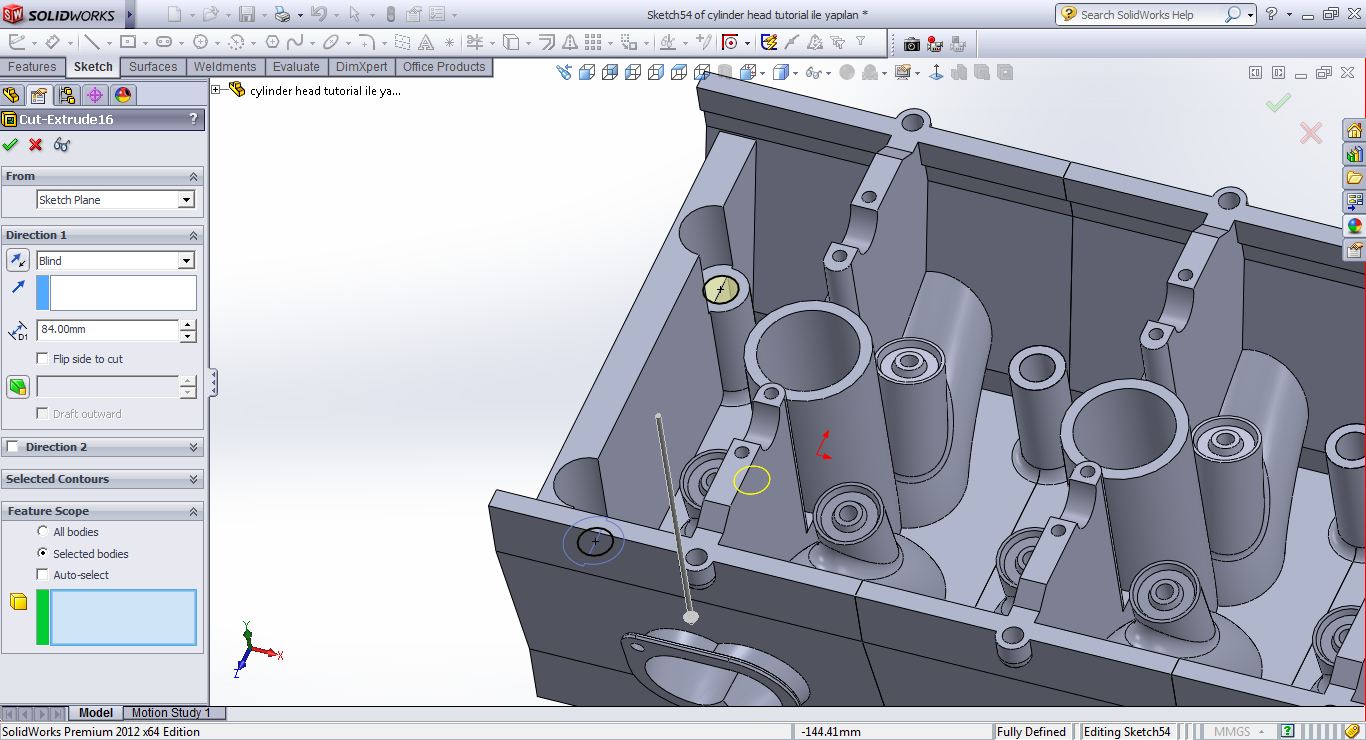

  14. Step 14:

    use cut extrude command

  15. Step 15:

    open a sketch

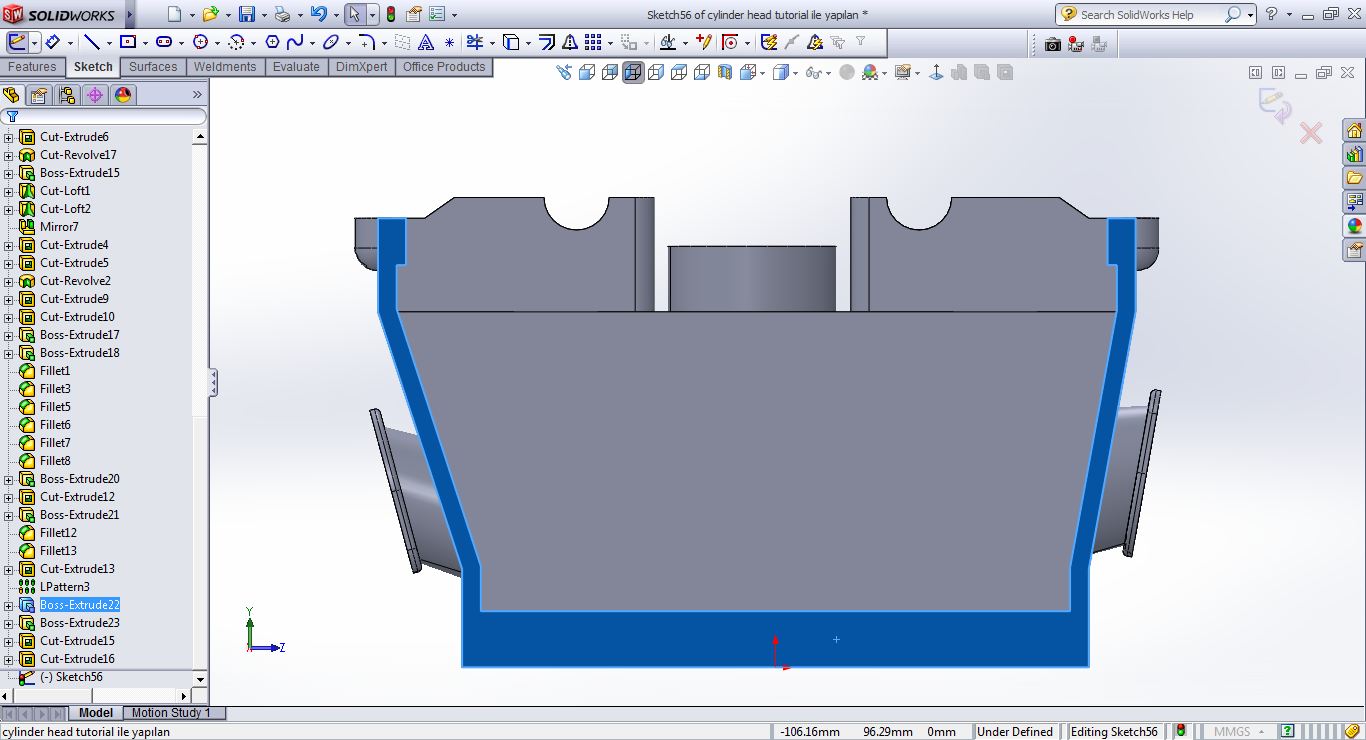

  16. Step 16:

    use convert entities command. .

  17. Step 17:

    use extrude command

  18. Step 18:

    open a sketch .

  19. Step 19:

    draw two circles.

  20. Step 20:

    use cut extrude command like shown

  21. Step 21:

    open a sketch on the shown surface and draw two circles

  22. Step 22:

    use cut extrude command

  23. Step 23:

    open a sketch

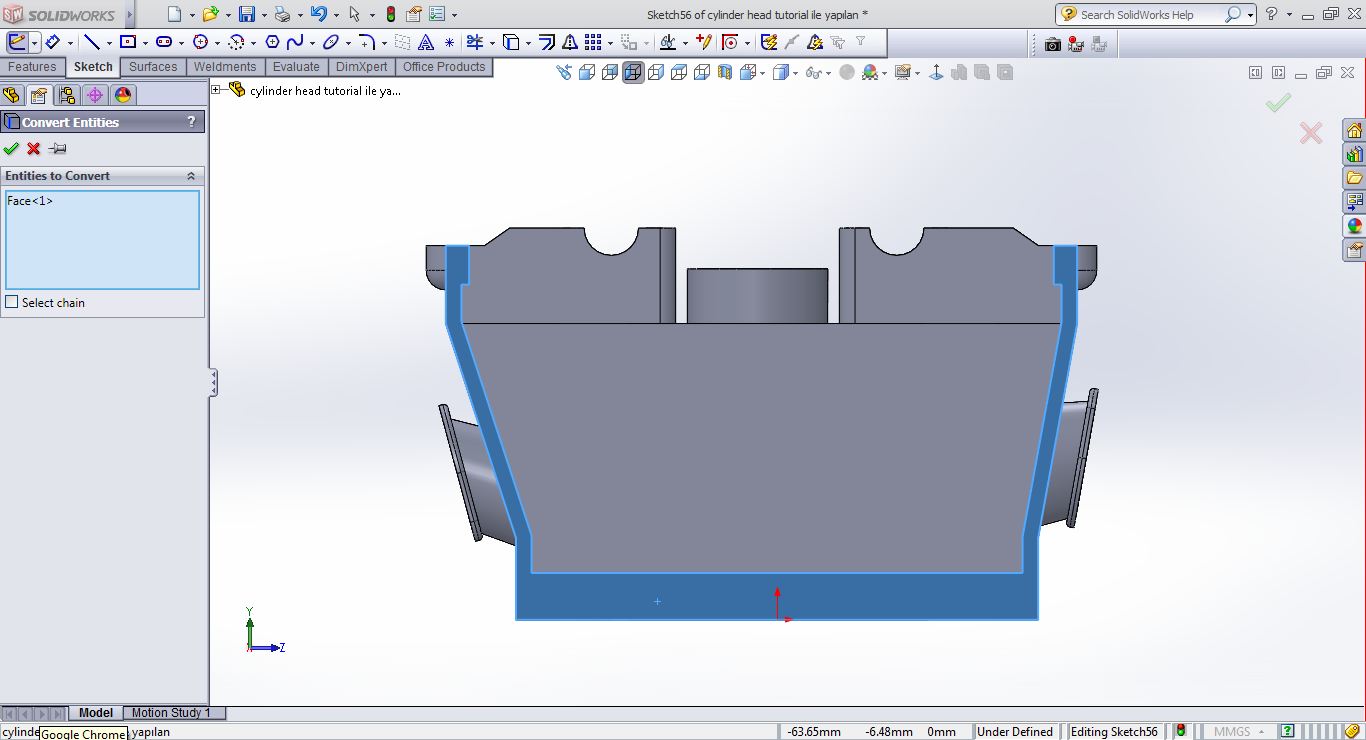

  24. Step 24:

    use convert entities command. .

  25. Step 25:

    use extrude command

  26. Step 26:

    open a sketch on this face

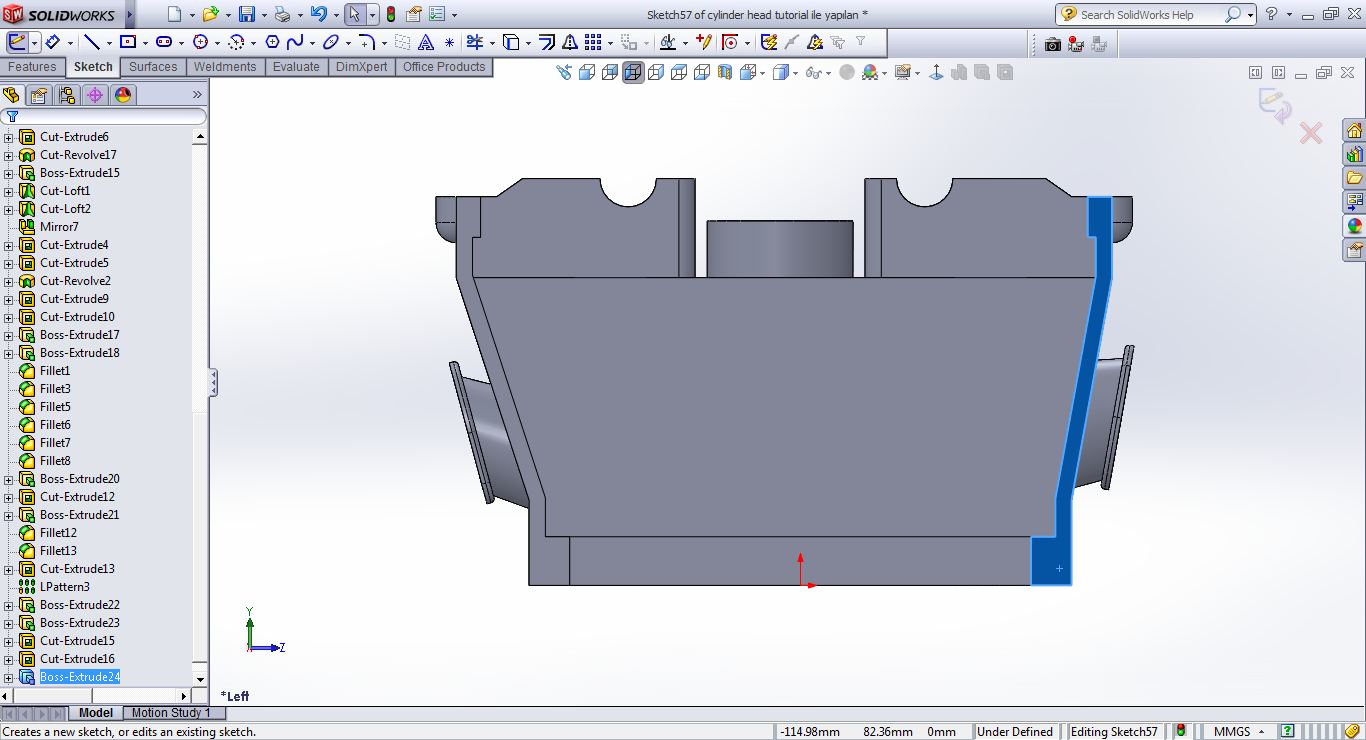

  27. Step 27:

    use convert entities command. . .

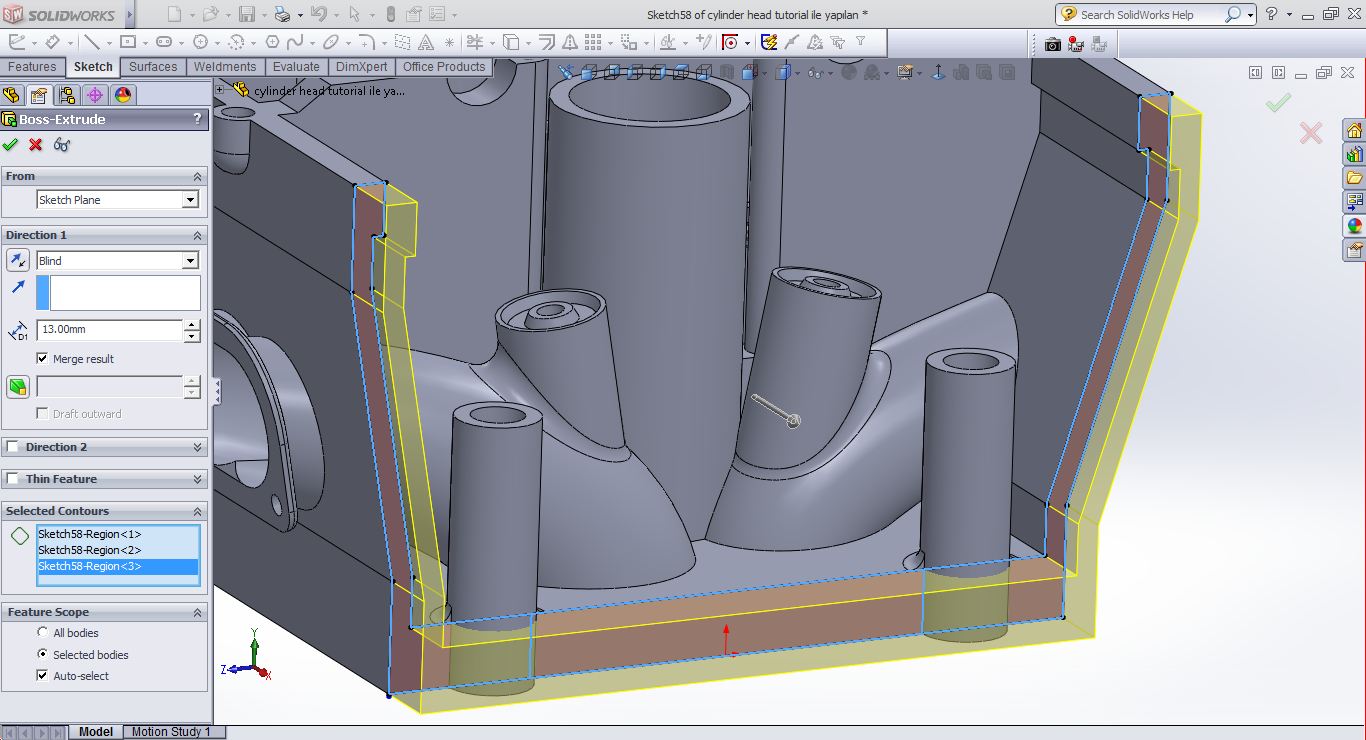

  28. Step 28:

    finish your sketch and extrude it by 5 mm

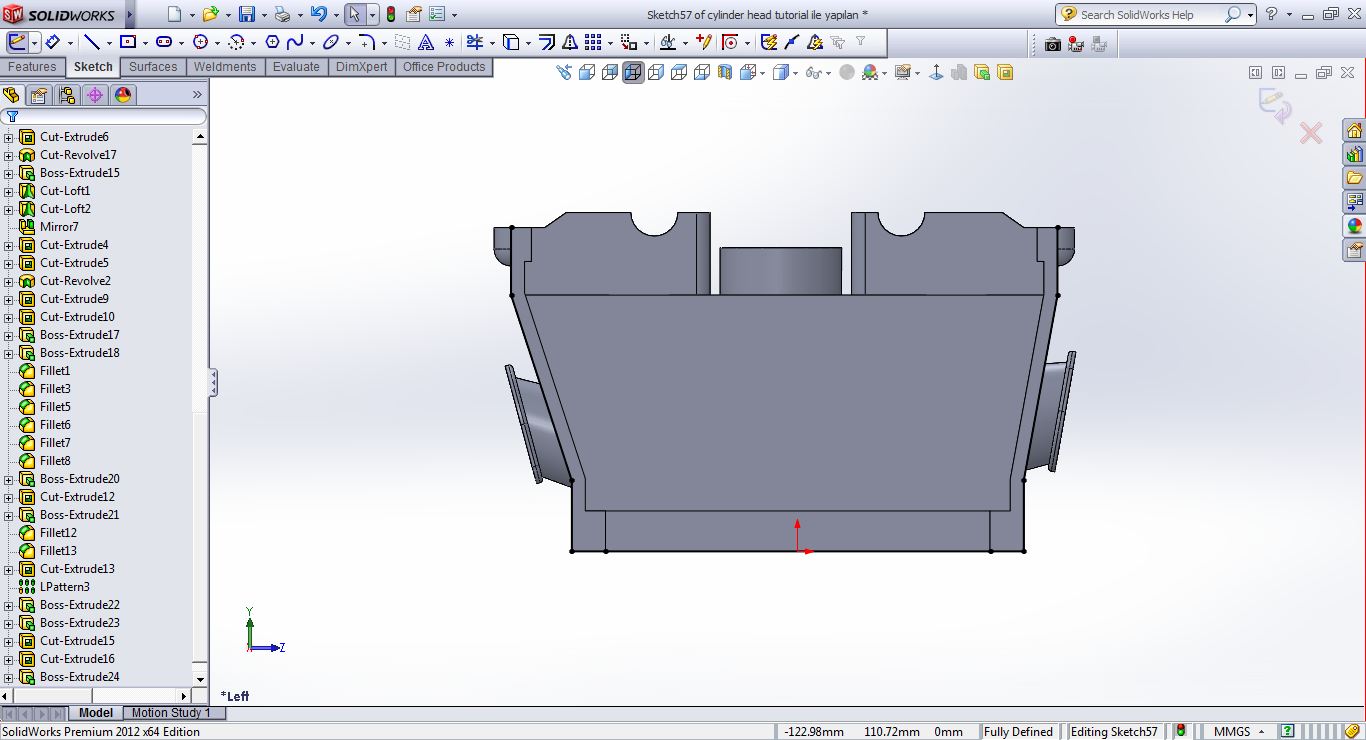

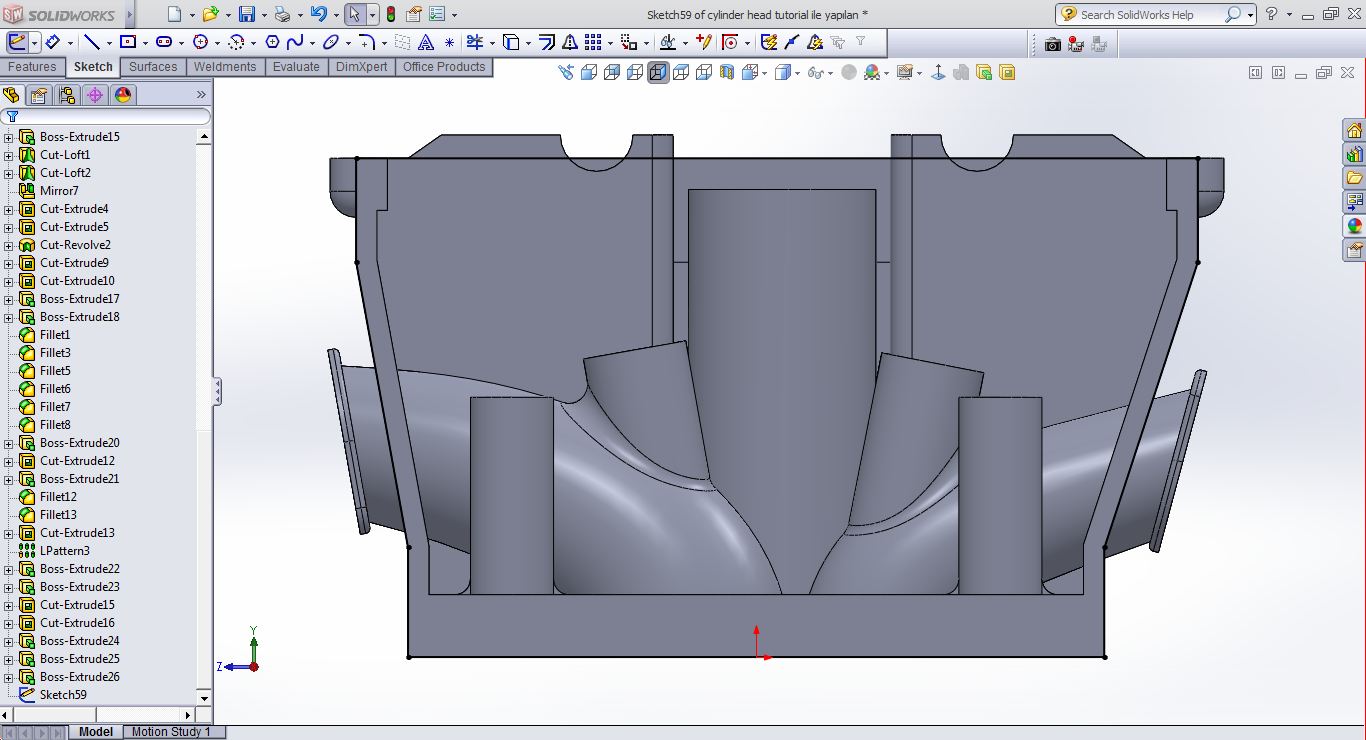

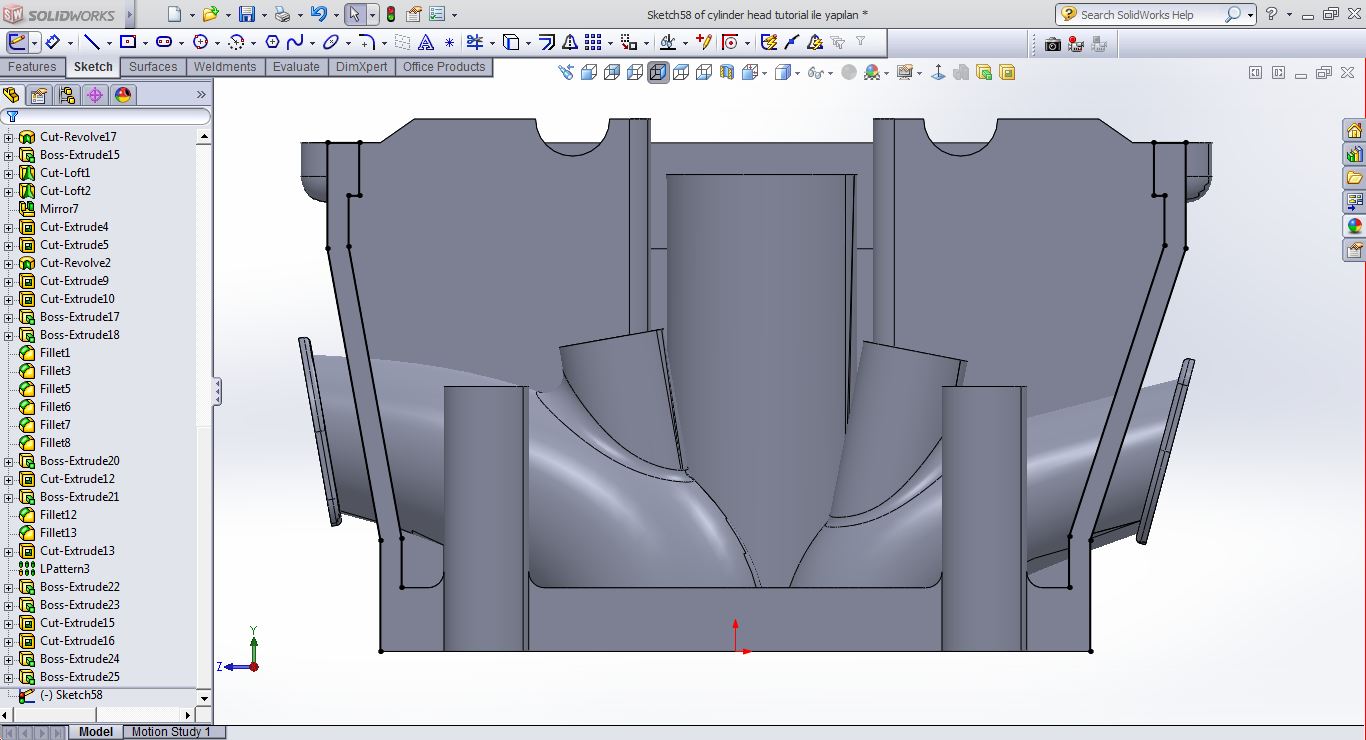

  29. Step 29:

    open a sketch

  30. Step 30:

    use convert entities command

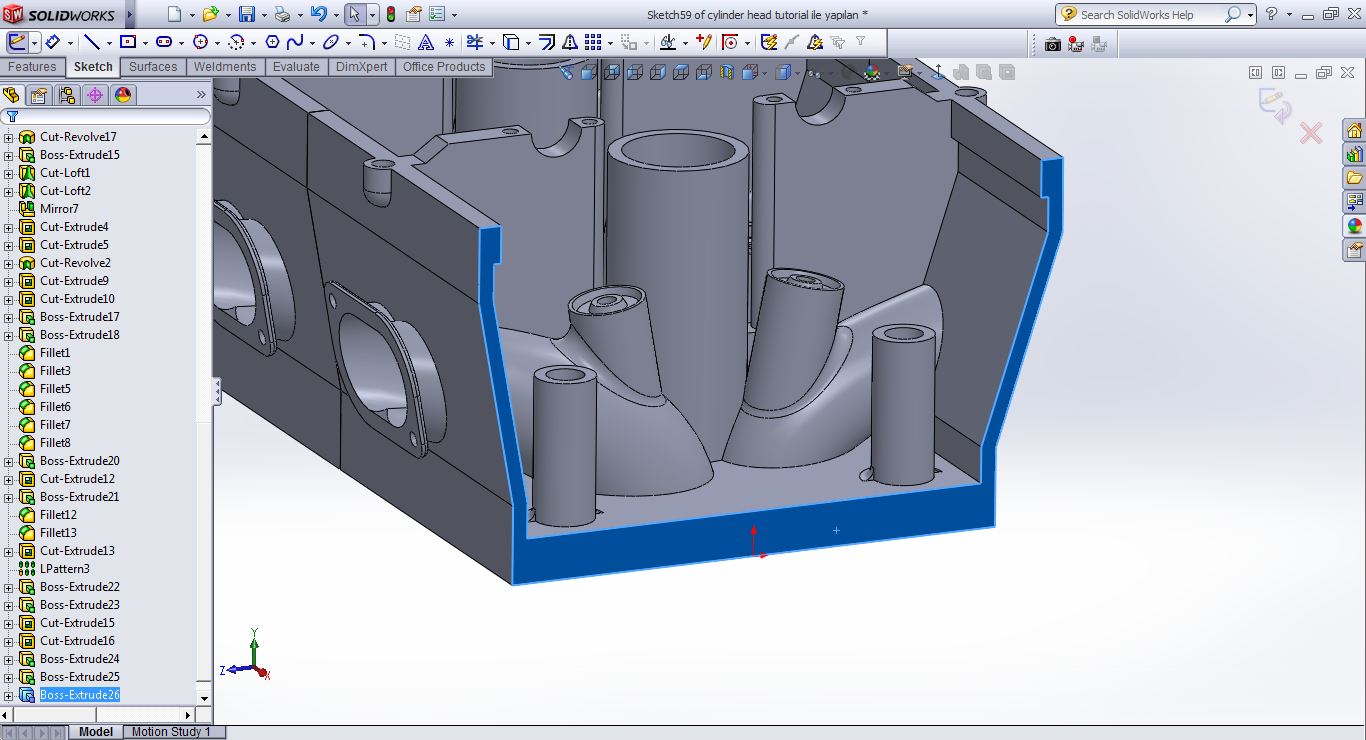

  31. Step 31:

    extrude it

  32. Step 32:

    open a sketch

  33. Step 33:

    draw shown sketch

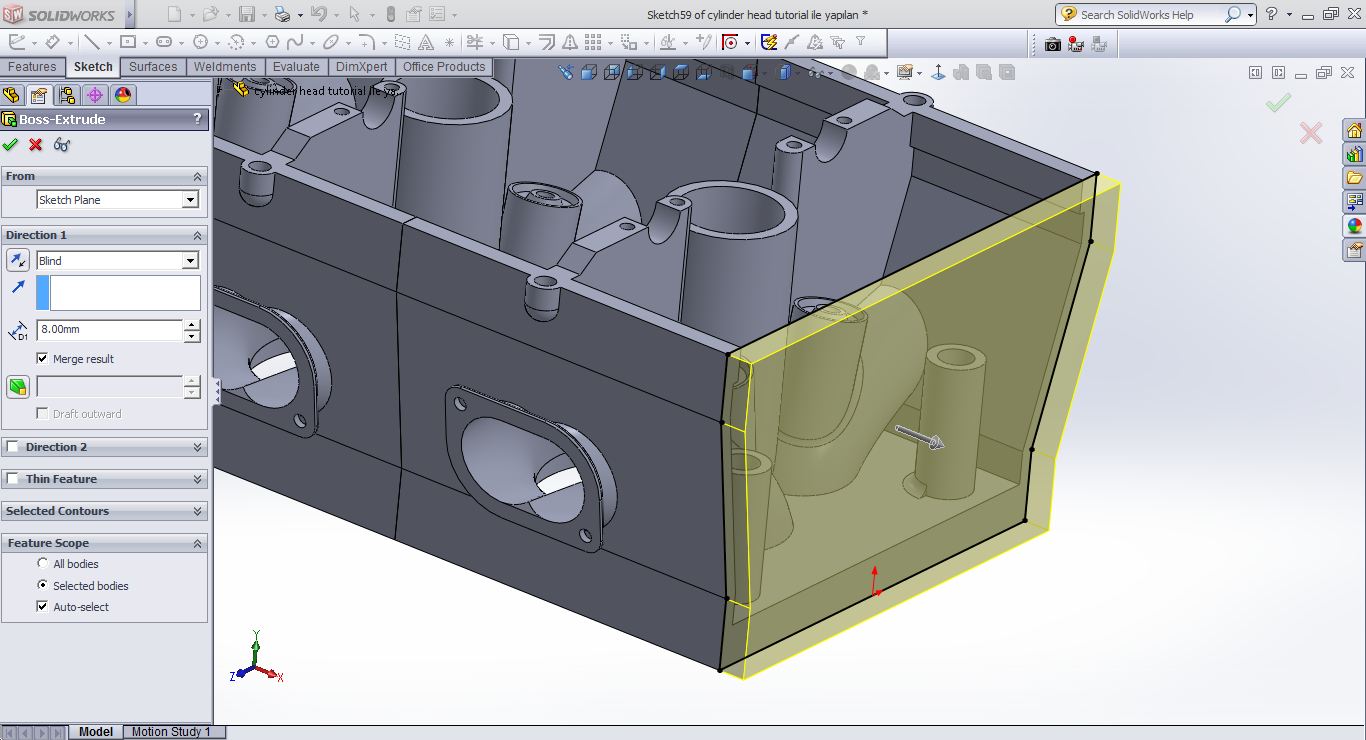

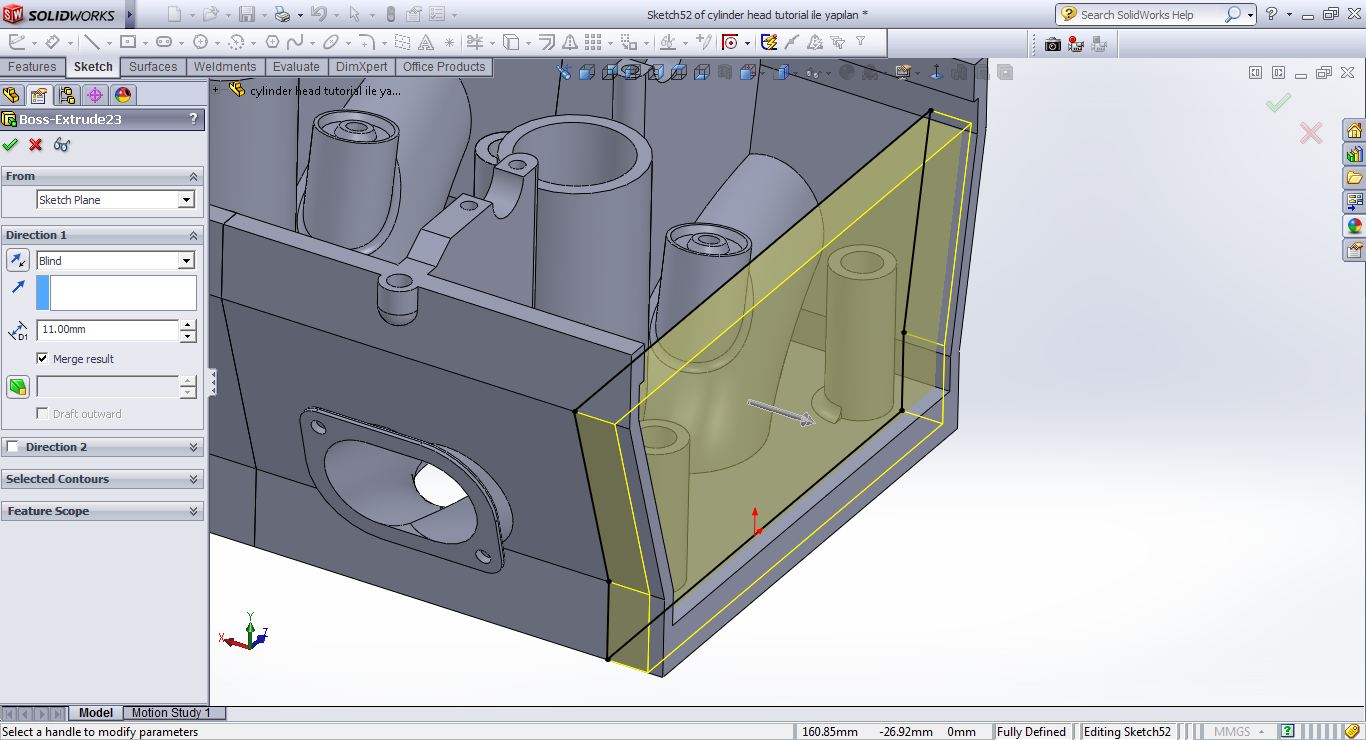

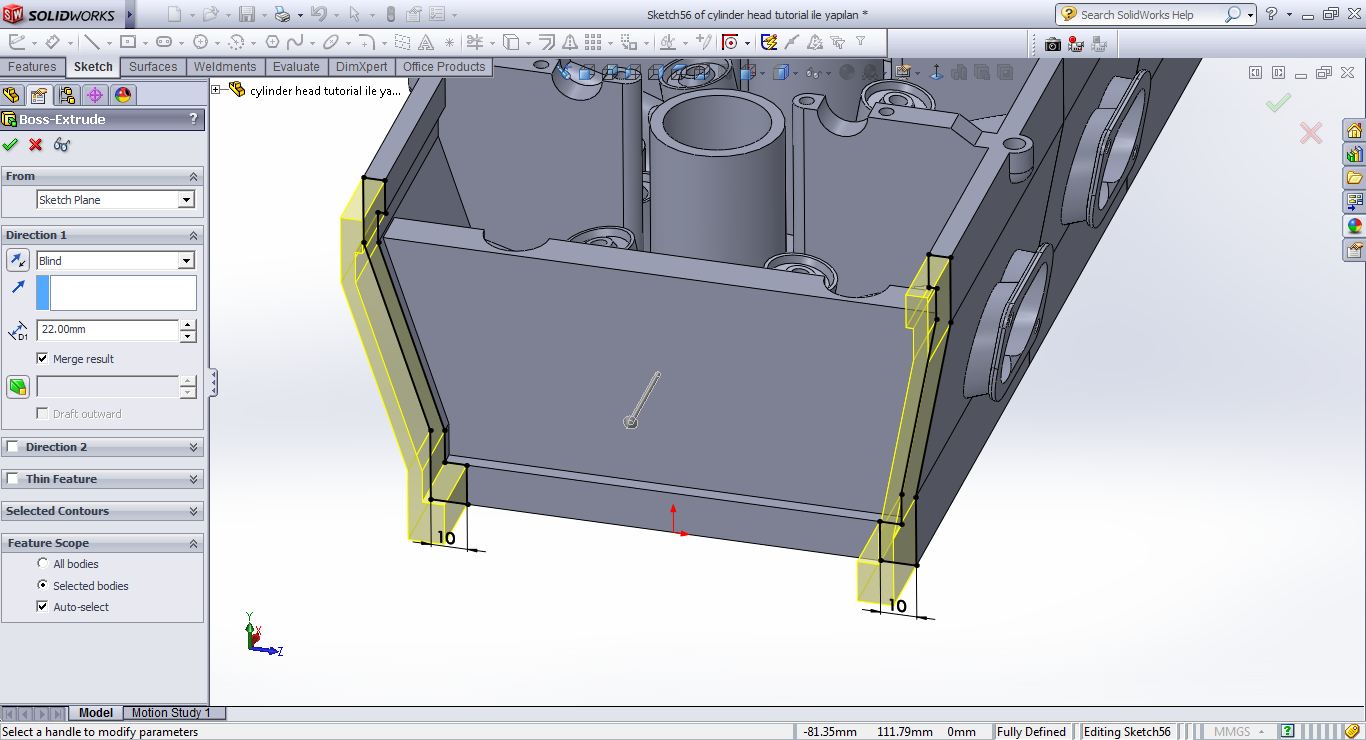

  34. Step 34:

    extrude it bu 8 mm

  35. Step 35:

    use fillet command on these edges

  36. Step 36:

    open a sketch on the cylinder head for the last time. I promise you, there won't be one more sketch on the cylinder head :)

  37. Step 37:

    draw the last circles

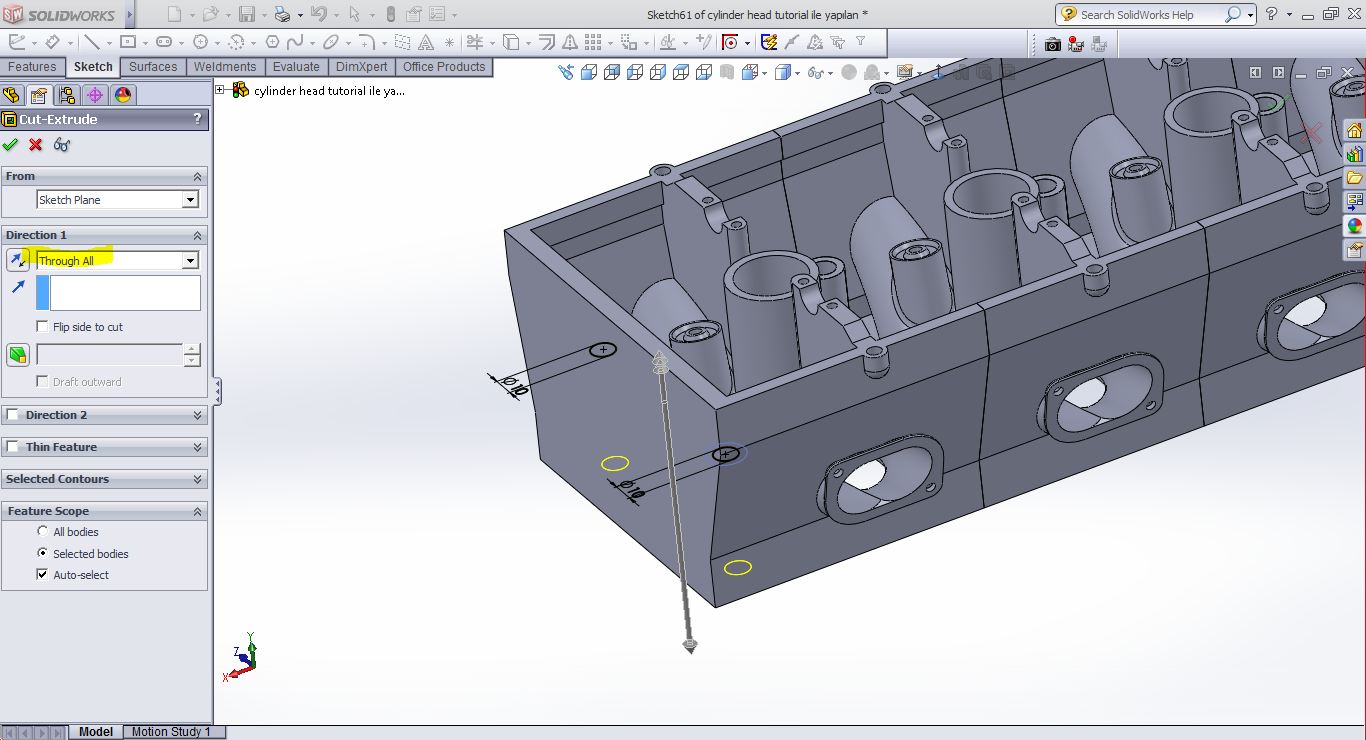

  38. Step 38:

    use the cut-extrude command at last time

  39. Step 39:

    I would be pleased to see your nice renderings here
