Visibility of edge lines when extracting

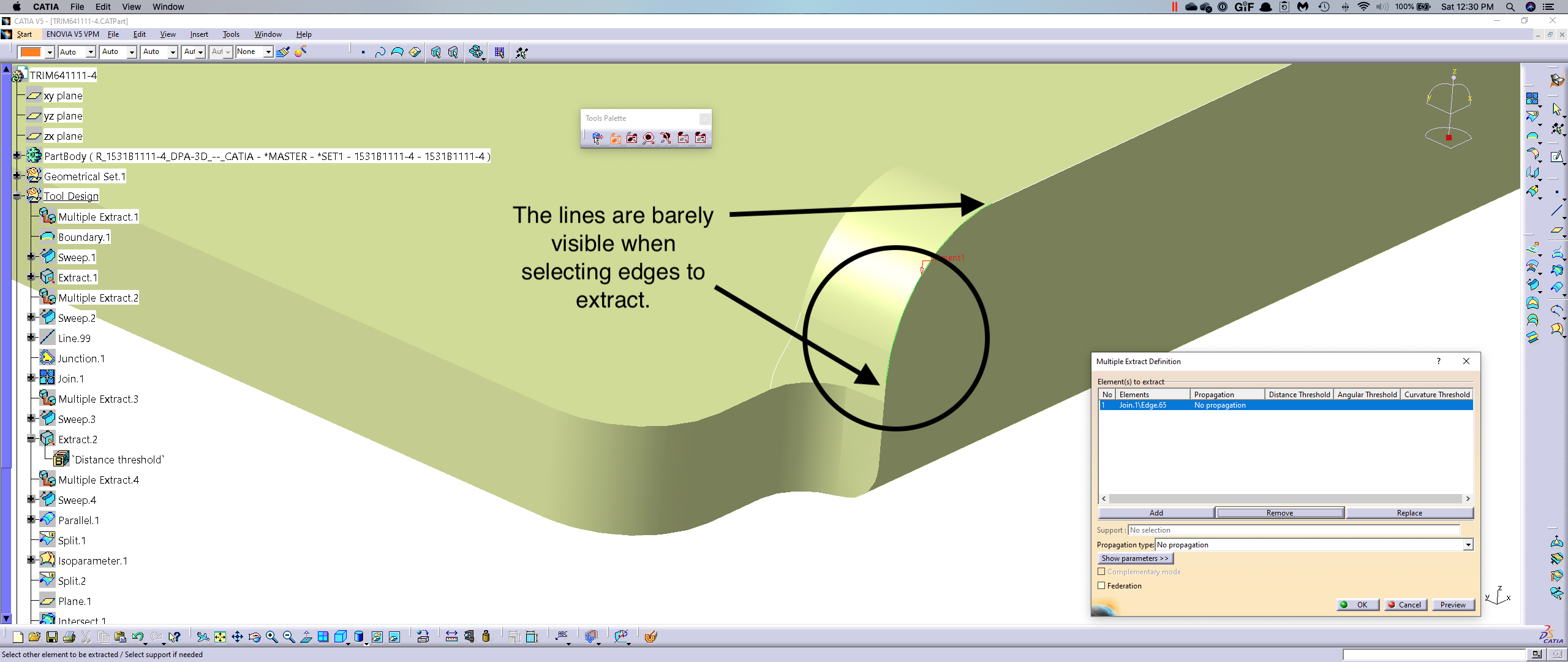

Is there a setting to increase the thickness of lines on edges when extracting? The green lines are so small its sometimes hard to see where they end. It's the same with the white lines after extraction.
3 Answers
Jeffrey, there are three things you can play with to get your desired appearance.

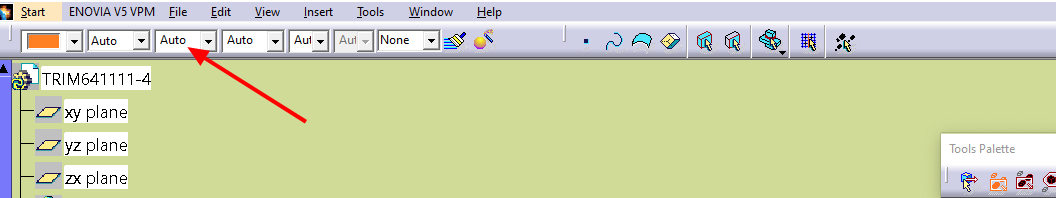

1. [Ref 1.png] The selected drop down list controls the thickness of lines, edges. By default catia has second line thickness. Now select an edge, then select your suitable thickness.
2. [Ref 2.png] While working I always use "Shading with Edges" or Shading with Edges without smooth edges", because they are comfortable for selecting or visualising model in detailed view (like edges and surfaces will be highlighted). I recommend this one, but not compulsory to use these view modes.

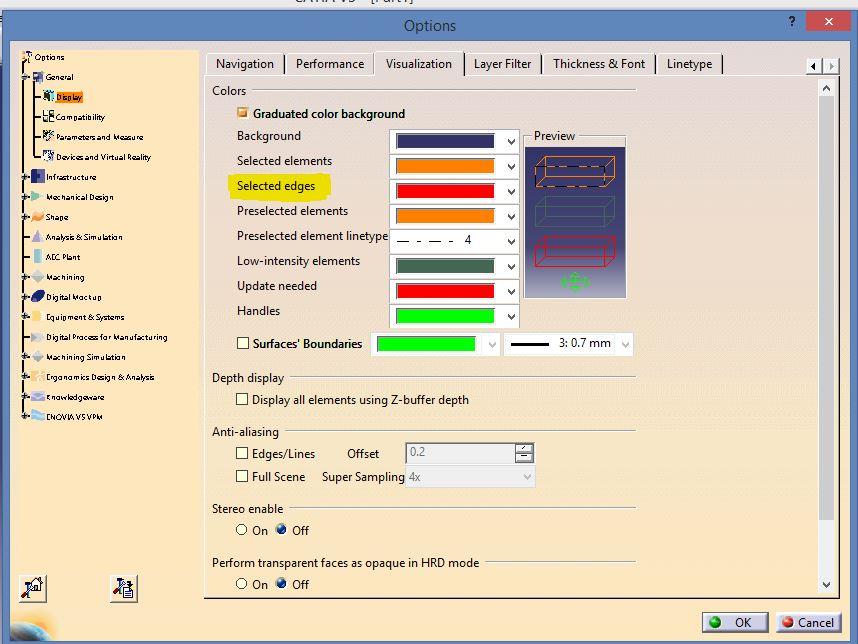

3. [Ref 3.JPG] In case if you wish to change color of selected edges or any surface etc., go to Tools > Options > General > Display > Visualization.
Hope this solves problem.
Thank you Ananth. My lines don't seem to change thickness with the drop downs but using the other views you recommended does help.
